MODEL TCM-3700-2 0109-001 225 Key N o. P AR T No . P AR T NAME Q’ t y REMA RKS NOTE 1 3 4 4 1 1 0 43 5 00 4 SCR P AN 4X8 2 M4X8 P AN 1 3 6 4 1 1 0 36 86 09 SCR P AN+SW+W 5X12 6 1 4 0 4 1 1 0 36 86 09 SCR P AN+SW+W 5X12 1…
MODEL TCM-3700-2
0109-001
224
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
11-13
70 411 036 8609 SCR PAN+SW+W 5X12 1
71 411 141 4107 WASHER V 5X10X1 4 FW5
72 411 141 6705 WASHER SPR 5 4 SW5
73 630 000 7749 BOLT,HEX-SCT 4 M5X10
77 630 057 9017 SUPPORT 1 739FB-01V-004
78 411 141 4107 WASHER V 5X10X1 2 FW5
79 411 141 6705 WASHER SPR 5 2 SW5
80 630 000 7756 BOLT,HEX-SCT 2 M5X12
81 630 091 5945 BRACKET 1 739FB-01V-013
82 411 141 4107 WASHER V 5X10X1 4 FW5
83 411 141 6705 WASHER SPR 5 4 SW5
84 630 000 7756 BOLT,HEX-SCT 4 M5X12
85 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0000 739FB-01U-001
86 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
87 411 086 4408 WASHER SPR 3 4 SW3 F
88 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
89 630 091 6041 COVER 1 739FB-01V-014
90 411 051 2804 SCR TRS 4X8 4 M4X8 TRS
91 630 091 9301 BRACKET 1 739FB-01V-015
92 630 091 1541 UNIT,DRIVER 1 SMD(H), #SGDM-50ADA-R
739FB-01D-019
92 -1 630 091 5914 BRACKET 1 739FB-01V-043
92 -2 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
92 -3 411 141 3001 WASHER SPR 6 2 SW6
92 -4 630 000 7886 BOLT,HEX-SCT 2 M6X16
93 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
94 411 008 1706 WASHER SPR 4 4 SW4 F
95 411 003 0001 SCR PAN 4X12 4 M4X12 PAN
96 411 141 4107 WASHER V 5X10X1 4 FW5
97 411 141 6705 WASHER SPR 5 4 SW5
98 630 000 7756 BOLT,HEX-SCT 4 M5X12
101 630 051 2199 BRACKET 1 739L--01B-033
102 411 141 4107 WASHER V 5X10X1 2 FW5
103 411 141 6705 WASHER SPR 5 2 SW5
104 630 000 7756 BOLT,HEX-SCT 2 M5X12
107 630 089 4660 ACCESSORY,WIRING 1 739FB-01D-908
108 630 095 1417 ACCESSORY,WIRING 1 739FB-01D-907
109 411 113 9109 SCR TRS 5X10 8 M5X10 TRS
120 630 058 8569 BRACKET 1 739FB-01V-016
121 630 051 5763 WIRE PARTS 2 739FB-01D-101
122 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
123 411 008 1706 WASHER SPR 4 2 SW4 F
124 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
126 411 036 8609 SCR PAN+SW+W 5X12 11
127 411 141 4107 WASHER V 5X10X1 2 FW5
128 411 141 6705 WASHER SPR 5 2 SW5
129 630 000 7756 BOLT,HEX-SCT 2 M5X12
131 630 051 5763 WIRE PARTS 2 739FB-01D-101
132 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
133 411 008 1706 WASHER SPR 4 2 SW4 F
MODEL TCM-3700-2
0109-001
225
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
134 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
136 411 036 8609 SCR PAN+SW+W 5X12 6
140 411 036 8609 SCR PAN+SW+W 5X12 1
11-13
MODEL TCM-3700-2
0109-001
226
㔚᳇ᓮㇱ ELECTRICAL SECTION

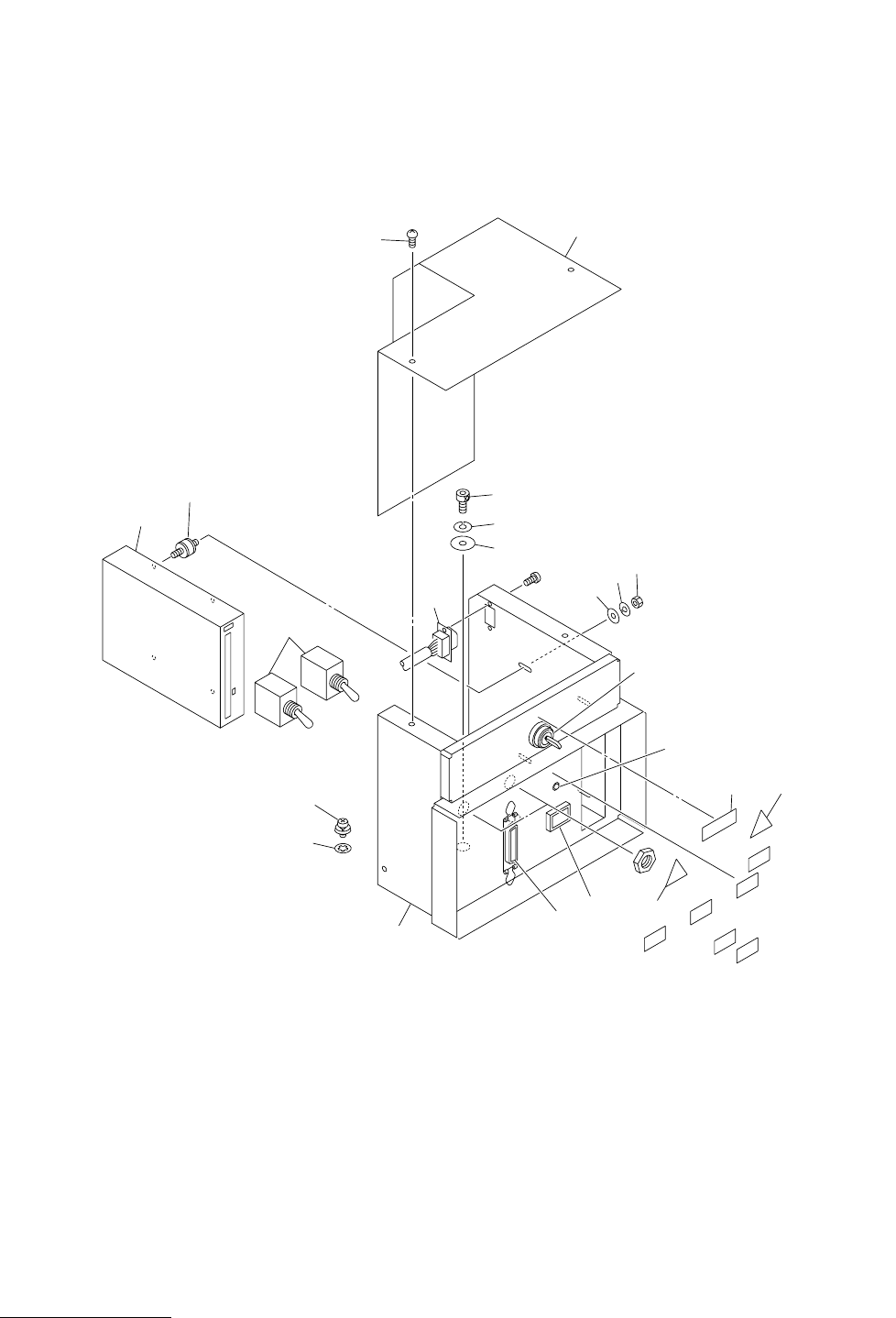

Fig.11-14 ೨㕙ࠦࡦ࠰࡞ Front Console
1
35
36
30
29
28
25
24
23
26
22
21
2
50
27-1
27-1
9
27
8
31
7
32
