TM1792_Block skip of the Board Data after Block Offset Distribution.pdf
SMT Software Engineeri ng Group IMOperationsYAMAHAMOTORCO. ,LTD. MD OC-SOFT50052 1/7 B l ock s ki p of Board Dat a af ter Block Offset D i stribution Co n tent s Contents ........................…
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50052
1/7
Block skip of Board Data after Block Offset
Distribution
Contents
Contents ........................................................................................................................................ 1
1.
Introduction ............................................................................................................................ 2
2.
Summary ................................................................................................................................ 2
3.
Basic operations .................................................................................................................... 3
3.1.
Block offset distribution ................................................................................................... 3
3.2.
Enabling the function to use............................................................................................ 4
3.3.
Operation of enabling the function .................................................................................. 5
3.3.1.
Confirming the state of the skip ............................................................................... 5
3.3.2.
Starting auto-running ............................................................................................... 6
3.3.3.
Other operations ...................................................................................................... 6
3.4.
Disabling the function ...................................................................................................... 7
4.
Limitations .............................................................................................................................. 7
Revision No. Update Changes
000 2010/02/16 Create
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50052
2/7
1. Introduction
The target model and the version are as follows.
Table 1 Target model and Target version
Item Object Remarks
Target Model YS Series mounter,
YG12 Series mounter, YG300
Target version VGOS V3.11STD R1.000 or later
Y.Fact V1.11STD R1.000 or later
2. Summary
The function has been added that skip by block unit can be executed in a distributed board data
of the block.
Until now, it was necessary to confirm the mount data that were skipped one-by –one manually,
when you wanted to do skip by block unit for the distributed board data.
In this function,you can easily set the skip setting of the mount data by selecting the block for the
skip.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50052
3/7
3. Basic operations
3.1. Block offset distribution
The skip function of the block unit can be used by doing the Block offset distribution.
There are the following restrictions when the skip function of the block unit is used.
When the board data is created by the application before the object version is used, it is
necessary to do the Block offset distribution over again. (※)
When the Block offset distribution is done without Note Data, this function cannot be used.
The existence of the Note data can be distinguished from the existence of the row where
column [Board] - [Mount] - [Skip] is “Note” (Refer to Fig 3.1). The row [Skip] is set when the
block offset distribution is done with Note Data.
When the number of the block offsets before block offset distribution is 512 or more, this
function cannot be used.
The Board Data File must be YGX file format to use this function. When you save it by
Board Data File other than YGX file format, this function cannot be used.

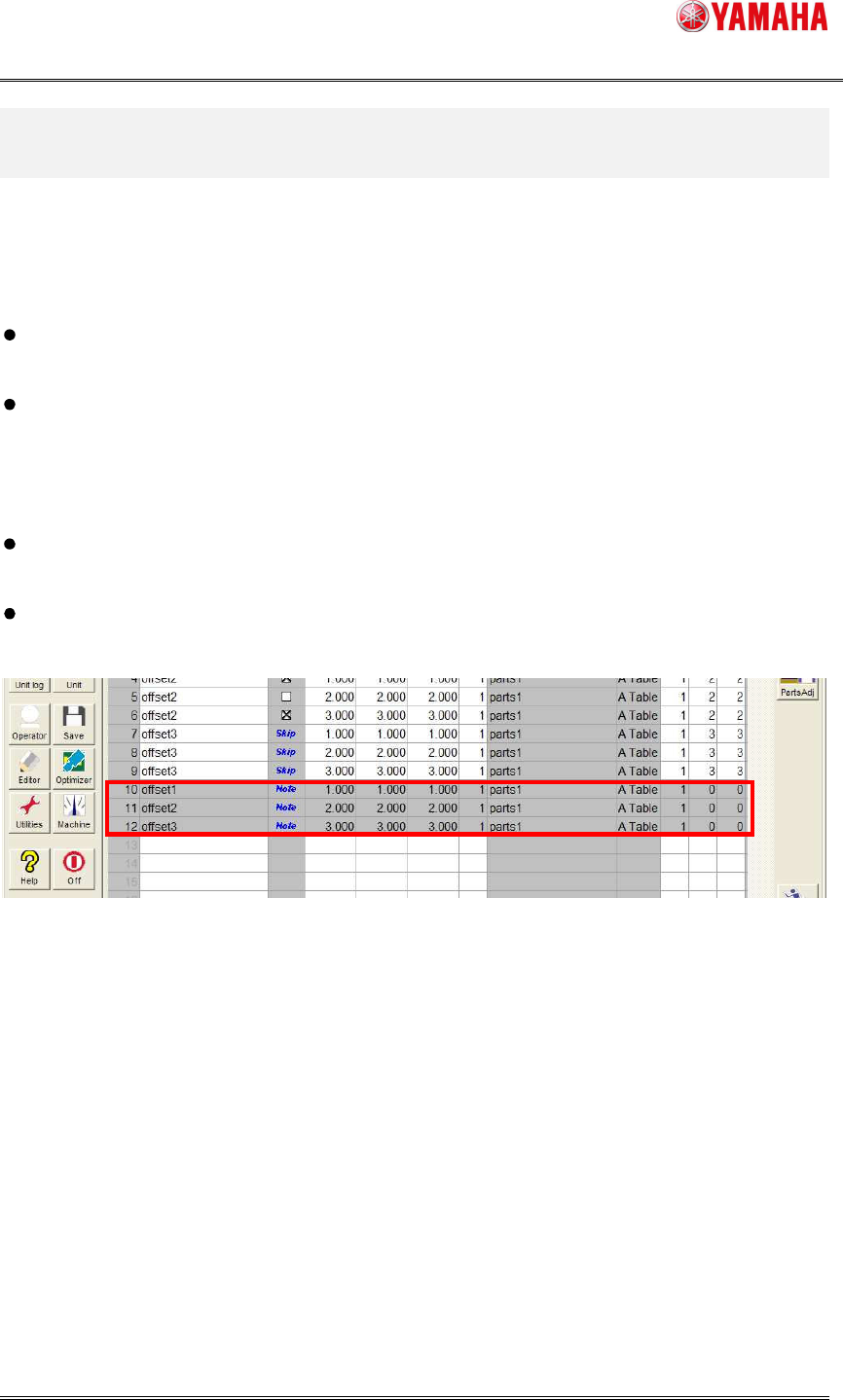

Fig 3.1 Row of Note Data
※For details of the Block offset distribution, please refer to Programming Manual (Chapter 5 3.3
Block offset distribution and return) which is supplied with machine.
