- - REF.NO N OTE PART NO D E S C R I P T I O N Qty 1 400-01472 R M ONITO R ST AN D L 1 2 SL-604109 2 -TN SCREW 2 3 400-01473 R M ONITO R ST AN D R 1 4 SL-604109 2 -TN SCREW 2 5 400-01474 R M ONITO R BRACKET 1 6 SL-6041…
- -
55.REAR MONITOR COMPONENTS
2
4
3
3 4
5
6
7
1 0
9
8
2 1
2 1
1 3
1 8
2 0
2 0
1 9
1 9
2 0
2 0
1 4
1 9
2 3
2 2
2 2
2 3
1 2
2 5
1 1
2 6
2 7
2 9
3 0
3 0
3 1
3 2
3 3
3 5
3 6 3 7
1 5
2 8
2 0
3 9
4 0
3 8
4 1
4 0
4 2
4 3
4 4
4 5
4 6
4 7
4 9
5 0
5 1
5 2
1
4 8
1 6
2 0
1 7
2 4
2 0
5 4
5 3
5 5
5 7
5 6
5 4
5 8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-01472 R MONITOR STAND L 1
2 SL-6041092-TN SCREW 2
3 400-01473 R MONITOR STAND R 1
4 SL-6041092-TN SCREW 2
5 400-01474 R MONITOR BRACKET 1
6 SL-6041092-TN SCREW 4
7 400-96860 SHOULDER SCREW D=6.35 H=2.9 2
8 161-87007 WING BOLT 1
9 WP-0641601-SC WASHER 1
10 WS-0610002-KN SPRING WASHER 6.1X12.2X1.5 1
11 400-01396 REAR KB ASS'Y 1
12 400-01394 REAR KB BRACKET ASS'Y (1)
13 400-17041 REAR KB BRACKET (1)
14 400-01440 KB CLAMP (1)
15 SL-4040891-SC SCREW M4 L=8 (2)
16 E6202-729-00A TB CLAMP B(NI) (1)
17 SL-4040891-SC SCREW M4 L=8 (2)
18 E1396-729-000 KB STAND (1)
19 E1349-721-000 KEYBOARD HINGE (3)
20 SM-1030501-SC SCREW M3 L=5 (15)
21 E1395-729-000 KEYBOARD FITTING PLATE (2)
22 SM-0040601-SC SCREW M4X0.7 L=6 (4)
23 E1346-721-000 KEYBOARD MAGNET (2)
24 400-17042 TB BRACKET (1)
25 400-03318 KEY BOARD SP ASM (1)
26 E9646-729-000 TRUCK BALL (1)
27 400-00512 VGA DIS BRACKET 1
28 400-00513 VGA DIS PCB COVER 1
29 E1038-871-000 PLATEN LOCK CAM SCREW 2
30 SL-4030891-SC SCREW M3X8 6
31 HX-0029400-00 FIXED BASE 1
32 SL-4030891-SC SCREW M3X8 1
33 HX-0005500-0B RUBBER BUSHING B 1
34 400-25669 LCD DSP 1
35 400-03281 MOUSE KEYBOARD SELECTOR 1
36 HA-0053700-10 LENZ WHITE 2
37 HA-0053700-20 WASHER 2
38 400-08546 DVI DIST BRACKET 1
39 SL-4030891-SC SCREW M3X8 5
40 E1038-871-000 PLATEN LOCK CAM SCREW 3
41 400-03307 PANEL LINK DISTRIBUTOR 1
42 400-02251 OPRATION ON SW CABLE ASM 2
43 400-02253 CHANGE BOX CABLE ASM 1
44 400-02303 R MOUSE CABLE ASM 1
45 400-02304 R KEYBOARD CABLE ASM 1
46 400-02322 R LCD POWER CABLE ASM 1
47 400-03296 PANEL LINK R CABLE ASM 1
48 400-03297 PANEL LINK RELAY CABLE ASM 1
49 400-03308 PANEL LINK F(OP)CABLE ASM 1
50 400-03282 MOUSE KEYBOARD SELECTOR ASM 1
51
#01
400-02264 OP 232C CABLE ASM 1
52
#01
400-02263 OP 232C CABLE(R)ASM 1
53 HA-0055300-10 LENSE GREEN 2
54 SL-4030891-SC SCREW M3X8 4
55 HA-0055300-20 BEZEL 2
56 400-26001 CGANGE-PCB COVER 1
57 400-26382 RS232C CHANGE PCB ASM 1
58 HX-0035400-0A BOARD PARTS 4
- -

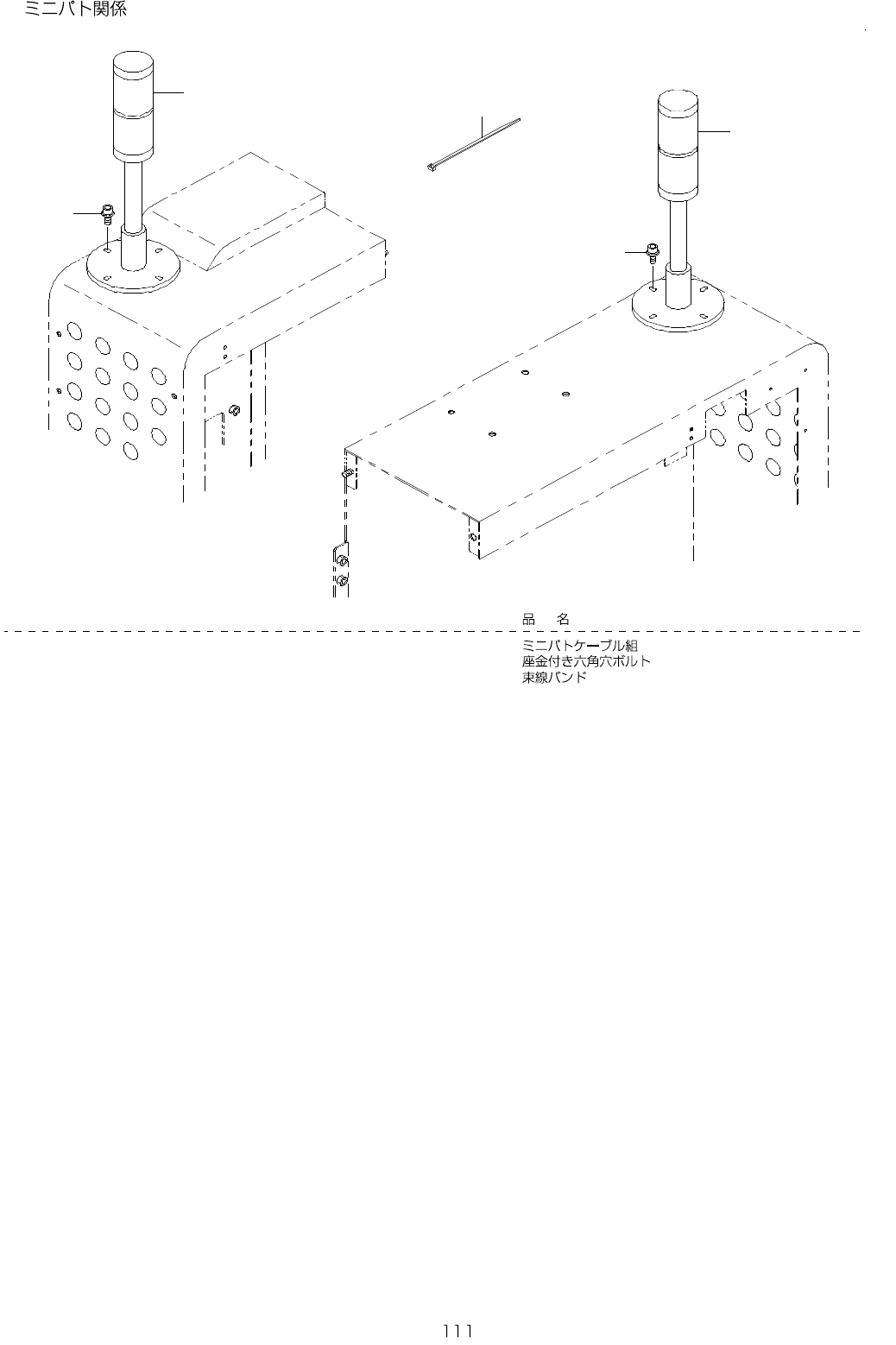

56.MINI PAT COMPONENTS
1
1
3
2
2
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9819-729-0A0 MINI PATLIGHT CABLE ASM. 2
2 SL-6041092-TN SCREW 8
3 EA-9500B01-00 CABLE BAND 10
