- - 64.T HIN PWB CONVEYOR COM P O NEN TS ( 2) 1 4 9 4 9 4 8 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 1 2 4 2 9 3 1 3 7 3 8 3 0 2 8 2 7 2 6 2 7 3 5 3 6 4 7 8 5 6 1 0 9 1 1 3 4 2 0 3 9 3 7 3 8 4 0 4 1 4 2 4 3 4 4 4 6 4 5 4 …
- -

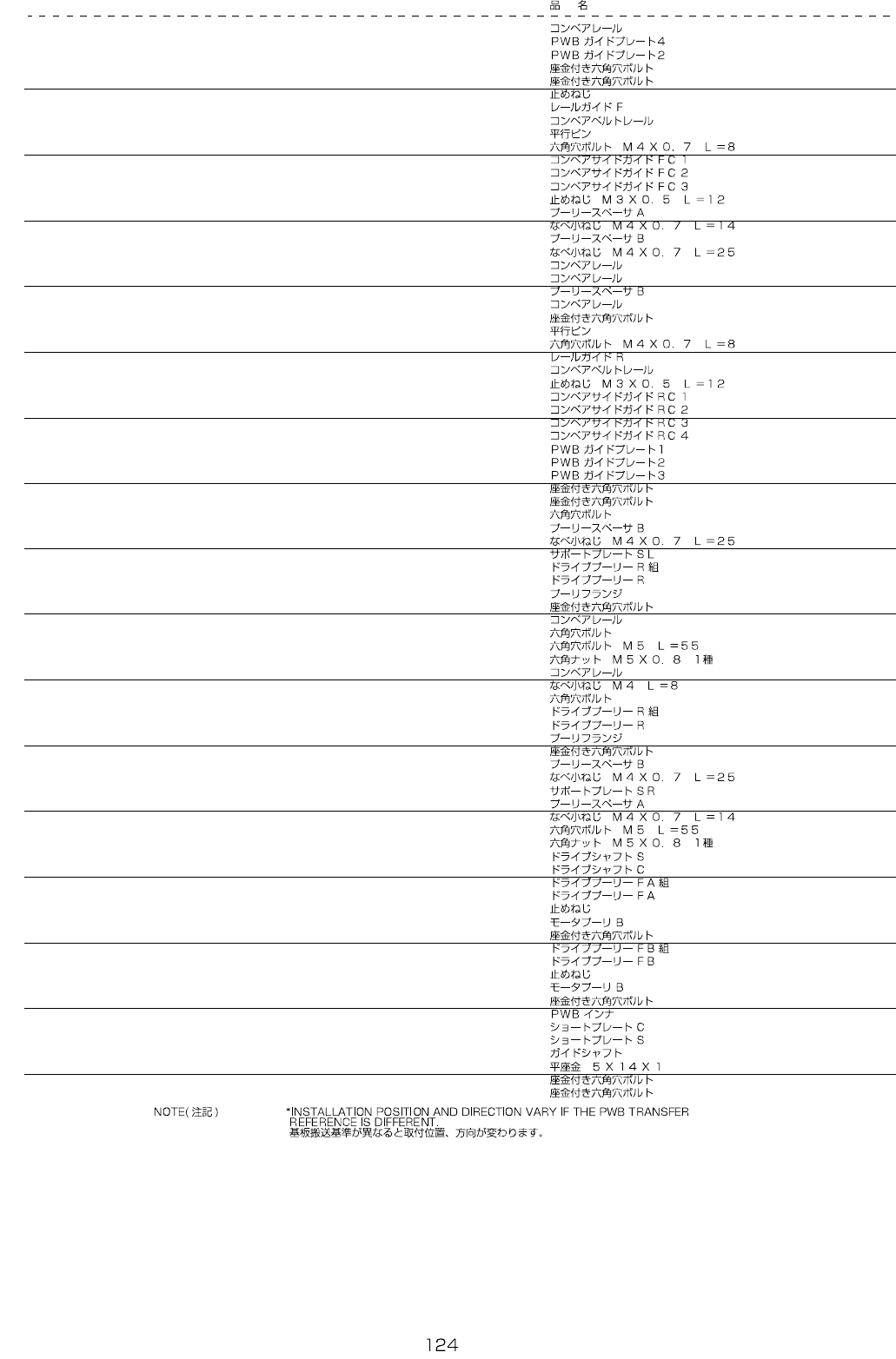

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-61770 CONVEYOR RAIL 1
2 400-62282 PWB GUIDE PLATE 4 2
3 400-62280 PWB GUIDE PLATE 2 1
4 SL-6030892-TN SCREW 8
5 SL-6031292-TN BOLT 8
6 SM-8040602-TP SCREW M4X0.7 L=6 2
7 400-61769 RAIL GUIDE F 1
8 400-61772 CONVEYOR BELT RAIL 1
9 PH-0500142-C0 PARALLEL PIN 2
10 SM-6040802-TN SCREW 6
11 400-61775 CONVEYOR SIDE GUIDE FC1 2
12 400-61776 CONVEYOR SIDE GUIDE FC2 1
13 400-61781 CONVEYOR SIDE GUIDE FC3 1
14 SM-8031202-TP SCREW M3X0.5 L=12 2
15 400-51807 PULLEY SPACER-A 2
16 SM-4041401-SC SCREW M4X0.7 L=14 2
17 400-51808 PULLEY SPACER-B 4
18 SM-4042501-SC SCREW M4X0.7 L=25 4
19 400-61773 CONVEYOR RAIL 1
20 400-61773 CONVEYOR RAIL 1
21 400-51808 PULLEY SPACER-B 6
22 400-61770 CONVEYOR RAIL 1
23 SL-6030892-TN SCREW 8
24 PH-0500142-C0 PARALLEL PIN 2
25 SM-6040802-TN SCREW 6
26 400-61771 RAIL GUIDE R 1
27 400-61772 CONVEYOR BELT RAIL 1
28 SM-8031202-TP SCREW M3X0.5 L=12 2
29 400-61782 CONVEYOR SIDE GUIDE RC1 1
30 400-61778 CONVEYOR SIDE GUIDE RC2 1
31 400-61779 CONVEYOR SIDE GUIDE RC3 3
32 400-63950 CONVEYOR SIDE GUIDE RC4 1
33 400-62279 PWB GUIDE PLATE1 1
34 400-62280 PWB GUIDE PLATE 2 1
35 400-62281 PWB GUIDE PLATE 3 2
36 SL-6031292-TN BOLT 8
37 SL-6031492-TN SCREW 2
38 SM-6030802-TN BOLT 2
39 400-51808 PULLEY SPACER-B 4
40 SM-4042501-SC SCREW M4X0.7 L=25 3
41 400-51803 SUPPORT PLATE SL 1
42 400-62585 DRIVE PULLEY R ASM 1
43 400-51806 DRIVE PULLEY R (1)
44 E2160-721-000 PULLEY FLANGE (1)
45 SL-6030892-TN SCREW (3)
46 400-61773 CONVEYOR RAIL 1
47 SM-6043002-TN SCREW 1
48 SM-6055552-TN BOLT M5 L=55 1
49 NM-6050001-SC NUT M5 1
50 400-61773 CONVEYOR RAIL 1
51 SM-4040855-SC SCREW 2
52 SM-6043002-TN SCREW 2
53 400-62585 DRIVE PULLEY R ASM 2
54 400-51806 DRIVE PULLEY R (1)
55 E2160-721-000 PULLEY FLANGE (1)
56 SL-6030892-TN SCREW (3)
57 400-51808 PULLEY SPACER-B 4
58 SM-4042501-SC SCREW M4X0.7 L=25 3
59 400-51804 SUPPORT PLATE SR 1
60 400-51807 PULLEY SPACER-A 4
61 SM-4041401-SC SCREW M4X0.7 L=14 3
62 SM-6055552-TN BOLT M5 L=55 1
63 NM-6050001-SC NUT M5 1
64 400-51789 DRIVE SHAFT S 2
65 400-51809 DRIVE SHAFT C 1
66 400-62567 DRIVE PULLEY FA ASM 2
67 400-51805 DRIVE PULLEY FA (2)
68 SM-8040602-TP SCREW M4X0.7 L=6 (4)
69 400-00851 MOTOR PULLEY B (2)
70 SL-6031642-TN SCREW (6)
71 400-62568 DRIVE PULLEY FB ASM 1
72 400-51814 DRIVE PULLEY FB (1)
73 SM-8040602-TP SCREW M4X0.7 L=6 (2)
74 400-00851 MOTOR PULLEY B (1)
75 SL-6031642-TN SCREW (3)
76 400-62260 PWB INNER 12
77 400-62283 SHORT PLATE C 4
78 400-62284 SHORT PLATE S 4
79 E2009-725-000 GUIDE SHAFT 2
80 WP-0501046-SC WASHER 5 X 14 X 1 4
81 SL-6051292-TN BOLT 2
82 SL-6052042-TN SCREW 2
- -
64.THIN PWB CONVEYOR COMPONENTS (2)
1
4 9
4 9
4 8
1 4 1 5
1 6
1 7
1 8
1 9
2 0
2 1
2 2
2 1
2 4
2 9
3 1
3 7
3 8
3 0
2 8
2 7
2 6
2 7
3 5
3 6
4
7
8
5 6
1 0
9
1 1
3 4
2 0
3 9
3 7
3 8
4 0
4 1
4 2
4 3
4 4
4 6
4 5
4 7
B
A
A
B
5 0 5 1
5 2
5 3
1 0
1 2 1 3
5 9
5 6
5 7
5 4
5 5
5 8
6 0
2 3
8
2 3
2 5
3 2
3 3
2 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-51813 MOTOR_BRAKET_C_(RPQ) 1
2
#01
400-65415 WAIT SENSOR BRACKET L ASM 1
3
#02
400-65419 WAIT SENSOR BRACKET R ASM 1
4 400-63951 WAIT SENSOR BRACKET BASE (1)
5
#01
400-63952 WAIT SENSOR BRACKET FLR (1)
6 #02 400-65137 WAIT SENSOR BRACKET FRL (1)
7 E2284-725-000 HOLD PLATE B (1)
8 SL-6040892-TN BOLT (4)
9 SL-6030692-TN BOLT (4)
10 400-64197 WAIT_SENSOR_ASM (1)
11 HK-0691900-0B BLOCK TERMINAL (1)
12
#01
400-65416 STOP SENSOR BRACKET FLR ASM 1
13
#02
400-65420 STOP SENSOR BRACKET FRL ASM 1
14
#01
400-62274 STOP SENSOR BRACKET FLR (1)
15
#02
400-65134 STOP SENSOR BRACKET FRL (1)
16 SM-6031202-TN B0LT (2)
17 400-65423 STOP SENSOR BRACKET R1 (1)
18 SM-1031001-SC SCREW M3X0.5 L=10 (2)
19 400-63955 STOP SENSOR BRACKET R2 (1)
20 SL-6030892-TN SCREW (4)
21 SM-8030302-TP SCREW M3X0.5 L=3 (3)
22 400-65133 CABLE COVER F (1)
23 SM-6030552-KS SCREW (2)
24 400-63953 CABLE COVER R (1)
25 400-65141 STOP SENSOR AMP BRACKET (1)
26 400-64198 STOP_SENSOR-1_ASM (1)
27 400-64202 STOP_SENSOR-2_ASM (1)
28 HD-0026600-30 SENSOR (2)
29 SL-6041092-TN SCREW (2)
30 SL-4030691-SC SCREW M3X6 (4)
31 NM-6040001-SC NUT M4 (2)
32 WP-0430801-SC WASHER 4.3X9X0.8 (2)
33 WS-0410002-KN SPRING WASHER (2)
34 400-64207 BRANCH_CABLE_ASM (1)
35 400-65418 PTFE TUBE 2.5X3.5 (0.2)
36 EA-9500B01-00 CABLE BAND (8)
37 HX-0029400-00 FIXED BASE 5
38 SM-4040855-SC SCREW 3
39 EA-9500B01-00 CABLE BAND 6
40 EA-9500B02-00 CABLE BAND 150 5
41 HX-0031400-00 SPIRAL TABE 2.3
42 BT-0800501-EA TUBE HOSE, BLUE 4
43 EA-9500B02-00 CABLE BAND 150 3
44 EA-9500B01-00 CABLE BAND 3
45 HX-0029400-00 FIXED BASE 1
46 HX-0031400-00 SPIRAL TABE 0.6
47 SM-6051002-TN BOLT 1
48 400-62271 PUSHER PLATE 1
49 400-62621 Y PUSHER ASM 5
50 400-62302 STOPPER FRAME FR 1
51 400-65140 STOPPER FRAME FL 1
52 400-62303 STOPPER CHIP 1
53 PF-0200040-00 REGULATOR 1
54
#01
EA-9500B01-00 CABLE BAND 1
55
#02
HX-0031400-00 SPIRAL TABE 0.6
56 #01 HX-0031400-00 SPIRAL TABE 0.6
57
#01
BT-0400251-EA TUBE HOSE, BLUE 1.8
58
#02
BT-0400251-EA TUBE HOSE, BLUE 1.8
59
#02
EA-9500B01-00 CABLE BAND 1
60 400-65135 BU TABLE 1
