Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 101 4B1 1 1614 PCB_MOUNT(CPU) 1 1091401400-001 102 4B1 1 1620 PCB_MOUNT 1 1091401400-002 103 4B1 1 1572 P .C.B,MOUNT 1 1091401400-003 104 4B1 1 1484 P .C.B,MOUNT 1 1091401…
Fig. D2-2
CPU 1
ボックス
CPU 1 Box
120
107
101
106
104
111
151
121
151
118
122
123
116
125
110
112
112
127
128
115
102
108
1
13
103
105
129
114
117
152
155
155
155
155
155
155
126
155
155
153
156
156
154
0912-002

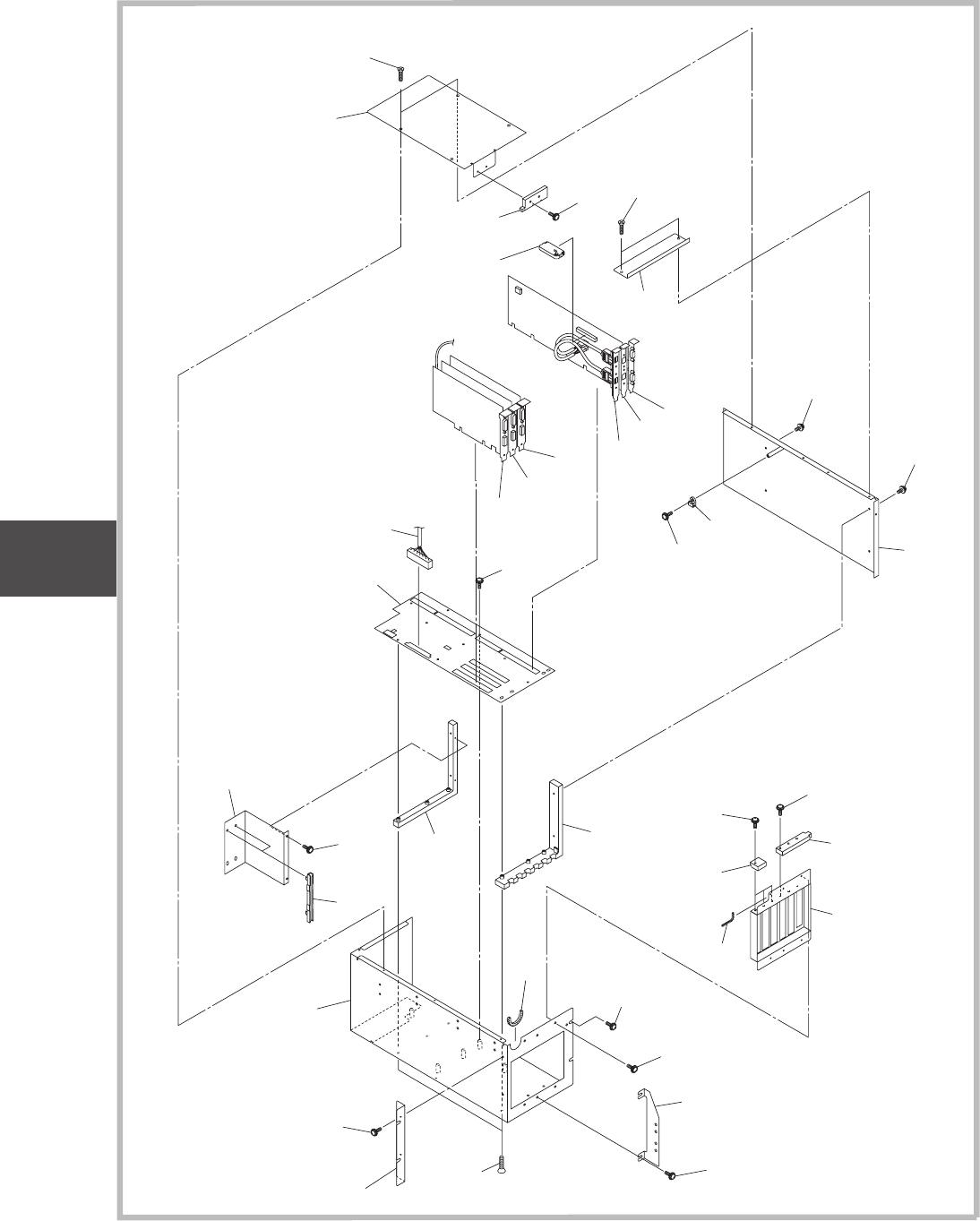

Fig. D2 CPU
ボックス部
CPU BOX SECTION
UNIT-3
Fig. D2
CPU
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
101 4B111614 PCB_MOUNT(CPU) 1 1091401400-001
102 4B111620 PCB_MOUNT 1
1091401400-002
103 4B111572 P.C.B,MOUNT 1
1091401400-003
104 4B111484 P.C.B,MOUNT 1
1091401400-004
105 0914B404 UNIT_IO(DOM4G) 1
1091401400-005
106 4W204861 CORD 1
1091401400-006
107 4W204580 CORD 1
1091401400-007
108 4W100068 CORD_POWER 1
1091401400-008
110 23L10107 ACCESSORY_P_C_B 2
1091401400-010
111 23L10108 ACCESSORY_P_C_B 1
1091401400-011
112 23N30725 ACCESSORY_WIRING 1
1091401400-012
113 23N30719 ACCESSORY_WIRING 1
1091401400-013
114 211B1508 BOX 1
1091401400-014
115 211C1508 PANEL 1
1091401400-015
116 211C1509 PANEL 1
1091401400-016
117 211C1557 PANEL 1
1091401400-017
118 211FE359 BRACKET 1
1091401400-018
120 211C1520 PANEL 1
1091401400-020
121 211C1519 PANEL 1
1091401400-021
122 211J1631 STAY 1
1091401400-022
123 211J1632 STAY 1
1091401400-023
125 211C1556 PANEL 1
1091401400-025
126 211FE358 BRACKET 1
1091401400-026
127 211FE058 BRACKET 3
1091401400-027
128 211FD903 BRACKET 1
1091401400-028
129 24100033 PROGRAM,FLOPPY DISK 1 1091401400-029
151 221DA105 MACHINE SCREW 6
1091401400-051
152 221DA108 MACHINE SCREW 6
1091401400-052
153 221AA007 ROHS:BOLT_HEX-SCT 1
1091401400-053
154 221AA095 ROHS:BOLT_HEX-SCT 2
1091401400-054
155 221DA056 MACHINE SCREW 26
1091401400-055
156 221DA057 MACHINE SCREW 6
1091401400-056
0912-002
Fig. D2-2
UNIT-3
Fig. D2
CPU
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
