Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 74 221HA004 W ASHER 3 3091305102-004 75 221HA204 W ASHER 3 3091305102-005 84 4S1F0051 SWITCH LIMIT 1 3091401901-004 85 4W203183 CORD 10 3091401901-005 86 23K10434 CASE,CON…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. B1-1
Fig. B1
0912-002
2 0913F107 CORNER_COV_FR_L 1 1091305100-002
3 0913F11Q CORNER_COV_FR_R 1 1091305100-003
4 0914F11T UNDER_COVER_FR 1 1091305100-004
12 211DE177 PLATE 2 1091305100-012
13 226J2637 MECH_PARTS 9 1091305100-013
16 0913F105 SIDE_COV_R_UP_F 1 1091305100-016
17 0913F106 SIDE_COV_R_UP_B 1 1091305100-017
18 0914F119 SIDECOVE(R_LO_F 1 1091305100-018
19 0913F10H SIDE_COV_R_LO_B 1 1091305100-019
20 0914F10H IN_SIDECOVER(FL 1 1091305100-020
22 221C0117 SET_SCREW 1 1091305100-022
23 211DE512 PLATE 2 1091305100-023
24 0914F11H INSIDE_COV_FR_R 1 1091305100-024
26 0914F10N MONITOR_B_COVER 1 1091305100-026
27 0913F10B BACK_SAFE_COVER 1 1091305100-027
28 0913F10D BACK_SW_COVER 1 1091305100-028
30 0914511L NAME_PLATE 1 1091305100-030
31 221DA213 MACHINE_SCREW 9 1091305100-031
32 221DA215 MACHIN_SCREW 12 1091305100-032
36 221AA030 ROHS_HEX-SCT 10 1091305100-036
37 221DA212 MACHINE_SCREW 3 1091305100-037
38 221AA044 ROHS_HEX-SCT 4 1091305100-038
39 221AA239 ROHS_HEX-SCT 4 1091305100-039
40 221HA005 WASHER 14 1091305100-040
41 221HA303 ROHS_WASHER 14 1091305100-041
42 221FA007 NUT_HEX 2 1091305100-042
43 221HA004 WASHER 2 1091305100-043
44 221HA104 WASHER 2 1091305100-044
51 0913F10C BA_SOUSA_PANEL 1 2091301203-001
52 4S1B0180 SWITCH_BUTTON 1 2091301203-002
53 4S1B0032 SWITCH_BUTTON 1 2091301203-003
54 23H20003 ACCESSORY_SW 1 2091301203-004
55 9W310128 CORD 1 2091301203-005
56 0913B204 CORD 1 2091301203-006
57 23K10406 CASE_CONN 1 2091301203-007
58 23K10402 CASE_CONN 1 2091301203-008
59 4J300175 CAB_JOINTTERMIN 10 2091301203-009
60 0914B907 TERMINAL 6 2091301203-010
61 23N20115 TUBE_WIRING 6 2091301203-011
62 23N20117 TUBE_WIRING 4 2091301203-012
63 23N20103 TUBE_WIRING 2 2091301203-013
64 23N30737 ACCESS_WIRING(M 2 2091301203-014
65 0914511K NAME_PLATE 1 2091301203-015
71 0913F10K GULLOCKSW_BRA_B 1 3091305102-001
73 221AA024 ROHS_HEX-SCT 3 3091305102-003
UNIT-1
Fig. B1
COVER
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
74 221HA004 WASHER 3 3091305102-004
75 221HA204 WASHER 3 3091305102-005
84 4S1F0051 SWITCH LIMIT 1 3091401901-004
85 4W203183 CORD 10 3091401901-005
86 23K10434 CASE,CONN 14 3091401901-006
87 4J300175 CABLE JOINT,TERMINAL 1 3091401901-007
88 4J300174 CABLE JOINT,TERMINAL 2 3091401901-008
89 23N20103 TUBE WIRING 1 3091401901-009
90 23N20117 TUBE WIRING 1 3091401901-010
91 23N30737 ACCESSORY,WIRING(M 1 3091401901-011
92 9W310128 CORD 1 3091401901-012
93 9W310129 CORD 1 3091401901-013
Fig. B1
0912-002
Fig. B1-1
UNIT-1
Fig. B1
COVER
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
105
131
106
131
107
131
125
132
131
132
131
109
1
11
110
130
108
131
131
121
123
123
130
130
130
112
113
171
173
174
175
138
114
136
140
141
134
143
145
136
140
141
146
140
141
136
140
141
A
B
C
DETAIL”B”
DETAIL”A” DETAIL”C”
190
184
193
192
188
191
185
190
189
186
187
155
156
154
1A1
1A4
1A2
161
162
159
160
1A5
1A6
1A7
1B2
1B7
163
158
157
X0702A-F
X0702B-F
X0702A-R
X0702B-R
X0702F
X0702R
X0701
X10701
X20701
1A8
1A9
1B5
1B6
1B0

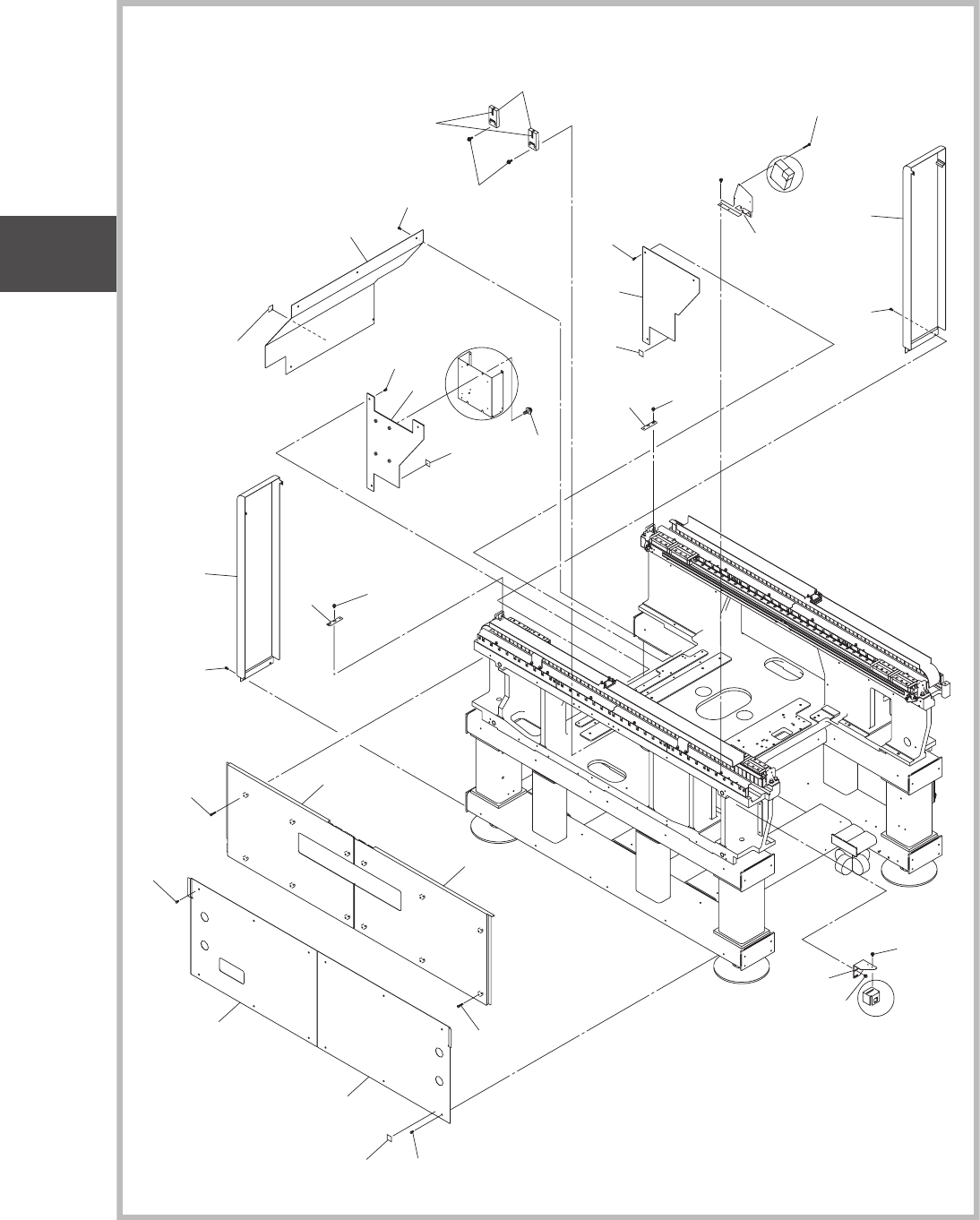

Fig. B1-2
奥左カバー
Rear-Left Cover
0912-002
Fig. B1
カバー部
COVER SECTION
UNIT-1
Fig. B1
COVER
