Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 401 21 1DE955 PLA TE 1 2092007105-001 402 21 1FE952 BRACKET 1 2092007105-002 403 21 1G6341 BLOCK 2 2092007105-003 404 222P0203 SPRING_TORSION 2 2092007105-004 405 216D0443…
419
417
418
406
403
409
415
401
405
415
404
414
414
408
432
415
410
414
406
415
403
416
417
418
416
417
418
431
407
414
405
402
411
404
419
417
418
441
407
442

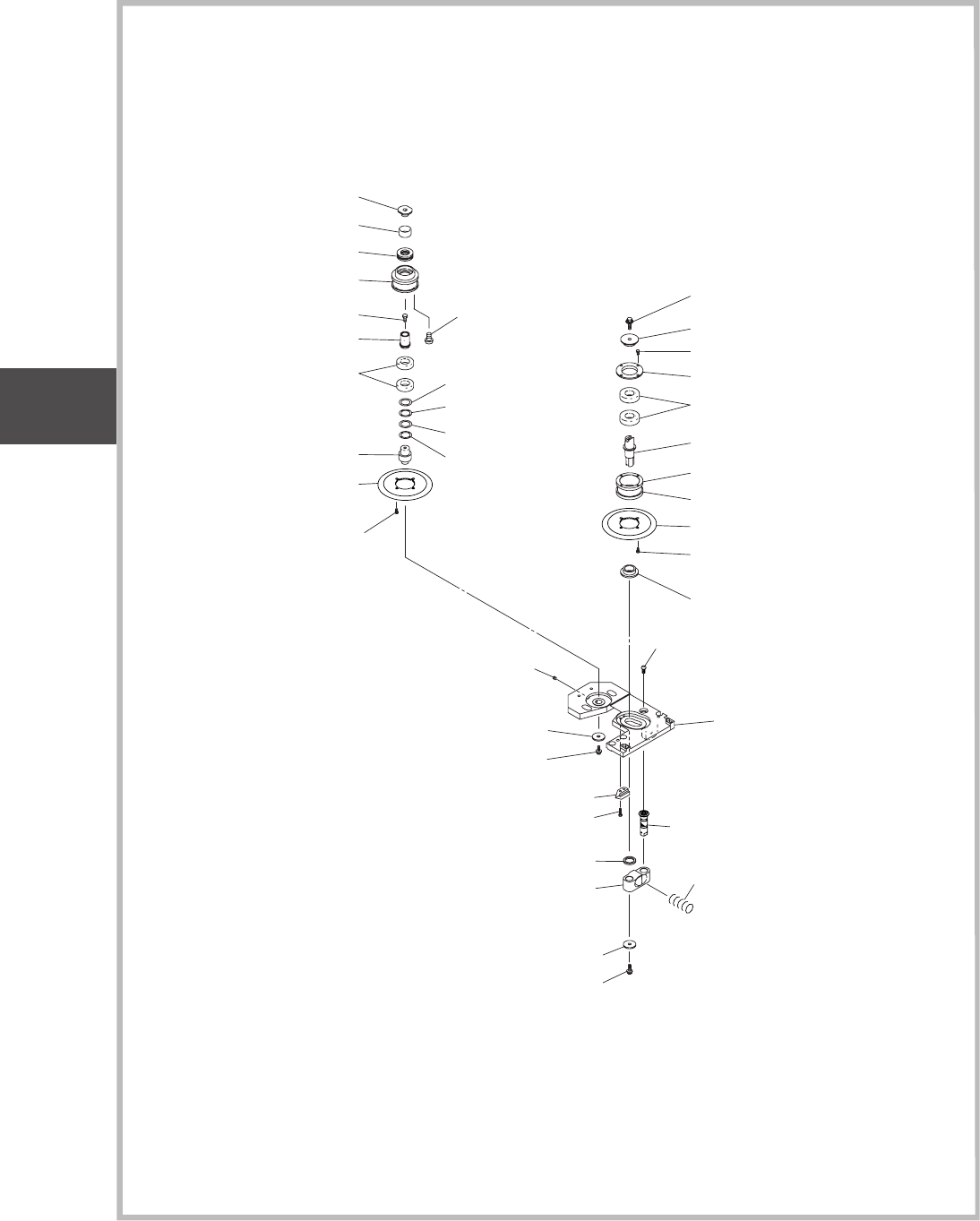

Fig. C2-5
クランプバー
Clump Bar
0912-002
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 211DE955 PLATE 1 2092007105-001
402 211FE952 BRACKET 1 2092007105-002
403 211G6341 BLOCK 2 2092007105-003
404 222P0203 SPRING_TORSION 2 2092007105-004
405 216D0443 PIN_HINGE 4 2092007105-005
406 216D0444 PIN_HINGE 2 2092007105-006
407 216D0608 PIN_HINGE 4 2092007105-007
408 216S3277 LEVER 1 2092007105-008
409 216S3278 LEVER 1 2092007105-009
410 216S2820 LEVER 1 2092007105-010
411 216S2821 LEVER 1 2092007105-011
414 222A0150 BUSH_BEARING 4 2092007105-014
415 222A0149 BUSH_BEARING 4 2092007105-015
416 221AA005 ROHS:BOLT_HEX-SCT 4 2092007105-016
417 221HA003 WASHER 8 2092007105-017
418 221HA103 WASHER 8 2092007105-018
419 221AA004 ROHS:BOLT_HEX-SCT 4 2092007105-019
431 216S3319 LEVER 1 4092007100-001
432 226J2497 MECH_PARTS 1 4092007100-002
441 216S3317 LEVER 1 4092007101-001
442 0920H10U CLAMP_GUM 1 4092007101-002
Fig. C2
0912-002
Fig. C2-5
SIGMA-G4DA
SIGMA-G4DB
SIGMA-G4DC
UNIT-2
Fig. C2
CUTTER 1
530
531
532
504
526
505
520
509
513
525
534
517
526
537
510
536
524
523
522
521
506
514
503
515
519
512
528
508
518
507
517
526
535
501
502
527
511
516
533
529
531
528
533
531
Fig. C2-6
カッタ
Cutter
0912-002
Fig. C2
カッタ部
CUTTER SECTION
UNIT-2
Fig.C2
CUTTER 1
