TC Suc tion O K 17:14 20 ºC Power 45% 120ºC Selected T C T emp. 4m 38s 400 ºC 80 % 400ºC Selected Protection Hot Air T emp. Air Flow Selec. TC Suc tion O K JT T TE T JT TE Use only with a 250V fuse Employer uniquement av…
TC
Suction
OK
17:14
20
ºC
Power
45%
120ºC Selected
TC
Temp.
4m 38s
400
ºC
80
%
400ºC Selected
Protection
Hot Air Temp. Air Flow Selec.
TC
Suction
OK
JTT
TET
JT
TE
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
TC
Suction
OK
12
1
2
1
2
12

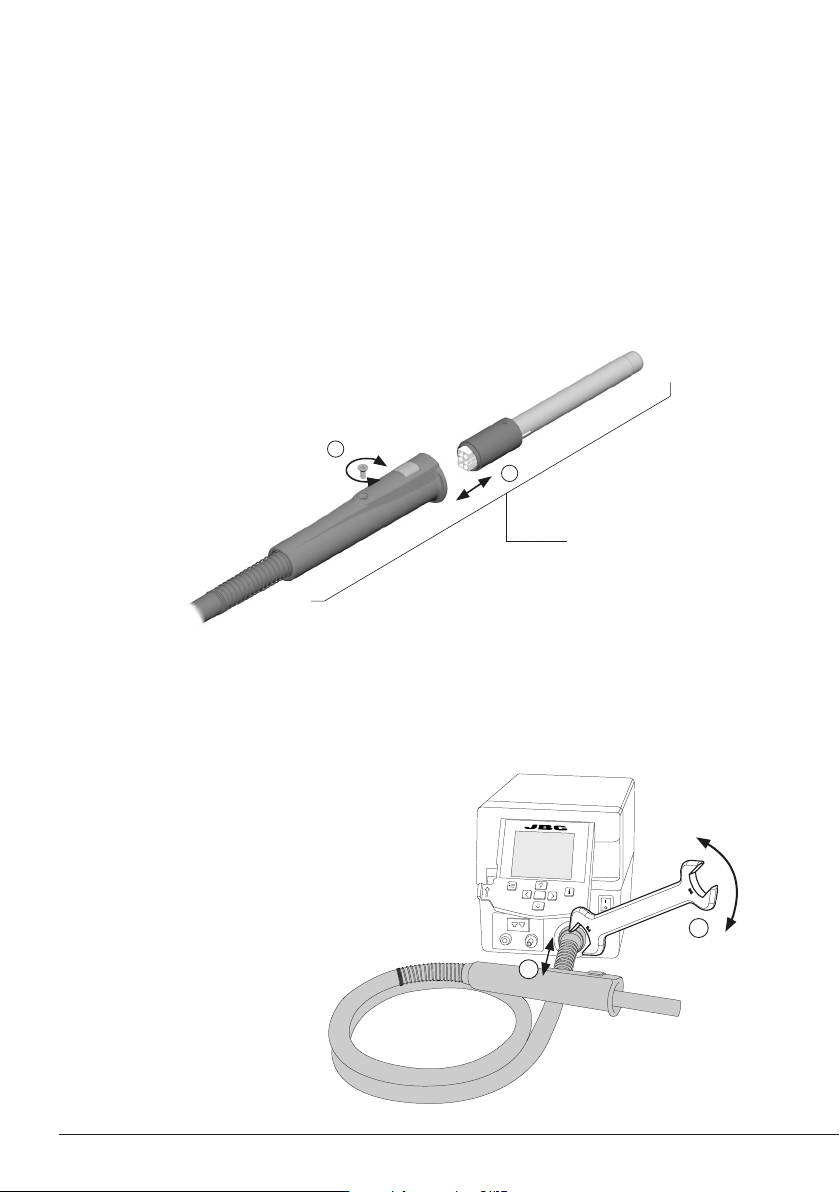

Note: Only perform this operation when the element is cold and the unit is disconnected from the
mains.
Loosen the screw (1) and pull the worn heating element out of the handle (2).
Insert the new heating element, make sure its pushed all the way in (2) and tighten the screw (1).
Replacing the Heating Element
JTT
Heater Hose Set
Ref. JT-T1A (100V / 120V)
JT-T2A (230V)
JTH
Heating Element for JTT
JTH1: Ref. 0014105 (100V and 120V)
JTH2: Ref. 0014107 (230V)
Handle for JTT
Ref. JT-A (100V / 120V / 230V)
Changing the JTT Heater Hose Set
Note: Only perform this operation when the
station is turned off.
Use a spanner to unscrew the nut (1) and
remove the tool hose from the control unit (2).
Insert the new hose, make
sure it is pushed all the way
into the connector (2), and
tighten the nut (1).
TC
Suction
OK
17:14
20
ºC
Power
45%
120ºC Selected
TC
Temp.
4m 38s
400
ºC
80
%
400ºC Selected
Protection
Hot Air Temp. Air Flow Selec.
TC
Suction
OK
JTT
TET
JT
TE
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
TC
Suction
OK
TC
Suction
OK
17:14
20
ºC
Power
45%
120ºC Selected
TC
Temp.
4m 38s
400
ºC
80
%
400ºC Selected
Protection
Hot Air Temp. Air Flow Selec.
TC
Suction
OK
JTT
TET
JT
TE
Use only with a 250V fuse
Employer uniquement avec
un fusible de 250V
TC
Suction
OK
1313
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm

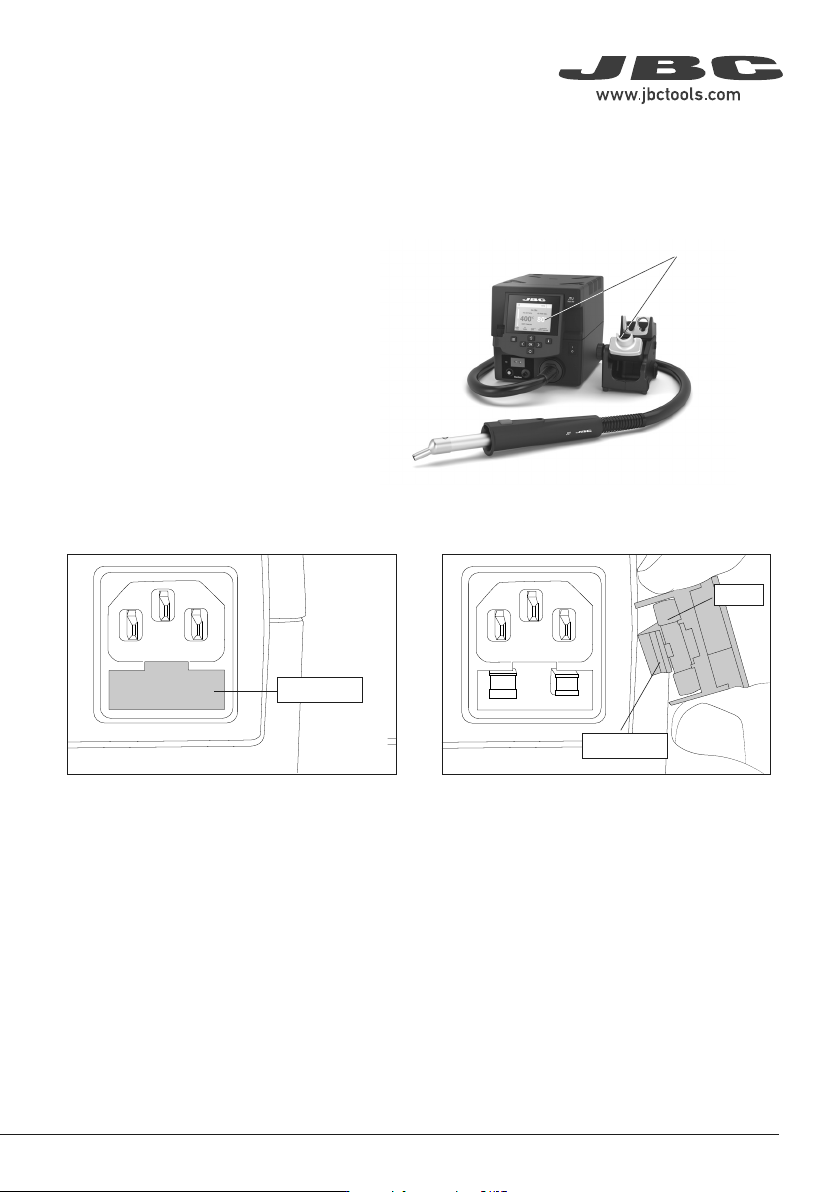

Maintenance
Clean periodically
Before carrying out maintenance, always allow the equipment to cool.
- Clean the station screen with a glass cleaner or a damp cloth.
- Use a damp cloth to clean the casing and the
tool. Alcohol can only be used to clean the
metal parts.
- Periodically check that the metal parts
of the tool and stand are clean so that
the station can detect the tool’s status.
- Periodically check all cables and tubes.
- Replace a blown fuse as follows:
1. Pull off the fuse holder and remove the
fuse. If necessary use a tool to lever it off.
2. Insert the new fuse into the fuse holder
and return it to the station.
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
Fuse holder
Fuse holder
Fuse
Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded before
use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode. The
soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflammable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also people with reduced physical,
sensory or mental capabilities or lack of experience provided that they have been given adequate
supervision or instruction concerning the use of the appliance and understand the hazards involved.
Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
