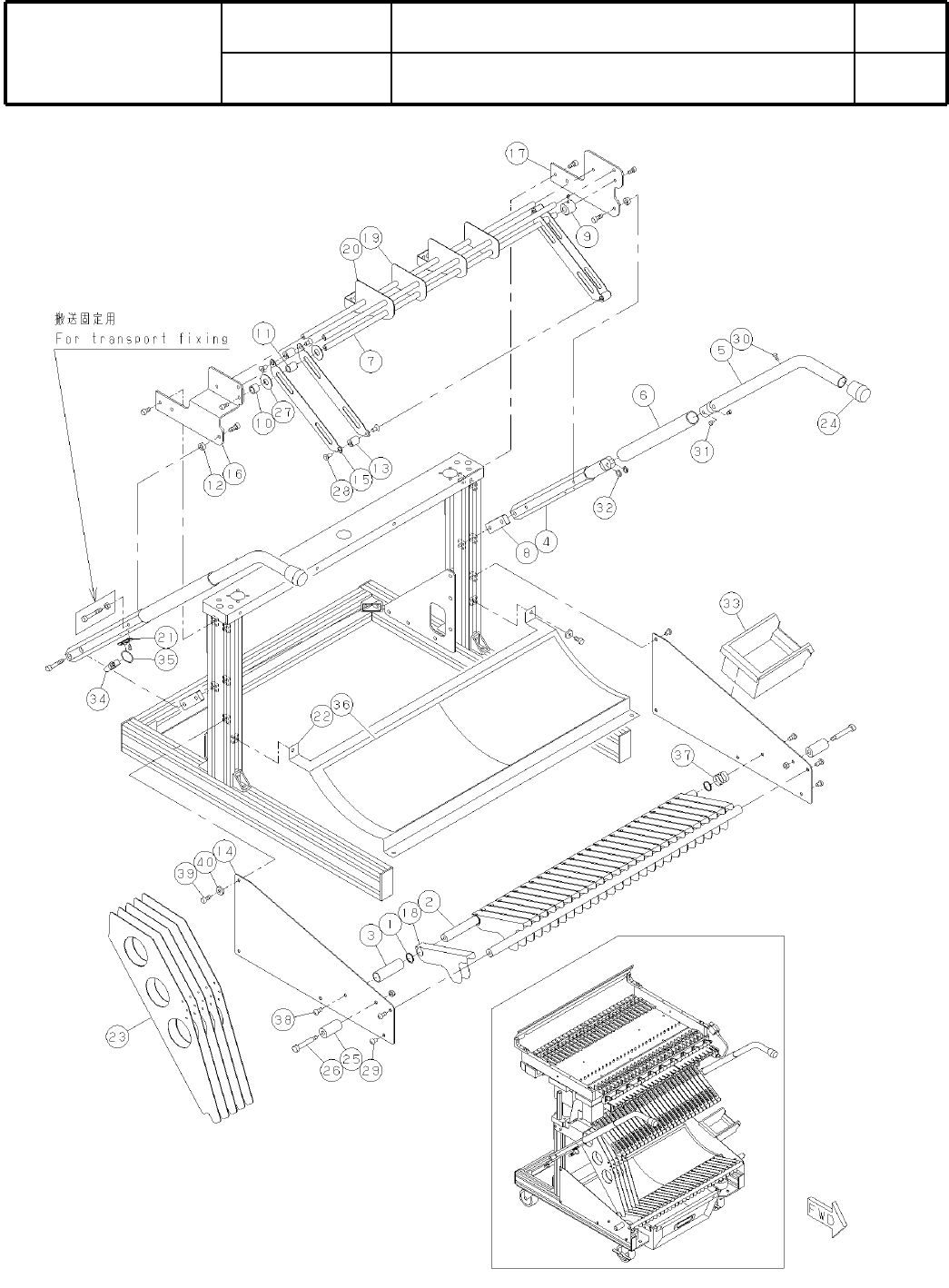

53-D 一 括 交 換 台車(コンパクトタイプ) Feeder Cart(Compact T ype) パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 N610056962AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No. S175
Ref
No.
Remarks
R
1
Q'ty
53-C
一
括
交
換
台車(コンパクトタイプ)
Feeder Cart(Compact Type)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610056962AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
HOLDER
2
1 KXFB02ERA00
HOLDER
1
2 KXFB02ESA00
BAR
2
3 N210011344AA
GUIDE
2
4 KXFB02F0A01
SHAFT
2
5 KXFB02F1A00
GUIDE
1
6 N210083875AA
PLATE
2
7 N210052464AA
GUIDE
1
8 N210083872AA
PLATE
2
9 N210064908AA
FRAME
2
10 N510021884AA SFF-364 L=669
FRAME
2
11 KXF0DLSAA00 SFF-364 L=370 TL
FRAME
1
12 KXF0CTZAA00 SFF-364 L=590
BRACKET
6
13 KXF0ATEAA00 SFJ-018
CAP
4
14 KXF0ARXAA00 SFA-005
CASTER
2
15 N510004570AA 420SA-N75-B
CASTER
2
16 N510004571AA 413SA-N75-B
NUT
2
17 N510017905AA
Hexagon nut Type-1 Best class M16-6H-4T A2J (Trivalent)
BOX
1
18 N210052484AA
NUT
48
19 KXF0ATGAA00 SFB-002
WASHER
2
20 KXF0AJYAA00 WSSB30-8-2
SPRING
2
21 KXF0DLTAA00 (DA 0DLTA)
WASHER
4
22 KXF0DLUAA00 WSSB40-16-5
BOLT
2
23 KXF0DREAA00 CBSS8-12
NUT
4
24 KXF0DY18A00 SFJ-606
S174
53-D
一
括
交
換
台車(コンパクトタイプ)
Feeder Cart(Compact Type)
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610056962AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
S175
Ref
No.
Remarks
R
1
Q'ty
53-D
一
括
交
換
台車(コンパクトタイプ)
Feeder Cart(Compact Type)
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610056962AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
COLLAR
28
1 N210083870AA
SHAFT
2
2 N210059566AA
COLLAR
1
3 N210072118AA
ARM
2
4 N210079822AB
HANDLE
2
5 N610064186AA
GUIDE
2
6 N210028941AA
SHAFT
3
7 N210071690AA
SPACER
2
8 N210083866AA
COLLAR
1
9 N210071691AA
COLLAR
1
10 N210071692AA
COLLAR
27
11 N210083925AA
SPACER
2
12 N210083863AA
SPACER
54
13 N210006937AA
PLATE
2
14 N210071695AB
PLATE
54
15 N210071696AA
BRACKET
1
16 N210071699AA
BRACKET
1
17 N210071700AA
GUIDE
27
18 N210083865AA
PLATE
2
19 N210083926AA
BRACKET
2
20 N210073988AA
HOOK
1
21 N210079717AA
GUIDE
1
22 N210083877AA
SEPARATOR
5
23 N210087042AA
RUBBER-LEG
2
24 KXF0CU2AA00 C-31-3
URETHANE
2
25 N510013791AA A20-40
BOLT
2
26 KXF09DZAA00 MSB8-40
WASHER
24
27 N210091541AA
SCREW
108
28 N510004763AA
Countersunk head tapping screw M4X8L+TB2430 2-type with slot
BOLT
6
29 N510017568AA
Hexagon socket button head screw M6X8-10.9 A2S (Trivalent)
SCREW
2
30 N510018251AA
Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent)
BOLT
4
31 N510017372AA
Hexagon socket head cap screw M4X5-10.9 A2J (Trivalent)
WASHER
4
32 KXF09SDAA00 WSSB6-4-1
BOX
1
33 KXF0DX4LA00 190564KB-2EB
CLAMP
1
34 N510039096AA CY1-16
RING
1
35 N510021575AA RING-227B
TAPE
2
36 N610057448AA
SPRING
1
37 N210085774AA
BOLT
4
38 N510017555AA
Hexagon socket button head screw M6X12-10.9 A2J (Trivalent)
BOLT
2
39 N510017428AA
Hexagon socket head cap screw M6X12-10.9 A2J (Trivalent)
WASHER
2
40 N510020101AA Thick washer M6
