E-by SIPLACE Smart Feeder 24 mm E Removing the Stripping De vice Foil Disposal Part Exchange 1/8 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool…

E-by SIPLACE Smart Feeder 24 mm E Stripping Device Foil Disposal

Part Exchange

T1 – Flat Bladed Screwdriver T2 – Split Pin Punch Size 1.4 T3 – Phillips Screwdriver T4 – TORX screwdriver size T8

T5 – Tweezers

E-by SIPLACE Smart Feeder

24 mm E

Removing the Stripping Device Foil Disposal

Part Exchange

1/8

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T2,T3.T4

Wear Part: Consumables:

1. Loosen the rocker axle with T1. 2. Press the rocker axle from the left side with

T2.

3. Remove the rocker axle.

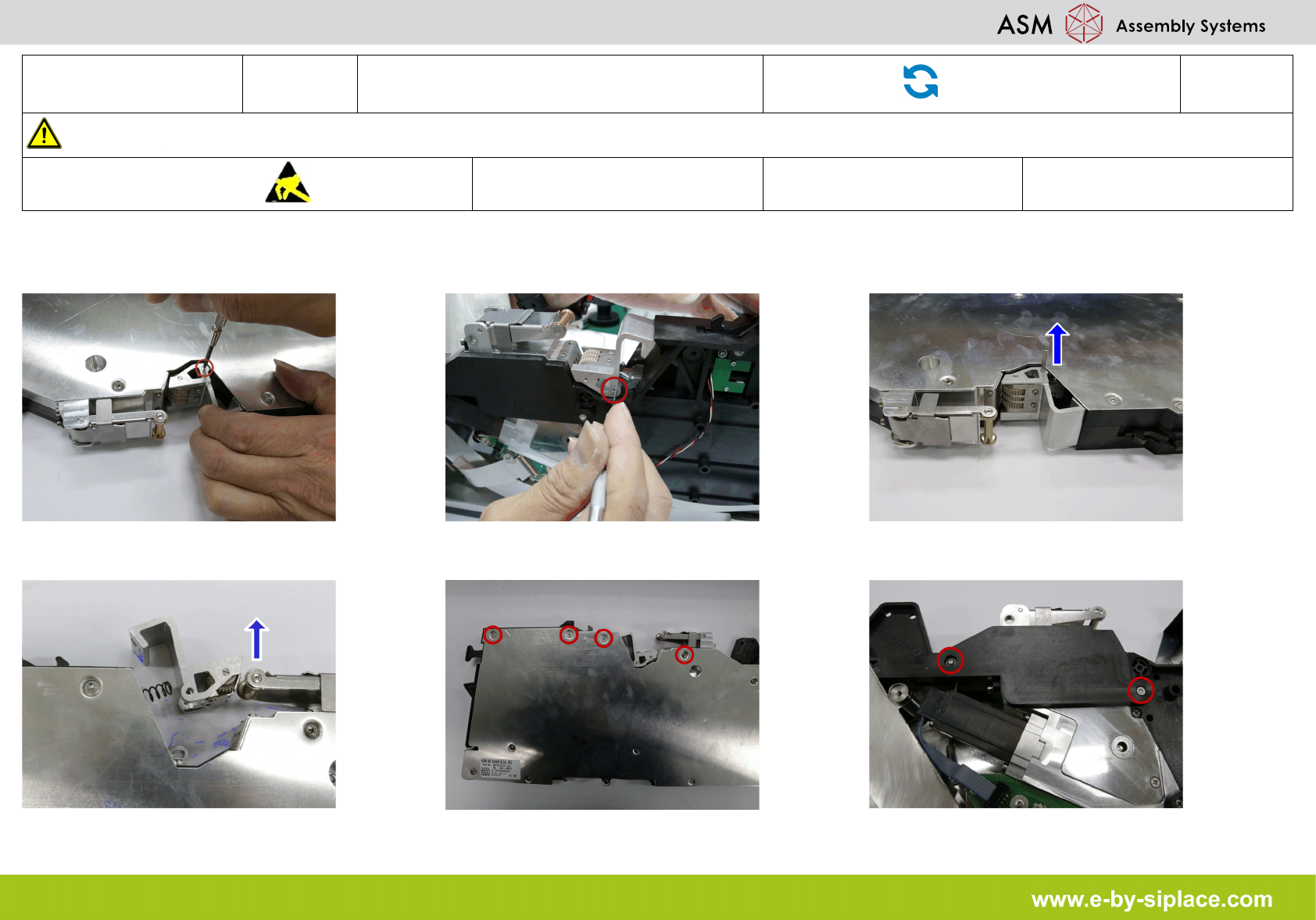

4. Lift up the rocker. 5. Remove these 4 screws with T3 and T4. 6. Remove these 2 screws with T3.

E-by SIPLACE Smart Feeder

24 mm E

Removing the Stripping Device Foil Disposal

Part Exchange

2/8

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

Wear Part: Consumables:

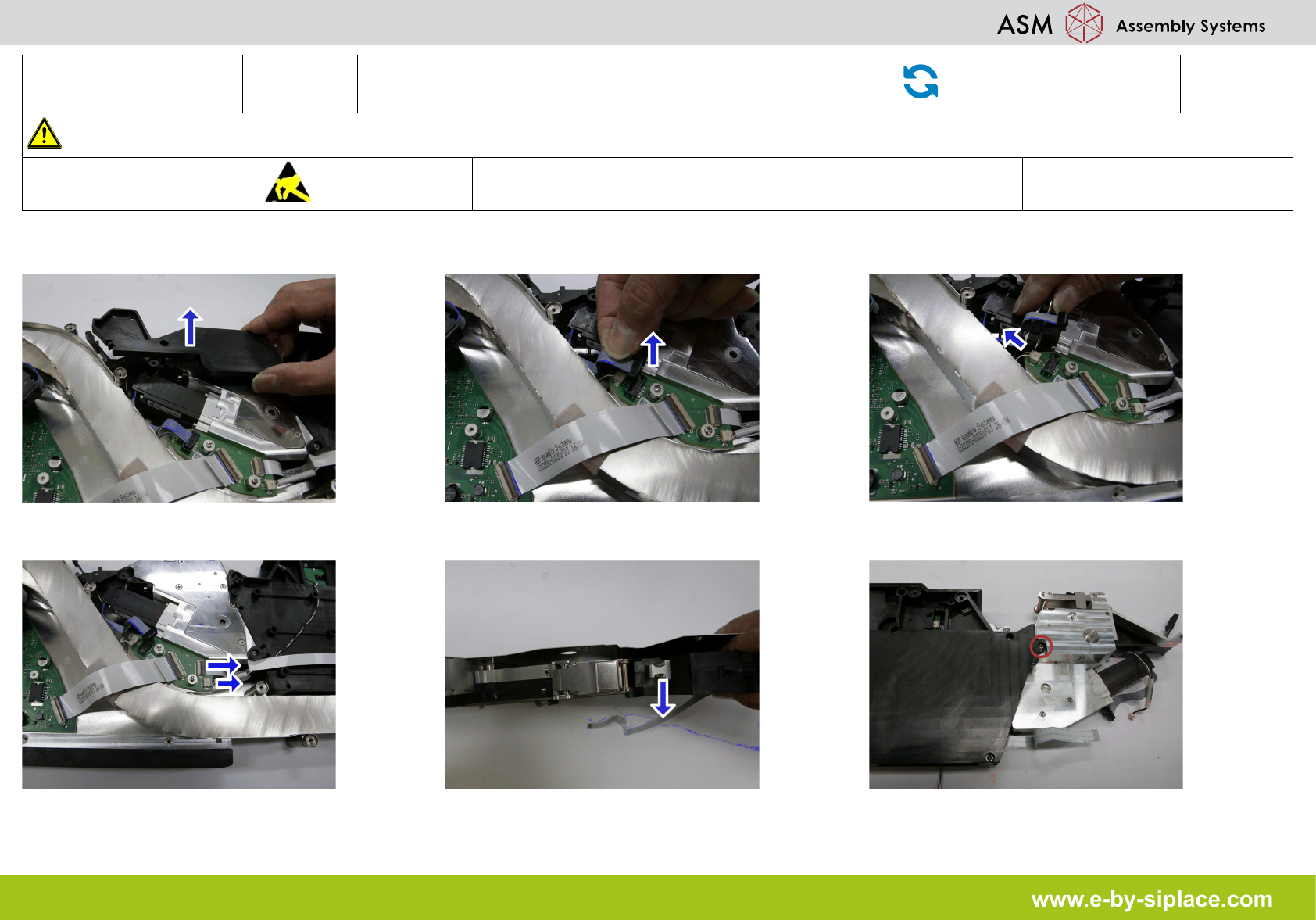

7. Lift up the spacer. 8. Remove the connector. 9. Remove the connector.

10. Remove these 2 connectors. 11. Slide out the Foil Disposal Drive. 12. Remove the screw with T3.
