E-by SIPLACE Smart Feeder 24 mm E Removing the Stripping Device Foil Disposal Part Exchange 3/8 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool:…
E-by SIPLACE Smart Feeder
24 mm E
Removing the Stripping Device Foil Disposal
Part Exchange
2/8
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T3
Wear Part: Consumables:

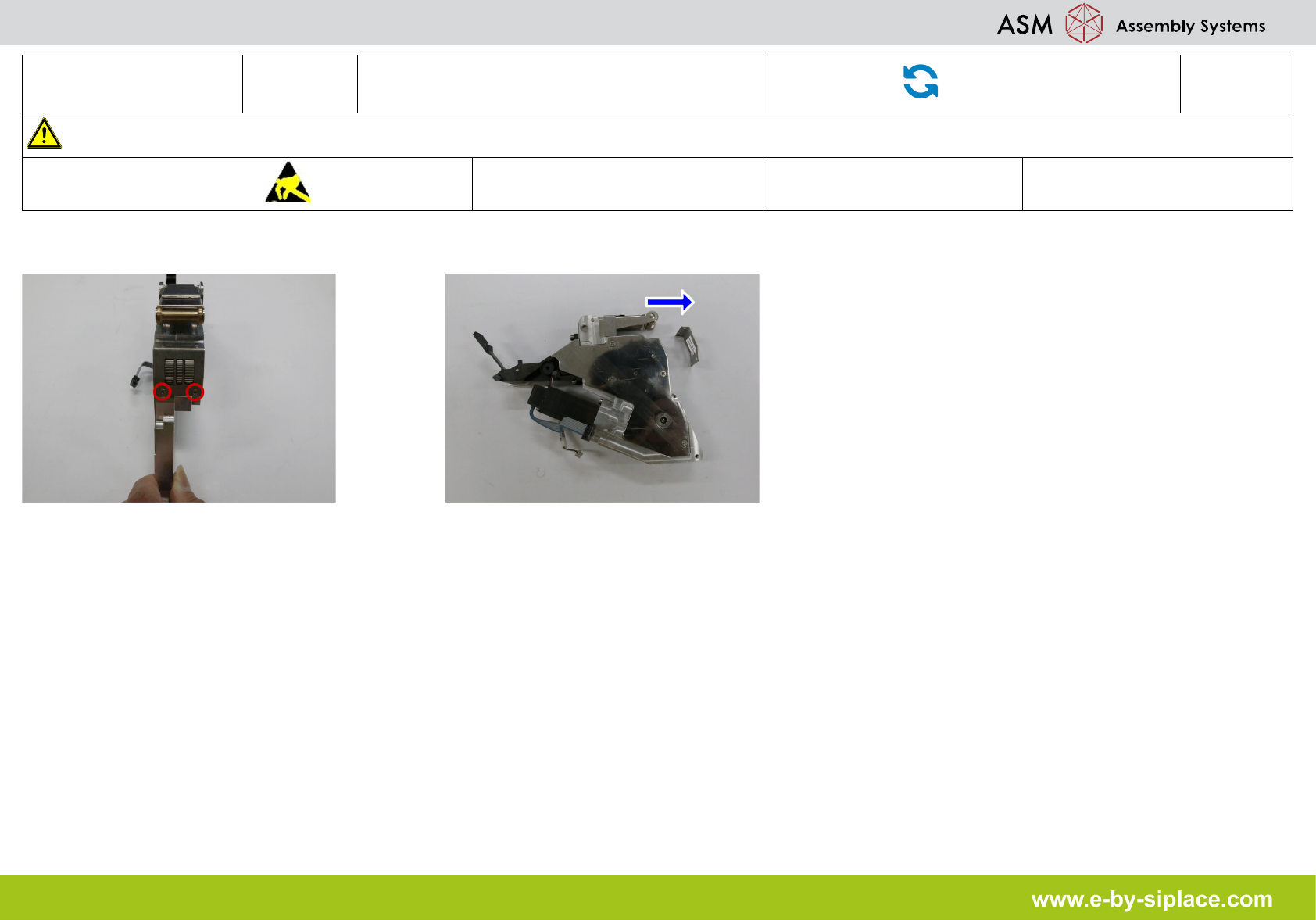

7. Lift up the spacer. 8. Remove the connector. 9. Remove the connector.
10. Remove these 2 connectors. 11. Slide out the Foil Disposal Drive. 12. Remove the screw with T3.
E-by SIPLACE Smart Feeder
24 mm E
Removing the Stripping Device Foil Disposal
Part Exchange
3/8
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T1,T3,T5
Wear Part: Consumables:

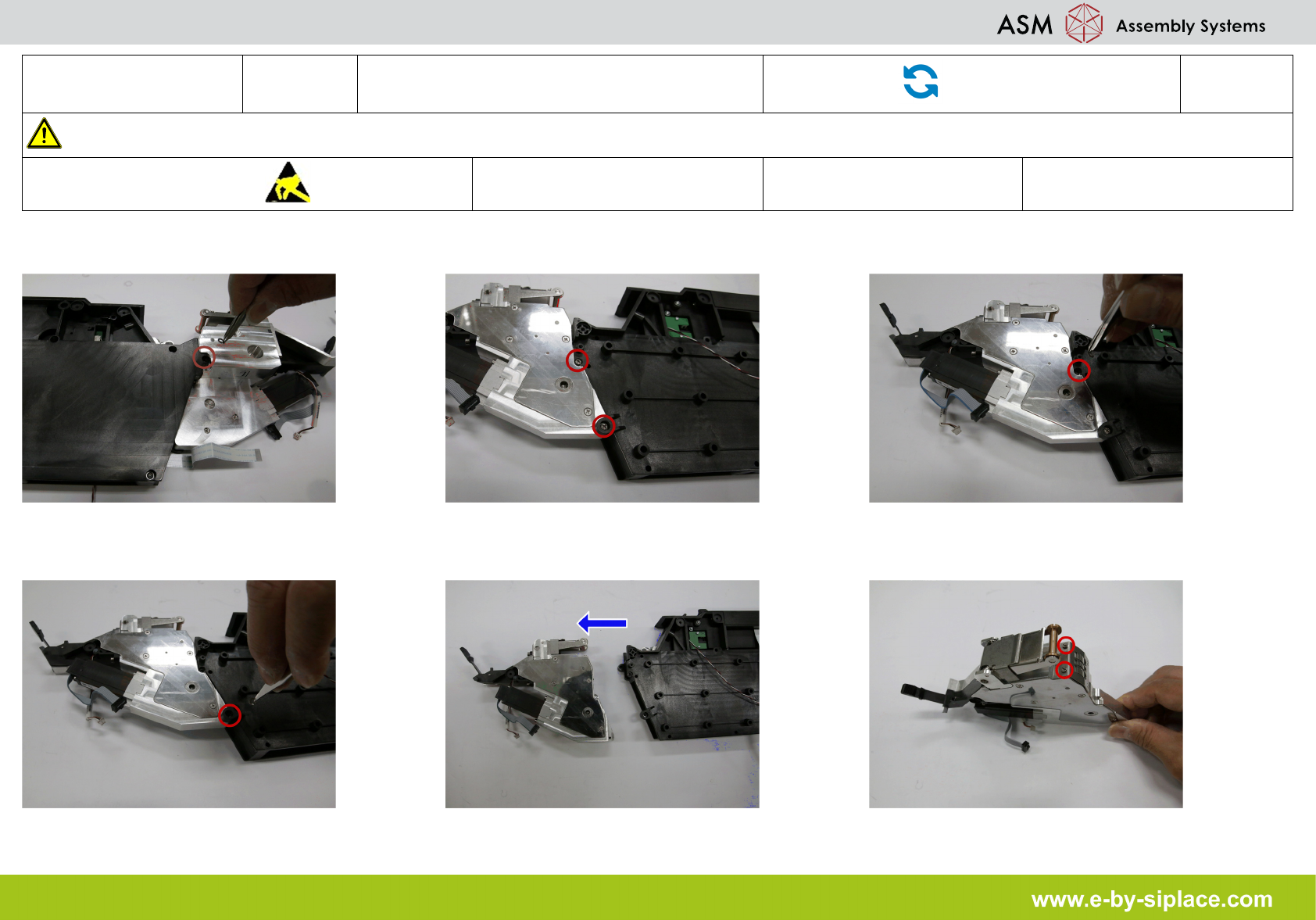

13. Remove the washer with T5. 14. Remove the 2 screws with T3. 15. Remove the washer with T5.
16. Remove the washer with T5. 17. Remove the Foil Disposal Drive. 18. Remove the 2 screws with T1.
E-by SIPLACE Smart Feeder
24 mm E
Removing the Stripping Device Foil Disposal
Part Exchange
4/8
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T3
Wear Part: Consumables:
19. Remove the 2 screws with T3. 20. Remove the Stripping Device
