E-by SIPLACE Smart Feeder 24 mm E Fitting the Stripping Device Foil Disposal Part Exchange 6/8 CAUTION! Refer to safety inst ructions in user manual before working on the machine. ESD guidelines are to be followed Tool: …

E-by SIPLACE Smart Feeder

24 mm E

Fitting the Stripping Device Foil Disposal

Part Exchange

5/8

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T1,T3,T5

Part No.: 03041984-xx (<=-06)

03085743-xx (>=-07)

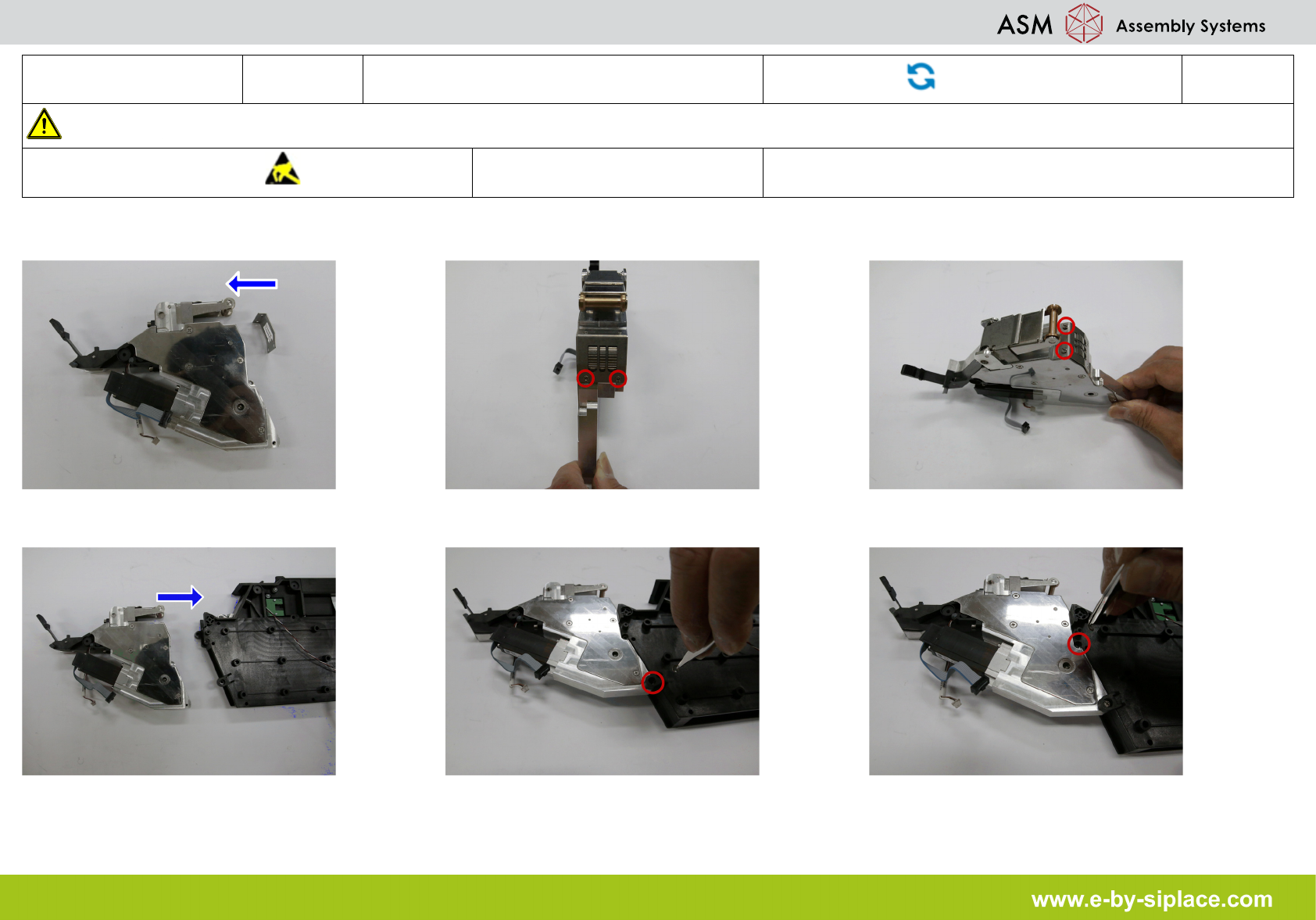

1. Fit in the Stripping Device. 2. Tighten these 2 screws with T3. 3. Tighten these 2 screws with T1.

4. Fit in the Foil Disposal Drive. 5. Insert the washer with T5. 6. Insert the washer with T5.

E-by SIPLACE Smart Feeder

24 mm E

Fitting the Stripping Device Foil Disposal

Part Exchange

6/8

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T3,T5

Part No.: 03041984-xx (<=-06)

03085743-xx (>=-07)

7. Tighten these 2 screws with T3. 8. Insert the washer with T5. 9. Tighten this screw with T3.

10. Fit in the foil disposal drive to the feeder. 11. Connect the 2 connectors. 12. Connect the connector.

E-by SIPLACE Smart Feeder

24 mm E

Fitting the Stripping Device Foil Disposal

Part Exchange

7/8

CAUTION! Refer to safety instructions in user manual before working on the machine.

ESD guidelines are to be followed

Tool:

T3,T5

Part No.: 03041984-xx (<=-06)

03085743-xx (>=-07)

13. Connect the connector. 14. Fit in the spacer. 15. Tighten the 2 screw with T3.

16. Fit in the 4 screws with T3 and T5 accord-

ingly.

17. Fit in the rocker. 18. Insert the rocker axle.
