InJet
®
388 CRD
TECHNICAL DATA SHEET
www.dct.cleaning
3
CR
D
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Recommended
time
Capacity
per 8 hours
Stencil, misprint, squeegee
20 – 40°C 68 – 104 °F 18 min. 27
PumPrint
40 – 55°C 104 – 131 °F 18 min. 27
Conformal coating
40 – 55°C 104 – 131 °F 60 min. 192 * /16 **
PCB
35 – 55°C 95 – 131 °F 30 min. 384 *
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Soldering palette / per 8 hours (calculated for dimension of 320 x 500 x 50 mm / 12.6 x 19.7 x 1.97 in)
LEGEND:
InJet
®
388 CRD
TECHNICAL DATA SHEET
www.dct.cleaning
4
metric units imperial units
Dimensions (w x l x h) 1120 x 1360 x 2100 mm 44.1 x 53.5 x 82.7 in
Weight 420 kg 926 lbs
Ø energy consumption per cycle 2,5 kWh 2.5 kWh
Cleaning and rinsing uid consumption per cycle 0,05 – 0,3 L 1.28 - 10.24 ounces
Compressed air consumption per cycle 2 L / 5 Bar 0,53 gal /72,5 PSI
Max. dimensions of the cleaned parts 190 x 860 x 790 mm 7.48 x 33.9 x 31.1 in
Exchangeable mechanical lter
of cleaning and rinsing uid
5 - 200 μm 5 - 200 μm
Spraying pressure / 45 °C / 113 °F 2,4 bar 34,8 PSI
Cleaning uid ow rate 200 L / min 52.8 gal / min
Temperature range setting of the cleaning
and rinsing uid
From ambient temperature to 60 °C From ambient temperature to 140 °F
Conductivity range settings of the rinsing
uid in the tanks
0 – 2000 μS/cm *optional 0 – 2000 μS/cm *optional
Temperature range setting of the drying From ambient temperature to 80 °C From ambient temperature to 176 °F
Noise level < 70 dB < 70 dB
Device control PLC + 8.4“ touchscreen PLC + 8.4“ touchscreen

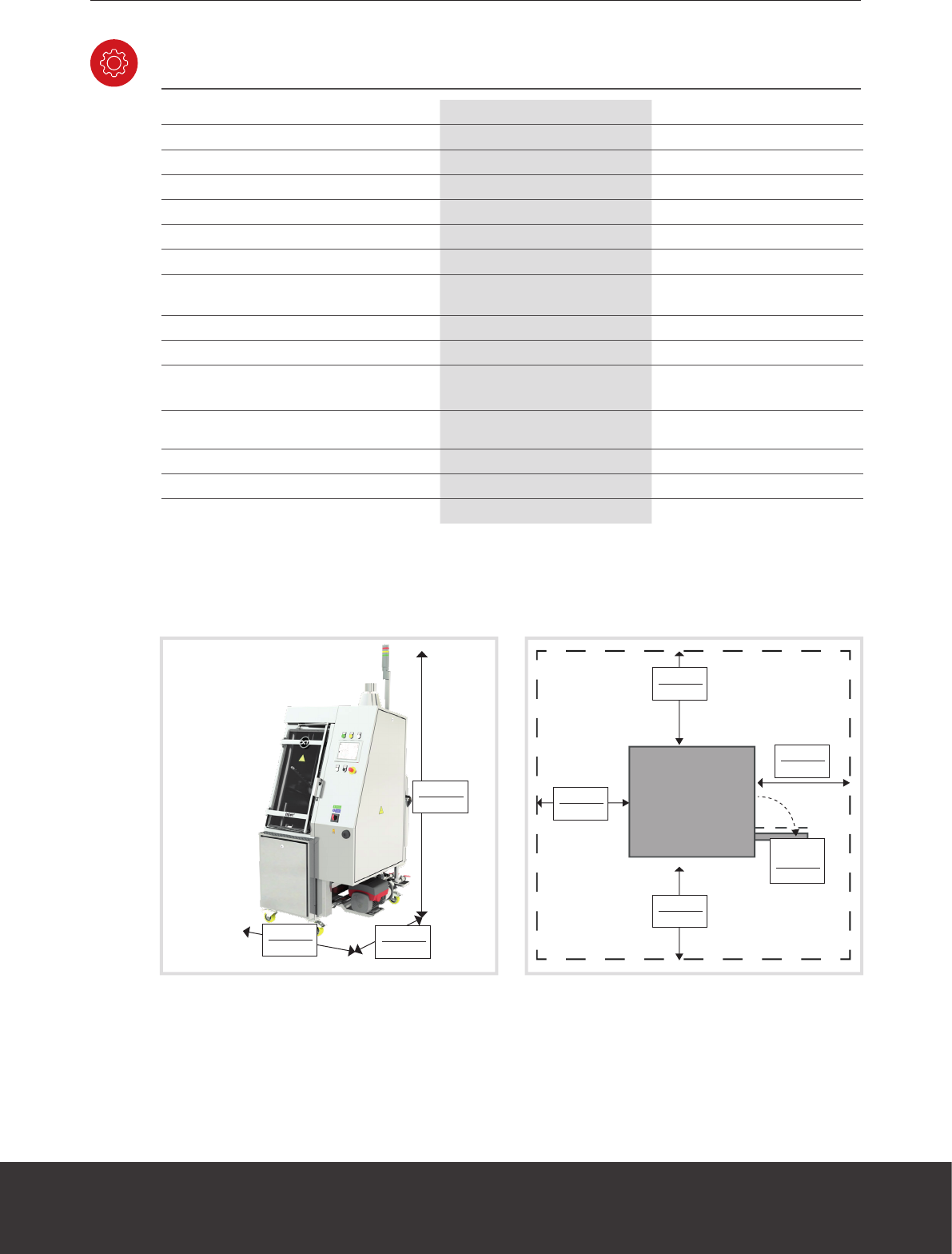

TECHNICAL PARAMETERS
DIMENSIONS MINIMUM SERVICE SPACE
AROUND THE MACHINE
2100 mm
82.7 in
1360 mm
53.5 in
1120 mm
44.1 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
InJet
®
388 CRD
TECHNICAL DATA SHEET
www.dct.cleaning
5
metric units imperial units
Power supply 400 V, 32A, 50Hz (3+N+PE) UL 400 V, 32A, 60Hz (3+N+PE)
Pmax 12 kW 12 kW
Connection to central air pressure Pipe Ø 6 mm Pipe ID 0.24 in
Recommended working pressure 5 Bar 72.5 PSI
Exhaust pipe diameter Ø 100 mm ID 3.94 in
Exhaust pipe capacity 380 m
3
/h 13400 ft
3
/h
Minimum liquid for rst ll 2 x 50 L 2 x 13,2 gal
Service space required around the device 600 mm 23.6 in

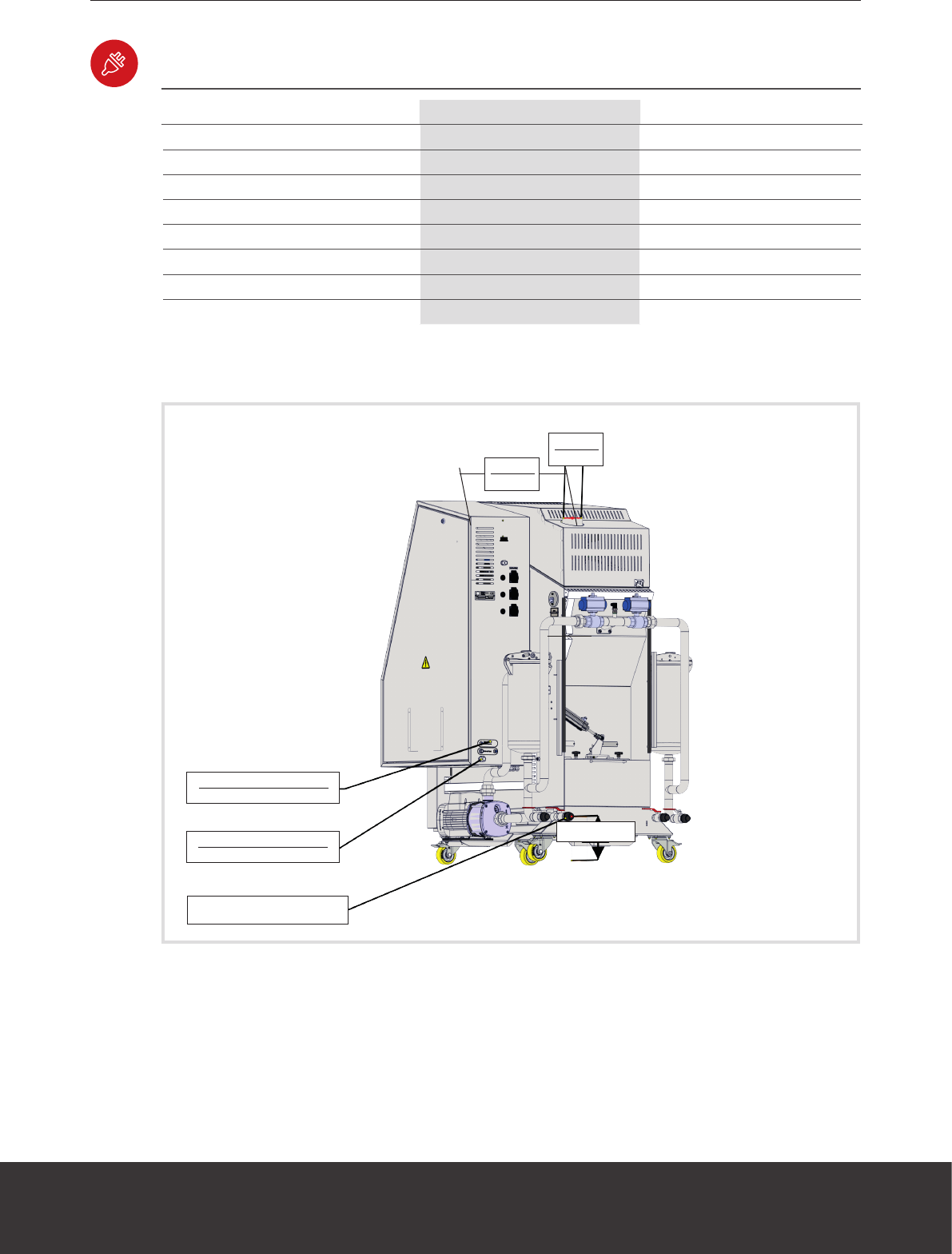

INSTALLATION REQUIREMENTS
BACK
VIEW
discharge of uids G1“
225 mm / 8.86 in
Ø 100 mm
ID 3.94 in
input air pressure 1x Ø6 mm
input air pressure 1 x ID 0.24 in
400 V, 32A, 50Hz (3+N+PE)
UL 400 V, 32A, 60Hz (3+N+PE)
490 mm
19.3 in
