SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50119
6/8
6. Operation Method of Lane Select Switch
6.1 Lane Select Switch
Lane Select Switch is added, which switches the operating range of [START] and [STOP],
[RESET]buttons.
Forexample,whenthebothlanesareinautorunningstate,press“RESET”buttonwithLane
SelectSwitchturnedto“Lane2”,andresetisexecutedon“Lane2”only.
Fig6.1Theappearanceoftheoperationpanel
LaneSelectSwitch
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50119
7/8
7. Lighting condition of the Signal Light
7.1 Signal Light
ThestateofLane1and Lane2isindicatedwith oneSignalTower.Thelightingconditionsof
SignalTowerareshowninthefollowingtable(Table7.1).
Forexample,whenthestatesofLane1andLane2are“ErrorStop”and“AutoRunning”,green
andyellowlightswork.
Table7.1 LightingconditionoftheSignalLight
SignalLightThestateof
theLane1
Thestateof
theLane2
Green
Yellow
Red
Buzzer
Reset Reset    OFF
Stop Stop    OFF
AutoRun AutoRun ●   OFF
AutoRun Stop ●   OFF
ErrorStop AutoRun ● ●  ON
Stop
(Componentsrunout)
AutoRun    ON
Emergencystop Emergencystop   ● OFF
●:Lighting:Blink:Dependsonotherconditions
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50119
8/8
8. Status Area
8.1 Split screen of the Status Area
Thestatusindicationisdividedintotwobanks,anddisplaystheeachlanestatus(SeeFig8.1).

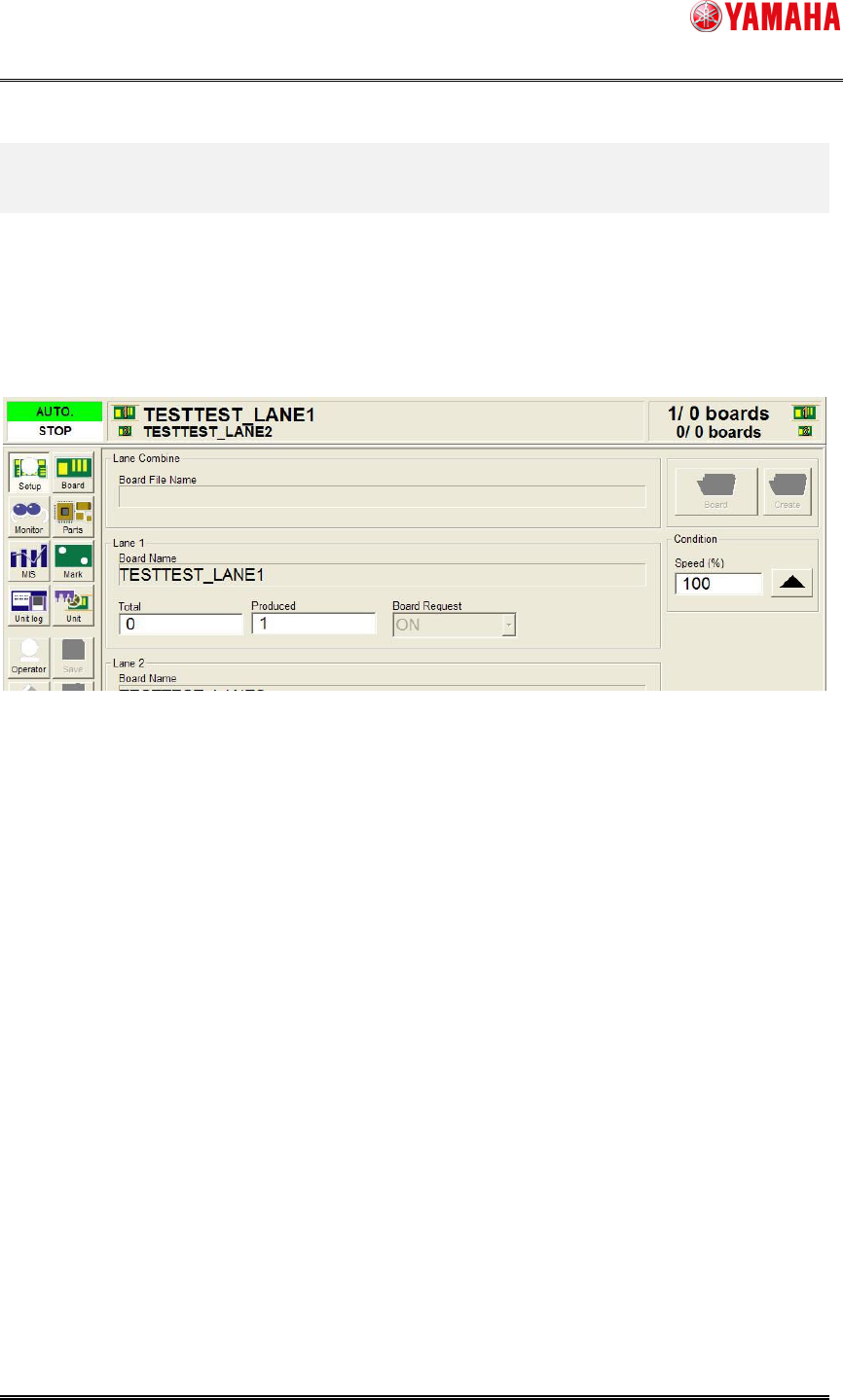

Fig8.1StatusArea
