Station Software Version 7 13.0 (R19-2) / Installation Manual 11/2019 Edition 11 ► The following steps must b e performed: Depending on the machin e type, the vacuum tooling ID m ust be entered in the dialog below and th…
Station Software Version 713.0 (R19-2) / Installation Manual 11/2019 Edition
10
► Select the System identification calibration step.
Figure 3-3: System identification step
Loss of Calibration Data for Vacuum Tooling
The following message may occur when upgrading the station software:
Figure 3-4: Error message: Vacuum tooling calibration
In this case, detailed information can be found in the assistance to this error message or in the
topic "Calibration/Vacuum Tooling" in the Online Help for the station software.
Station Software Version 713.0 (R19-2) / Installation Manual 11/2019 Edition
11
► The following steps must be performed:
Depending on the machine type, the vacuum tooling ID must be entered in the dialog below and
the corresponding file reloaded.
Figure 3-5: Vacuum tooling configuration

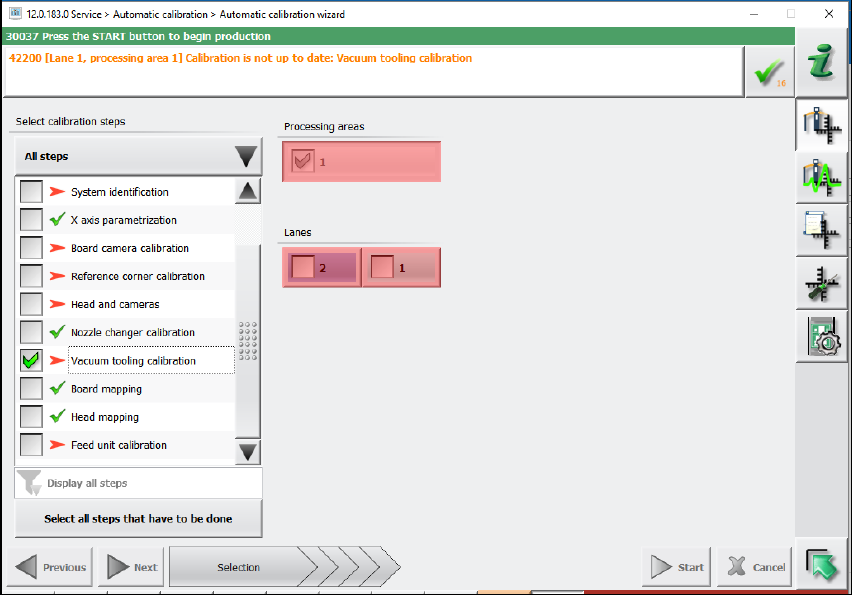

Additionally, the vacuum toolings must be recalibrated by selecting the vacuum tooling calibration
in the automatic calibration wizard.
Station Software Version 713.0 (R19-2) / Installation Manual 11/2019 Edition
12
Figure 3-6: Recalibrating vacuum tooling
3.1 Upgrading from the 712.x Software Version
No further steps required.
3.2 Upgrading from the 711.1 Software Version
No further steps required.
3.3 Upgrading from the 711.0 Software Version
No further steps required.
3.4 Upgrading from the 710.1 Software Version
No further steps required.
3.5 Upgrading from the 710.0 Software Version
No further steps required.
