4.2.7 24/32 mm S feeder
4

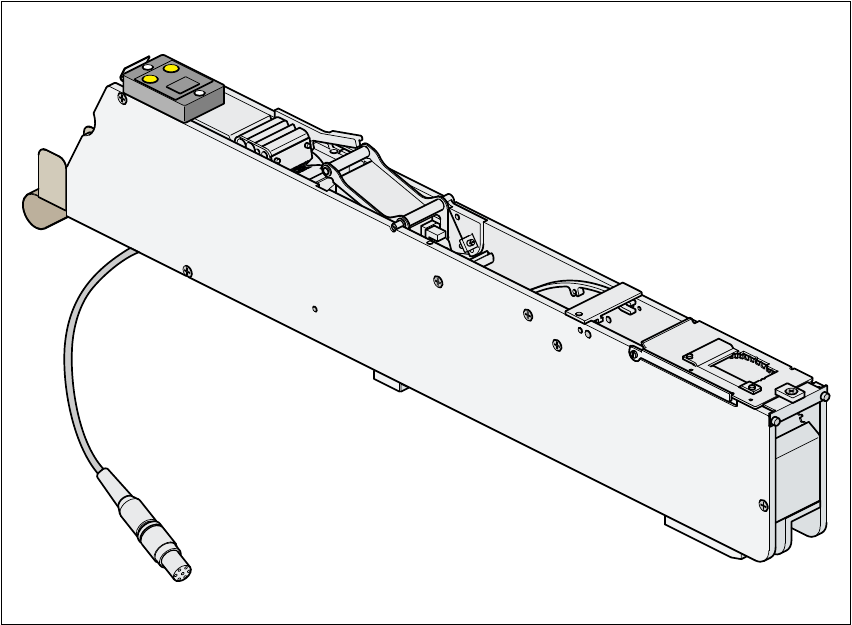

Fig. 4.2 - 7 24/32 mm S feeder
Item no. 00141093-xx
Width 45 mm
Tracks per feeder 1
Maximum number of feeders 4 x 8
Magazine capacity for 7" reels Approx. 2000
Reel diameter Up to 381 mm
Feeding stroke (variable) 4 to 32 mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms (8 mm feeding interval)
Main power supply 30 VDC 4
4 Component handling User Manual SIPLACE HS-50
4.2 Technical data for the feeder modules Software Version SR.50x.xx 01/2006 US Edition
126
4.2.8 Linear vibratory feeder, type 3
4

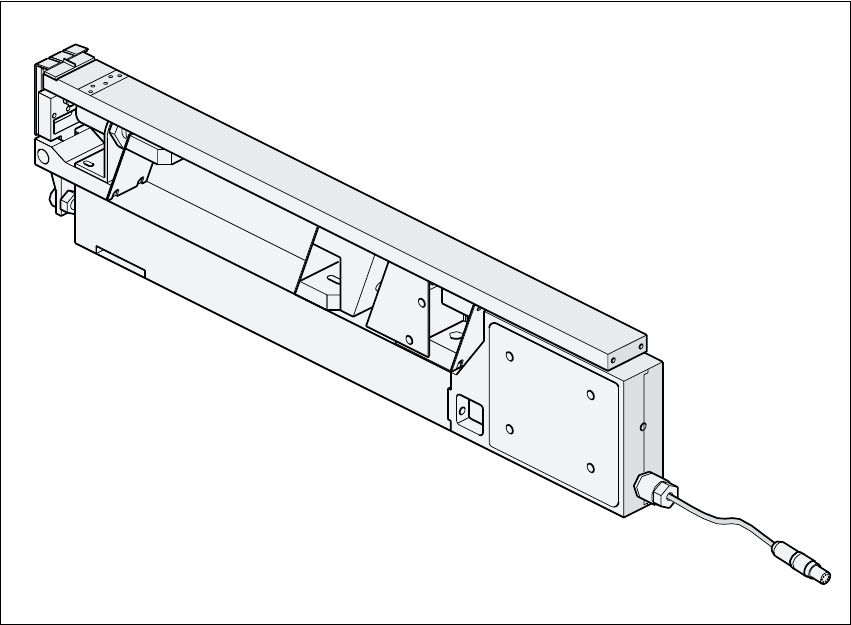

Fig. 4.2 - 8 Linear vibratory feeder, type 3
Item no. 00142031-xx
Width 30 mm
Tracks per feeder 1, 2, 3 or 6
Maximum number of feeders 4 x 12
Magazine capacity Up to 150 per stick steel magazine
depending on the component length
Stick steel magazine data 4.5 mm wide / x 6
9.5 mm wide / x 3
11 mm wide / x 2
15 mm wide / x 2
30 mm wide / x 1
Cycle time Depends on the component
Main power supply 30 VDC 4
User Manual SIPLACE HS-50 4 Component handling
Software Version SR.50x.xx 01/2006 US Edition 4.2 Technical data for the feeder modules
127
4.2.9 Bulk case feeder
4
Fig. 4.2 - 9 Bulk case feeder
Item no. 00142318-xx
Width 30 mm
Tracks per feeder 2
Maximum number of feeders 4 x 12
Magazine capacity Approx. 5000
Feeding rails 0603 / 0.45 mm highItem no. 00142321-xx
0603 / 0.80 mm highItem no. 00142322-xx
0805 / 0.45 mm highItem no. 00142323-xx
0805 / 0.60 mm highItem no. 00142324-xx
0805 / 0.85 mm highItem no. 00142325-xx
0805 / 1.25 mm highItem no. 00142326-xx
MinimelfItem no. 00142328-xx
Cycle time < 80 ms
Main power supply 30 VDC 4
