4 Component handling User Manual SIPLACE HS-50
4.5 Used tape cutter Software Version SR.50x.xx 01/2006 US Edition
132
4.5.1 General
The placement system has a used tape cutter at each of the four component table locations. It is
used to cut off the waste tape. The cut pieces of tape drop into the waste tape container in the
component table. 4
Æ Empty the waste tape container every day.
Fig. 4.5 - 2 Used tape cutter
(1) Pneumatic cutting device
(2) Short-stroke lifting cylinder
(3) Opening for removal of the used tape
User Manual SIPLACE HS-50 4 Component handling
Software Version SR.50x.xx 01/2006 US Edition 4.5 Used tape cutter
133
4.5.2 Feeding the used tape to the cutter

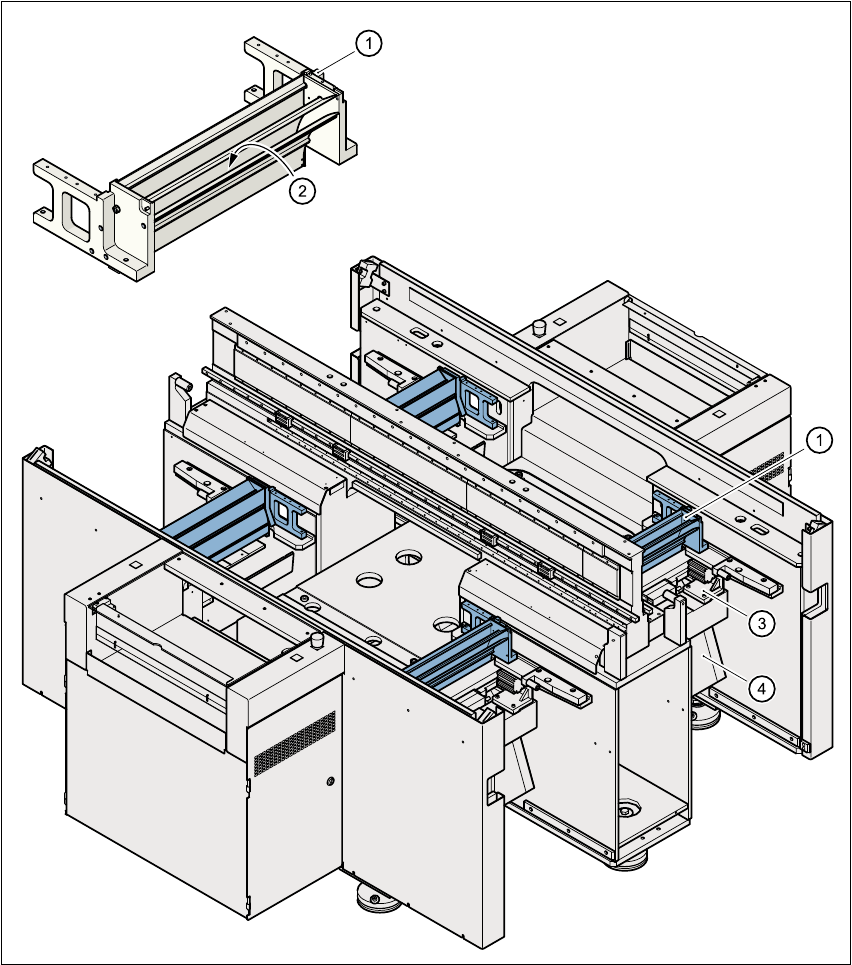

Fig. 4.5 - 3 Feeding the used tape to the cutter
(1) Used tape guide channel
(2) Channel for removal of the used tape
(3) Tape cutter
(4) Waste tape chute
4 Component handling User Manual SIPLACE HS-50
4.5 Used tape cutter Software Version SR.50x.xx 01/2006 US Edition
134
The used tape guide channels (see item 1 in Fig. 4.5 - 3) are located upstream of the feeder mod-
ules. They are positioned directly above the used tape cutters (see item 3 in Fig. 4.5 - 3
). 4
The tape is automatically guided through the used tape guide channel into the used tape cutter
below. There, the tape is shredded by the pneumatically-actuated cutting blade. The waste tape
then passes via the waste tape chute (see item 4 in Fig. 4.5 - 3
) into the component table’s waste
container. 4
4

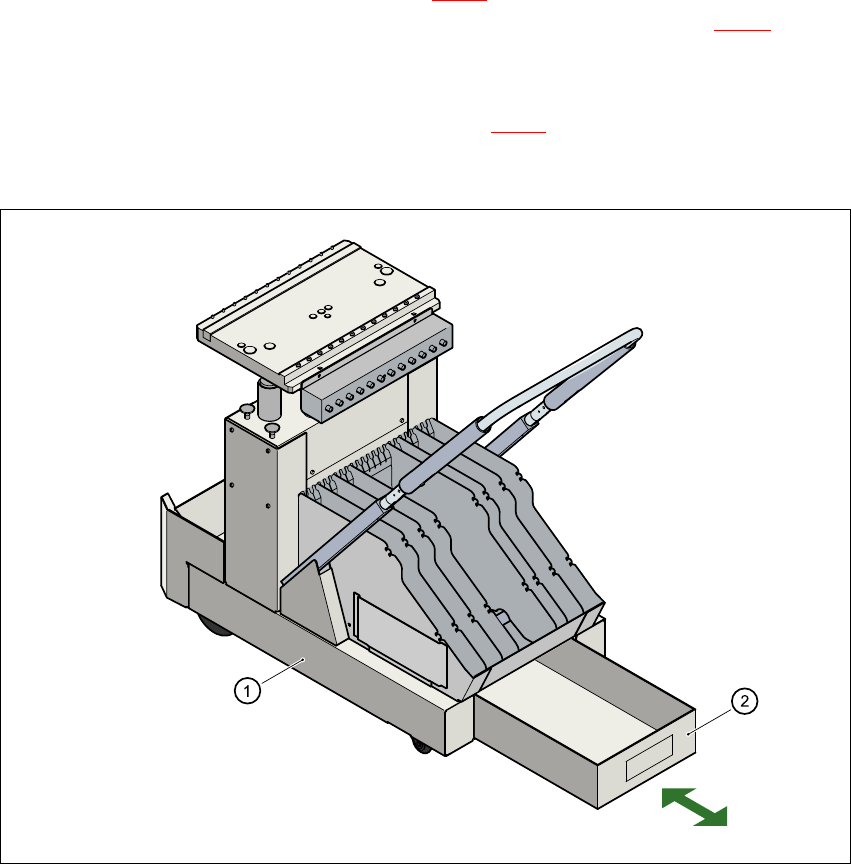

Fig. 4.5 - 4 Removable waste tape container in the component changeover table
(1) Component changeover table
(2) Removable waste tape container
4
