2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov-
ableTableSystem)
2.1 Proparatory Steps
13
2 Installing the Location 1 Upgrade Kit
[03113225‑xx]
(FixedtoMovableTableSystem)
2.1 Proparatory Steps

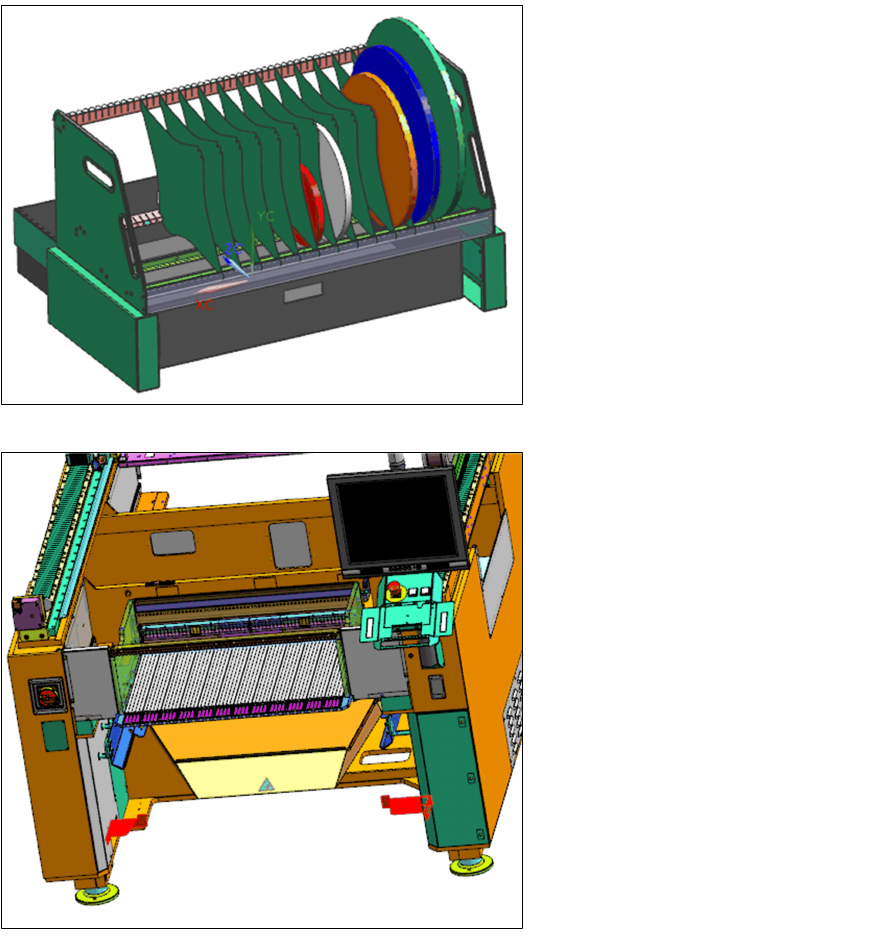

► Remove feeders from Fixed
Table.
► Remove Tape Reel Container
[03105021-xx]. It will not be
fixed back.
► Remove the Tape Reel Con-
tainer Stopper Brackets
[03111418-xx]. They will not be
fixed back.
2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov-
ableTableSystem)
2.1 Proparatory Steps
Assembly Instructions E by SIPLACE
Location 1 Upgrade Kit 04/2017
14

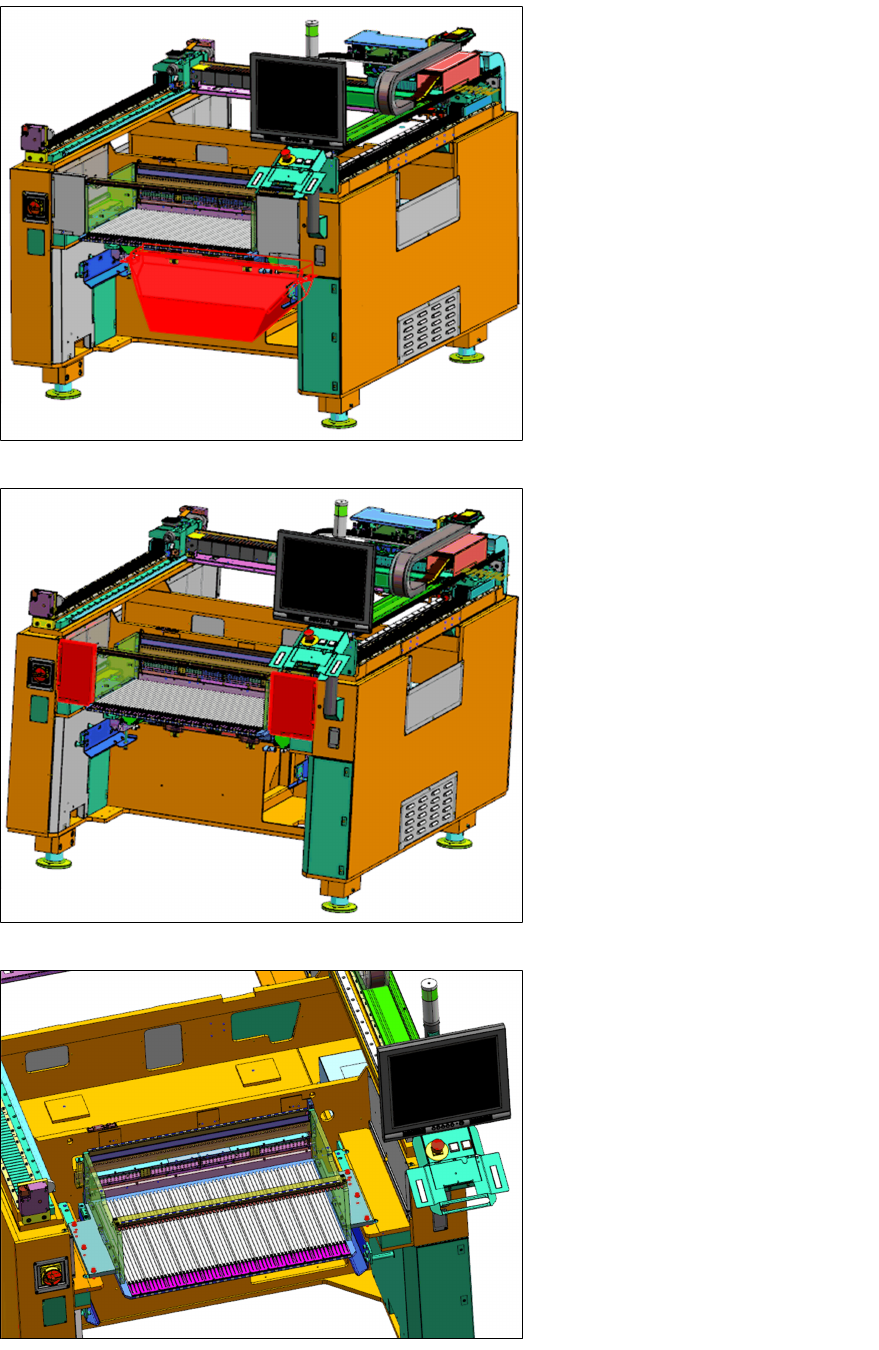

► Remove Waste Tape Chute
[03108361-xx]. It will be fixed
back later.
► Remove the Location 1 Fixed
Side Covers [03112971-xx].
They will not be fixed back.
► Disconnect the cable from FCU.
► Remove the screws and dowels
from the Fixed Table
[03100776-xx].
► Remove the Fixed Table
[03100776-xx].
