Assembly Instructions E by SIPLACE Location 1 Upgrade Kit 04/2017 2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov- 2.2 Installing the Location 1 Upgrade Kit 17 ► Remove the three location 2 covers sho…
2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov-
2.2 Installing the Location 1 Upgrade Kit
Assembly Instructions E by SIPLACE
Location 1 Upgrade Kit 04/2017
16

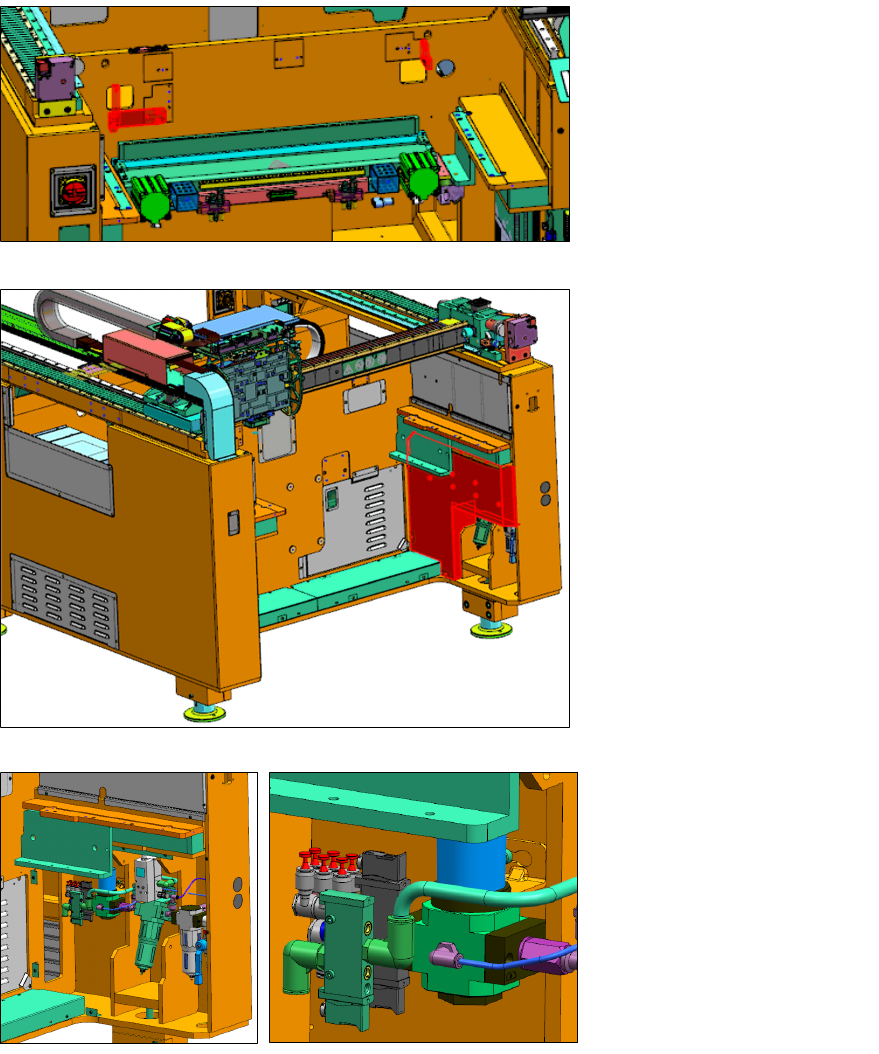

► Remove the ETD brackets
mounted on the frame.
The ETD brackets will not
be fixed back.
► Remove the location 2
cover to reveal the air ser-
vice unit.
► Plug in the tubing Tube
Insert Module LOC1
[03102152-xx] to one of
the six ports shown.
► Fix back the location 2
cover.
Assembly Instructions E by SIPLACE
Location 1 Upgrade Kit 04/2017
2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov-
2.2 Installing the Location 1 Upgrade Kit
17

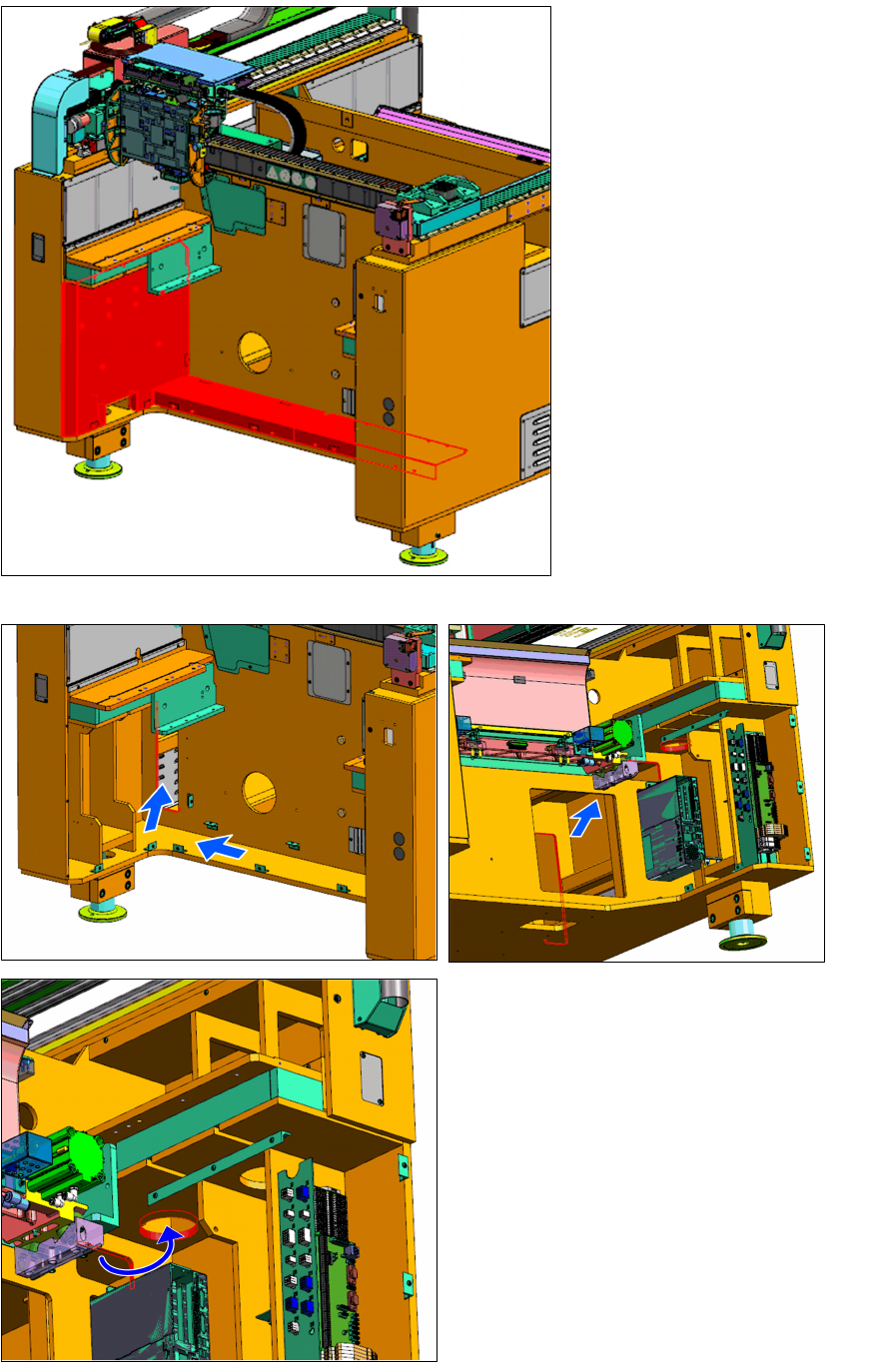

► Remove the three location 2
covers shown above. They
will be fixed back after rout-
ing the tube.
► Route the tubing mentioned before from
the Air Service Unit to location 1 as
shown.
2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov-
2.2 Installing the Location 1 Upgrade Kit
Assembly Instructions E by SIPLACE
Location 1 Upgrade Kit 04/2017
18
► Install the adhesive cable tie mounts at the two locations shown.
► Take the two tubes 4A_BTM-TEE_L1 [03111719-xx].
► Mark one of the two tubes at both ends of the tube. This will identify it as the tube that con-
nects to the rear port of the left cylinder.
1. Hole 1
2. Hole 2
3. Hole 3
► Stretch the two tubes from left to right behind the tape cutter.
► Use cable ties to loosely secure the tubes to the cable tie bases installed before.
► Thread the two tubes [03111719-xx] through hole 1 and hole 2 and up through hole 3.
