Assembly Instructions E by SIPLACE
Location 1 Upgrade Kit 04/2017
2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov-
ableTableSystem)
2.1 Proparatory Steps
13
2 Installing the Location 1 Upgrade Kit
[03113225‑xx]
(FixedtoMovableTableSystem)
2.1 Proparatory Steps
► Remove feeders from Fixed
Table.
► Remove Tape Reel Container
[03105021-xx]. It will not be
fixed back.
► Remove the Tape Reel Con-
tainer Stopper Brackets
[03111418-xx]. They will not be
fixed back.
2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov-
ableTableSystem)
2.1 Proparatory Steps
Assembly Instructions E by SIPLACE
Location 1 Upgrade Kit 04/2017
14
► Remove Waste Tape Chute
[03108361-xx]. It will be fixed
back later.
► Remove the Location 1 Fixed
Side Covers [03112971-xx].
They will not be fixed back.
► Disconnect the cable from FCU.
► Remove the screws and dowels
from the Fixed Table
[03100776-xx].
► Remove the Fixed Table
[03100776-xx].
Assembly Instructions E by SIPLACE
Location 1 Upgrade Kit 04/2017
2 Installing the Location 1 Upgrade Kit [03113225‑xx] (FixedtoMov-
2.2 Installing the Location 1 Upgrade Kit
15
2.2 Installing the Location 1 Upgrade Kit

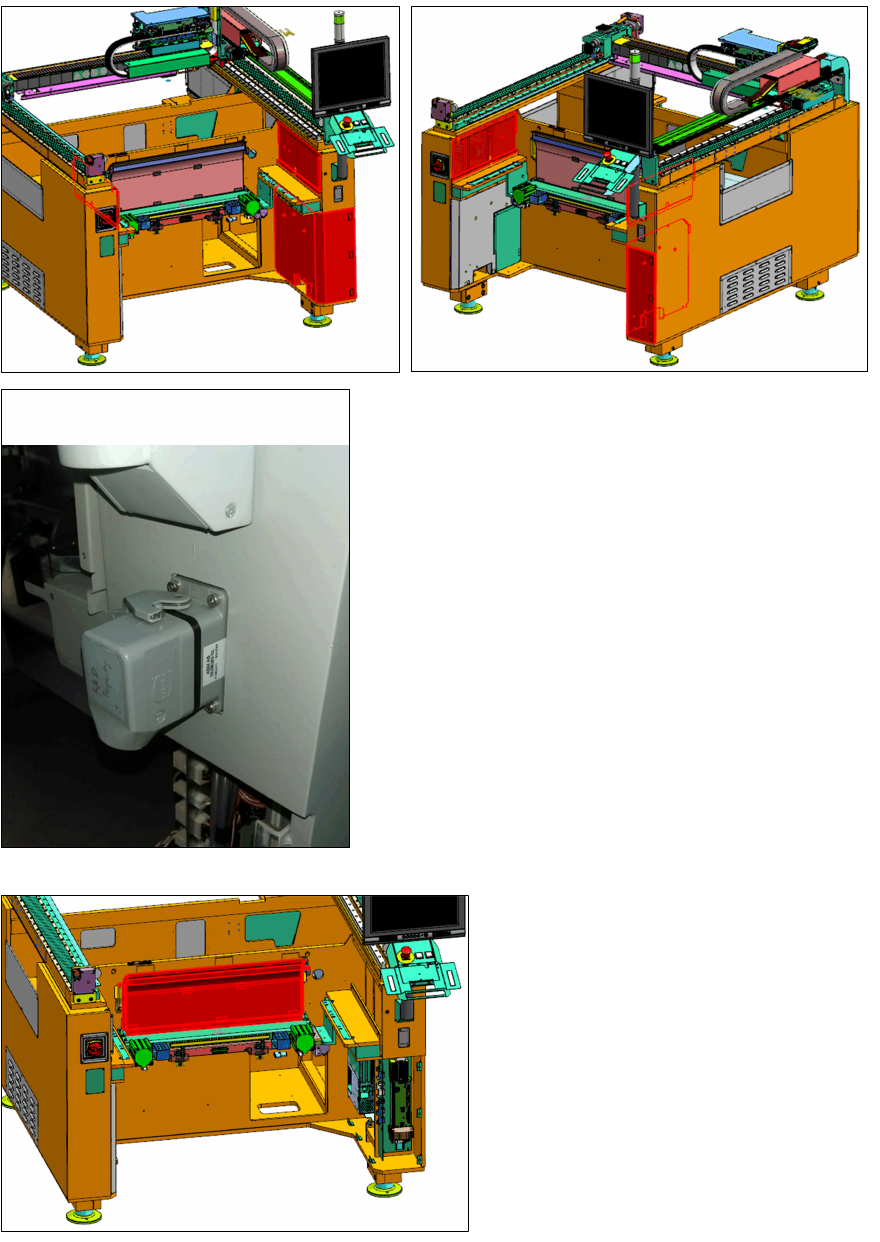

► Remove the three covers at Location 1 shown
above:
► Exchange the Cable assembly MT60 fixed table
[03102684-xx] with the Cable harness COTi60
LOC1 [03108915-xx]. Pay attention to the orienta-
tion of the Cable harness COTi60 LOC1 [03108915-
xx].
► Use the screws ISO 4762 - M 4 x 12-A2-70
[03042553-xx] to secure the Cable harness COTi60
LOC1 [03108915-xx].
► Remove the Empty Tape Duct.
►
