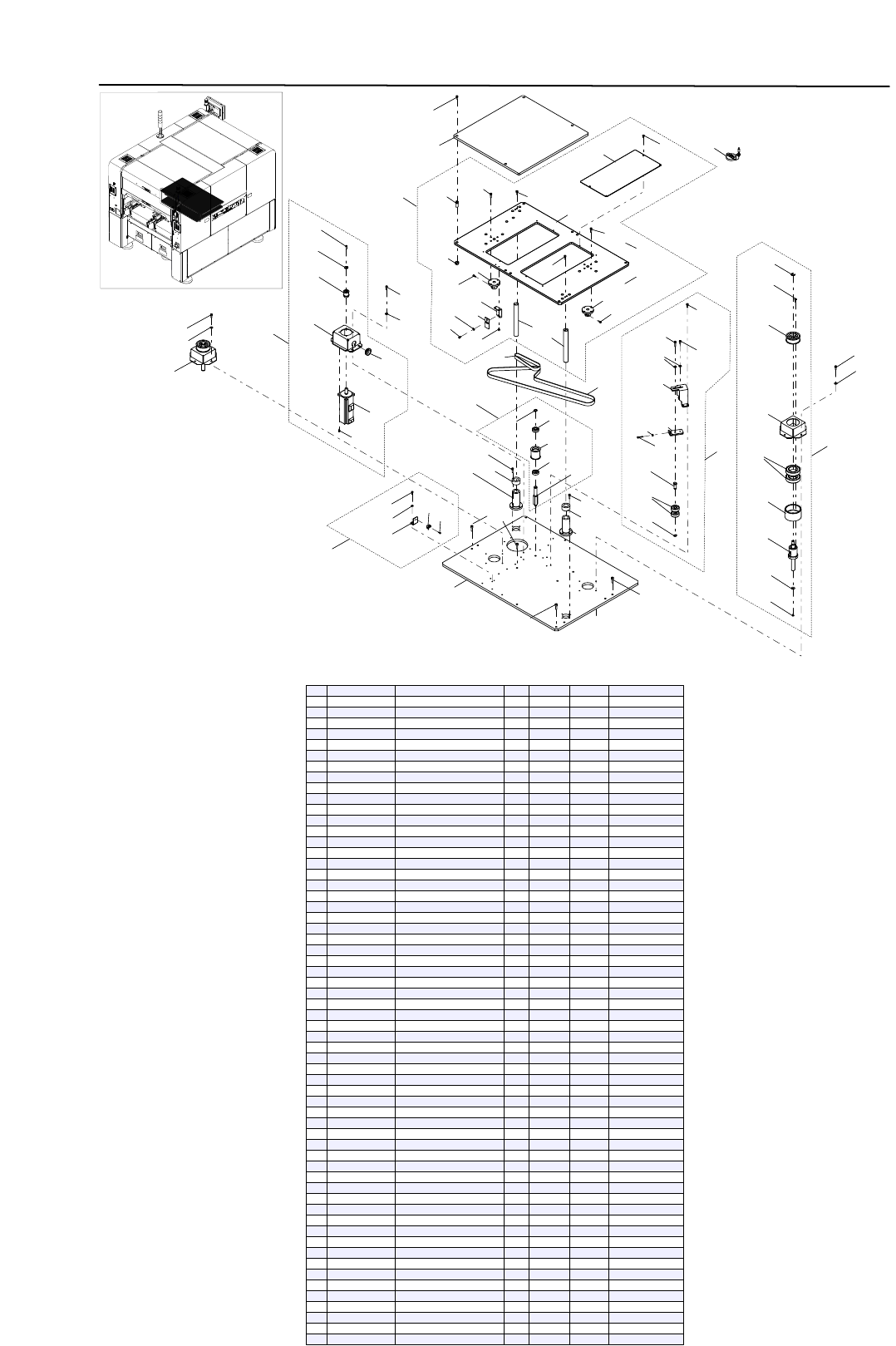

Push Up (L360)
Conveyor
KMK-1803
9-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90440-01J090
CIRCLIP
2
2
90933-01J001
BEARING
2
3
90933-01J007
BEARING
4
4
90933-01J300
BEARING
2
5
90990-01J065
BOLT HEX,SOCKET HEAD
2
6
90990-28J076
WASHER,PLAIN
1
7
90K65-332G74
AC SERVO MOTOR
1
8
91312-03008
BOLT HEX,SOCKET HEAD
2
9
91312-04006
BOLT HEX,SOCKET HEAD
2
10
91312-04008
BOLT HEX,SOCKET HEAD
14
11
91312-04010
BOLT HEX,SOCKET HEAD
6
12
91312-04012
BOLT HEX,SOCKET HEAD
9
13
91312-04020
BOLT HEX,SOCKET HEAD
1
14
91312-05010
BOLT HEX,SOCKET HEAD
5
15
91312-05012
BOLT HEX,SOCKET HEAD
20
16
KGA-M921T-00
BOLT
4
17
KHW-M9215-00
PULLEY:P60-3GT
2
18
KHW-M921A-00
BRKT.,TENSIONER
1
19
KHW-M921B-00
STAY,ADJUST
1
20
KHW-M921C-00
SHAFT 1
1
21
KHW-M9222-00
POST
1
22
KHW-M9223-00
PULLEY:P40-3GT
1
23
KHY-M9211-00
HOLDER,BRG.
2
24
KHY-M9212-00
HOUSING
2
25
KHY-M921D-00
BELT 315-3GT-15
1
26
KHY-M921G-01
BRKT.,DOG
1
27
90990-28J170
WASHER,PLAIN
2
28
KHY-M921N-01
JOINT A
2
29
KKE-M9218-00
GROMMET
1
30
KLW-M653D-20
SENSOR,PUB ORG ASSY
1
31
KLW-M920D-00
PLATE,PU BASE
1
32
KMK-M920G-00
STAY
2
33
KLW-M920K-00
PLATE 1(400x425)
1
34
KLW-M9B00-00
BALL SCREW PU
2
35
KLW-M9217-00
BALL BUSH
2
36
KLW-M9218-00
SHAFT
2
37
KLW-M921H-02
PLATE,DOG
1
38
KLW-M921K-00
BRKT.,SENSOR
1
39
KLW-M921N-00
BELT 1170-3GT-15
1
40
KLW-M921S-00
BRKT.,MOTOR
1
41
KLW-M9221-01
DAMPER
2
42
KV7-M9205-01
PULLEY 1:P22-3GT
1
43
91312-05016
BOLT HEX,SOCKET HEAD
16
44
91312-05020
BOLT HEX,SOCKET HEAD
1
45
91312-06020
BOLT HEX,SOCKET HEAD
8
46
92902-04200
WASHER,PLAIN
4
47
92902-05200
WASHER,PLAIN
14
48
95302-04600
NUT HEXAGON
1
49
95602-10100
NUT, U
4
50
99009-10400
CIRCLIP
1
51
99009-12400
CIRCLIP
1
52
KLW-M9201-A0
DRIVE UNIT ASSY.
2
53
KMK-M9203-B0
STAY ASSY.
1
R-L
54
KLW-M9204-A0
TENTIONER ASSY.
1
55
KLW-M9205-A0
PULLEY ASSY.
1
56
KLW-M9208-A0
MOTOR ASSY.
1
57
KLW-M9209-B0
SENSOR SUB ASSY.
1
58
KHY-M920D-00
PUSH UP PIN UNIT
1
59
KMK-M921P-00
PLATE
2
60
KMK-M9203-C0
STAY ASSY.
1
L-R
16
13
18
12
17
15
21
2
8
20
22
21
5
4
21
7
1
2
2
19
6
14
4
21
19
14
3
4
21
21
3
2
2
14
19
21
4
10
21
3
19
2
14
21
4
21
9
20
3
22
5
21
4
21
1
16
13
18
12
17
15
21
2
8
20
22
21
5
4
21
7
1
2
2
19
6
14
4
21
19
14
3
4
21
21
3
2
2
14
19
21
4
10
21
3
19
2
14
21
4
21
9
20
3
22
5
21
4
21
1

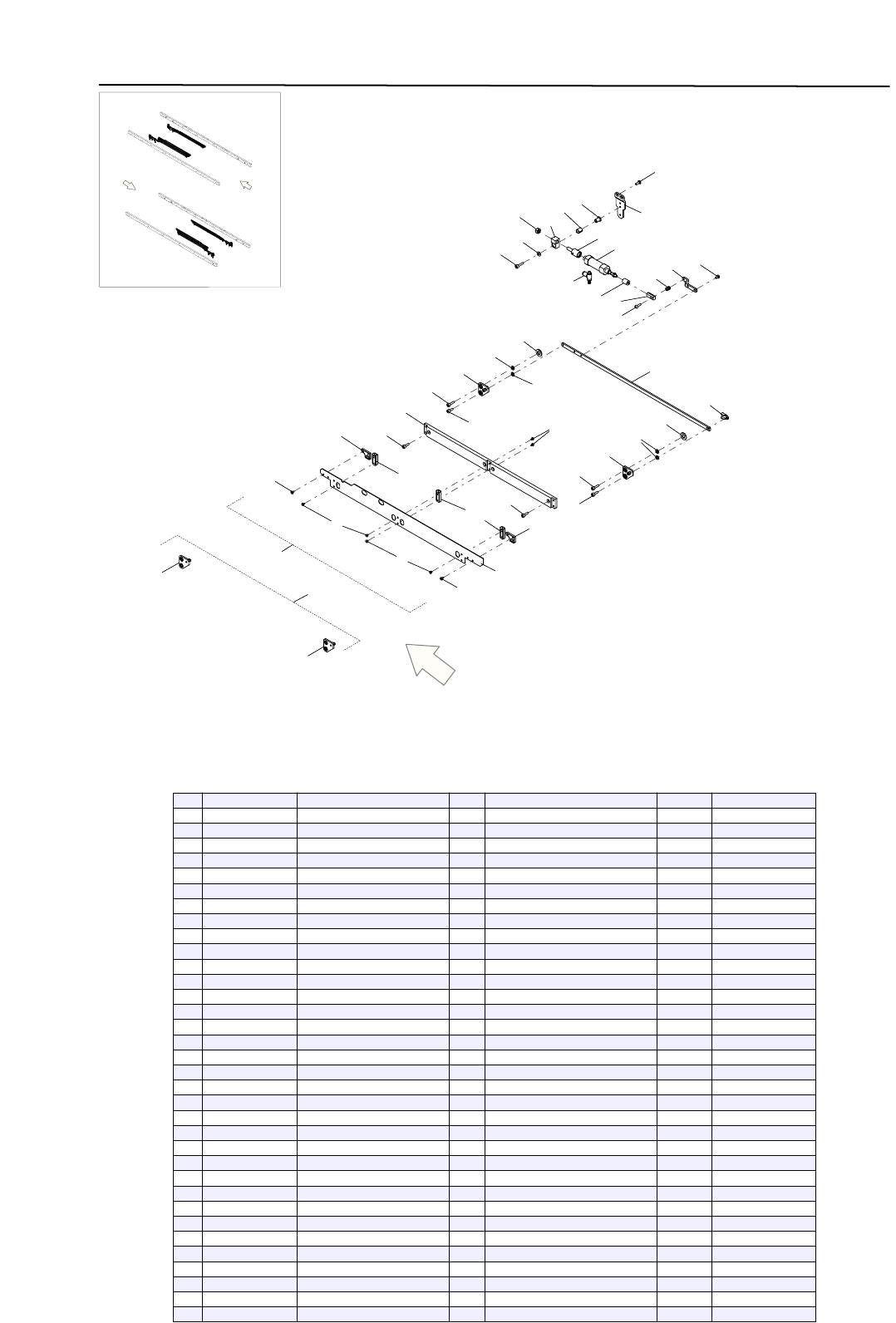

Main / Sub / Exit Stopper (L360)
Conveyor
KMK-1803
9-2
PCB FLOW
PCB FLOW
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KHW-M9272-00
STOPPER,EXIT
2
2
KHW-M9274-A0
SPEED CONTROLLER
12
3
KHW-M9282-00
STOPPER,SUB
4
4
KMG-M9162-00
STOPPER,CYLINDER
6
5
KMG-M9271-00
BRKT.,CYLINDER
2
H=30mm
5-1
KMG-M9271-01
BRKT.,CYLINDER
2
H=28mm
OK
MR20032-2018/2/14
6
KMK-M653M-10
CYL.RL SLCV ST2 ASSY
1
7
KMK-M653M-20
CYL.RL SLCV ST3 ASSY
1
8
KMK-M653M-40
CYL.RL SLCV ST5 ASSY
1
9
KMK-M653N-00
CYL.LR SLCV ST1 ASSY
1
10
KMK-M653N-20
CYL.LR SLCV ST3 ASSY
1
11
KMK-M653N-30
CYL.LR SLCV ST4 ASSY
1
12
KMK-M9160-00
MAIN STP.ASSY.1-1
1
13
KMK-M9160-20
MAIN STP.ASSY.1-1
1
14
KMK-M9161-00
BRKT.,CYLINDER
4
15
KMK-M9270-00
EXIT STOPPER ASSY.
1
16
KMK-M9270-10
EXIT STOPPER ASSY.
1
17
KMK-M9280-10
SUB STP.ASSY.1-2
1
18
KMK-M9280-30
SUB STP.ASSY.1-2
1
19
91312-04006
BOLT HEX,SOCKET HEAD
8
20
91312-04010
BOLT HEX,SOCKET HEAD
4
21
91312-04012
BOLT HEX,SOCKET HEAD
24
22
92902-04200
WASHER,PLAIN
4
23
28
1
4
7
30
22
29
21
9
33
8
32
20
17
24
5
6
27
15
31
19
18
14
13
13
12
2
16
25
14
10
28
12
3
4
3
34
13
1
10
3
26
34
11
11
1
23
28
1
4
7
30
22
29
21
9
33
8
32
20
17
24
5
6
27
15
31
19
18
14
13
13
12
2
16
25
14
10
28
12
3
4
3
34
13
1
10
3
26
34
11
11
1

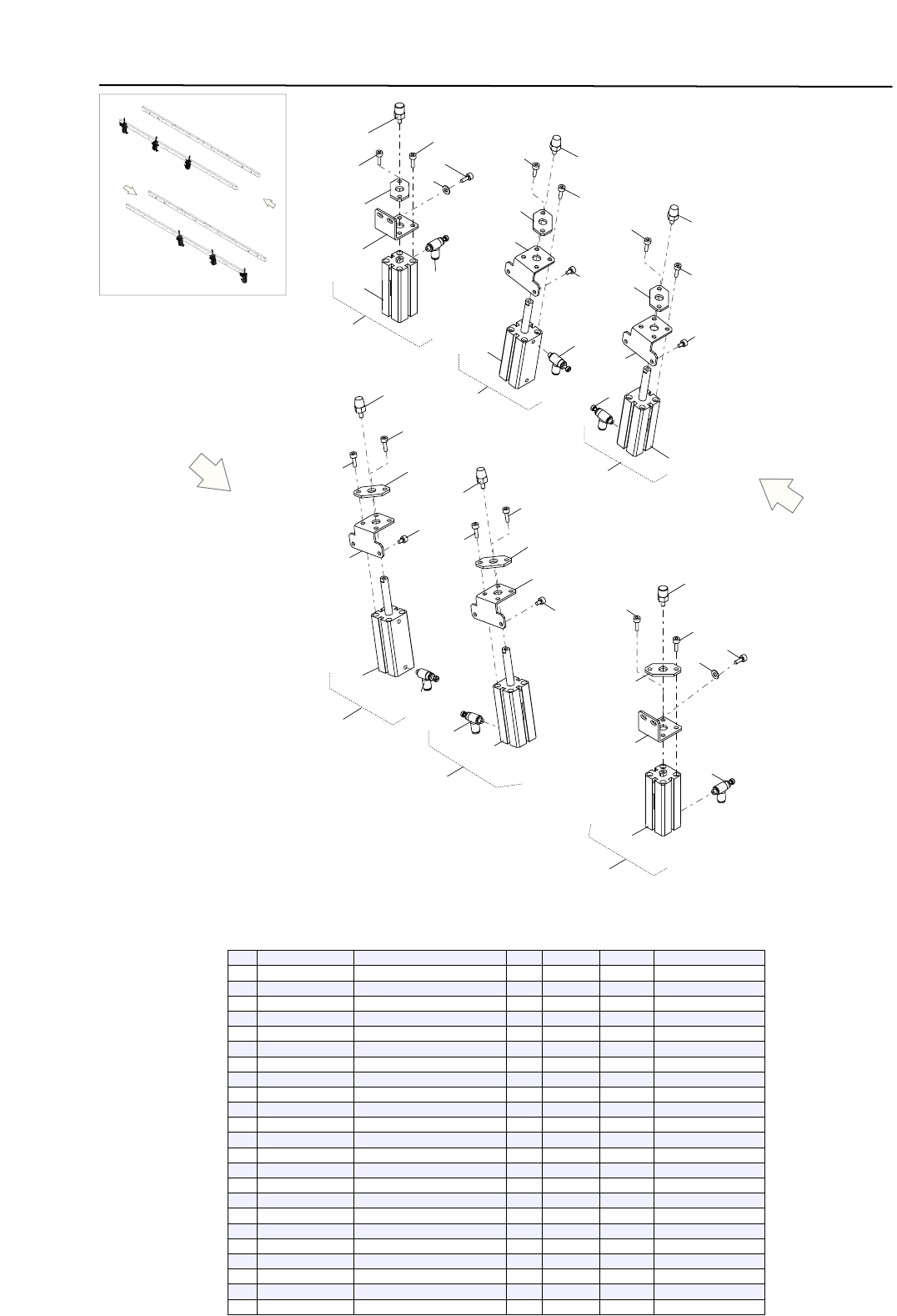

Clamp Board (L360)
