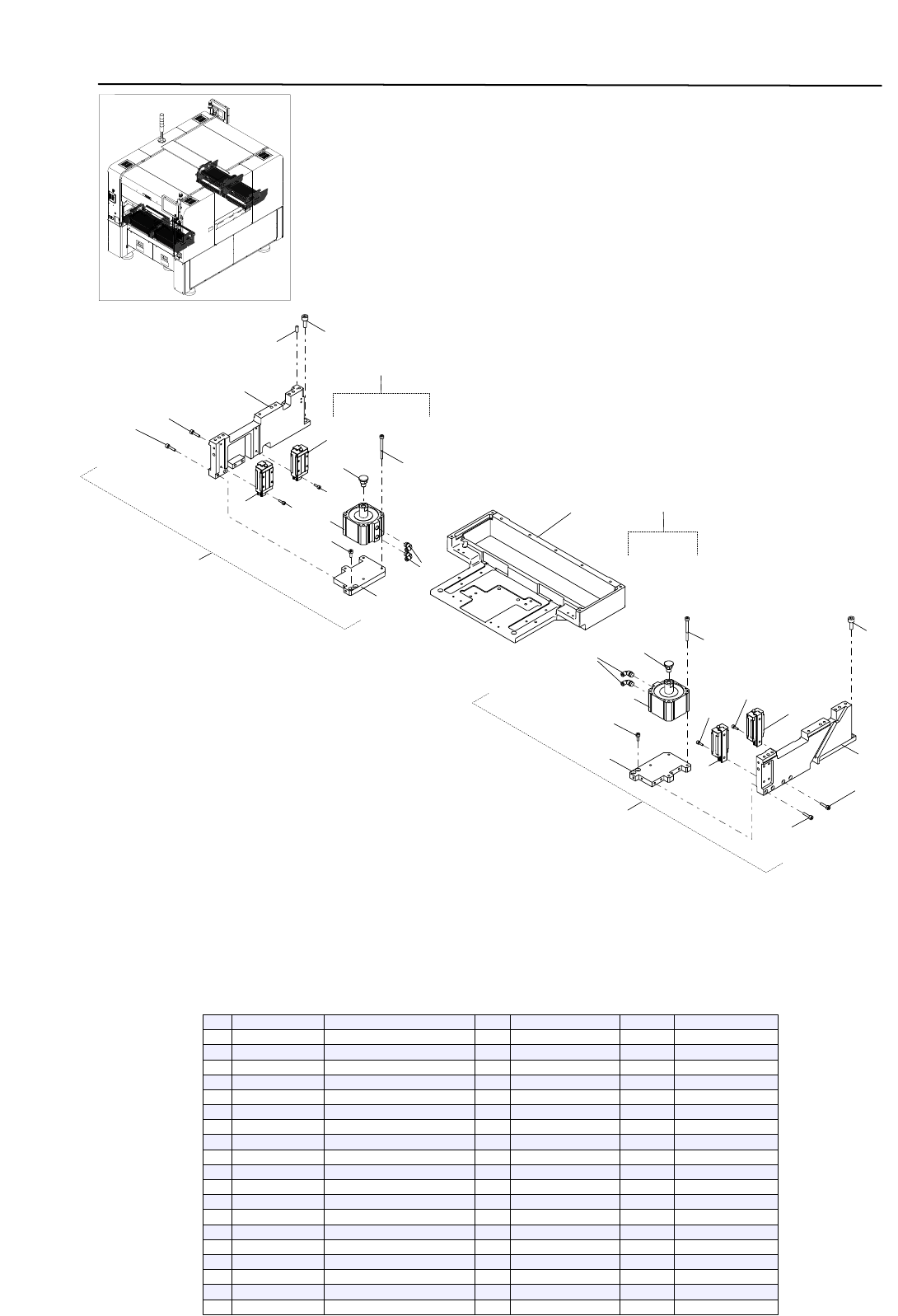

FES32 Clamp Unit Drive 2
Feeder
KMK-1803
3-11
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
KMK-M3J01-00
FRAME L,CLAMP
1
2
KMK-M3J02-00
FRAME R,CLAMP
1
3
KMK-M3J05-L0
BOTTOM L,CYLINDER
1
4
KMK-M3J05-R0
BOTTOM R,CYLINDER
1
5
KMK-M3J06-00
CYLINDER,C/U
2
6
KMK-M3J07-00
CYLINDER JOINT,A
2
7
KMK-M3J13-00
LM GUIDE
4
8
KMK-M3JL1-00
FRAME L,CLAMP ASSY.
1
9
KMK-M3JR1-00
FRAME R,CLAMP ASSY.
1
10
KMK-M3T01-00
BASE,CUTTER
1
11
LE6-M5J3H-00
JOINT
4
12
91312-04012
BOLT HEX,SOCKET HEAD
8
13
91312-05012
BOLT HEX,SOCKET HEAD
4
Not included in Assy
14
91312-05020
BOLT HEX,SOCKET HEAD
8
15
91312-05055
BOLT HEX,SOCKET HEAD
8
16
91312-08020
BOLT HEX,SOCKET HEAD
2
Not included in Assy
17
99480-06014
PIN,PARALLEL
1
Not included in Assy
18
KMK-M3J06-L0
CYL.,C/U L ASSY.
1
19
KMK-M3J06-R0
CYL.,C/U R ASSY.
1
5
14
25
26
10
2
13
26
10
1
7
8
7
27
1
18
8
26
7
17
26
7
8
12
27
12
14
16
10
25
15
5
7
7
16
14
25
27
7
7
23
15
2
6
13
3
22
19
21
21
24
6
20
9
4
2
16
8
14
27
15
26
7
13
7
3
5
5
14
25
26
10
2
13
26
10
1
7
8
7
27
1
18
8
26
7
17
26
7
8
12
27
12
14
16
10
25
15
5
7
7
16
14
25
27
7
7
23
15
2
6
13
3
22
19
21
21
24
6
20
9
4
2
16
8
14
27
15
26
7
13
7
3
5

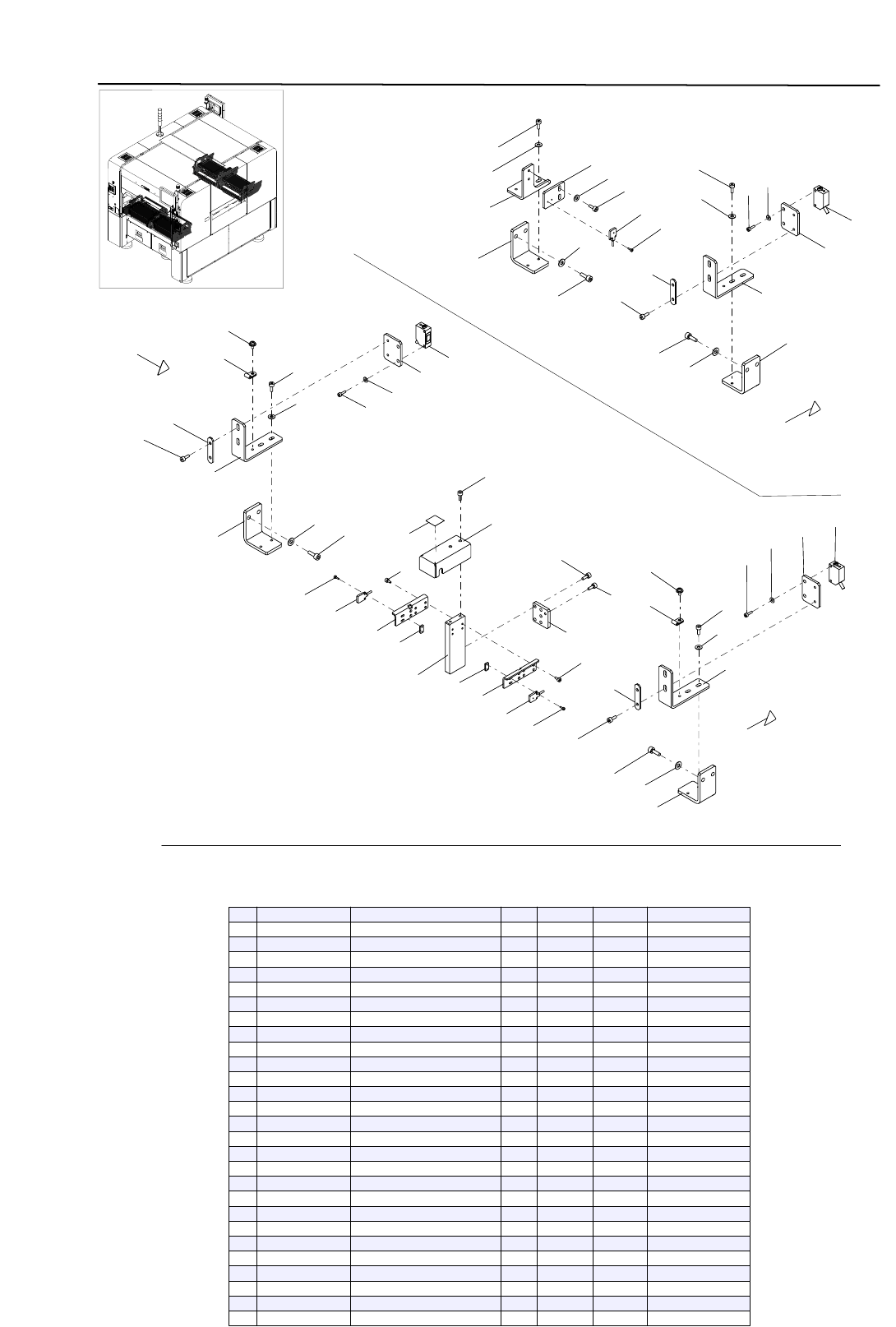

Feeder Floating Det.
Feeder
KMK-1803
3-12
Fix 70
Fes 32
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-2N
NYLON CLIP
2
2
90112-02J006
BOLT HEX,SOCKET HEAD
3
3
90990-11J003
SCREW, PAN HEAD W/W
2
4
90K41-001320
LABEL,CAUTION
1
5
90K41-001620
LABEL,CAUTION
3
6
91312-03006
BOLT HEX,SOCKET HEAD
2
7
91312-04010
BOLT HEX,SOCKET HEAD
10
8
91312-05014
BOLT HEX,SOCKET HEAD
4
9
91312-04006
BOLT HEX,SOCKET HEAD
2
10
92902-03200
WASHER,PLAIN
3
11
KMK-M653V-00
SENSOR,FDR.FLT.ASSY
2
12
KLW-M653V-10
SENSOR,FDR.FLT.ASSY
1
13
KGS-M3906-00
BRACKET 6
3
14
KHY-M3901-00
BRACKET SENSOR 2
4
15
KHY-M3910-00
BRACKET SENSOR 1
3
16
KHY-M3951-00
PLATE SENSOR
3
17
KHY-M3952-00
PLATE SENSOR
1
18
KHY-M3953-00
BRACKET SENSOR 3
1
19
KLW-M3902-00
BRKT.,SENSOR L
1
20
KLW-M3904-00
BRKT.,SENSOR R
1
21
KLW-M3905-00
PLATE,NUT
2
22
KLW-M3907-00
BLOCK,SENSOR
1
23
KMK-M3908-00
STAY,SENSOR
1
24
KLW-M3909-00
COVER,SENSOR
1
25
91312-03010
BOLT HEX,SOCKET HEAD
3
26
92902-04200
WASHER,PLAIN
5
27
92902-05200
WASHER,PLAIN
4
33
38
27
34
34
3
31
12
27
7
20
31
17
17
17
17
17
17
13
18
23
6
5
35
4
32
8
35
24
7
8
12
32
7
7
24
3
16
1
3
15
8
2
28
3
25
12
33
22
33
5
10
10
16
3
36
15
28
3
13
30
6
36
34
7
13
13
6
30
29
21
36
5
30
33
13
10
9
37
8
6
26
19
14
37
8
33
38
27
34
34
3
31
12
27
7
20
31
17
17
17
17
17
17
13
18
23
6
5
35
4
32
8
35
24
7
8
12
32
7
7
24
3
16
1
3
15
8
2
28
3
25
12
33
22
33
5
10
10
16
3
36
15
28
3
13
30
6
36
34
7
13
13
6
30
29
21
36
5
30
33
13
10
9
37
8
6
26
19
14
37
8

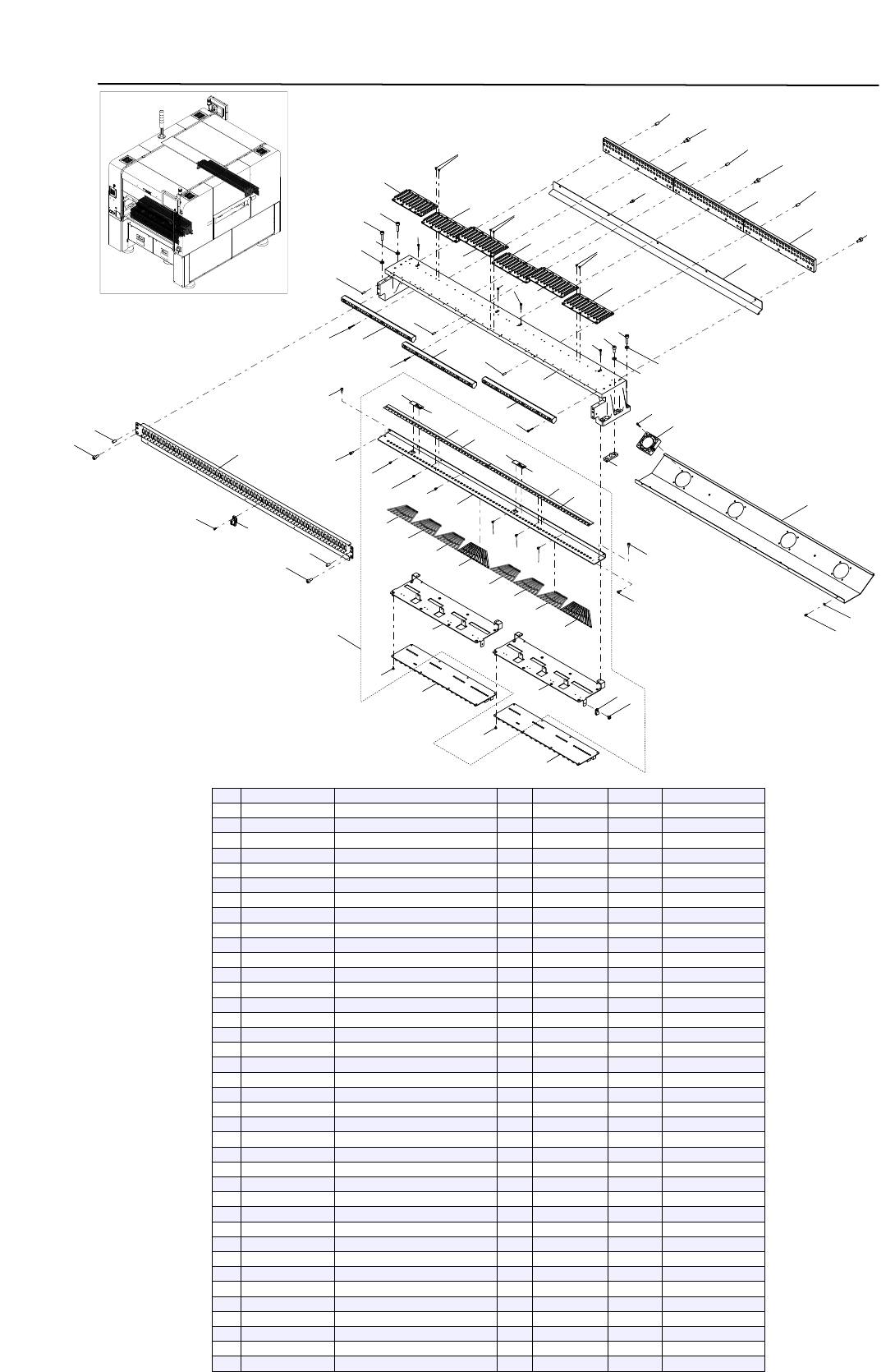

Fix70 Bank
Feeder
KMK-1803
3-13
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
8
2
90990-11J003
SCREW, PAN HEAD W/W
8
3
91312-03004
BOLT HEX,SOCKET HEAD
6
4
91312-03006
BOLT HEX,SOCKET HEAD
5
5
91312-03016
BOLT HEX,SOCKET HEAD
8
6
91317-03018
BOLT HEX,SOCKET HEAD
34
7
91312-04008
BOLT HEX,SOCKET HEAD
9
8
91312-06012
BOLT HEX,SOCKET HEAD
19
9
91312-06014
BOLT HEX,SOCKET HEAD
2
10
91312-06022
BOLT HEX,SOCKET HEAD
6
11
92902-03200
WASHER,PLAIN
5
12
KHY-M371A-02
PLATE,FRONT
3
13
KHY-M371R-00
RAIL GUIDE 12P
5
14
KHY-M372M-00
SCREW,STAD
140
15
KHY-M379K-01
LABEL,LED POSI.
2
16
KHY-M379L-00
LABEL,LED
2
17
KHY-M37E1-00
LIGHT GUIDE
6
18
KLW-M6178-10
FAN MOTOR ASSY'
4
19
KHY-M66TE-00
HNS,F.CTRL - FDR.
70
20
KLF-M375H-00
RAIL,GUIDE 12P
1
21
KLW-M3401-01
BASE,FDR.70
1
22
KLW-M3402-00
COVER,BOARD
1
23
KLW-M3403-00
COVER,BOTTOM
1
24
KLW-M340F-00
BRACKET,BOARD
2
25
KLW-M340H-00
PLATE,INDICATOR
1
26
KLW-M340J-00
PLATE,CONNECTOR
1
27
KLW-M3430-00
LABEL,FEEDER 70-12P (1-70)
1
-10 (101-170)
28
KLW-M349J-01
LABEL,INDICATOR 70
2
29
KLW-M34J1-A0
PLATE PSI. ASSY.
1
30
KHY-M371B-01
SHAFT GUIDE
3
31
KLW-M37E1-01
LIGHT GUIDE,11
2
32
KLW-M4476-12
FDR.CTRL.BOARD ASSY
2
33
92902-06600
WASHER,PLAIN
8
34
98702-03006
SCREW,FLAT HEAD
60
35
98902-03006
SCREW BINDING HEAD
16
36
99480-04012
PIN,PARALLEL
3
37
99480-06012
PIN,PARALLEL
2
38
KLW-M34A2-00
INDICATOR ASSY.
1
