Supply Voltage and Current
10 to 30 V DC (10% maximum ripple) at 20 mA maximum
current
Sensing Beam
Visible red, 645 nm
Supply Protection Circuitry
Protected against reverse polarity and transient voltages
Output Configuration
Bipolar (1 NPN and 1 PNP) solid-state output or single output
(PNP or NPN), light operate (LO) or dark operate (DO),
depending on model
Repeatability
125 microseconds
Switching Frequency
Opposed Mode: 385 Hz
LP/LV Mode: 715 Hz
FF Mode: 590 Hz
Output Protection Circuitry
Protected against false pulse on power-up, short-circuit
protected
Output Response Time
Opposed Mode: 1.3 ms ON; 900 µs OFF
LP/LV Mode: 700 µs ON/OFF
FF Mode: 850 µs ON/OFF
120 ms delay on power-up; outputs do not conduct during this
time
Construction
Polarized Retro Models: Polyamide housing with glass lens
All Other Models: Polyamide housing with polycarbonate lens
Output Ratings
OFF-state leakage current:
NPN: 10 µA
PNP: 10 µA
ON-state saturation voltage:
NPN: 2 V at 50 mA
PNP: 2 V at 50 mA
Vibration and Mechanical Shock
Connections
Standard Models: 2 m (6.5 ft) or 9 m (30 ft) attached PVC
cable, or 150 mm (6 in) cable with M8 or M12 threaded
connection, depending on the model ordered
Environmental Rating
Standard Models: IEC IP67
Conditions
Operating Temperature: –20°Cto+55°C(–4°Fto+131°F)
Storage Temperature: –30°Cto+75°C(–22°Fto+167°F)
95% at +50 °C maximum relative humidity (non-condensing)
Certifications
Banner Engineering BV
Park Lane, Culliganlaan 2F bus 3
1831 Diegem, BELGIUM
Turck Banner LTD Blenheim House
Blenheim Court
Wickford, Essex SS11 8YT
GREAT BRITAIN
Required Overcurrent Protection
WARNING: Electrical connections must
be made by qualified personnel in
accordance with local and national
electricalcodesandregulations.
Overcurrent protection is required to be provided by end
productapplicationperthesuppliedtable.
Overcurrent protection may be provided with external fusing
or via Current Limiting, Class 2 Power Supply.
Supply wiring leads < 24 AWG shall not be spliced.
For additional product support, go
towww.bannerengineering.com.
Supply
Wiring
(AWG)
Required Overcurrent
Protection (A)
Supply
Wiring
(AWG)
Required Overcurrent
Protection (A)
20 5.0 26 1.0
22 3.0 28 0.8
24 1.0 30 0.5
FCC Part 15 Class A for Unintentional Radiators
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
(Part15.21)Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethis
equipment.
Specifications
Chapter 3
Specifications DQ12 Series Sensor
06-May-25 page7of13© Banner Engineering Corp. All rights reserved.
www.bannerengineering.com
Industry Canada ICES-003(A)
This device complies with CAN ICES-3 (A)/NMB-3(A). Operation is subject to the following two conditions: 1) This device may not cause harmful interference;
and 2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la norme NMB-3(A). Le fonctionnement est soumis aux deux conditions suivantes : (1) ce dispositif ne peut pas occasionner
d'interférences, et (2) il doit tolérer toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité du dispositif.

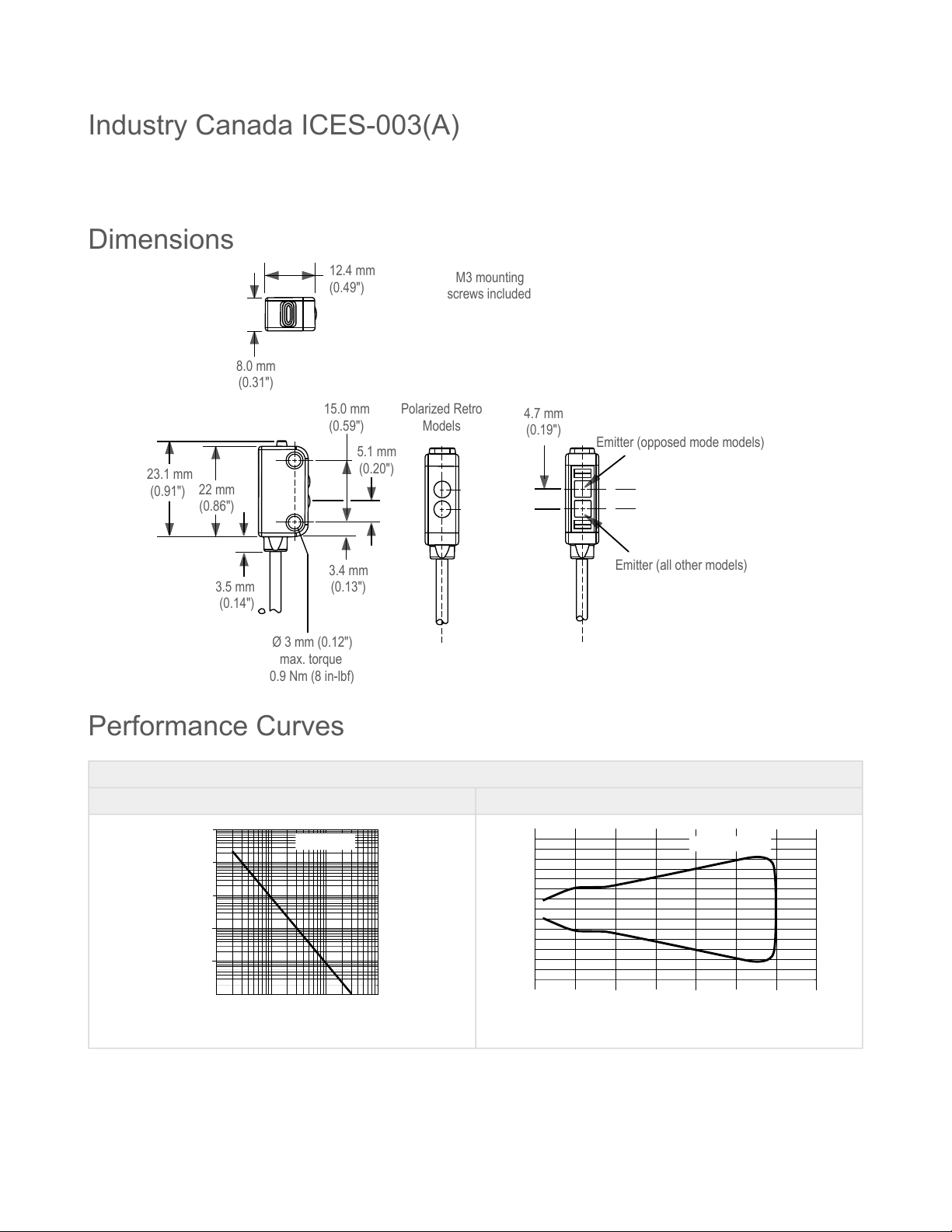

Dimensions
3.5 mm
(0.14")
22 mm
(0.86")
23.1 mm
(0.91")
3.4 mm
(0.13")
5.1 mm
(0.20")
15.0 mm
(0.59")
4.7 mm
(0.19")
Polarized Retro
Models
M3 mounting
screws included
8.0 mm
(0.31")
12.4 mm
(0.49")
Ø 3 mm (0.12")
max. torque
0.9 Nm (8 in-lbf)
Emitter (opposed mode models)
Emitter (all other models)
Performance Curves
Opposed Mode
Excess Gain Beam Pattern
1
10
100
0.1 m
0.33'
0.01 m
0.03'
1 m
3.3'
10 m
33'
1000
10000
100000
DISTANCE
EXCESS GAIN
DQ12 E-R..
2.5 m 3.0 m 3.5 m 2.0 m 1.5 m 1.0 m 0.5 m 0
0
50 mm
100 mm
150 mm
50 mm
100 mm
150 mm
0
2.0"
3.9"
5.9"
2.0"
3.9"
5.9"
DISTANCE
DQ12 E & R..
1.64' 3.28' 4.92' 6.56' 8.20' 9.84' 11.48'
Retroreflective and polarized retroreflective performance is based on the use of a model BRT-60X40C retroreflector.
SpecificationsDQ12 Series Sensor
06-May-25page8of13 © Banner Engineering Corp. All rights reserved.
www.bannerengineering.com
•
•
•
•
•
•

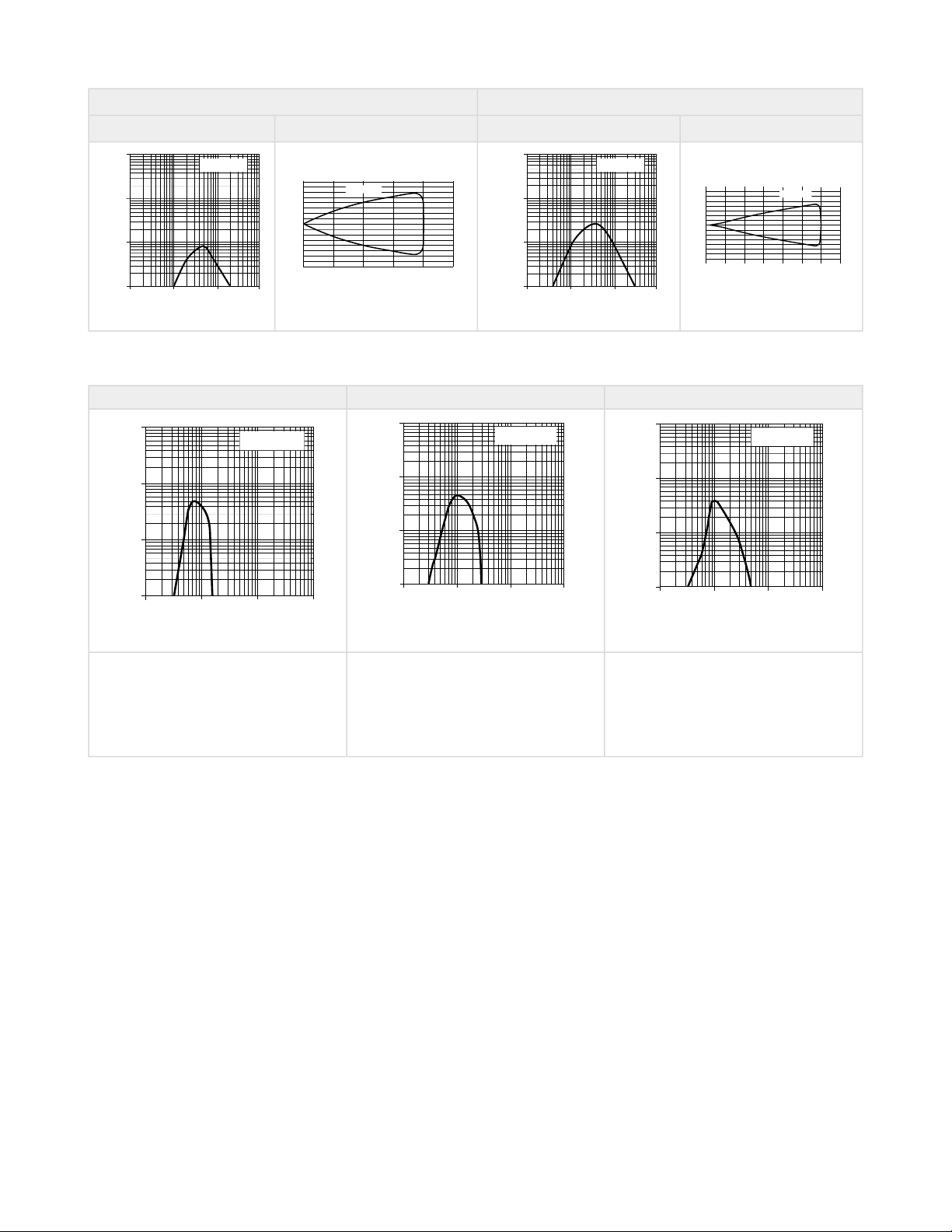

Polarized Retroreflective Retroreflective
Excess Gain Beam Pattern Excess Gain Beam Pattern
1
10
100
0.1 m
0.33'
0.01 m
0.03'
1 m
3.3'
10 m
33'
1000
DISTANCE
DQ12 LP..
EXCESS GAIN
2.5 m
2.0 m 1.5 m 1.0 m 0.5 m 0
0
10 mm
20 mm
30 mm
40 mm
10 mm
20 mm
30 mm
40 mm
0
0.4"
0.8"
1.2"
0.4"
0.8"
1.2"
1.6"
1.6"
DISTANCE
1.64' 3.28' 4.92' 6.56'
8.20'
DQ12 LP..
1
10
100
0.1 m
0.33'
0.01 m
0.03'
1 m
3.3'
10 m
33'
1000
DISTANCE
DQ12 LV..
EXCESS GAIN
2.5 m 3.0 m 3.5 m 2.0 m 1.5 m 1.0 m 0.5 m 0
0
20 mm
40 mm
60 mm
20 mm
40 mm
60 mm
0
0.8"
1.6"
2.4"
0.8"
1.6"
2.4"
DISTANCE
DQ12 LV..
1.64' 3.28' 4.92' 6.56' 8.20' 9.84' 11.48'
Fixed-field focus and spot sizes are typical. Performances are based on the use of a 90% reflectance white test card.*
Fixed Field -- 15 mm Fixed Field -- 30 mm Fixed Field -- 50 mm
1
10
100
10 mm
0.4"
100 mm
4.0"
1000 mm
40.0"
1 mm
0.04"
1000
DISTANCE
Q12..FF15DQ12..FF15
EXCESS GAIN
1
10
100
10 mm
0.4"
100 mm
4.0"
1000 mm
40.0"
1 mm
0.04"
1000
DISTANCE
DQ12..FF30
EXCESS GAIN
1
10
100
10 mm
0.4"
100 mm
4.0"
1000 mm
40.0"
1 mm
0.04"
1000
DISTANCE
DQ12..FF50
EXCESS GAIN
Standard Models:
Ø 0.5 mm spot size at 7 mm focus
Ø 1.5 mm spot size at 15 mm cutoff
* Using 18% gray test card: cutoff distance will be
95% of value shown. Using 6% black test card:
cutoff distance will be 90% of value shown.
Standard Models:
Ø 1 mm spot size at 15 mm focus
Ø 2.5 mm spot size at 30 mm cutoff
* Using 18% gray test card: cutoff distance will be
90% of value shown. Using 6% black test card:
cutoff distance will be 80% of value shown.
Standard Models:
Ø 1 mm spot size at 15 mm focus
Ø 4 mm spot size at 50 mm cutoff
* Using 18% gray test card: cutoff distance will be
80% of value shown. Using 6% black test card:
cutoff distance will be 60% of value shown.
