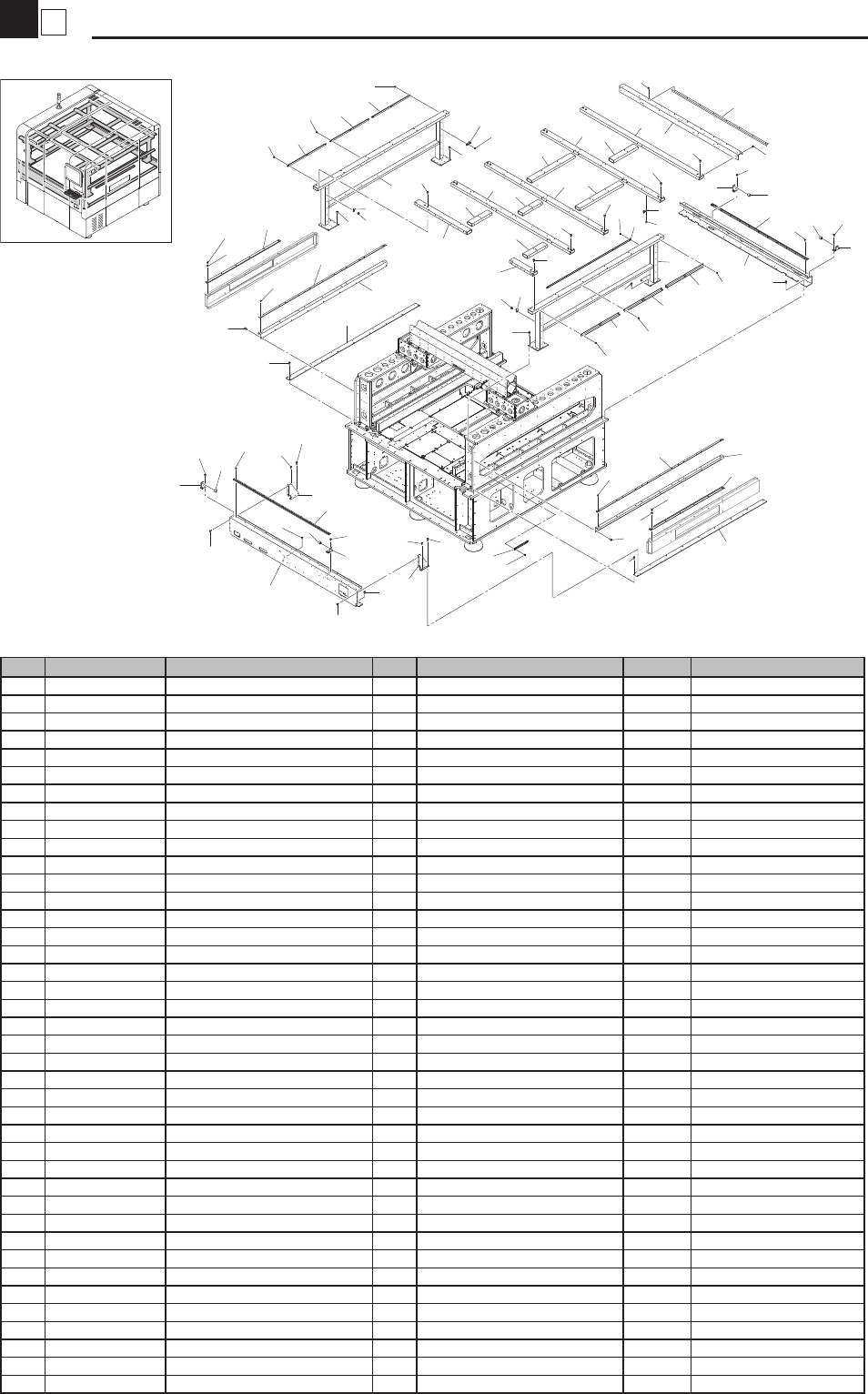

7 2 Shield Cover Cover KLC-1304 4 26 26 24 1 1 26 7 8 24 24 5 22 16 25 40 41 25 25 19 16 17 15 29 14 35 28 23 20 26 8 1 3 26 10 10 26 9 24 18 27 31 33 25 25 40 13 12 24 24 15 16 17 41 32 25 24 24 28 21 28 6 2 25 34 34 25…
6
2
Shield Frame Cover
Cover
KLC-1304
12
30
12
30
30
36
24
34
34
38
38
5
9
8
8
8
6
4
4
3
3
10
7
37
34
37
37
32
32
2
32
32
32
11
32
30
28
28
26
26
23
29
19
27
27
33
25
25
27
22
1
27
27
27
17
17
17
17
17
17
16
35
33
28
28
25
25
31
31
18
26
26
29
31
33
33
31
33
35
16
15
24
30
36
33
33
13
20
23
21
28
33
13
14
27
30
39
32
40
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M1311-L0 FRAME,SHIELD 1
2 KLC-M1311-R0 FRAME,SHIELD 1
3 KLC-M1312-00 FRAME,COVER R2 2
4 KLC-M1313-00 FRAME,COVER R3 2
5 KLC-M1314-00 FRAME,COVER R4 1
6 KLC-M1315-00 FRAME,COVER R5 1
7 KLC-M1316-00 FRAME,COVER R6 1
8 KLC-M1317-00 FRAME,COVER R7 3
9 KLC-M1318-00 FRAME,COVER R8 1
10 KLC-M1319-00 FRAME,COVER R9 1
11 KLC-M131B-00 FRAME,COVER RA 1
12 KLC-M131C-00 PLATE,CONNECTOR 4
13 KLC-M1351-00 STAY,SHIELD SL 2
14 KLC-M1352-L0 BRKT.,SHIELD SL 1
15 KLC-M1352-R0 BRKT.,SHIELD SL 1
16 KLC-M1353-00 SPACER,SL 2
17 KLC-M1354-00 BRKT.,SHIELD SU 6
18 KLC-M1355-00 FRAME,FR. LWR. 1
19 KLC-M1356-00 FRAME,RR. LWR. 1
20 KLC-M1357-L0 REINF.,FRAME 1
21 KLC-M1357-R0 REINF.,FRAME 1
22 KLC-M1358-00 RAIL,RR. UPR. 1
23 KLC-M1359-00 RAIL,N 2
24 KLC-M135B-00 RAIL,SHUTTER 2
25 KLC-M135C-00 BRKT.,DAMPER 4
26 KLC-M135D-00 DAMPER,DOOR 4
27 KLC-M11FA-00 BOLT,BUTTON HEAD 26
28 90990-46J010 BOLT,THIN HEAD 11
29 91312-03008 BOLT HEX.SOCKET HEAD 22 M3X8
30 91312-04006 BOLT HEX.SOCKET HEAD 20 M4X6
31 91312-04008 BOLT HEX.SOCKET HEAD 8 M4X8
32 91312-05008 BOLT HEX.SOCKET HEAD 24 M5X8
33 91312-05010 BOLT HEX.SOCKET HEAD 52 M5X10
34 91312-05012 BOLT HEX.SOCKET HEAD 16 M5X12
35 98702-03008 SCREW FLAT HEAD 12
36 92902-04200 WASHER PLAIN 12
37 $NK-3N NYLON CLIP 19
38 90990-11J003 SCREW,PAN HEAD W/W 19
39 KLC-M131D-00 STAY,HNS. 1
40 KLC-M131E-00 STAY,HNS. LWR. 2
7
2
Shield Cover
Cover
KLC-1304
4
26
26
24
11
26
7
8
24
24
5
22
16
25
40
41
25
25
19
16
17
15
29
14
35
28
23
20
26
8
1
3
26
10
10
26
9
24
18
27
31
33
25
25
40
13
12
24
24
15
16
17
41
32
25
24
24
28
21
28
6
2
25
34
34
25
25
32
40
41
32
17
28
24
36
38
25
37
28
42
39
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M1341-00 SHIELD,HNS.PANEL 1
2 KLC-M1342-00 SHIELD,HNS. HV 1
3 KLC-M1343-00 REINF.,SHIELD F1 1
4 KLC-M1344-00 PLATE,SHIELD FRL 1
5 KLC-M1345-00 PLATE,SHIELD FRL2 1
6 KLC-M1346-00 SHIELD,RRG LWR. 1
7 KLC-M1347-L0 SHIELD,FRAME Y 1
8 KLC-M1347-R0 SHIELD,FRAME Y 2
9 KLC-M1348-00 SHIELD,BASE 2 1
10 KLC-M1349-00 SHIELD,FRAME R 3
11 KLC-M134A-00 SHIELD,FRG UPR. L 1
12 KLC-M134B-L0 SHIELD,RRG UPR. 1
13 KLC-M134B-R0 SHIELD,RRG UPR. 1
14 KLC-M13G1-00 STAY,MONITOR 1
15 KLC-M13G2-00 KEY 2
16 KLC-M13G3-00 BRKT.,SW. ACT 3
17 KLC-M13G4-00 BRKT.,SW. SENSOR 3
18 KLC-M13G5-00 PLATE,KEY 1
19 KLC-M13G6-00 PLATE.DAMPER 1
20 KLC-M13G7-00 PLATE,1 1
21 KLC-M13G8-00 PLATE,2 1
22 KLC-M13G9-00 BRKT.,SENSOR P 1
23 KLC-M13GA-00 HOLDER,LCD ASSY. 1
24 KLC-M11FA-00 BOLT,BUTTON HEAD 24
25 KLC-M11FA-20 BOLT,BUTTON HEAD 23
26 KLC-M11FB-30 BOLT,BUTTON HEAD 11
27 KGS-M1360-00 BOLT 2
28 91312-04006 BOLT HEX.SOCKET HEAD 14 M4X6
29 91312-04010 BOLT HEX.SOCKET HEAD 6 M4X10
30 91312-04016 BOLT HEX.SOCKET HEAD 6 M4X16
31 91312-04025 BOLT HEX.SOCKET HEAD 2 M4X25
32 92902-04200 WASHER PLAIN 6
33 92902-04600 WASHER PLAIN 2
34 95702-04500 NUT FLANGE 5
35 95702-05500 NUT,FLANGE 8
36 KLC-M134C-00 SHIELD,LX 2
37 KLC-M13GF-00 GUIDE,HNS. 1
38 KLC-M13GG-00 BRKT.,RR. DOOR 1
39 KV5-M1130-00 CATCH MG. 5
40 KLC-M11FC-20 BOLT,LOW HEAD SC 6
41 KLC-M11FC-50 BOLT,LOW HEAD SC 6
42
98902-03005 SCREW BINDING HEAD
10
1
3
XT-Motor / Sensor
Moving-axis
KLC-1304
28
35
36
15
22
16
30
10
21
18
12
29
10
24
14
13
11
9
9
33
35
33
35
36
7
8
5
23
23
6
27
27
26
3
36
19
28
38
25
20
4
37
26
27
2
14
27
2
1
31
34
34
17
32
39
43
40
41
42
35
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M2223-00 DAMPER 1
2 KLC-M2225-00 BRACKET,DOG 2
3 KLC-M2226-00 BRACKET COVER 1
4 KLC-M2227-00 BRACKET,SENSOR 1
5 KLC-M2228-00 COVER,HNS 1
6 KLC-M2231-00 BRACKET1,DUCT 1
7 KLC-M2232-01 DUCT2,HNS 1
8 KLC-M2233-01 BRACKET1,HNS 2
9 KLC-M2234-01 BRACKET2,HNS 2
10 KLC-M224A-00 HOLDER SET,XT AXIS 1
11 KLC-M2266-00 HOLDER,NUT X AXIS 1
12 KLC-M2271-A0 XT AXIS B.S ASSY 1
13 KLC-M2282-00 DOG.ORIGIN 1
14 KLC-M2283-00 DOG,2ND LIMIT 2
15 KLC-M22C1-00 COVER1,BS 1
16 KGT-M2220-00 COUPLING,X-AXIS 1
17 KHN-M224K-00 COLLAR B 2
18 KHN-M224J-00 COLLAR A 2
19 KHN-M22AD-00 GREASE NIPPLE 1
20 KHN-M22F6-00 WASHER,SWR06 4
21 KHY-M224H-00 DAMPER 1
22 90KA1-201462 AC SERVO MOTOR 1
23 90990-01J039 BOLT, HEX. SOCKET HEAD 4
24 90990-41J138 COLLAR 1
25 91312-03006 BOLT HEX.SOCKET HEAD 4 M3X6
26 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
27 91312-05012 BOLT HEX.SOCKET HEAD 12 M5X12
28 91312-06020 BOLT HEX.SOCKET HEAD 8 M6X20
29 91312-06030 BOLT HEX.SOCKET HEAD 4 M6X30
30 91312-06045 BOLT HEX.SOCKET HEAD 4 M6X45
31 92012-04012 BOLT,BUTTON HEAD 1 M4X12
32 92012-04025 BOLT,BUTTON HEAD 2 M4X25
33 92902-04200 WASHER PLAIN 8
34 97602-04306 SCREW,BIN.HEAD W/W. 6
35 98902-04005 SCREW BINDING HEAD 10
36 98702-06008 SCREW, FLAT HEAD 4
37 KLC-M652C-01 SENSOR XT ORG ASSY 1
38 KLC-M652D-01 SENSOR XT OT ASSY 1
39 KLC-M2238-00 BRACKET,STOPPER 1
40 KLC-M2239-00 TAPE,XT AXIS 1 1
41 KLC-M223A-00 TAPE,XT AXIS 2 1
42 KLC-M225A-00 PLATE,HNS. 1
43 91312-06008 BOLT HEX.SOCKET HEAD 2
