2 2 Lower Cover Cover KLC-1304 1 2 31 20 24 23 8 8 1 1 1 1 31 31 26 26 2 1 10 26 28 7 28 28 7 7 12 31 1 1 30 27 30 27 30 27 28 30 27 30 27 30 27 30 27 30 30 27 27 29 29 29 25 18 19 17 29 25 20 21 22 30 27 7 7 10 9 12 12 …
1
2

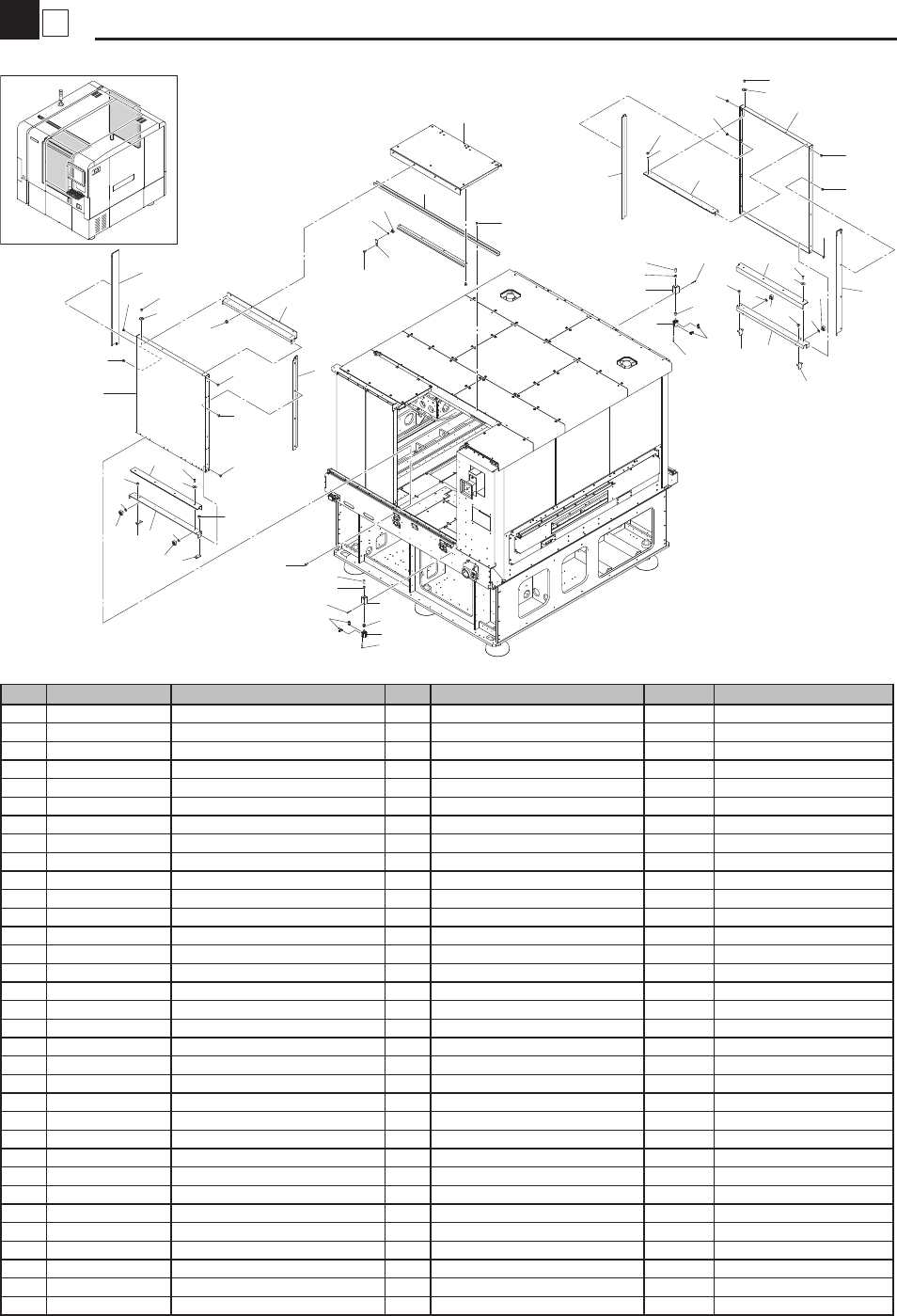

Upper Cover
Cover
KLC-1304
40
40
39
39
39
39
40
3
14
4
39
39
40
40
40
40
40
40
40
40
40
40
40
40
40
27
15
42
20
26
28
21
39
39
39
39
39
39
7
5
9
2
17
39
44
44
23
43
24
25
22
1
8
6
10
41
19
16
18
40
13
12
11
39
39
37
37
36
36
35
35
34
38
38
38
38
38
38
30
32
33
29
31
37
37
35
35
36
36
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M13N1-00 COVER 1 ASSY. 1
2 KLC-M13N2-00 COVER 2 ASSY. 1
3 KLC-M13K3-00 COVER,3 1
4 KLC-M13N4-00 COVER 4 ASSY. 1
5 KLC-M13N5-00 COVER,CTR. L ASSY. 1
6 KLC-M13N6-00 COVER,CTR. R ASSY. 1
7 KLC-M13N7-00 COVER 7 L ASSY. 1
8 KLC-M13N8-00 COVER 7 R ASSY. 1
9 KLC-M13NA-00 COVER,8 L ASSY. 1
10 KLC-M13NB-00 COVER,8 R ASSY. 1
11 KLC-M13KC-00 COVER,ROOF RH. 1
12 KLC-M13KD-00 COVER,ROOF CTR. 1
13 KLC-M13NC-00 COVER,ROOF L ASSY. 1
14 KLC-M13KG-00 COVER,G 1
15 KLC-M13KH-00 COVER,H 1
16 KLC-M13KL-00 COVER,L 1
17 KLC-M13KM-00 COVER,DOOR FR. 1
18 KLC-M13KN-00 COVER,DOOR FR. UPR. 1
19 KLC-M13KP-00 COVER,DOOR RR. 1
20 KLC-M13K9-00 BRKT.,KB 1
21 KLC-M13KA-00 COVER,SW 1
22 KLC-M13KT-00 COVER,MONITOR 1
23 KLC-M13KV-00 HANDLE 1
24 KLC-M13M2-00 DAMPER,DOOR 1
25 KLC-M13M3-00 PLATE,STRIKE 1
26 KLC-M13D6-00 SEAL 1(YSi-X) 1
27 KLC-M13D7-00 SEAL 2(YAMAHA) 1
28 KLC-M13KX-00 SEAL, X-RAY KEY 1
29 KLC-M13J7-00 STAY,COVER ROOF 1 1
30 KLC-M13J8-00 STAY,COVER ROOF 2 1
31 KLC-M13J9-00 STAY,COVER ROOF 3 1
32 KLC-M13JB-00 STAY,COVER ROOF 4 1
33 KLC-M13JC-00 STAY,COVER ROOF R 1
34 KLC-M13JD-00 STAY,COVER ROOF L 1
35 KLC-M13JG-00 BRKT.,COVER SIDE 4
36 90990-23J027 GROMMET 14
37 91312-04006 BOLT HEX.SOCKET HEAD 8 M4X6
38 91312-04010 BOLT HEX.SOCKET HEAD 34 M4X10
39 90990-01J065 BOLT,HEX.SOCKET HEAD 53
40 90990-12J001 SCREW BIN.HEAD W/W 73
41 90990-12J007 SCREW BIN.HEAD W/W 2
42 90990-46J010 BOLT,THIN HEAD 2
43 91312-04014 BOLT,HEX.SOCKET HEAD 2 M4X14
44 98702-04006 SCREW FLAT HEAD 6
2
2

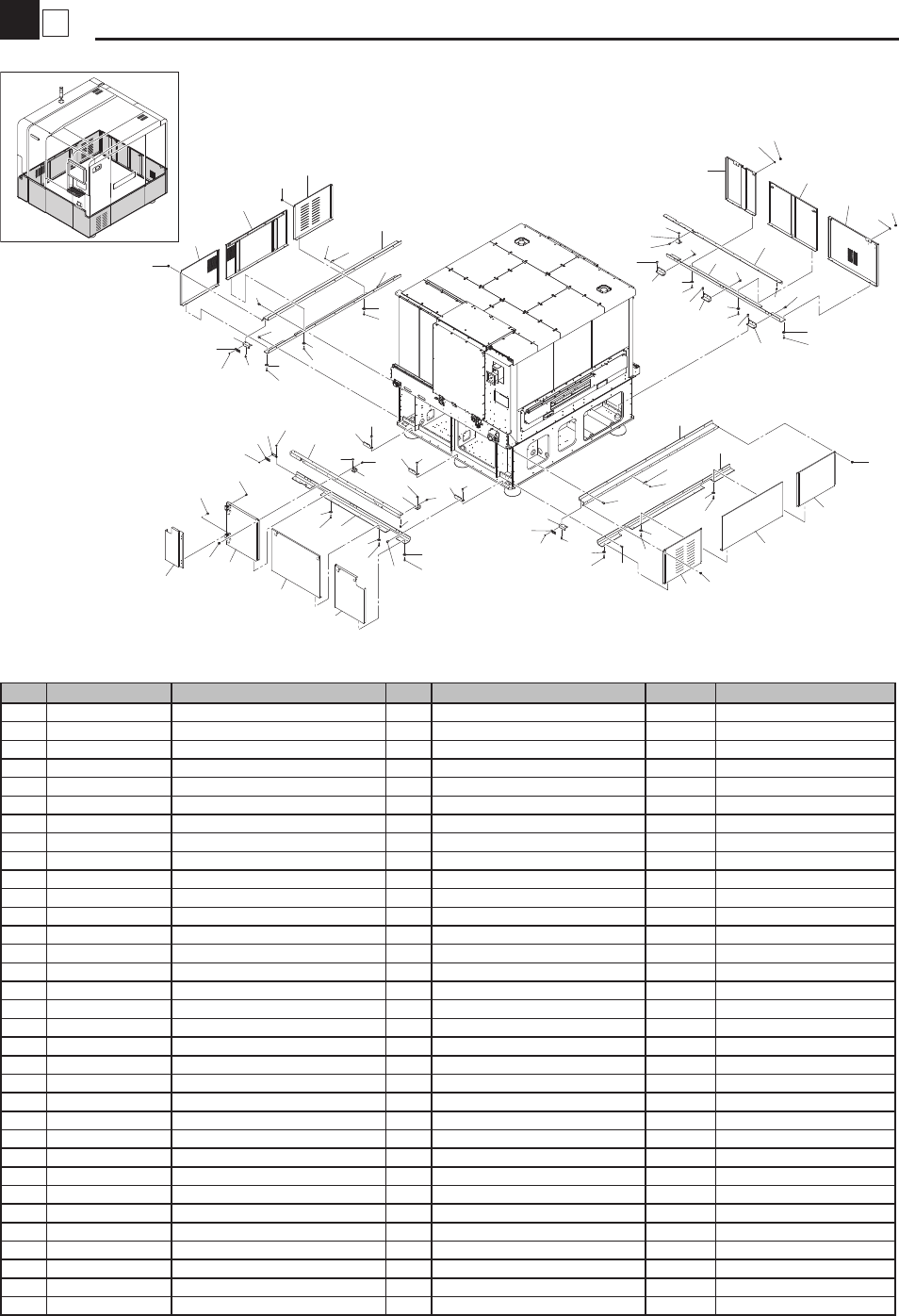

Lower Cover
Cover
KLC-1304
1
2
31
20
24
23
8
8
11
11
31
31
26
26
2
1
10
26
28
7
28
28
7
7
12
31
11
30
27
30
27
30
27
28
30
27
30
27
30
27
30
27
30
30
27
27
29
29
29
25
18
19
17
29
25
20
21
22
30
27
7
7
10
9
12
12
4
32
26
16
15
29
14
13
5
26
26
26
7
28
28
28
28
28
28
28
3
26
28
6
30
27
30
27
29
29
11
28
28
26
33
11
31
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M13J1-00 STAY,COVER SIDE M 2
2 KLC-M13J2-01 STAY,COVER SIDE L 2
3 KLC-M13J3-01 STAY,COVER RR. L 1
4 KLC-M13J4-00 STAY,COVER FR. L 1
5 KLC-M13J5-00 STAY,COVER FR. M 1
6 KLC-M13J6-00 STAY,COVER RR. M 1
7 KLC-M13JE-00 STAY,FRAME LWR. 6
8 KLC-M13JF-00 BRKT.,COVER LWR. 2
9 KLC-M13JH-00 BRKT.,COVER CL 4
10 KLC-M13JJ-00 BRKT.,COVER CL2 4
11 KLC-M13M1-00 MAGNET 10
12 90990-23J027 GROMMET 14
13 KLC-M13L1-01 COVER,LWR. 1 1
14 KLC-M13L2-00 COVER,LWR. 2 1
15 KLC-M13NH-00 COVER,LWR. 3 ASSY. 1
16 KLC-M13NJ-00 COVER,LWR. 4 ASSY. 1
17 KLC-M13L5-00 COVER,LWR. 5 1
18 KLC-M13L6-00 COVER,LWR. 6 1
19 KLC-M13NK-00 COVER,LWR. 7 ASSY. 1
20 KLC-M13LB-00 COVER,LWR. B 2
21 KLC-M13LC-00 COVER,LWR. C 1
22 KLC-M13LD-00 COVER,LWR. D 1
23 KLC-M13LE-00 COVER,LWR. E 1
24 KLC-M13LF-00 COVER,LWR. F 1
25 KH1-M1396-00 WASHER 4
26 91312-04008 BOLT HEX.SOCKET HEAD 38 M4X8
27 91312-04014 BOLT,HEX.SOCKET HEAD 29 M4X14
28 91312-05010 BOLT HEX.SOCKET HEAD 58 M5X10
29 90990-12J001 SCREW BIN.HEAD W/W 12
30 90990-28J141 WASHER,PLAIN 29
31 98702-03006 SCREW FLAT HEAD 20
32 95702-04500 NUT FLANGE 6
33 KLC-M13JK-00 BRKT.MG LWR. 1
3
2
Door Cover
Cover
KLC-1304
16
15
32
26
6
28
28
28
28
29
29
8
8
7
7
31
31
28
1
9
30
33
3
2
10
10
23
21
23
13
32
12
28
28
28
28
14
28
9
30
11
15
21
22
22
27
24
27
3
10
30
2
7
7
24
25
25
19
19
20
20
29
29
31
31
8
8
30
4
5
17
18
9
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M1361-00 DOOR,FR. 1
2 KLC-M1362-00 FRAME,DOOR LWR. 2
3 KLC-M1363-00 SHIELD,DOOR LWR. 2
4 KLC-M1364-00 STAY,DOOR FR. 1
5 KLC-M1365-00 SHIELD,FR. DOOR 1 1
6 KLC-M1366-00 SHIELD,FR. DOOR 2 1
7 KLC-M1367-00 PLATE,STOPPER 4
8 KLC-M13FA-20 BEARING 4
9 KLC-M11FA-00 BOLT,BUTTON HEAD 15
10 KLC-M11FA-20 BOLT,BUTTON HEAD 22
11 KLC-M1381-00 DOOR,RR. 1
12 KLC-M1384-00 STAY,DOOR RR. 1
13 KLC-M1385-00 SHIELD,RR. DOOR 1 1
14 KLC-M1386-00 SHIELD,RR. DOOR 2 1
15 KLC-M13FB-00 BEARING 3
16 KLC-M137A-00 SHIELD FRU SUB ASSY. 1
17 KLC-M1374-00 BRKT.,BRG. 2 1
18 KLC-M1375-00 RAIL,FR. 1 1
19 KLC-M1391-A0 CYLINDER COVER ASSY 2
20 KG7-M9204-00 JOINT 1 CYLINDER 2
21 KLC-M1392-00 BUSH 2
22 KLC-M1393-00 HOUSING 2
23 KLC-M1394-00 PIN 2
24 $SSF4-M5-A-P JOINT 4
25 91312-03035 BOLT,HEX.SOCKET HEAD 8 M3X35
26 91312-04008 BOLT HEX.SOCKET HEAD 2 M4X8
27 91312-04035 BOLT HEX.SOCKET HEAD 8 M4X35
28 90990-01J065 BOLT,HEX.SOCKET HEAD 39
29 90990-46J010 BOLT,THIN HEAD 8
30 90990-28J141 WASHER,PLAIN 16
31 92902-06200 WASHER PLAIN 4
32 90990-28J088 WASHER,PLAIN 4
33 95702-05500 NUT,FLANGE 4
