12 7 Push Up Conveyor KLC-1208 28 28 16 21 26 14 16 19 14 26 25 25 3 3 2 2 10 1 1 1 1 1 1 1 1 12 13 25 17 17 23 25 26 14 8 5 6 7 8 5 6 7 29 29 24 24 27 10 27 15 14 26 18 23 20 25 25 15 30 30 1 1 22 22 4 4 9 9 31 32 No. P…
11
7
Side Clamp
Conveyor
KLC-1304
33
33
33
33
13
14
2
2
28
28
27
31
24
21
21
31
24
10
10
27
23
23
19
19
4
4
20
20
22
22
14
14
12
12
12
12
25
30
30
30
8
8
25
29
29
30
11
11
11
6
18
18
18
7
7
7
18
7
30
30
30
30
17
17
17
17
26
26
26
26
1
6
6
6
16
16
11
3
5
5
9
9
9
9
3
15
32
32
32
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M9152-00 PLATE,CLAMP R 1
2 KLC-M915D-00 PIN 8
3 KLC-M916C-00 JOINT 1
4 KLC-M9201-00 CLYINDER 2
5 KLC-M9202-00 PLATE2,CYLINDER 2
6 KLC-M9203-00 LINEAR BUSHING 4
7 KLC-M9204-00 PLATE1,BUSHING 4
8 KLC-M9205-00 PLATE1,CLAMP 2
9 KLC-M9206-00 PLATE2,CLAMP 4
10 KLC-M9207-00 HOLDER CLYINDER 2
11 KLC-M9208-00 SHAFT1,CLAMP 4
12 KLC-M9209-00 SHAFT2,CLAMP 4
13 KLC-M920A-00 GUIDE1, PCB 2
14 KLC-M920B-00 PLATE,ROD 2
15 KLC-M920C-00 BRACKET,HNS 1
16 KLC-M920F-00 COLLAR 2
17 KLC-M920G-00 PLUNGER 4
18 KLC-M920J-00 PLATE2,BUSHING 4
19 KLC-M920L-00 PLATE2,CYLINDER 2
20 KHJ-MC23E-00 BOLT HEX.S/H LOW 4
21 92012-03005 BOLT BUTTON HEAD 4 M3X5
22 91312-03008 BOLT HEX.SOCKET HEAD 4 M3X8
23 91312-04010 BOLT HEX.SOCKET HEAD 4 M4X10
24 92902-04200 WASHER PLAIN 4
25 92902-04600 WASHER PLAIN 2
26 95302-04700 NUT HEXAGON 4
27 98702-03005 SCREW FLAT HEAD 6
28 92012-04006 BOLT, BUTTON HEAD 16
29 92012-04012 BOLT,BUTTON HEAD 2
30 90990-01J063 BOLT HEX.SOCKET HEAD 12
31 90990-01J065 BOLT HEX.SOCKET HEAD 4
32 KLC-M9184-00 SPACER 4 4
33 92012-03008 BOLT,BUTTON HEAD 8
12
7

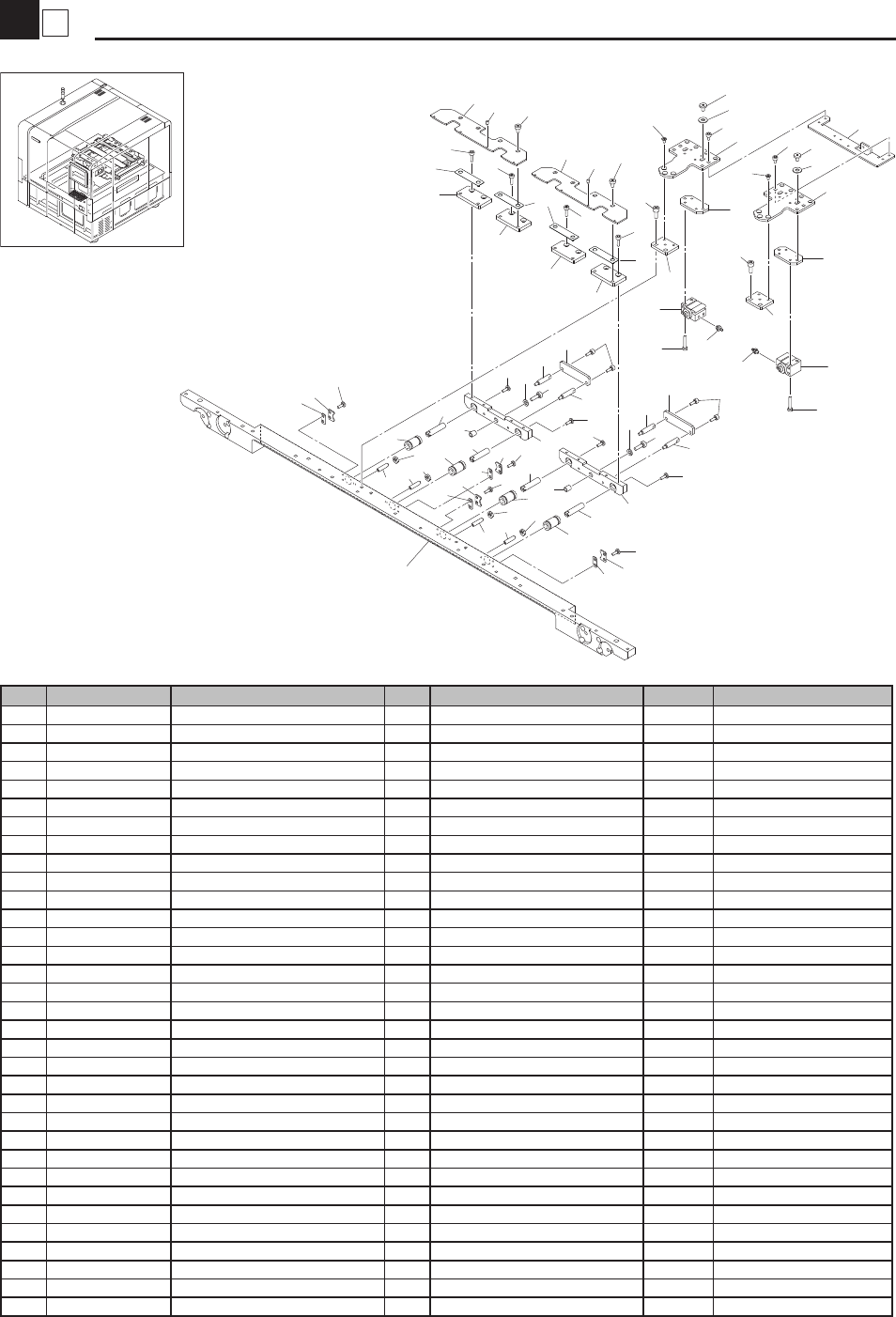

Push Up
Conveyor
KLC-1208
28
28
16
21
26
14
16
19
14
26
25
25
3
3
2
2
10
11
11
11
11
12
13
25
17
17
23
25
26
14
8
5
6
7
8
5
6
7
29
29
24
24
27
10
27
15
14
26
18
23
20
25
25
15
30
30
1
1
22
22
4
4
9
9
31
32
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M9221-00 PLATE1,CYLINDER 2
2 KLC-M9222-00 PLATE2,CYLINDER 2
3 KLC-M9223-00 SHAFT 6
4 KLC-M9224-00 LINEAR BUSHING 6
5 KLC-M9225-00 COLLAR 2
6 KLC-M9226-00 WASHER 2
7 KLC-M9227-00 JOINT 2
8 KLC-M9228-00 CYLINDER 2
9 KLC-M9229-00 PLATE1,SENSOR 2
10 KLC-M922A-00 WASHER 6
11 KLC-M922B-00 JOINT 8
12 KLC-M922C-00 PLATE2,SENSOR 1
13 KLC-M922D-00 PLATE3,SENSOR 1
14 KLC-M922E-00 HOLDER,SENSOR 4
15 KLC-M922F-00 PLATE4,SENSOR 2
16 KLC-M922G-00 COVER,SENSOR 2
17 KLC-M916D-00 JOINT 2
18 KLC-M652R-01 SENSOR 1,PU 1
19 KLC-M652R-11 SENSOR 2,PU 1
20 KLC-M652R-20 SENSOR 3,PU 1
21 KLC-M652R-30 SENSOR 4,PU 1
22 91312-03008 BOLT HEX.SOCKET HEAD 12 M3X8
23 91312-03016 BOLT,HEX.SOCKET HEAD 4 M3X16
24 91312-03020 BOLT,HEX.SOCKET HEAD 2 M3X20
25 91312-04012 BOLT,HEX.SOCKET HEAD 12 M4X12
26 98502-03003 SCREW,PAN HEAD 2
27 90990-01J038 BOLT,HEX.SOCKET HEAD 6
28 90990-01J039 BOLT,HEX.SOCKET HEAD 4
29 90990-01J043 BOLT,EXTRA LOW HEAD 2
30 90990-01J059 BOLT HEXAGON SOCKET 6
31 90990-01J058 BOLT HEXAGON SOCKET 2
32 92902-04600 WASHER, PLAIN 2
13
7

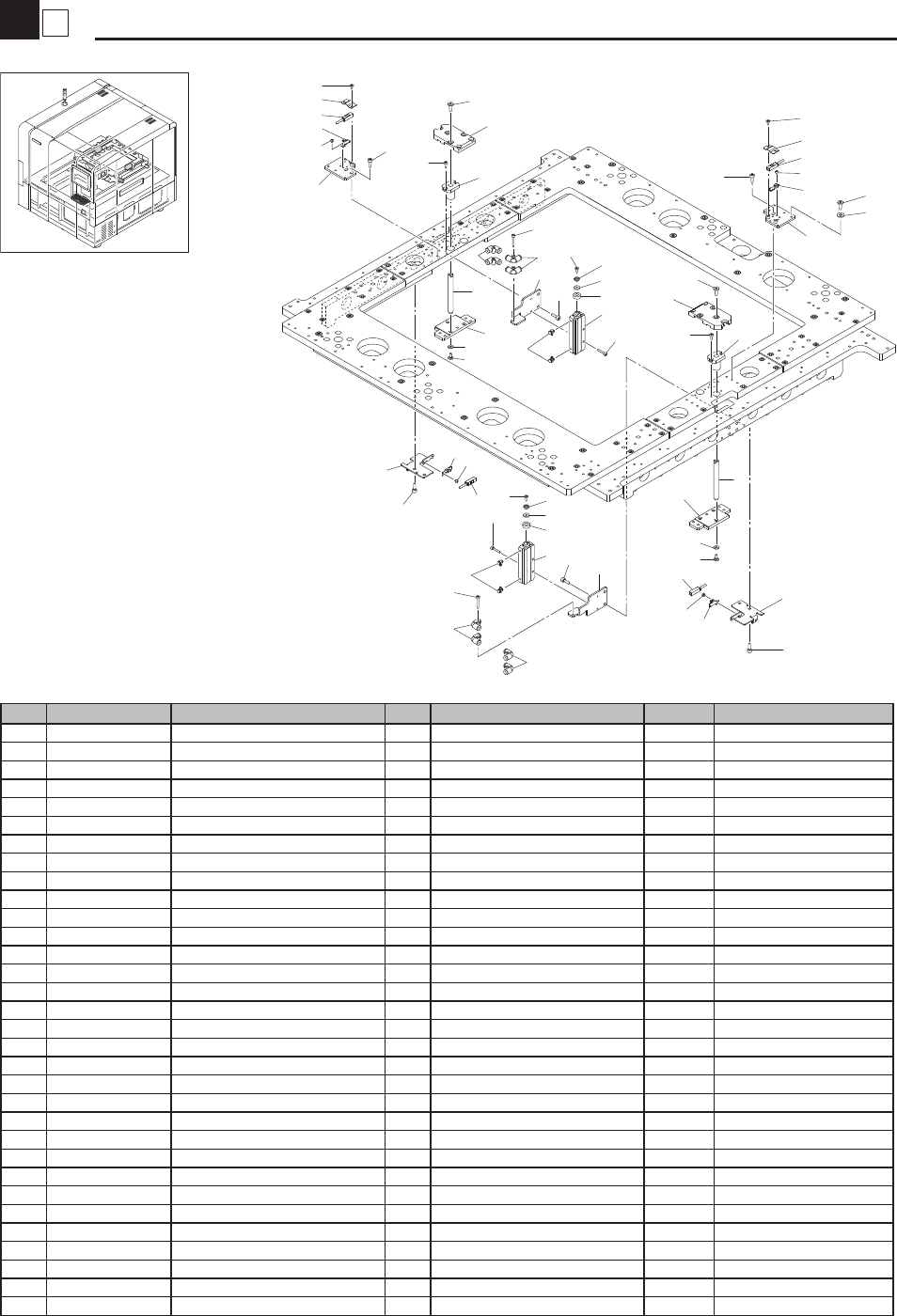

Duct HNS.-Plate
Conveyor
KLC-1304
23
26
29
13
19
23
23
14
25
18
24
21
21
21
21
10
15
16
5
6
20
24
24
22
4
17
7
1
24
24
26
29
2
21
21
11
21
9
28
28
28
28
19
12
26
29
23
24
27
29
26
3
21
8
No. Part No. Part Name Q'ty Remarks Compati. Revision No.-date
1 KLC-M9132-00 PLATE1,HNS. 1
2 KLC-M9133-00 FRAME 1 1
3 KLC-M9134-00 FRAME 2 1
4 KLC-M9135-00 PLATE2,HNS. 1
5 KLC-M9136-00 PLATE3,HNS. 1
6 KLC-M9138-00 BRACKET1,HNS. 1
7 KLC-M9139-00 BRACKET2,HNS 1
8 KLC-M913A-00 PLATE A,HNS. 1
9 KLC-M913C-00 PLATE5,HNS 1
10 KLC-M913D-00 PLATE,PCB 1
11 KLC-M913F-00 PLATE1,BELT 1
12 KLC-M913G-00 PLATE6,HNS 1
13 KLC-M913H-00 PLATE 7,HNS 1
14 KLC-M913J-00 PLATE8,HNS 1
15 KLC-M9143-00 DUCT1,HNS. 1
16 KLC-M9144-00 DUCT2,HNS. 1
17 KLC-M9147-01 PLATE,JOINT 1
18 KLC-M914M-00 CLAMP 42
19 91312-04005 BOLT HEX.SOCKET HEAD 12 M4X5
20 91312-05008 BOLT HEX.SOCKET HEAD 4 M5X8
21 90990-01J038 BOLT,HEX.SOCKET HEAD 12
22 90990-01J059 BOLT HEXAGON SOCKET 4
23 98902-03004 SCREW BINDING HEAD 7
24 98902-04005 SCREW BINDING HEAD 18
25 98702-04006 SCREW FLAT HEAD 42
26 90990-11J001 SCREW,PAN HEAD W/W 53
27 90563-03J050 SPACER BOLT 4
28 99480-04030 PIN, PARALLEL 4
29 $NK-3N NYLON CLIP 53
