7-7 Service Part List 7.1.2. Recommended Spare Parts List NO. P ART NO. P ART NAME St andard unit Q'TY 1 EP16-002162A FEEDER BASE BOARD 1SLOT 1 Slot Board PC 1 2 GD03-000023A INST ALL GUIDE PC 1 3 J7066040A TOGGLE S…
7-6
SME Tape Feeder Calibration Jig
메 모
85번은 체결 부품입니다 . 체결 부품은 패키지로만 구매할 수 있
습니다. 패키지에 포함된 체결 부품은 교정 지그와 마스터 피더
1대를 조립하는데 필요한 분량입니다 .
w 패키지 자재번호: AM03-022317A
NO. PART NO. PART NAME Q'TY REMARK
32 GD03-000023A INSTALL GUIDE 1
33 AM03-012040A SME MASTER TOOGLE ASSY 1
34 J70653935A T LINK1 HINGE 2
35 J7066040A TOGGLE SPRING 1
36 J70661204A LOCKER-SPG-SHAFT 1
85 FC18-901932 FLAT HEAD CAP SCREW 3 M3X12
7-7
Service Part List

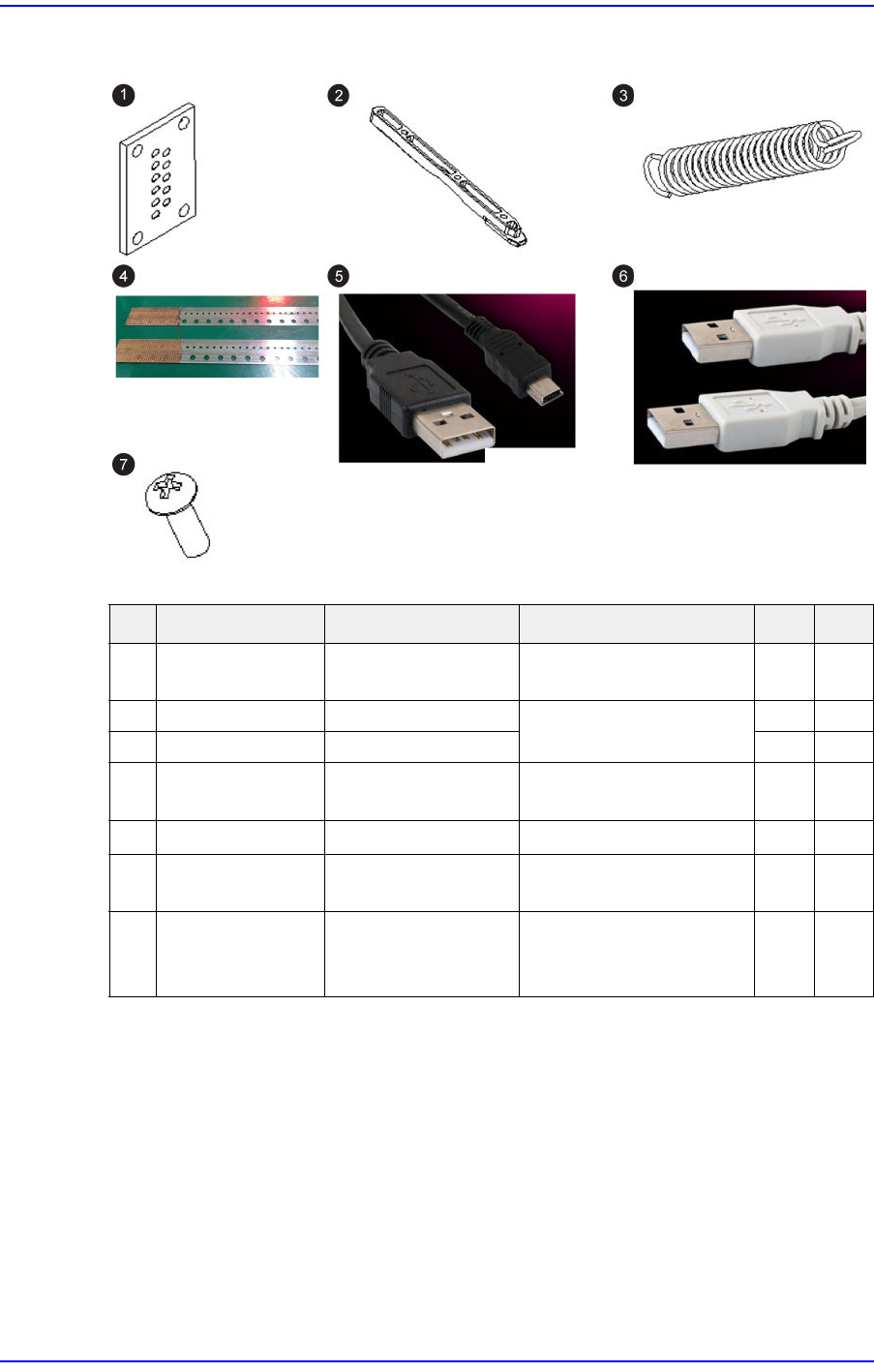

7.1.2. Recommended Spare Parts List
NO. PART NO. PART NAME Standard unit Q'TY
1 EP16-002162A FEEDER BASE
BOARD 1SLOT
1 Slot Board PC 1
2 GD03-000023A INSTALL GUIDE PC 1
3 J7066040A TOGGLE SPRING PC 1
4 AM03-018988A MASTER TAPE
8MM ASSY
SME 8mm MasterTape PC 10
5 EP02-001075 5PIN2USB CABLE USB A-Mini Spin(1.0m) PC
1
6 EP02-001074 USB MM CABLE USB 2.0 AA Type
(M/M 1.8M)
PC
1
7
AM03-022317A SME FEEDER JIG
SCREW PACKAGE
Calibration Jig,
Master Feeder 1 Set
(Fastening Parts 19EA)
PC
1
