7.1.コンベア(DEQC) 7.1.Conveyor(DEQC) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DEQC0011 1 BASE ﾍﾞｰｽ FE 2 DEQC0040 1 BKT BKT FE 3 DEQC0051 1 BKT BKT FE 4 DEQC0060…
7 - 1

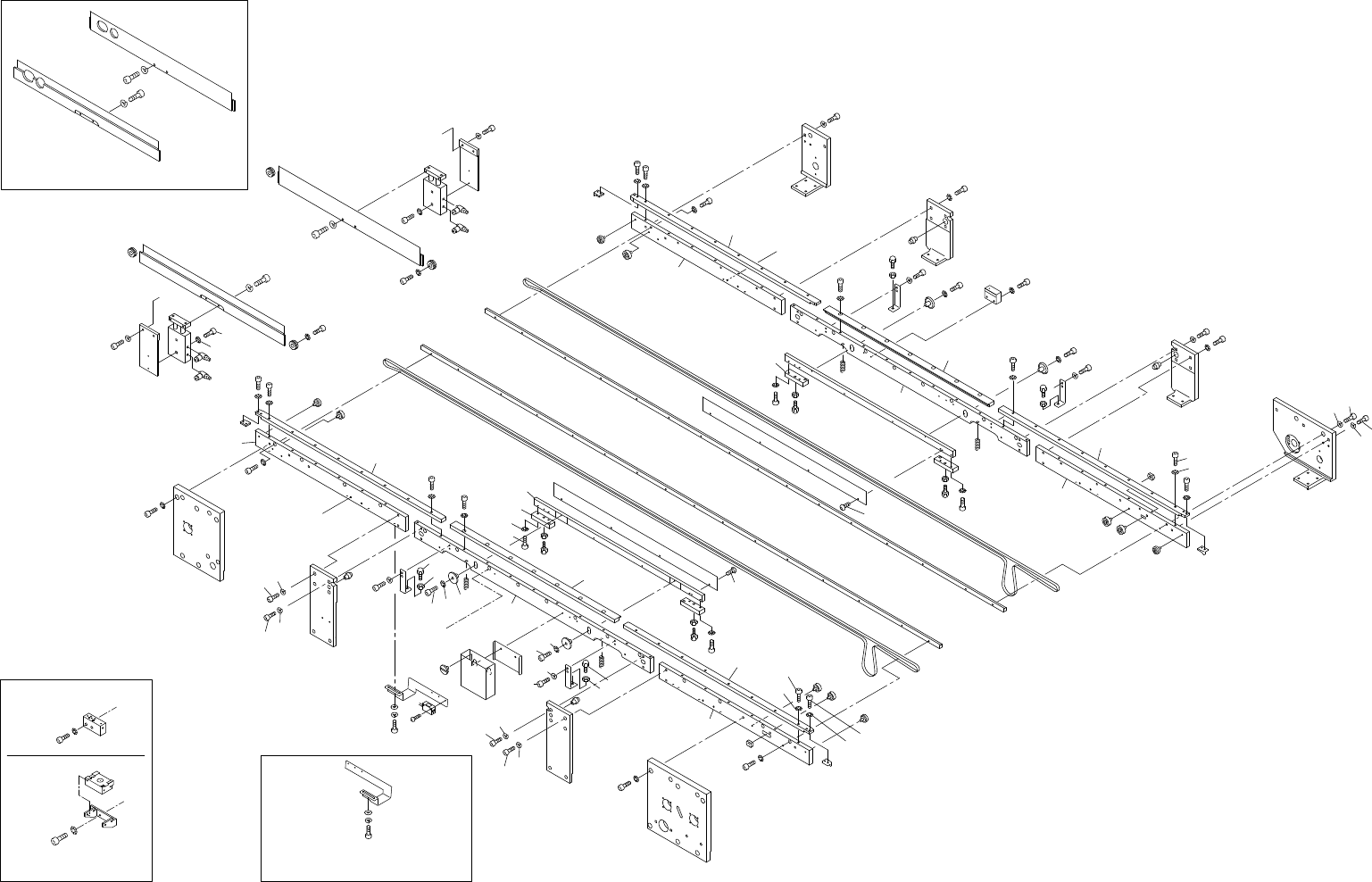

7.1.コンベア(DEQC)
7.1.Conveyor(DEQC)
7.1.Conveyor(DEQC)
7.1.コンベア(DEQC)
XP-241E PARTS LIST ver03
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
0.5 1 2 10
ﾀﾃx173.205
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x10
25
96
26
26
132
145
181
181
127
127
126
126
109
109
133
133
112
112
109
126
130
107
126
15
54
104
140
145
132
28
28
28
28
169
169
169
169
25
96
142
163
143
133
113
132
106
43
35
135
122
129
123
135
122
123
189
190
192
191
44
133
112
48
111
132
19
91
141
113
127
24
141
19
132
111
113
127
23
49
133
113
133
113
31
110
132
141
24
32
20
33
141
110
132
21
139
129
129
123
123
129
2
47
132
106
113
133
112
133
61
141
132
111
113
127
123
129
24
141
110
132
64
64
63
133
113
132
106
141
24
113
133
23
139
48
111
132
111
132
54
113
127
23
133
113
133
112
132
106
133
113
110
132
141
122
135
122
129
122
135
129
123
127
113
66
66
66
66
29
30
30
29
61
91
91
91
64
64
63
63
64
64
63
24
24
24
16
16
24
19
19
17
23
21
20
22
22
18
18
17
31
32
33
50
51
46
45
3
36
A
A
B
B
Right to Left Board Flow
178
126
126
109
109
177
109
126
130
179
Right to Left Board Flow
187
188
186
XP-241E
XP-341E
XP-141E
C
C
C
Gauge Chip Holder
7.1.コンベア(DEQC)
7.1.Conveyor(DEQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 DEQC0011 1 BASE ﾍﾞｰｽ FE
2 DEQC0040 1 BKT BKT FE
3 DEQC0051 1 BKT BKT FE
4 DEQC0060 1 PLATE ﾌﾟﾚｰﾄ FE
5 DEQC0080 1 COLLAR ｶﾗｰ FE
6 DEQC0090 1 COLLAR ｶﾗｰ FE
7 DEQC0100 1 BKT BKT FE
8 DEQC0110 1 SHAFT ｼｬﾌﾄ FE
9 DEQC0120 1 SHAFT ｼｬﾌﾄ FE
10 DEQC0130 1 STOPPER ｽﾄｯﾊﾟ PL
11 DEQC0140 1 STOPPER ｽﾄｯﾊﾟ PL
12 DEQC0150 4 SUPPORT COLUMN 支柱 FE
13 DEQC0170 1 PULLEY ﾌﾟｰﾘ FE
14 DEQC0190 1 SHAFT ｼｬﾌﾄ FE
15 DEQC0210 1 BKT, SENSOR BKT ｾﾝｻ FE
16 DEQC0220 2 CONVEYOR, BELT ｺﾝﾍﾞｱ ﾍﾞﾙﾄ OT
17 DEQC0230 2 GUIDE, BELT ｶﾞｲﾄﾞ ﾍﾞﾙﾄ AL
18 DEQC0240 2 PLATE ﾌﾟﾚｰﾄ AL
19 DEQC0251 4 GUIDE ｶﾞｲﾄﾞ FE
20 DEQC0260 2 BLOCK ﾌﾞﾛｯｸ FE
21 DEQC0270 2 BLOCK ﾌﾞﾛｯｸ FE
22 DEQC0280 2 PLATE ﾌﾟﾚｰﾄ FE
23 DEQC0310 4 BKT BKT FE
24 DEQC0300 8 STOPPER ｽﾄｯﾊﾟ FE
25 DEQC0320 2 PLATE ﾌﾟﾚｰﾄ FE
26 DEQC0730 2 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
27 DEQC0330 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
28 DEQC0340 4 GUIDE, SIDE ｶﾞｲﾄﾞ ｻｲﾄﾞ FE
29 DEQC0350 2 GUIDE ｶﾞｲﾄﾞ FE
30 DEQC0360 2 GUIDE ｶﾞｲﾄﾞ FE
31 DEQC0371 2 RETAINER, RAIL 押え ﾚｰﾙ FE
32 DEQC0380 2 GUIDE, BOARD ｶﾞｲﾄﾞ 基板 FE
33 DEQC0390 2 GUIDE, BOARD ｶﾞｲﾄﾞ 基板 FE
34 DEQC0400 1 STOPPER ｽﾄｯﾊﾟ FE
35 DEQC0450 1 BKT BKT FE
36 DEQC0461 1 BKT BKT FE
37 DEQC0470 1 PLATE ﾌﾟﾚｰﾄ FE
38 DEQC0490 1 COLLAR ｶﾗｰ FE
39 DEQC0500 1 SHAFT ｼｬﾌﾄ FE
XP-241E PARTS LIST ver03
7 - 2
7.1.コンベア(DEQC)
7.1.Conveyor(DEQC)
7.1.コンベア(DEQC)
7.1.Conveyor(DEQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
40 DEQC0510 1 BKT BKT FE
41 DEQC0520 1 SHAFT ｼｬﾌﾄ FE
42 DEQC0530 1 COVER ｶﾊﾞｰ FE
43 DEQC0560 1 BKT BKT FE
44 DEQC0570 1 BKT BKT FE
45 DEQC0580 1 BKT BKT FE
46 DEQC0590 1 BKT BKT FE
47 DEQC0600 1 PLATE ﾌﾟﾚｰﾄ FE
48 DEQC0610 2 PLATE ﾌﾟﾚｰﾄ FE
49 DEQC0620 1 PLATE ﾌﾟﾚｰﾄ FE
50 DEQC0630 1 PLATE ﾌﾟﾚｰﾄ FE
51 DEQC0640 1 PLATE ﾌﾟﾚｰﾄ FE
52 DEQC0650 1 PLATE ﾌﾟﾚｰﾄ FE
53 DEQC0660 1 PLATE ﾌﾟﾚｰﾄ FE
54 DEQC0291 1 BLOCK, JIG ﾌﾞﾛｯｸ 治具 FE
55 DEQC0020 2 GUIDE ｶﾞｲﾄﾞ SSR15WUUC1+390L-Ⅳ OT
56 DEQC0030 2 GUIDE ｶﾞｲﾄﾞ SSR15WUUC1+360L-Ⅳ OT
57 DEQC0070 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ OT
58 DEQC0480 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ BKT1404CSZZ+445.5LC OT
59 DEQC0160 1 COLLAR ｶﾗｰ FE
60 DBPP0350 3 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
61 DBPP0480 2 NUT ﾅｯﾄ FE
63 BHPP1790 4 PULLEY ASSY ﾌﾟｰﾘ ASSY OT
64 BHPP1800 6 PULLEY ASSY ﾌﾟｰﾘ ASSY OT
66 PPT1531 4 PIN, ECCENTRIC ﾋﾟﾝ 偏心 FE
68 GVC0141 5 COLLAR ｶﾗｰ FE
69 GVC0350 3 COLLAR ｶﾗｰ FE
70 CLN8690 2 SPROCKET ｽﾌﾟﾛｹｯﾄ RS25 13T-2型 追加工 FE
71 IQC5440 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
72 IQC5750 1 COLLAR ｶﾗｰ FE
73 IQC5760 1 COLLAR ｶﾗｰ FE
74 BHPP1160 1 SHAFT ｼｬﾌﾄ FE
75 BHPP1210 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ FE
76 BHPP1260 1 COLLAR ｶﾗｰ FE
77 BHPP1080 1 HOLDER ﾎﾙﾀﾞ FE
78 DBPP0330 1 HOLDER ﾎﾙﾀﾞ FE
79 BHPP1810 1 PULLEY ﾌﾟｰﾘ FE
80 K5337G 2 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS1201F-M5-04 OT
81 S2126L 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CXSM10-K6869-35 OT
XP-241E PARTS LIST ver03
7 - 3
7.1.コンベア(DEQC)
7.1.Conveyor(DEQC)
