1 2 - 1 1 2 . M T U シャトル( D E T R ) 1 2 . M T U S u t t l e ( D E T R ) 1 2 . M T U S u t t l e ( D E T R ) 1 2 . M T U シャトル( D E T R ) XP-241E P ARTS LIST ver03 R e f . 3 3 - 7 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 …
11.MFU-X20E(DEUF)
11.MFU-X20E(DEUF)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
40 DEUF3120 1 SEAL ｼｰﾙ PL
41 DEUF3130 1 SEAL ｼｰﾙ PL
42 K5208A 10 SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6 . FE
XP-241E PARTS LIST ver03
11 - 3
11.MFU-X20E(DEUF)
11.MFU-X20E(DEUF)
12 - 1
12.MTU シャトル(DETR)
12.MTU Suttle(DETR)
12.MTU Suttle(DETR)
12.MTU シャトル(DETR)
XP-241E PARTS LIST ver03
Ref.33-7
Ref.31-1
Ref.31-1
Ref.31-1
Ref.31-1
ﾀﾃx173.205
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
x6.5
72
62
7
91
92
93
90
53
5
21
1
68
79
80
86
75
69
21
6
60
72
65
81
24
9
72
62
71
57
19
51
30
51
31
52
19
51
27
51
31
52
72
63
72
63
47
82
81
71
78
17
42
43
26
82
72
25
56
70
29
16
3
32
36
35
28
42
4
18
78
71
58
39
39
15
1484
84
87
87
88
88
85
71
85
71
72
64
59
13
12
46
40
82
83
74
77
83
74
77
83
74
77
66
73
44
11
59
10
38
45
37
72
63
64
89
4
18
78
71
58
2
83
74
77
20
73
67
A
A
B
B
C
C
B
C
72
65
60
94

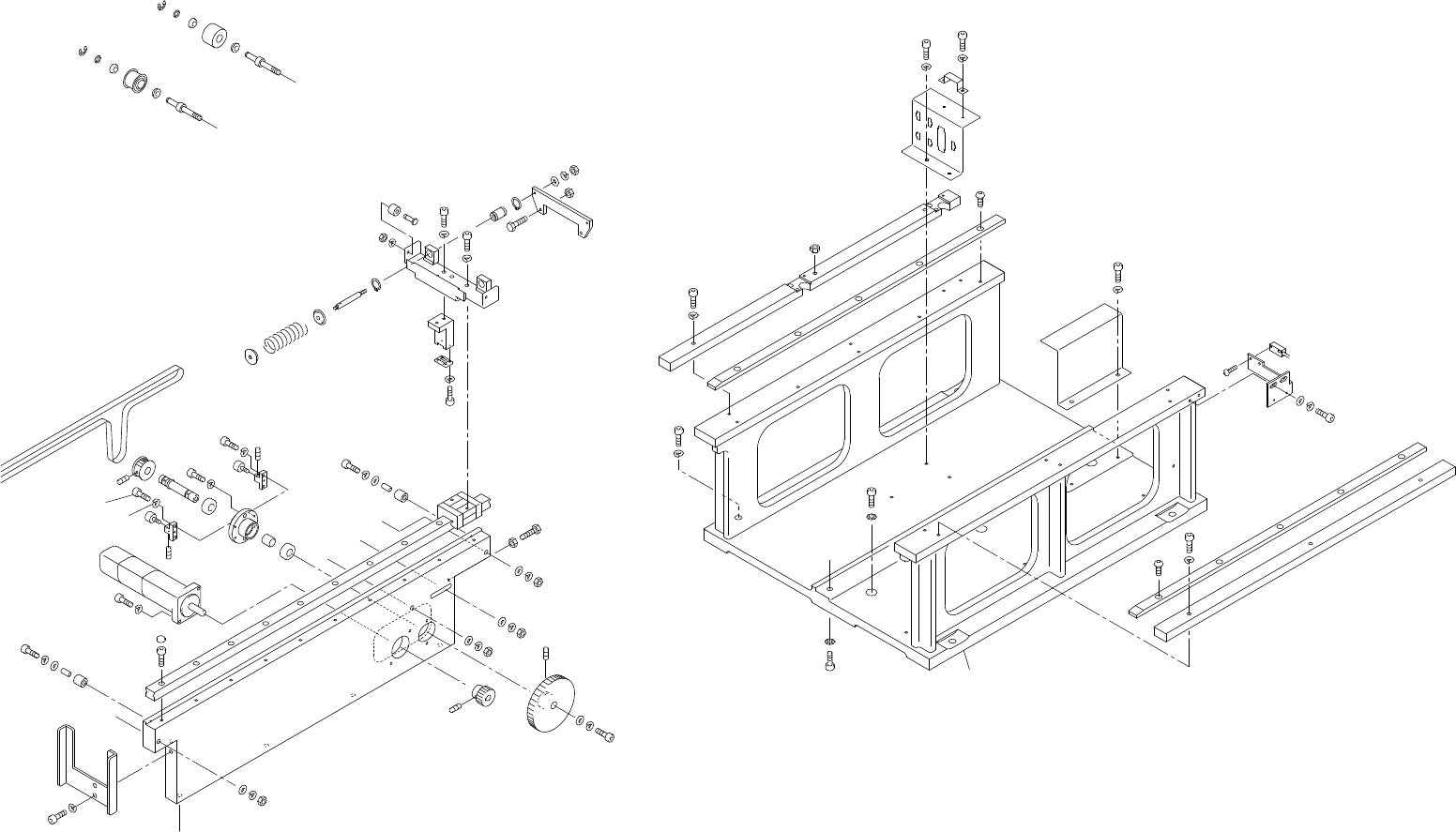

12.MTU シャトル(DETR)
12.MTU Suttle(DETR)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
材質
No. Drg.No. & Code No. QTY Description Rating Remarks
Materials
1 DETR4012 1 BASE ﾍﾞｰｽ FE
2 DETR4020 1 BKT BKT FE
3 DETR4030 1 HOOK ﾌｯｸ FE
4 DETR4040 2 STOPPER ｽﾄｯﾊ゜ PL
5 DETR4260 1 PLATE, GUIDE ﾌﾟﾚｰﾄ ｶﾞｲﾄﾞ FE
6 DETR4270 1 PLATE, GUIDE ﾌﾟﾚｰﾄ ｶﾞｲﾄﾞ FE
7 DETR4070 1 COVER ｶﾊﾞｰ FE
9 DETR4240 1 PANEL, CONNECTOR ﾊﾟﾈﾙ ｺﾈｸﾀ FE
10 DETR4090 1 GEAR ｷﾞﾔ OT
11 DETR4100 1 GEAR ｷﾞﾔ OT
12 DETR4110 1 PULLEY ﾌﾟｰﾘ AL
13 DETR4120 1 SHAFT ｼｬﾌﾄ FE
14 DETR4130 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
15 DETR4140 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
16 DETR4150 1 BKT BKT FE
17 DETR4230 1 PLATE ﾌﾟﾚｰﾄ FE
18 DETR4160 2 COLLAR ｶﾗｰ FE
19 DETR4170 4 SHAFT ｼｬﾌﾄ FE
20 DETR4180 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
21 DETR4190 2 GUIDE ｶﾞｲﾄﾞ PL
24 DETR3390 1 BKT, RETAINER BKT 押え FE
25 DBTN1570 2 ROLLER ﾛｰﾗ PL
26 DBTN1560 2 PIN, ROLLER ﾋﾟﾝ ﾛｰﾗ FE
27 BHTA1080 2 PULLEY ﾌﾟｰﾘ AL
28 BHTA2030 2 PIN, CLAMP ﾋﾟﾝ ｸﾗﾝﾌﾟ OT
29 BHTC5030 1 FIXTURE, CLAMP 金具 ｸﾗﾝﾌﾟ OT
30 BHTC5050 2 PULLEY ﾌﾟｰﾘ OT
31 GVC0350 4 COLLAR ｶﾗｰ FE
32 ADBTN8221 2 PIN, CLAMP ﾋﾟﾝ ｸﾗﾝﾌﾟ OT
35 DBTN1280 2 WASHER ﾜｯｼｬ FE
36 DBTN1290 2 SPRING ｽﾌﾟﾘﾝｸﾞ FE
37 SAM6700 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ SGMAH-01A1A61 OT
38 N4018T 1 SCREW, HEX SOCKET SET ﾈｼﾞ 六角穴止ﾒ M3X3L ﾋﾗｻｷ FE
39 H4440A 2
BEARING, MINIATURE
ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1910ZZ OT
40 H5174A 1 BOLT, HEX ﾎﾞﾙﾄ 六角 M4X40Lｾﾞﾝﾈｼﾞ FE
42 S1031A 4
CIR-CLIP
ｻｰｸﾘｯﾌﾟ STW 10 OT
43 H4287T 2
BEARING, SLIDE
ﾍﾞｱﾘﾝｸﾞ ｽﾗｲﾄﾞ LM05UU OT
44 W10875 1 WASHER ﾜｯｼｬ WSSB-13-5-1 OT
45 K11475 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ SSR15XVY1UU+580L-I OT
XP-241E PARTS LIST ver03
12 - 2
12.MTU シャトル(DETR)
12.MTU Suttle(DETR)
