Installation Manual Station Software Version 601.02 Edition 07/2005 Selecting the machine type Fig. 4-11 Selecting the machine type → Select the option for the machine type fo r which the software is to be configured. → …
Installation Manual Station Software Version 601.02 Edition 07/2005
27 of 82

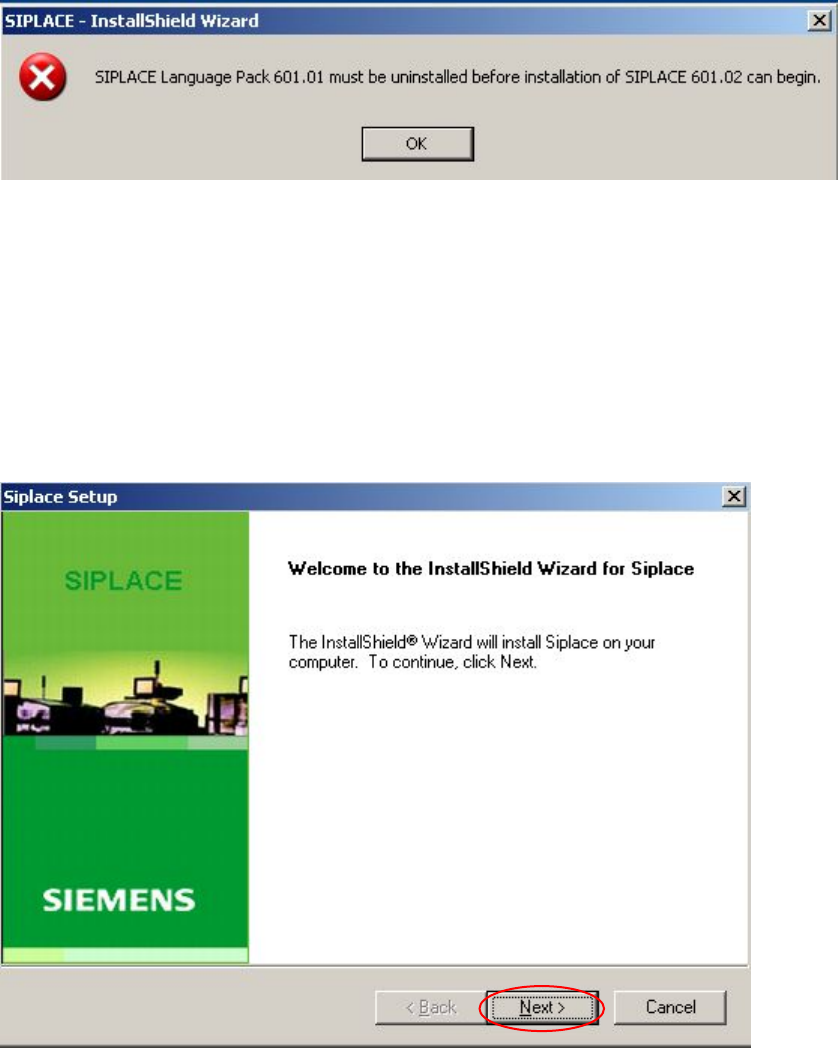

The following error message is issued if uninstallation of the Language Pack is canceled:
→ Click the OK button. Installation of the station computer software is terminated and must be
restarted.
Installation of the station computer software continues with the welcome screen.
Welcome screen
Fig. 4-10 Welcome screen
→ Click the Next button.
Installation Manual Station Software Version 601.02 Edition 07/2005

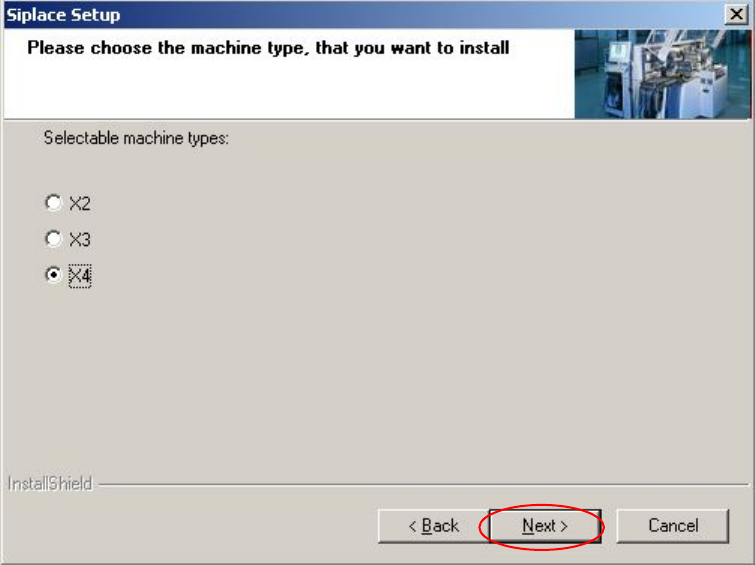

Selecting the machine type
Fig. 4-11 Selecting the machine type
→ Select the option for the machine type for which the software is to be configured.
→ Click the Next button.
28 of 82
Installation Manual Station Software Version 601.02 Edition 07/2005

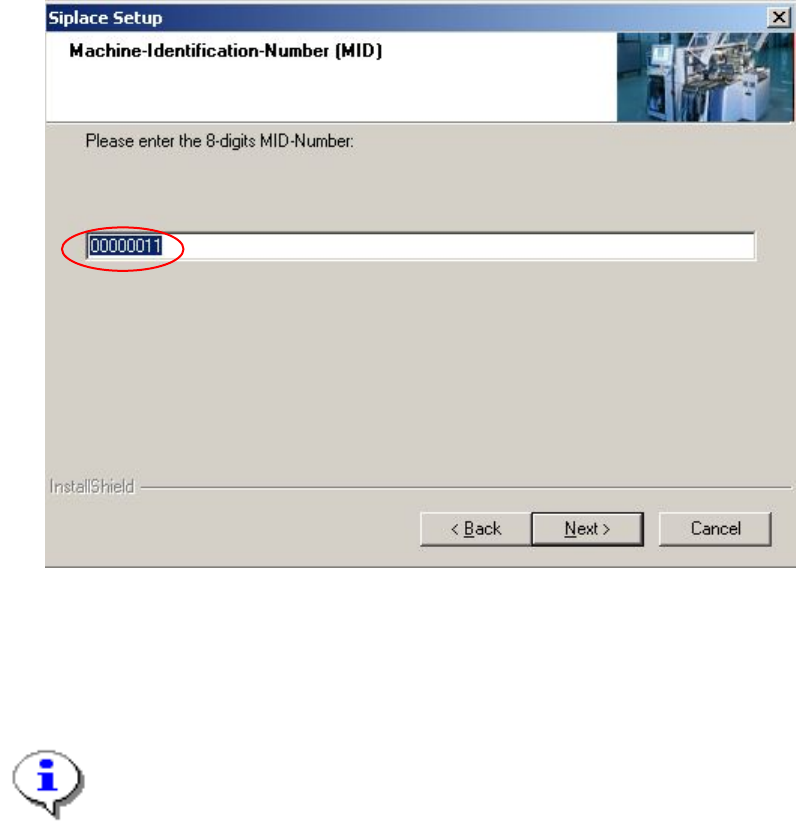

Entering the Machine Identification Number (MID)
Fig. 4-12: Entering the Machine Identification Number (MID)
→ In the text box, enter the 8-digit machine identification number.
Note:
You will find the MID on an adhesive label on the side of the protective covers directly below
the label for the number of the relevant location. The number following the dash after the MI
D
specifies the location and is not entered here (e.g. 00000001-2 stands for location 2).
→ Click the Next button.
29 of 82
