Installation Manual Station Software Version 601.02 Edition 07/2005
→ Switch the machine off when the station computer has shut down.
→ Switch the machine back on again. This reboots both the station computer and the machine
controller.
4.3 Uninstalling the SIPLACE software
If it is necessary to uninstall the SIPLACE software, this must be done in one of the ways described
below.
→ Open the Start menu and select Programs Æ Siplace Æ Siplace Uninstall.

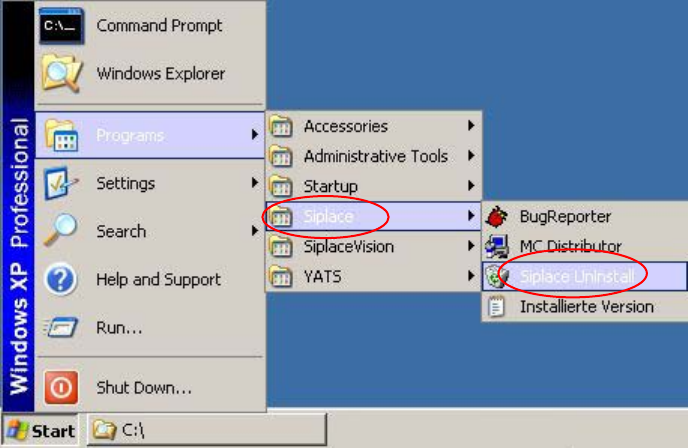

Fig. 4-15: Starting uninstallation (alternative 1)
32 of 82
Installation Manual Station Software Version 601.02 Edition 07/2005
Or:
→ Open the Start menu and select Settings Æ Control panel.
→ Double-click Software.

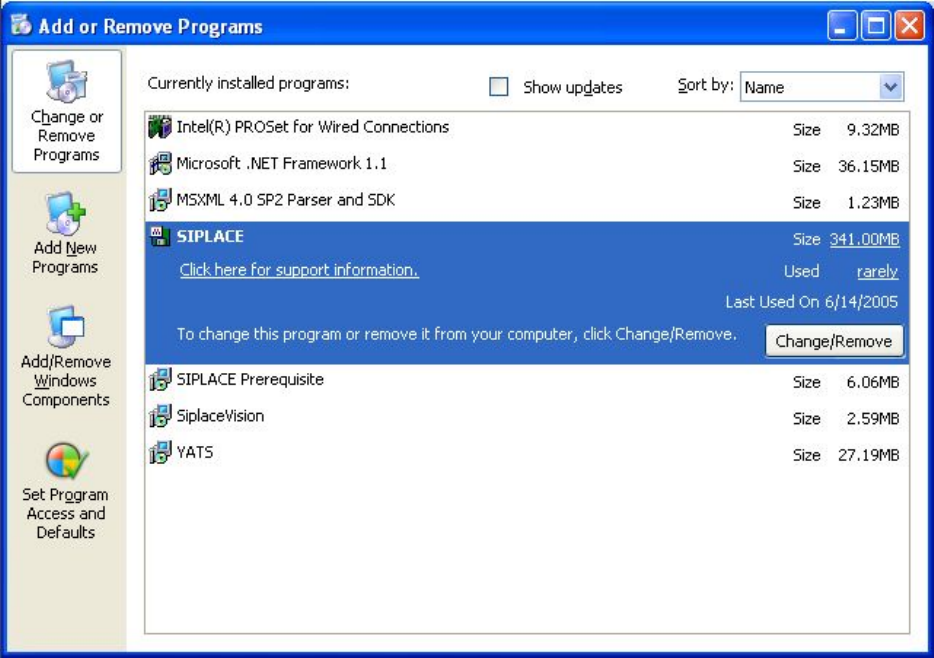

Fig. 4-16: Starting uninstallation (alternative 2)
→ Select Siplace from the list of installed programs.
→ Click the Change/Remove button.
33 of 82
Installation Manual Station Software Version 601.02 Edition 07/2005
Removing the program

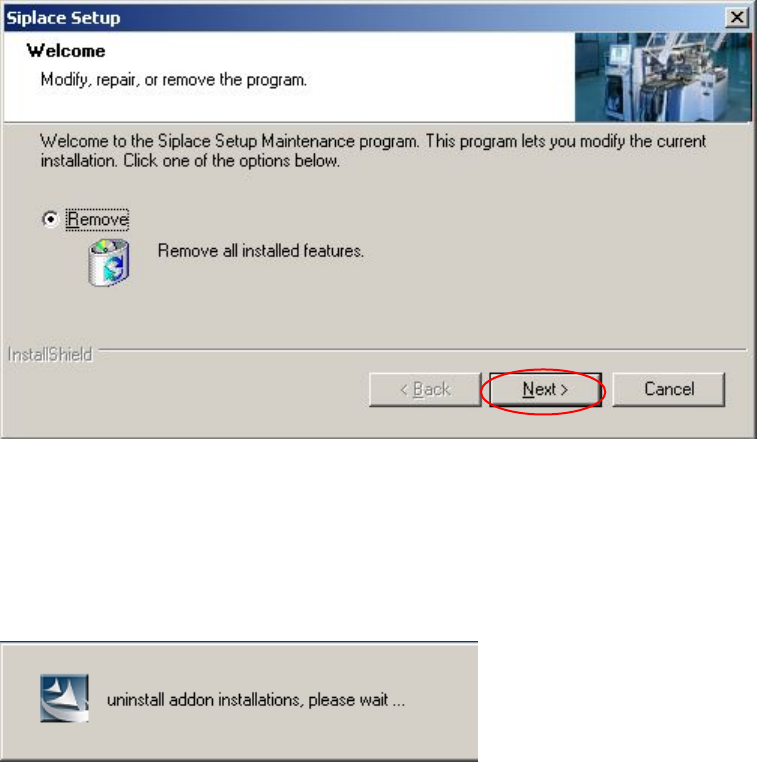

Fig. 4-17: Removing the program
→ Click the Next button.
The installation program now uninstalls the SIPLACE software including SIPLACE Vision.
34 of 82
