Contents KJK-FS2-0808 NO TE:Serial No.Seal Kind of Feeder T ype 10 FS2-25-C (15in) .................. 10-1~10-6 (KJK-M1400-01) 11 FS2-47-C(7in) ...................... 11-1~11-6 (KJK-M1500-01) 12 FS2-45-C(15in) ..........…
Contents
KJK-FS2-0808
NOTE:Serial No.Seal
Kind of Feeder
Type
10 FS2-25-C (15in)
.................. 10-1~10-6
(KJK-M1400-01)
11 FS2-47-C(7in)
...................... 11-1~11-6
(KJK-M1500-01)
12 FS2-45-C(15in)
................... 12-1~12-6
(KJK-M1600-01)
1 FS2-27-A(7in)
.......................... 1-1~1-6
(KJK-M1300-00)
2 FS2-25-A (15in)
...................... 2-1~2-6
(KJK-M1400-00)
3 FS2-47-A(7in)
.......................... 3-1~3-6
(KJK-M1500-00)
4 FS2-45-A(15in)
....................... 4-1~4-6
(KJK-M1600-00)
5 FS2-27-B(7in)
.......................... 5-1~5-6
(KJK-M1300-01)
6 FS2-25-B (15in)
....................... 6-1~6-6
(KJK-M1400-01)
7 FS2-47-B(7in)
.......................... 7-1~7-6
(KJK-M1500-01)
8 FS2-45-B(15in)
........................ 8-1~8-6
(KJK-M1600-01)
9 FS2-27-C(7in)
.......................... 9-1~9-6
(KJK-M1300-01)
No. Part No. Part Name Q'ty Remarks
KJW-M1110-00
BODY ASSY
1
KJW-M112A-00
RACKING LEVER ASSY
1
KJK-M1120-00
SPROCKET ASSY
1
1
BODY
1
2 KJK-M1112-01
KNOCK PIN (FRONT)
1
3 KW1-M1113-000
KNOCK PIN (REAR)
1 *Attention
4 METAL
1
5
RIVET
3
6
SPROCKET
1
7
RATCHET
1
8
RACKING LEVER
1
9
KJK-M111E-00 SPRING
1
10
RACKING POLE
1
11
POLE AXIS
1
12
MAIN ARM
1
13
MAIN ARM AXIS
1
14
KJW-M112P-00 RATCHET AXIS
1
15
KJK-M112D-00 COIL SPRING
1
16
SPRING HOOK PIN
2
17
KJK-M111H-00 BACK STOPPER 1
18
KJK-M111A-00 SPRING
1
19
KJK-M111B-00 BACK STOPPER AXIS
1
20
KJK-M111F-00 STOPPER PIN 1
21
KJK-M114V-00 GUIDE PLATE 1 1
22
K87-M111G-00 PUSH PIN
2
23 K87-M111T-00
SCREW, SET
1
24 K87-M111X-00
SCREW, SET
2
25 K87-M111R-000
SCREW, SET 5
26 K87-M11BB-00
SCREW, FLAT HEAD + 1
27 LG4-M1AD1-000
CIRCULAR RIVET 2 *Attention
28
STRAIGHT PIN
1
29
DU BUSH
1
30 S027-M0489-Y0
SERIAL NO. STICKER (FT-82)
1
Shipment history conr-
mation and user identi-
cation are necessary.
SERIAL NO. STICKER (FS2-82-7")
1
SERIAL NO. STICKER (FS2-82-15")
1
KJK-M1120-00
Continued on
Page 1-4,1-5
KJW-M1110-00
KJW-M112A-00
KJK-FS2-1101
1
1

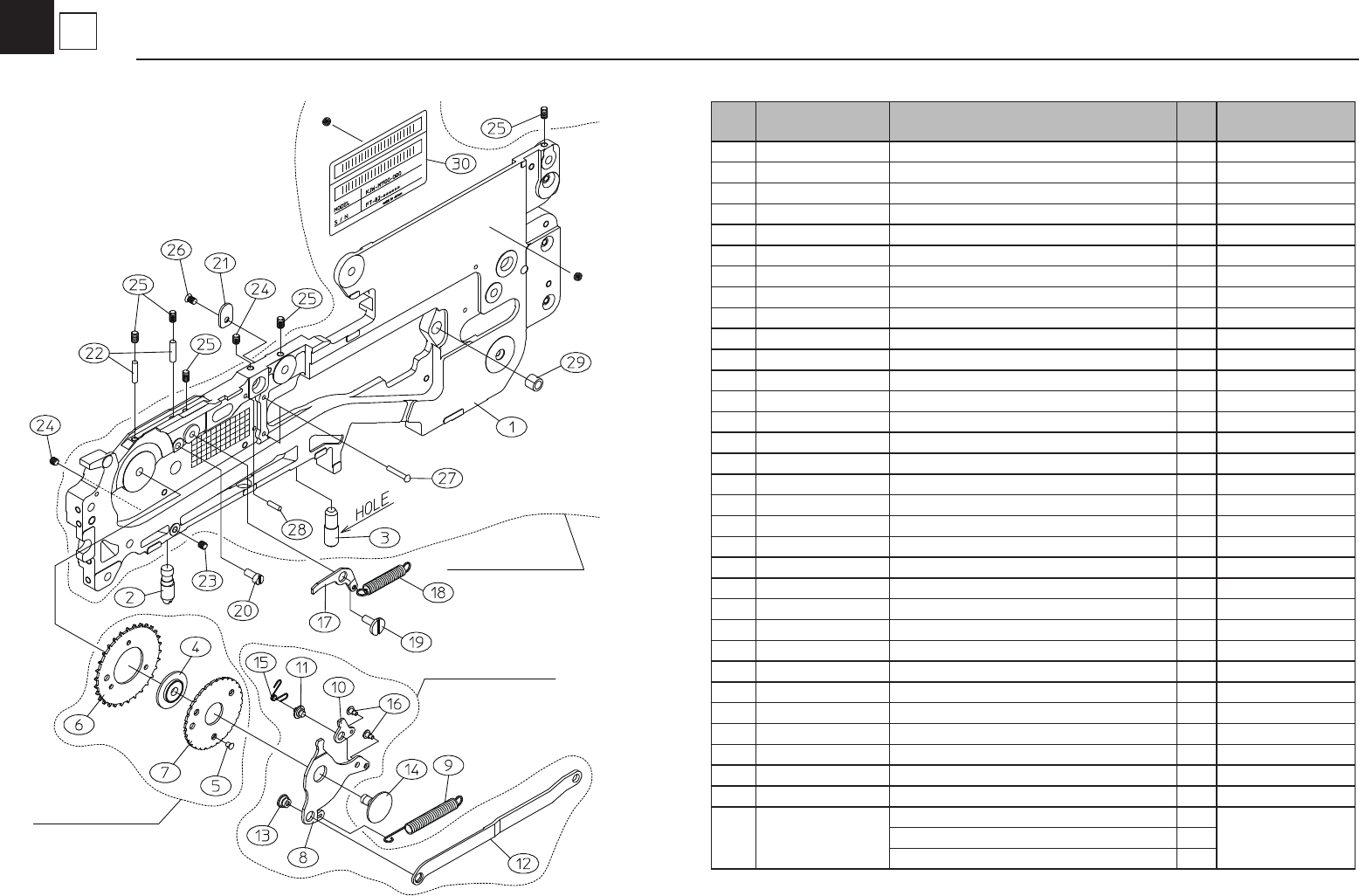

BODY & RACHET Unit 27-A(7in)
FT/FS2-82(A type)8mm-2P
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
