No. Part No. Part Name Q'ty Remarks KJW -M11 10-00 BODY ASSY 1 KJW -M112A-00 RACKING LEVER ASSY 1 KJK-M1 120-00 SPROCKET ASSY 1 1 BODY 1 2 KJK-M1 1 12-01 KNOCK PIN (FRONT) 1 3 KW1-M1 1 13-000 KNOCK PIN (REAR) 1 *Att…
No. Part No. Part Name Q'ty Remarks
KJK-M13D0-00
7INCH REEL PLATE ASSY
1 Can not sell
1 ROLLER
2
2 7INCH REEL PLATE
1
3 GUIDE AXIS
2
4 K87-M55BN-00 SCREW, FLAT HEAD +
2
5
KW1-M45BG-00
SCREW, FLAT HEAD +
1
6 S027-M0489-Y0
SERIAL NO. STICKER (FS2-82-7") 1
Shipment history conrmation and
user identication are necessary.
SERIAL NO. STICKER (FS2-84-7") 1
7
KW1-M11AA-00
ROHS STICKER
1
KJK-M13D0-00
KJK-FS2-1101
1
6

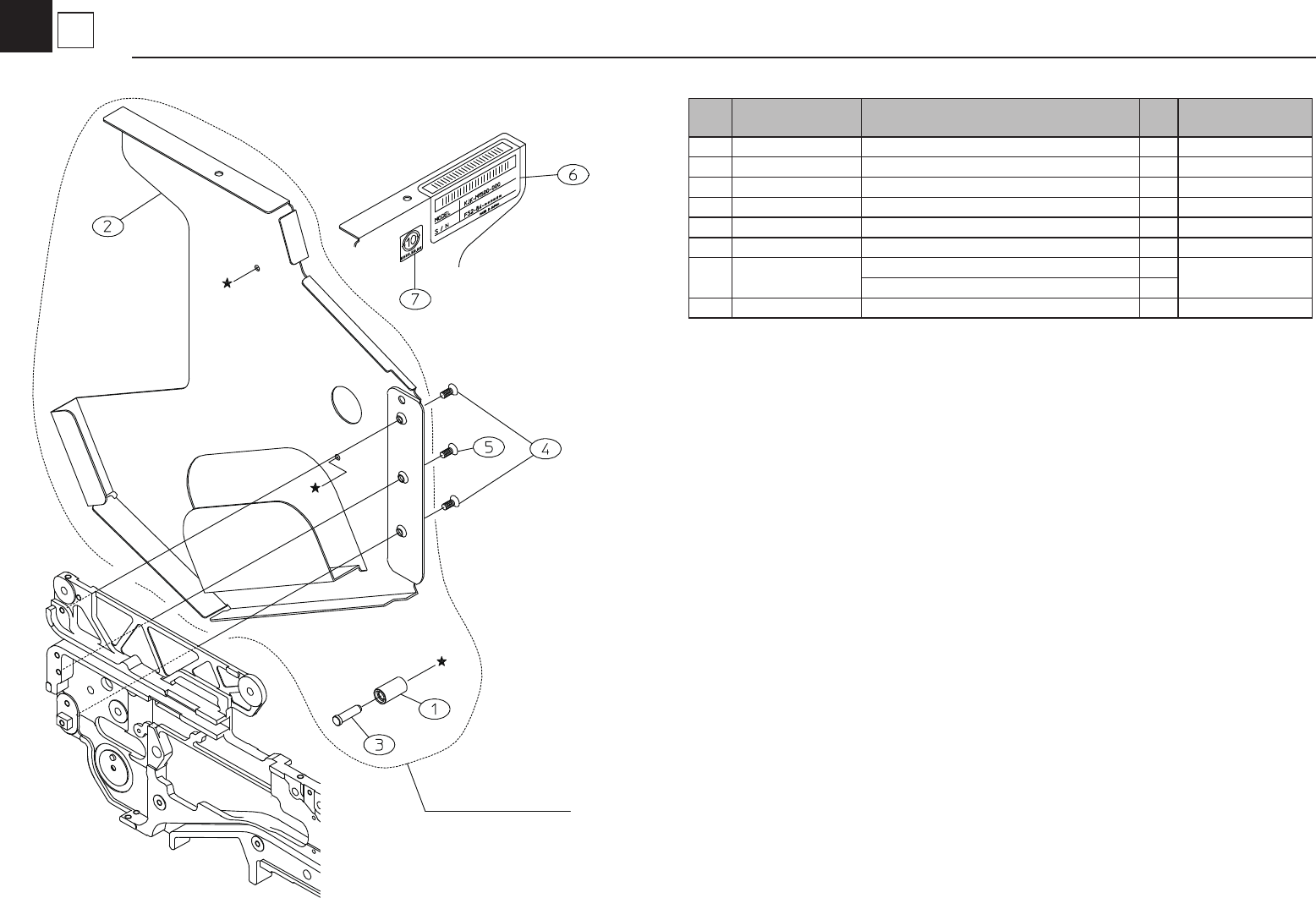

7inch REEL HOLDER Unit 27-A(7in)
FS2 84,82(A type)8mm-7Inch
No. Part No. Part Name Q'ty Remarks
KJW-M1110-00
BODY ASSY
1
KJW-M112A-00
RACKING LEVER ASSY
1
KJK-M1120-00
SPROCKET ASSY
1
1
BODY
1
2 KJK-M1112-01
KNOCK PIN (FRONT)
1
3 KW1-M1113-000
KNOCK PIN (REAR)
1 *Attention
4 METAL
1
5
RIVET
3
6
SPROCKET
1
7
RATCHET
1
8
RACKING LEVER
1
9
KJK-M111E-00 SPRING
1
10
RACKING POLE
1
11
POLE AXIS
1
12
MAIN ARM
1
13
MAIN ARM AXIS
1
14
KJW-M112P-00 RATCHET AXIS
1
15
KJK-M112D-00 COIL SPRING
1
16
SPRING HOOK PIN
2
17
KJK-M111H-00 BACK STOPPER 1
18
KJK-M111A-00 SPRING
1
19
KJK-M111B-00 BACK STOPPER AXIS
1
20
KJK-M111F-00 STOPPER PIN 1
21
KJK-M114V-00 GUIDE PLATE 1 1
22
K87-M111G-00 PUSH PIN
2
23 K87-M111T-00
SCREW, SET
1
24 K87-M111X-00
SCREW, SET
2
25 K87-M111R-000
SCREW, SET 5
26 K87-M11BB-00
SCREW, FLAT HEAD + 1
27 LG4-M1AD1-000
CIRCULAR RIVET 2 *Attention
28
STRAIGHT PIN
1
29
DU BUSH
1
30 S027-M0489-Y0
SERIAL NO. STICKER (FT-82)
1
Shipment history conr-
mation and user identi-
cation are necessary.
SERIAL NO. STICKER (FS2-82-7")
1
SERIAL NO. STICKER (FS2-82-15")
1
KJK-M1120-00
Continued on
Page 2-4,2-5
KJW-M1110-00
KJW-M112A-00
KJK-FS2-1101
2
1

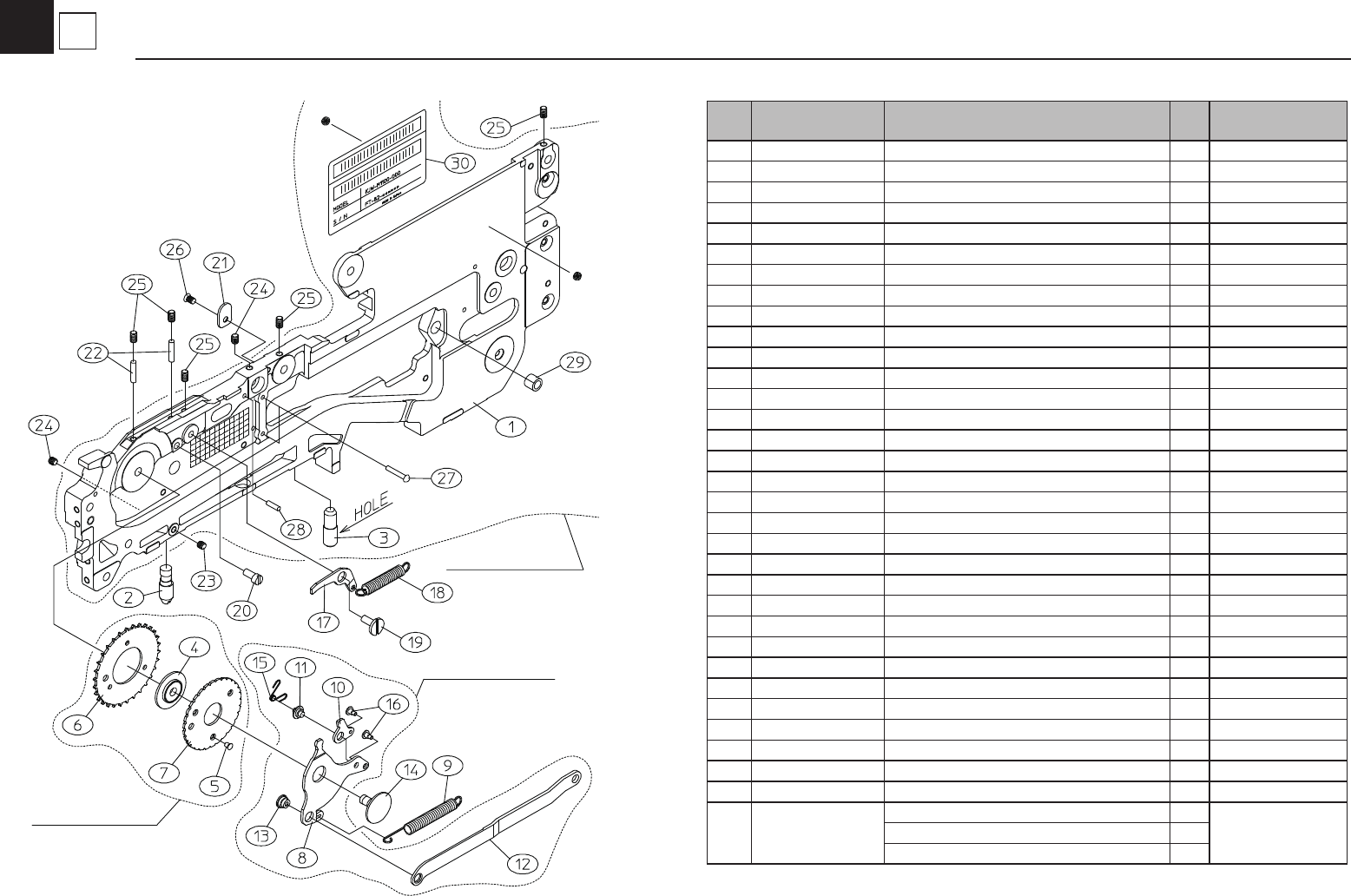

BODY & RACHET Unit 25-A (15in)
FT/FS2-82(A type)8mm-2P
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
No. Part No. Part Name Q'ty Remarks
KJW-M1140-00
TAPE GUIDE ASSY
1
KJK-M1170-00
REAR LEVER ASSY
1
KJK-M114A-01
HAND LEVER ASSY
1
1
TAPE GUIDE PLATE
1
2 KJW-M114N-00
GUIDE AXIS
1
3 KJW-M114P-00
COLLER
1
4 KJK-M114R-00
WASHER
1
5
TAPE GUIDE PIN
1
6
LEVER
1
7
COIL SPRING
1
8
KJK-M1173-00 GUIDE PIN
1
9
KJK-M116K-00 LEVER AXIS
1
10
MAIN LEVER
1
11
ROLLER AXIS
1
12
ROLLER
1
13
ARM AXIS PIN
1
14
AXIA PIN
1
15
KJK-M114D-00 SUB ARM
1
16
K87-M111C-00 PLANE WASHER
2
17
KJK-M1181-01 CONNECTOR 1
18
KJK-M1184-00 CONNECT PIN
1
19
KJK-M1183-00 CYL HOLDER
1
20
KJK-M1146-00 ADJUST PLATE 1
21
KJK-M1185-01 MULTI CYLINDER 1
22
KJK-M111L-00 STRAIGHT CONNECTOR 2
23
KJK-M11B1-00 AIR HOSE (65mm)
1
24 K87-M111P-00
SCREW, FLAT HEAD + 1
25 K87-M11BF-00
SCREW, FLAT HEAD + 2
26 K87-M11BC-00
SCREW, FLAT HEAD + 1
27 KJK-M11BA-00
SCREW, CAP BOLT HEAD 2
28 K87-M11D7-00
CIRCLIP E 1
29 KJK-M11BB-00
CIRCLIP E 1
30 K87-M1547-00
SCREW, TRUSS HEAD +
2
31 LG4-M3AD3-00
SPRING LOOK WASHER
2
KJW-M1140-00
KJK-M1170-00
KJK-M114A-01
KJK-FS2-0911
2
2

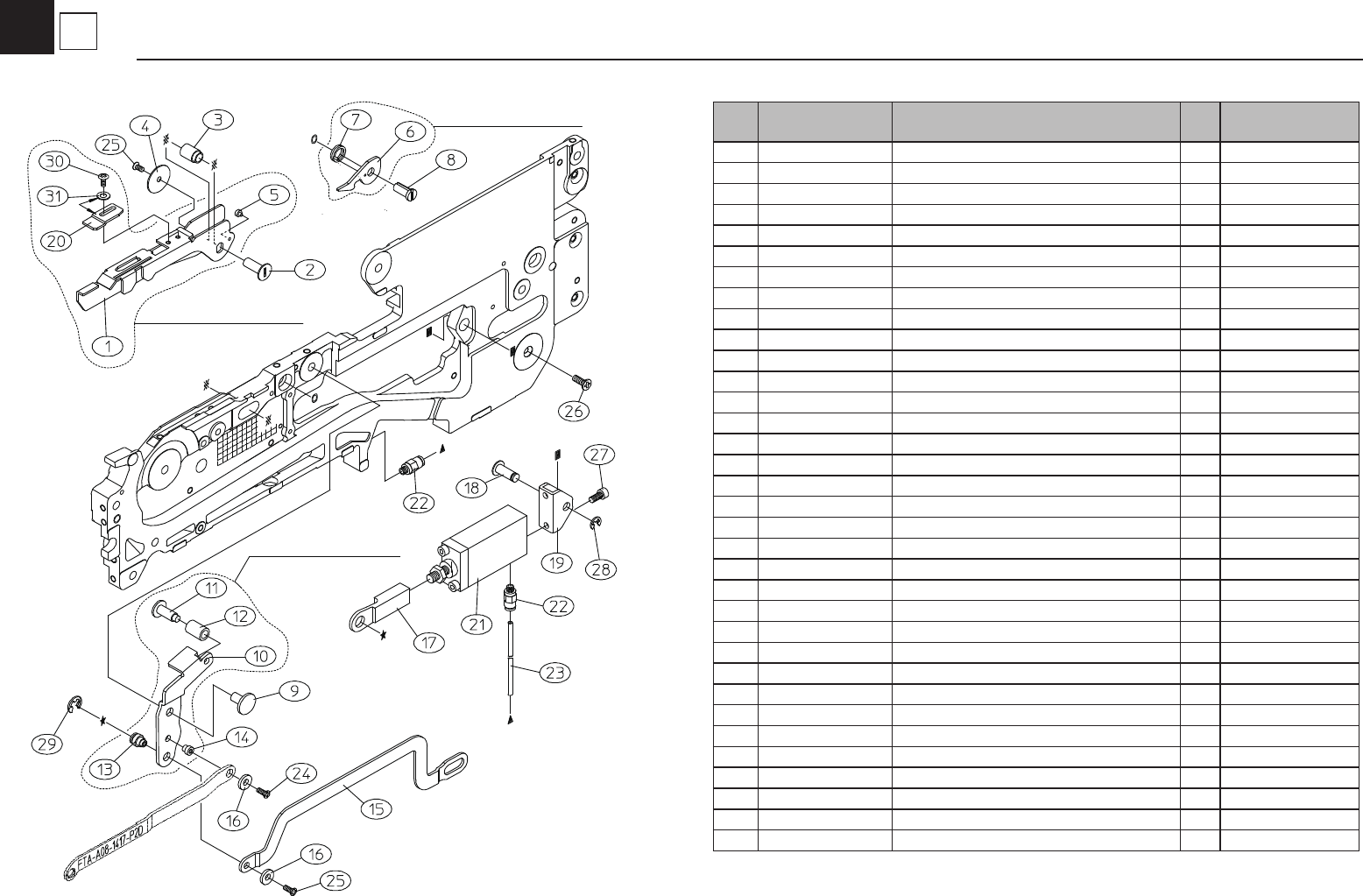

TAPE GUIDE & AIR CYLINDER Assy 25-A (15in)
FT/FS2/FSI-82(A type)8mm-2P
