No. Part No. Part Name Q'ty Remarks KJK-M13D0-00 7INCH REEL PLA TE ASSY 1 Can not sell 1 ROLLER 2 2 7INCH REEL PLA TE 1 3 GUIDE AXIS 2 4 K87-M55BN-00 SCREW , FLA T HEAD + 2 5 KW1-M45BG-00 SCREW , FLA T HEAD + 1 6 SE…

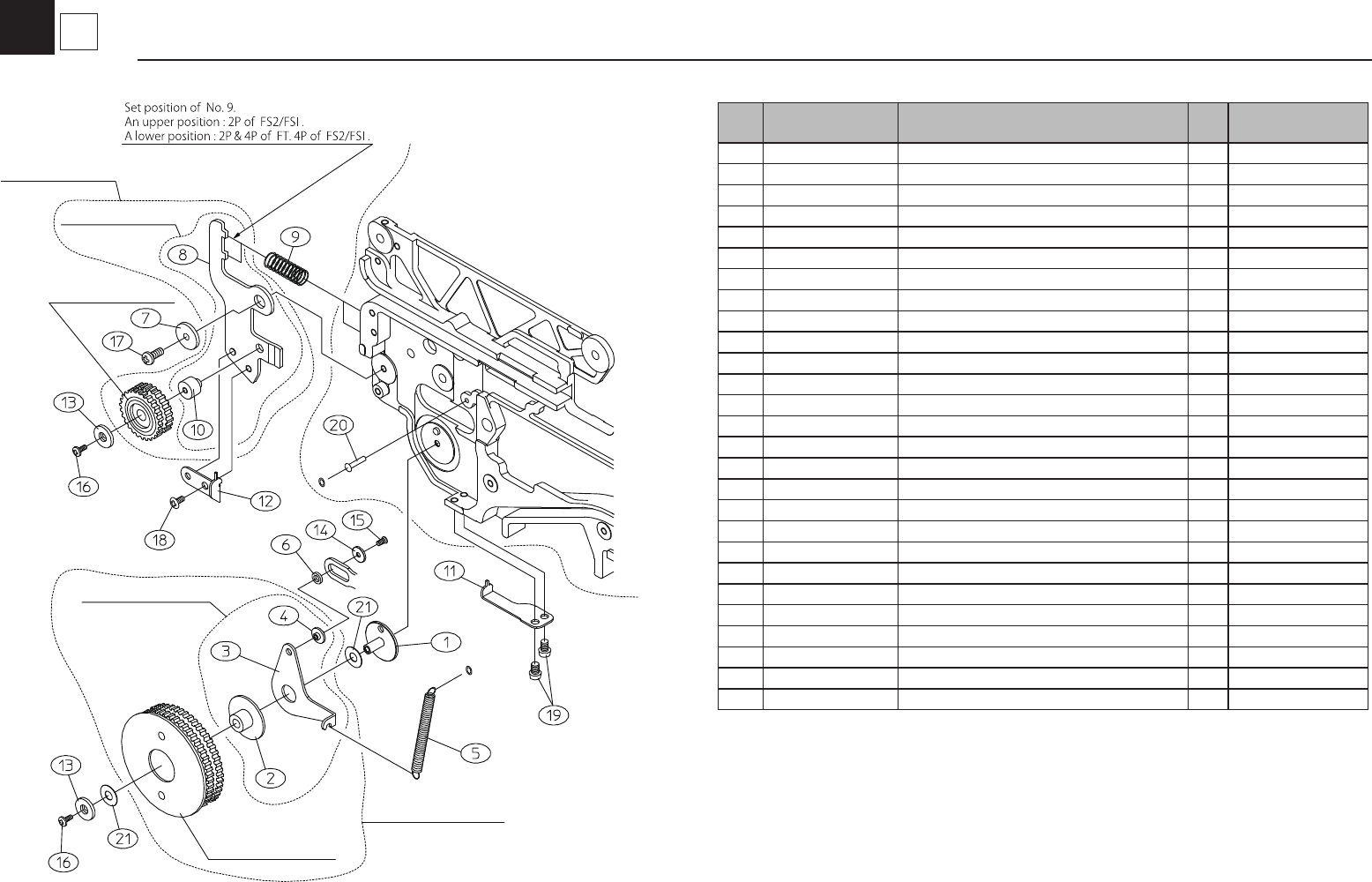

No. Part No. Part Name Q'ty Remarks
KJW-M116D-00 TENSION LEVER ASSY 1
KJK-M119L-00 IDLE ROLLER ASSY 1
KJW-M1192-00 INDENTATION LEVER ASSY 1
KJK-M119F-01 DRIVE ROLLER ASSY 1
KJW-M119A-00 I. ROLLER ALL ASSY 1
KJW-M1191-00 D. ROLLER ALL ASSY 1
1 KJW-M116J-00 METAL SHAFT 1
2 LEVER METAL 1
3 INDENTATION LEVER 1
4 ARM STUD 1
5 KJK-M119K-00 SPRING 1
6 LG4-M1A85-00 ROLLER 1
7 KJW-M116F-00 TENSION LEVER AXIS PIN 1
8 TENSION LEVER 1
9 KW1-M119P-00 SPRING 1
10 ROLLER AXIS 1
11 KJK-M11A1-00 LOWER GUIDE PLATE,R 1
12 KJW-M11A3-00 LOWER GUIDE PLATE,L 1
13 KJW-M119C-00 PLANE WASHER 2
14 K87-M111C-00 PLANE WASHER 1
15 K87-M111P-00 SCREW, FLAT HEAD + 1
16 K87-M11BB-00 SCREW, FLAT HEAD + 2
17 LG4-M1ADC-00 SCREW, PAN HEAD + 1
18 K87-M111N-00 SCREW, PAN HEAD + 1
19 K87-M53BS-00 SCREW, PAN HEAD + 2
20 LG4-M1AD1-00 CIRCULAR RIVET 1
*Attention
21 KJK-M119W-00 WASHER 2
Continued from
Page 5-1
KJW-M119A-00
KJW-M116D-00
KJK-M119L-00
KJW-M1192-00
KJW-M1191-00
KJK-M119F-01
KJK-FS2-0911
5
5
ROLLER UP Unit 27-B(7in)
FS-84/82(B type)8mm
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
No. Part No. Part Name Q'ty Remarks
KJK-M13D0-00 7INCH REEL PLATE ASSY 1 Can not sell
1 ROLLER 2
2 7INCH REEL PLATE 1
3 GUIDE AXIS 2
4 K87-M55BN-00 SCREW, FLAT HEAD + 2
5 KW1-M45BG-00 SCREW, FLAT HEAD + 1
6 SERIAL NO. STICKER 1
KJK-M13D0-00
KJK-FS2-1101
5
6
7inch REEL HOLDER Unit 27-B(7in)
FS2-84/82(B type)8mm-7
No. Part No. Part Name Q'ty Remarks
KJW-M1110-01 BODY ASSY 1
KJW-M112A-00 RACKING LEVER ASSY 1
KJK-M1120-00 SPROCKET ASSY 1
1 BODY 1
2 KJK-M1112-01 KNOCK PIN (FRONT) 1
3 KW1-M1113-000
KNOCK PIN (REAR)
1 *Attention
4 METAL 1
5 RIVET 3
6 SPROCKET 1
7 RATCHET 1
8 RACKING LEVER 1
9 KJK-M111E-00 SPRING 1
10 RACKING POLE 1
11 POLE AXIS 1
12 MAIN ARM 1
13 MAIN ARM AXIS 1
14 KJW-M112P-00 RATCHET AXIS 1
15 KJK-M112D-00 COIL SPRING 1
16 SPRING HOOK PIN 2
17 KJK-M111H-00 BACK STOPPER 1
18 KJK-M111A-00 SPRING 1
19 KJK-M111B-00 BACK STOPPER AXIS 1
20 KJK-M111F-00 STOPPER PIN 1
21 KJK-M114V-00 GUIDE PLATE 1 1
22 K87-M111G-00 PUSH PIN 2
23 K87-M111T-00 SCREW, SET 1
24 K87-M111X-00 SCREW, SET 2
25 K87-M111R-00 SCREW, SET 5
26 K87-M11BB-00 SCREW, FLAT HEAD + 1
27 LG4-M1AD1-000
CIRCULAR RIVET 2 *Attention
28 STRAIGHT PIN 1
29 DU BUSH 1
30 SERIAL NO. STICKER 1
31 KW1-M11AA-00 ROHS STICKER 1
Continued on
Page 6-4,6-5
KJW-M112A-00
KJW-M1110-01
KJK-M1120-00
KJK-FS2-0911
6
1
BODY & RACHET Unit 25-B (15in)
FS2-82(B type)8mm-2P
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
