No. Part No. Part Name Q'ty Remarks KJW -M116D-00 TENSION LEVER ASSY 1 KJK-M1 19L-00 IDLE ROLLER ASSY 1 KJW -M1192-00 INDENT A TION LEVER ASSY 1 KJK-M1 19F-01 DRIVE ROLLER ASSY 1 KJW -M119A-00 I. ROLLER ALL ASSY 1 K…

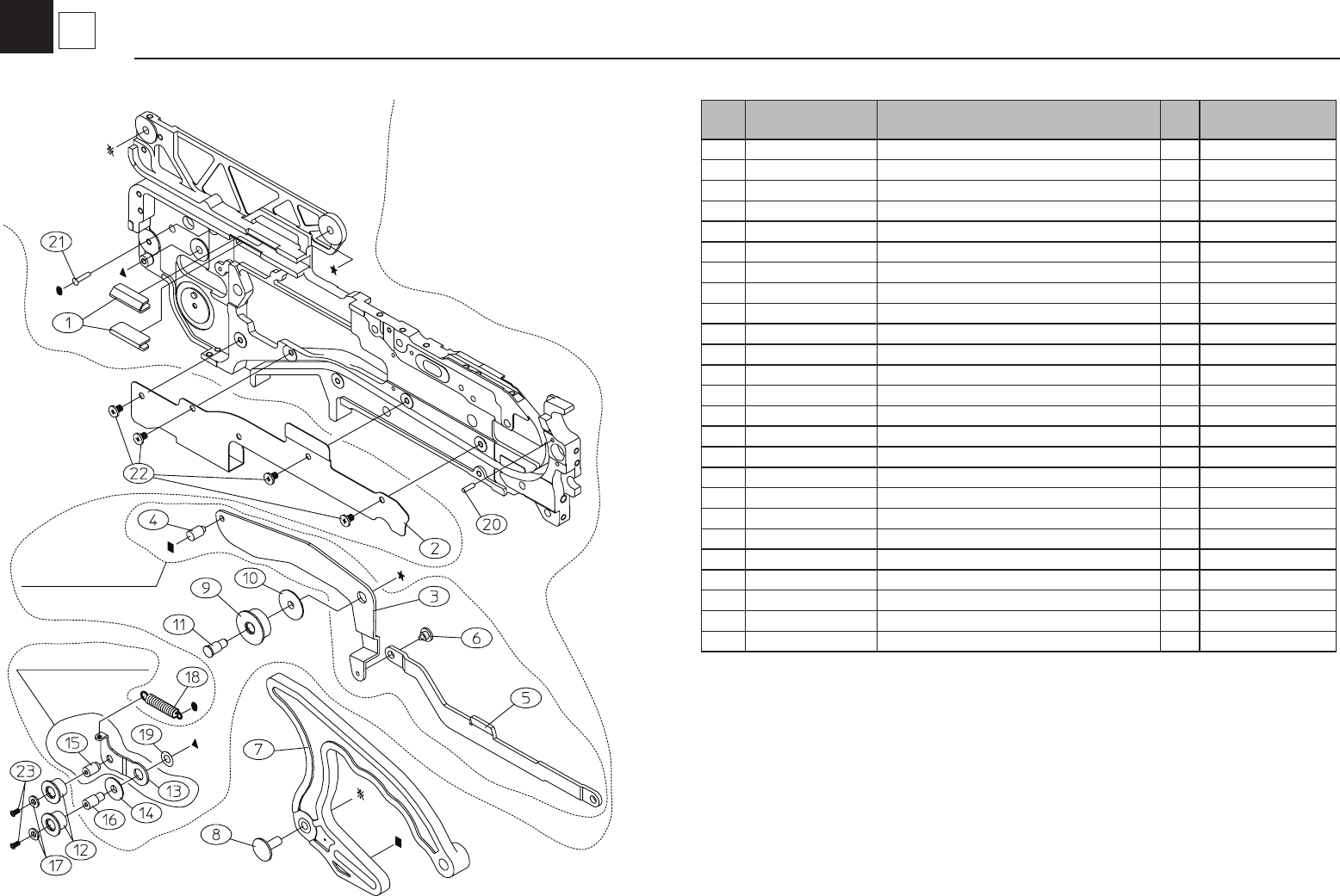

No. Part No. Part Name Q'ty Remarks
KJK-M1150-01 HANDLE LEVER ASSY 1
KJK-M116S-01 ROLLER ARM ASSY 1
1 B-CAP 2
2 KJK-M114L-01 COVER 1
3 LEVER 1
4 GUIDE PIN 1
5 LEVER 1
6 GUIDE PIN 1
7 KJW-M115L-00 HOLD ARM 1
8 KJK-M115M-00 HOLD ARM AXIS 1
9 KJK-M1155-00 ROLLER 1 *Attention
10 KJK-M1156-00 LEVER SPACER 1 *Attention
11 KJK-M1165-00 ROLLER AXIS 1 *Attention
12 KJK-M116U-00 ROLLER 2
13 ROLLER ARM 1
14 KJK-M116W-00 LEVER SPACER 1 *Attention
15 ROLLER AXIS 1
16 KJW-M1163-00 ROLLER AXIS 1 *Attention
17 KJK-M1164-00 WASHER 2
18 KJK-M119K-00 SPRING 1
19 KJK-M119W-00 WASHER 1
*Attention
20 STRAIGHT PIN 1
21 LG4-M1AD1-00 CIRCULAR RIVET 1
*Attention
22 KJK-M11BF-00 SCREW, THIN HEAD 4
23 K87-M11BF-00 SCREW, FLAT HEAD + 2
Continued from
Page 9-1
KJK-M116S-01
KJK-M1150-01
KJK-FS2-0911
9
4
HOLD ARM & ROLLER,COVER Assy 27-C(7in)
FS2-82(C type)8mm-2P
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
No. Part No. Part Name Q'ty Remarks
KJW-M116D-00 TENSION LEVER ASSY 1
KJK-M119L-00 IDLE ROLLER ASSY 1
KJW-M1192-00 INDENTATION LEVER ASSY 1
KJK-M119F-01 DRIVE ROLLER ASSY 1
KJW-M119A-00 I. ROLLER ALL ASSY 1
KJW-M1191-00 D. ROLLER ALL ASSY 1
1 KJW-M116J-00 METAL SHAFT 1
2 LEVER METAL 1
3 INDENTATION LEVER 1
4 ARM STUD 1
5 KJK-M119K-00 SPRING 1
6 LG4-M1A85-00 ROLLER 1
7 KJW-M116F-00 TENSION LEVER AXIS PIN 1
8 TENSION LEVER 1
9 KW1-M119P-00 SPRING 1
10 ROLLER AXIS 1
11 KJK-M11A1-00 LOWER GUIDE PLATE,R 1
12 KJW-M11A3-00 LOWER GUIDE PLATE,L 1
13 KJW-M119C-00 PLANE WASHER 2
14 K87-M111C-00 PLANE WASHER 1
15 K87-M111P-00 SCREW, FLAT HEAD + 1
16 K87-M11BB-00 SCREW, FLAT HEAD + 2
17 LG4-M1ADC-00 SCREW, PAN HEAD + 1
18 K87-M111N-00 SCREW, PAN HEAD + 1
19 K87-M53BS-00 SCREW, PAN HEAD + 2
20 LG4-M1AD1-00 CIRCULAR RIVET 1
*Attention
21 KJK-M119W-00 WASHER 2
Continued from
Page 9-1
KJW-M119A-00
KJW-M116D-00
KJK-M119L-00
KJW-M1192-00
KJW-M1191-00
KJK-M119F-01
KJK-FS2-0911
9
5
ROLLER UP Unit 27-C(7in)
FS-84/82(B type)8mm
*Attention: This parts need press t and training.
*Attention:
圧入部品のため修理依頼を推奨します。
No. Part No. Part Name Q'ty Remarks

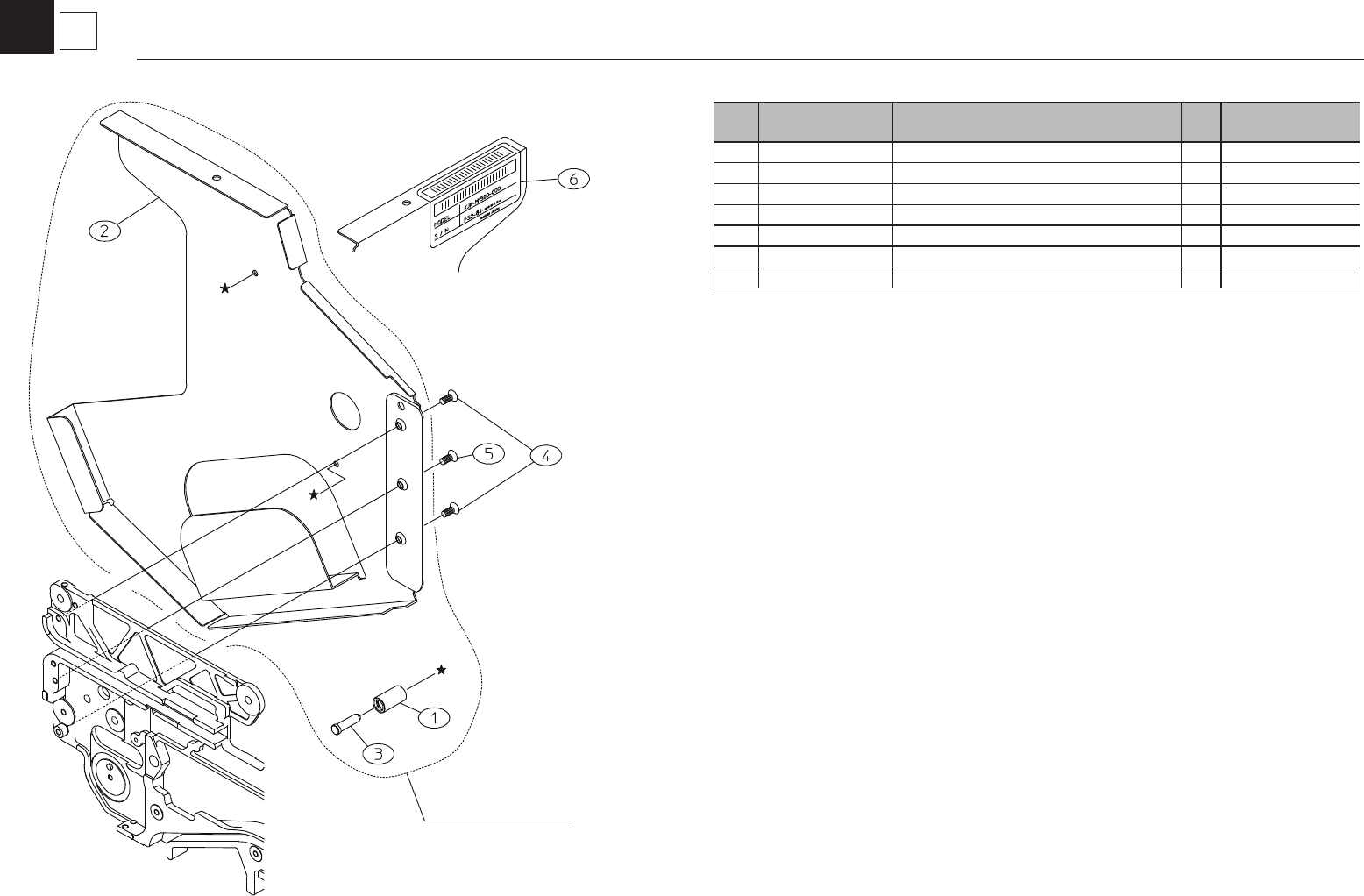

KJK-M13D0-00 7INCH REEL PLATE ASSY 1 Can not sell
1 ROLLER 2
2 7INCH REEL PLATE 1
3 GUIDE AXIS 2
4 K87-M55BN-00 SCREW, FLAT HEAD + 2
5 KW1-M45BG-00 SCREW, FLAT HEAD + 1
6 SERIAL NO. STICKER 1
KJK-M13D0-00
KJK-FS2-1101
9
6
7inch REEL HOLDER Unit 27-C(7in)
FS2-84/82(B type)8mm-7
