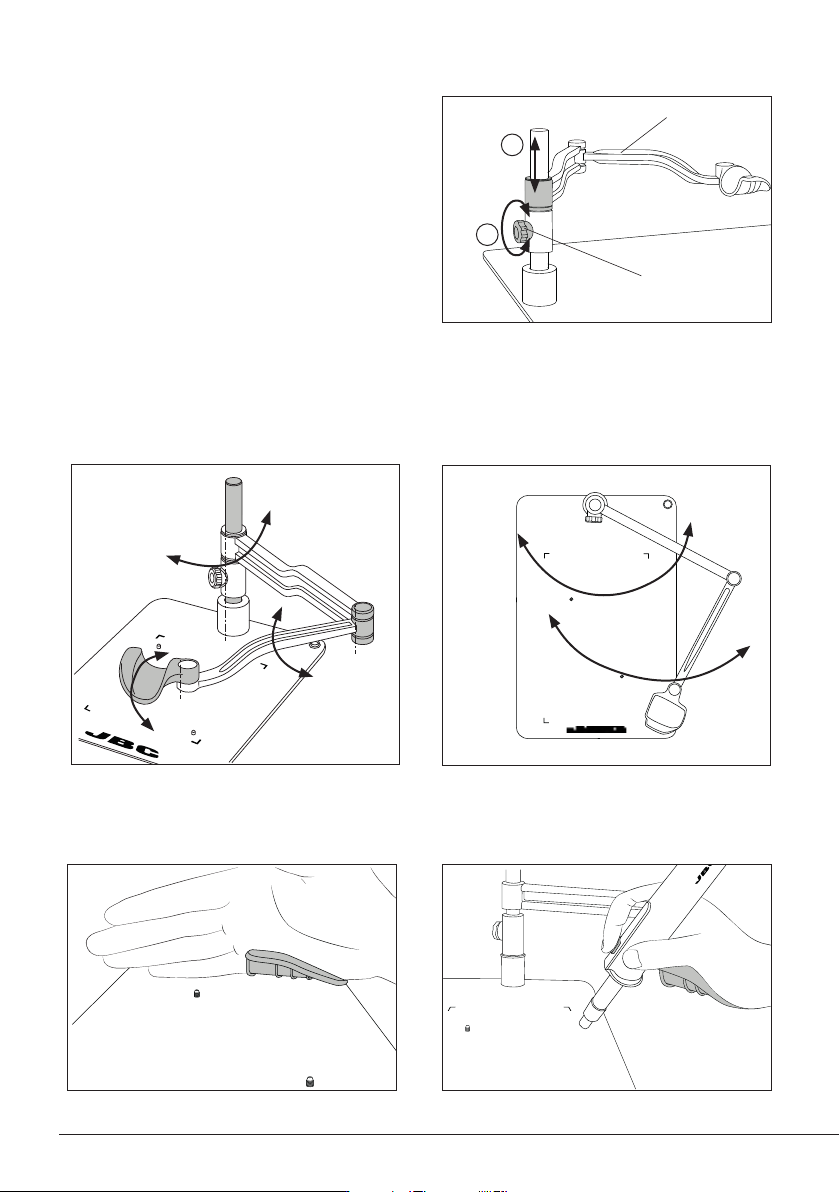

Work Position Adjustment

Position the arm and tighten the knobs.

The correct hand work position is shown in the following images:

Knob

Height Adjustment

According to your work needs the articulated

hand rest allows adjustment for different

heights through the vertical axis.

Slide the arm to the appropriate height (1) and

secure it by tightening the knob (2) to guarantee

stability.

Arm

RHN arm allows adjustment for different positions according to your work needs. The articulated arm

covers all work areas.

JTT

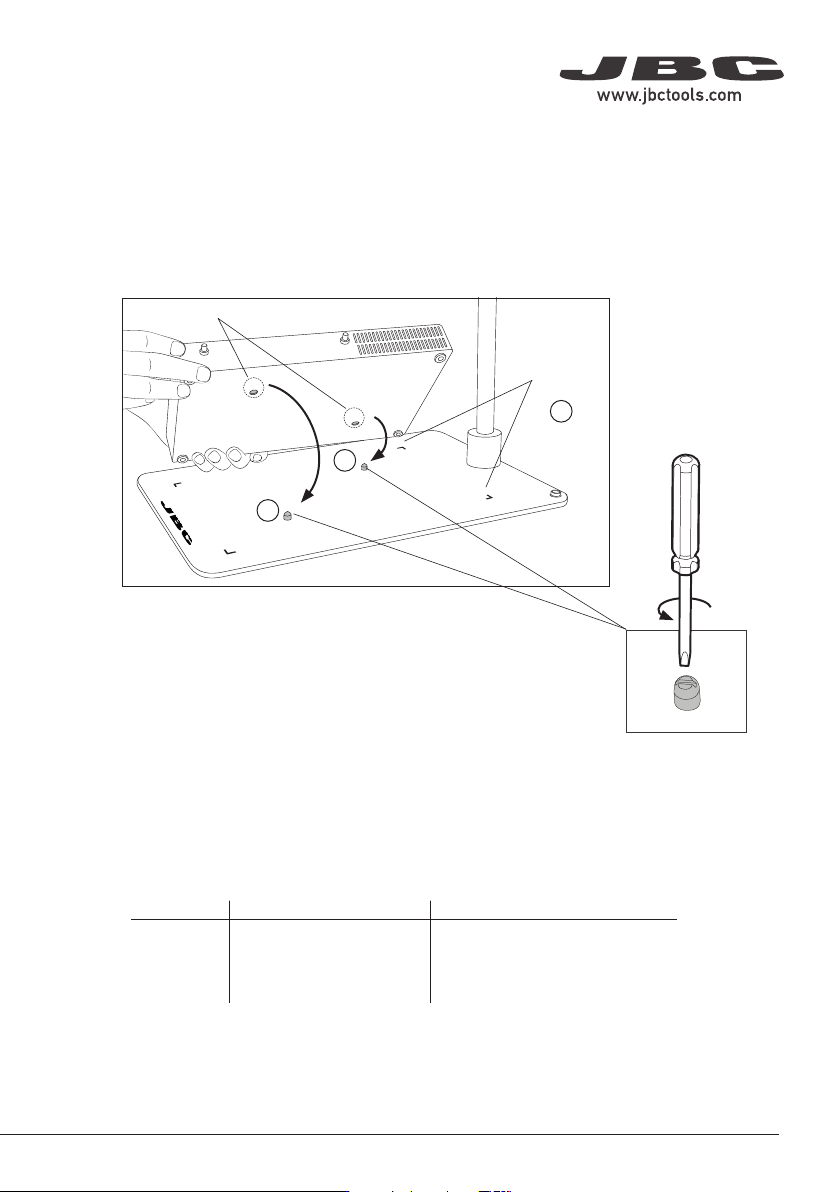

Preheater Positioning

Positioning Caps

If a fixed preheater position

is not wanted the positioning

bolts can be removed

with a screwdriver.

Corner

Guides

Positioning Bolds

Note: for each preheater size, there are different articulated hand rests with different base dimensions

available.

Preheater Articulated Hand Rest Base Dimension

PHNE RHN 310 x 239 mm / 12.20 x 9.41 in

PHSE RHS 410 x 270 mm / 16.14 x 10.63 in

PHBE RHB 550 x 480 mm / 21.65 x 18.90 in

RHS has been designed to work together with PHS

Fit PHSE onto the positioning bolts (1) for proper alignment. The four corner guides (2) help to place

the heater unit in its position.

40 mm

50 mm

60 mm

80 mm

100 mm

130 mm

para manuales - color gris

200 mm

300 mm

JTT

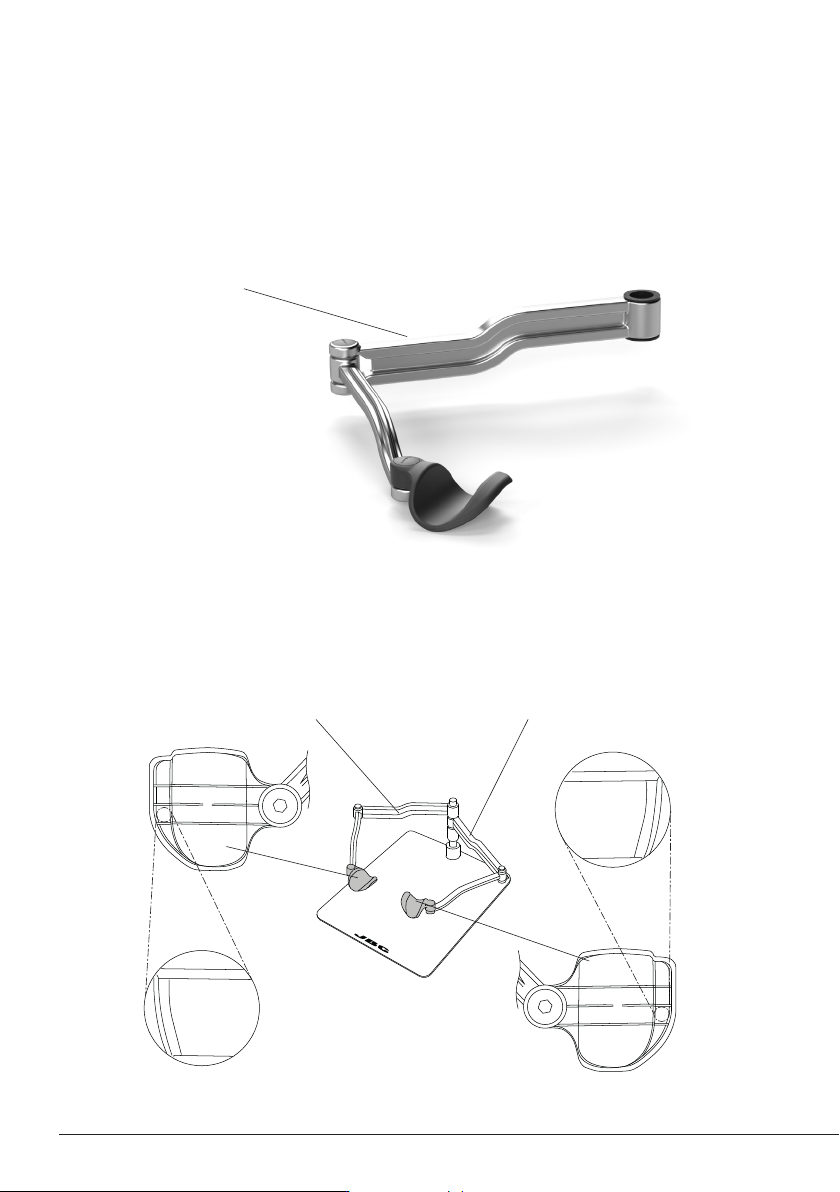

In the case of using both left and right arms, assemble both as shown in the illustration according to the

letters on the back of the hand rest, to keep the hand supports at the same level. The right hand rest

should be assembled below the left hand rest.

Accessories*

If a second hand rest ist needed, Articulated Left Hand Rest HRL is available. HRL also allows adjustment

for different positions.

HRL

Articulated Left Hand Rest

HRL

Articulated Left Hand Rest

HRR

Articulated Right Hand Rest

Bottom View

Mark for left hand

rest

Mark for right hand

rest

* Not included, sold separately.

Bottom View
