Preheater Positioning
Positioning Caps
If a fixed preheater position
is not wanted the positioning
bolts can be removed
with a screwdriver.
Corner
Guides
1
2
1
Positioning Bolds
Note: for each preheater size, there are different articulated hand rests with different base dimensions
available.
Preheater Articulated Hand Rest Base Dimension
PHNE RHN 310 x 239 mm / 12.20 x 9.41 in
PHSE RHS 410 x 270 mm / 16.14 x 10.63 in
PHBE RHB 550 x 480 mm / 21.65 x 18.90 in
RHS has been designed to work together with PHS
Fit PHSE onto the positioning bolts (1) for proper alignment. The four corner guides (2) help to place
the heater unit in its position.
5
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
R
R
R
R
L
L
R
R
L
L
R
R
L
L
L
L
R
R
L
L
JTT
JTT
JTT
JTT
JTT
In the case of using both left and right arms, assemble both as shown in the illustration according to the
letters on the back of the hand rest, to keep the hand supports at the same level. The right hand rest
should be assembled below the left hand rest.
Accessories*
If a second hand rest ist needed, Articulated Left Hand Rest HRL is available. HRL also allows adjustment
for different positions.
HRL
Articulated Left Hand Rest
HRL
Articulated Left Hand Rest
HRR
Articulated Right Hand Rest
Bottom View
Mark for left hand
rest
Mark for right hand
rest
* Not included, sold separately.
Bottom View
6
R
R
R
R
L
L
R
R
L
L
R
R
L
L
L
L
R
R
L
L
JTT
JTT
JTT
JTT
JTT

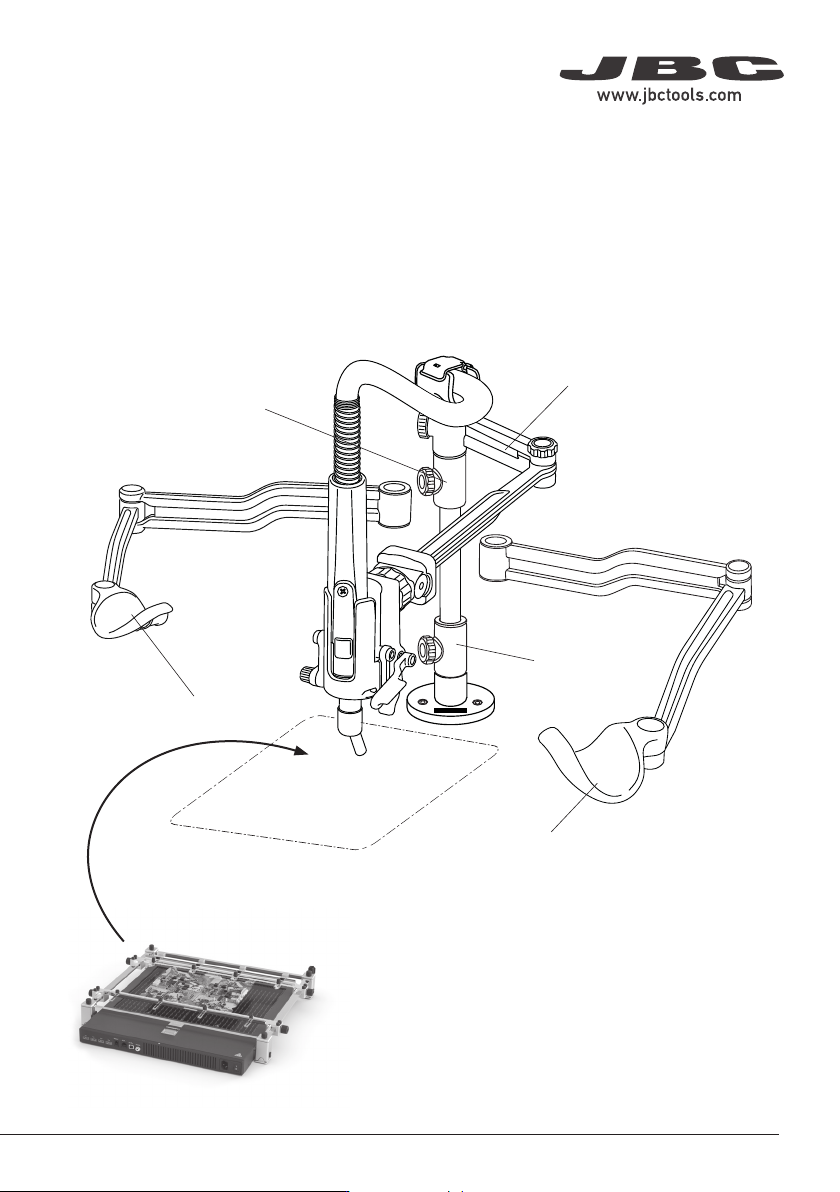

HRR and HRL can be combined with:
RWT Adjustable Rework Arm,
RWS Adjustable Rework Arm for PHSE and
RWB Adjustable Rework Arm for PHBE.
Assemble first the height adjustment flange (1), then the HRR (2) and afterward the HRL (3). Assemble
the second height adjustment flange (4) and finally the RWT (5).
Compatible JBC Articles*
* Not included, sold separately.
RWT
Ajustable Rework Arm
4 different sizes for PCB Supports are available:
- PHNS Support for PCBs up to 11x7 cm / 4x3”
- PHSS Support for PCBs up to 13x13 cm / 5x5”
- PHBS Support for PCBs up to 36x28 cm / 14x11”
- PHXLS Support for PCBs up to 51x61 cm / 20x24”
HRL
Articulated Left Hand Rest
HRR
Articulated Right Hand RestPlace the preheater set
in the area below the
hot air tool
Heights Adjustmet
Flange (1st)
Heights Adjustmet
Flange (2nd)
R
R
R
R
L
L
R
R
L
L
R
R
L
L
L
L
R
R
L
L
JTT
JTT
JTT
JTT
JTT
In the case of using both left and right arms, assemble both as shown in the illustration according to the
letters on the back of the hand rest, to keep the hand supports at the same level. The right hand rest
should be assembled below the left hand rest.
