- - 1. FRAMECOMPONEN TS

21.WIRINGDIAGRAM(6)....................................................................................................................................................41

22.WIRINGDIAGRAM(7)....................................................................................................................................................43

23.WIRINGDIAGRAM(8)....................................................................................................................................................45

24.WIRINGDIAGRAM(9)....................................................................................................................................................47

25.WIRINGDIAGRAM(10)(FOREN)..................................................................................................................................49

26.WIRINGDIAGRAM(11)..................................................................................................................................................51

- -

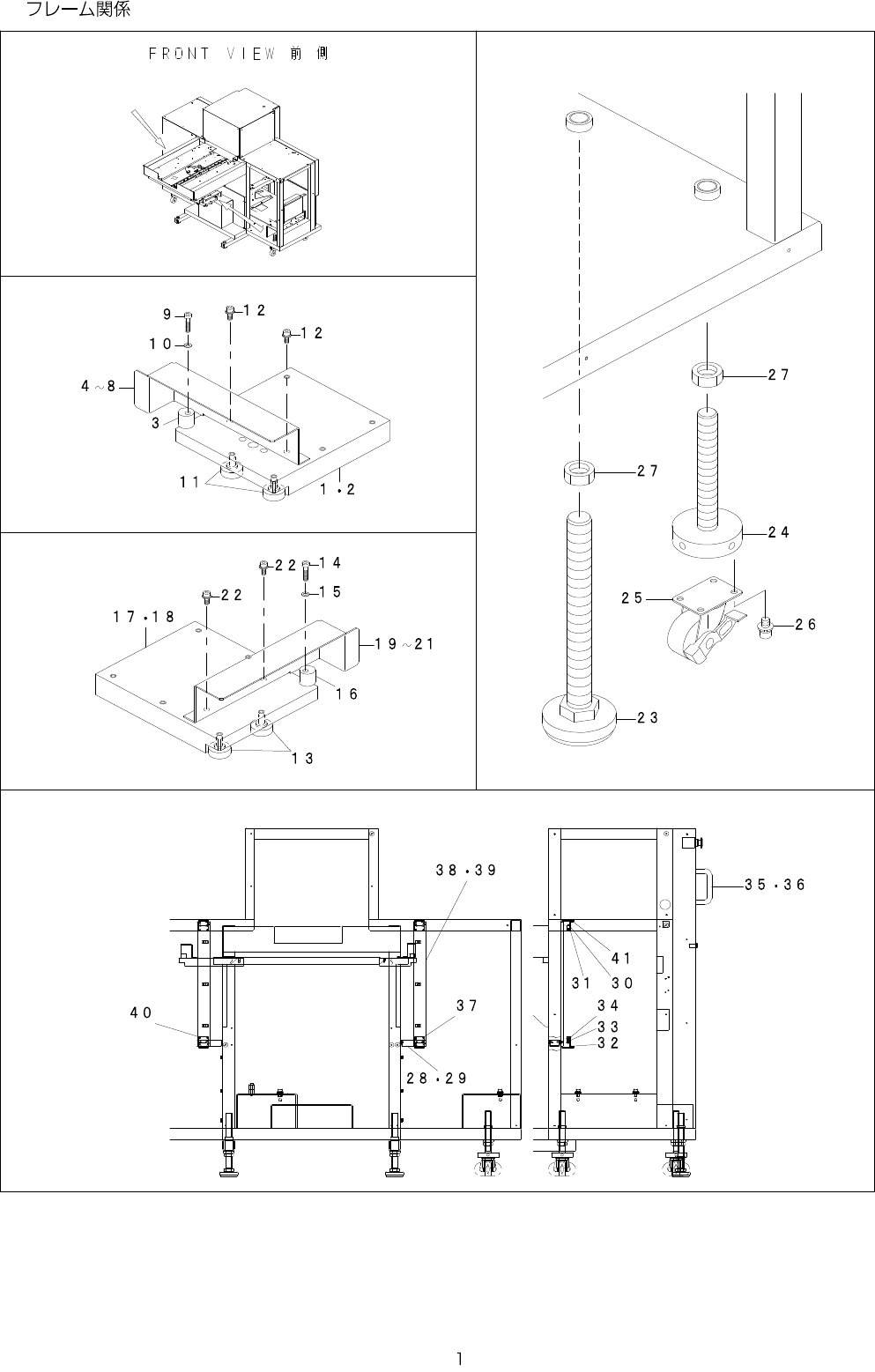

1. FRAMECOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 E6004-723-000 JOINTBLOCKL 1

#04

401-90401 JOINT_BLOCK_L_RS_5D 1

3 E1348-700-000 SAFETYCOVERSTOPPER 1

4 E1031-726-000 LIFTERCOVERL 1

#01

E5615-723-000 LIFTERCOVERL(CE) 1

#02

400-98279 LIFTER_COVER_5D5S_L 1

#03

400-98280 LIFTRE_COVER_5D5S_L_EN 1

#04

400-98280 LIFTRE_COVER_5D5S_L_EN 1

9 SM-6052502-TN HEXAGONAL-HOLEBOLT 1

10 WP-0531001-SC WASHER 1

11 E2732-721-000 BANKGUIDEROLLER 2

12 SL-6051092-TN BOLT 2

13 E2732-721-000 BANKGUIDEROLLER 2

14 SM-6052502-TN HEXAGONAL-HOLEBOLT 1

15 WP-0531001-SC WASHER 1

16 E1348-700-000 SAFETYCOVERSTOPPER 1

17 E6005-723-000 JOINTBLOCKR 1

#04

401-90402 JOINT_BLOCK_R_RS_5D 1

19 E6006-723-000 LIFTERCOVERR 1

#02

400-98278 LIFTER_COVER_5D_R 1

#04

401-92231 LIFTER_COVER_5D_R_RS 1

22 SL-6051092-TN BOLT 2

23 400-49351 ADJUSTER 3

24 E6002-723-000 CASTERADJUST 4

25 E5012-723-000 CASTER 4

26 SL-6061242-TN BOLT 16

27 NM-6201202-SC NUTM20 7

28 400-48733 BRSUPPORT5D 2

29 SL-4040891-SC SCREWM4L=8 4

30 400-46236 SENSORBRACKET 1

31 SL-4030891-SC SCREWM3X8 2

32 SL-4030691-SC SCREWM3L=6 2

33 400-46236 SENSORBRACKET 1

34 SL-4030891-SC SCREWM3X8 2

35 E6003-723-000 HANDLE 2

36 SM-6062002-TN SCREWM6L=20 4

37 400-49545 STKMMISSETSENSORASM 1

38 400-48732 SENSORBR5D 2

39 SL-4040891-SC SCREWM4L=8 8

40 400-49548 STKSMISSETSENSORASM 1

41 SL-4030691-SC SCREWM3L=6 2
