- - 3. ELECTRICAPPARA TUSCOMPONENTS(2) 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 5 1 6 1 7 1 4 1 2 4 1 8 2 3 2 8 2 1 2 2 1 9 2 7 2 5 2 6 1 8 2 9 2 0 1 1 1 1 1 1 3 3 3 2 3 4 3 6 3 5 3 0 3 1

- -

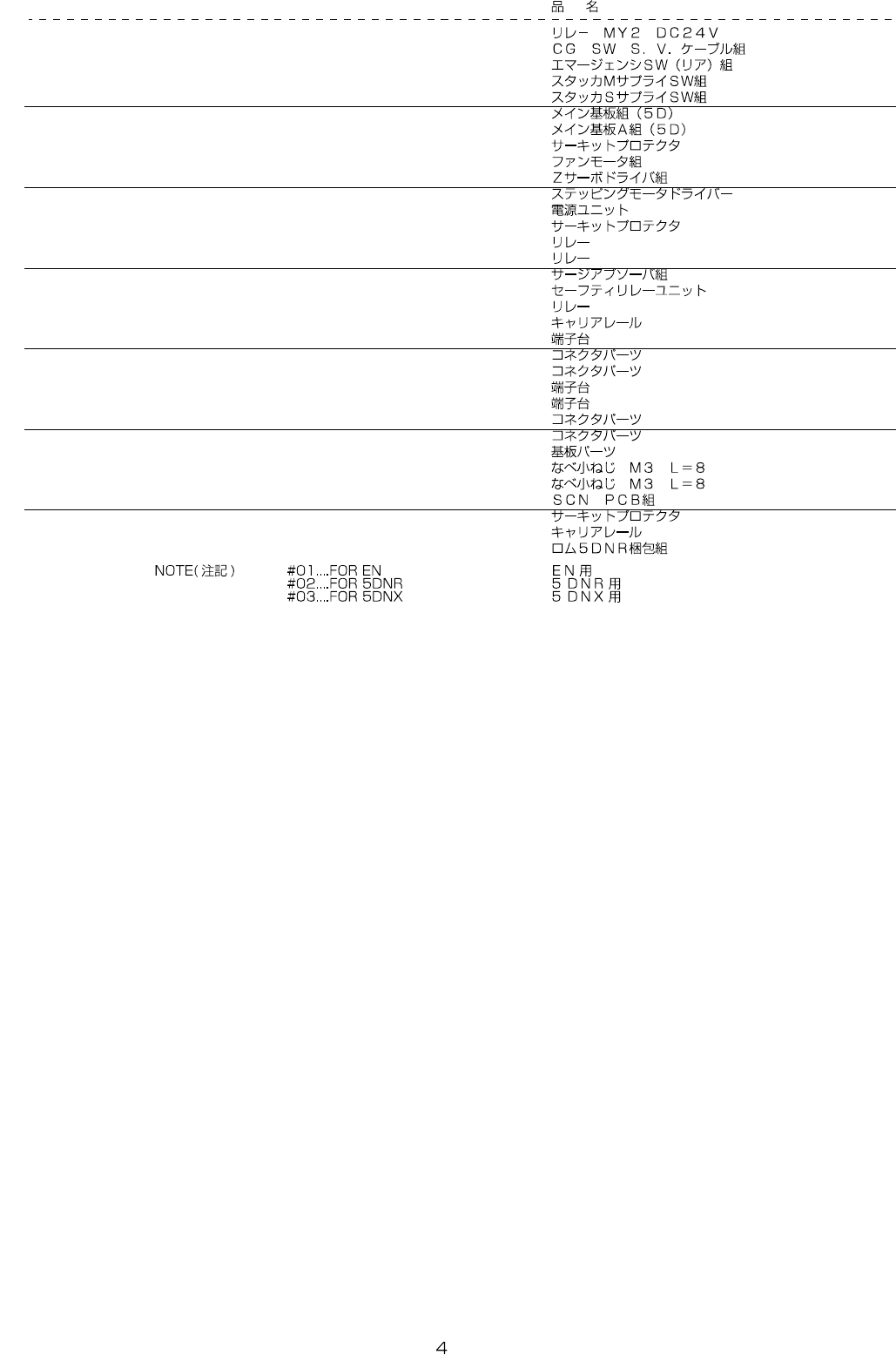

REF.NO NOTE PARTNO DESCRIPTION Qty

#01

E9641-040-000 RELAYMY-2DC-24V 4

2 400-49535 CGSWS.V.CABLEASM 1

3 400-49558 EMERGENCYSW(REAR)ASM 1

4 400-45117 STKMSUPPLYSWASM 1

5 400-45119 STKSSUPPLYSWASM 1

#03

400-95838 MAINPCBASM(5D) 1

#02

401-37758 MAINPCBAASM(5D) 1

8 HA-0052400-0A CIRCUITPROTECTOR 1

9 400-49509 FANMOTORASM 1

10 400-40687 ZSERVODRVASM 1

11 400-45711 STEPPINGMOTORDRIVER 1

12 HX-0055000-00 POWERSUPPLYUNIT 1

13 HA-0052400-0C CIRCUITPROTECTOR 1

14 HB-0014000-00 RELAY 1

15 HB-0014200-00 RELAY 3

16 400-49516 SURGEABSORBERASM 1

#01

HB-0014300-00 SAFETYRELAYUNIT 1

#01

HB-0013900-00 RELAY 3

#01

400-50015 CARRIERRAIL 1

#01

HK-0498500-10 TERMINALBASE 2

#01

HK-0498900-0D CONNECTORPARTS 2

#01

HK-0498900-00 CONNECTORPARTS 1

23 HK-0498500-10 TERMINALBASE 10

#01

HK-0498500-10 TERMINALBASE 8

25 HK-0498900-0D CONNECTORPARTS 2

26 HK-0498900-00 CONNECTORPARTS 2

27 HX-0035400-0G BOARDPARTS 4

28 SL-4030891-SC SCREWM3X8 4

29 SL-4030891-SC SCREWM3X8 4

30 400-41117 SCNPCBASM 1

31 HA-0052400-00 CIRCUITPROTECTOR 1

32 400-50015 CARRIERRAIL 1

#02

400-72504 ROM5DNRASM 1

- -

3. ELECTRICAPPARATUSCOMPONENTS(2)

6 7

1 0

1 1

1 2

1 3

1 5

1 6

1 7

1 4

2 4

1 8

2 3

2 8

2 1 2 2

1 9

2 7

2 5 2 6

1 8

2 9

2 0

1 1

3 3

3 2

3 4 3 6

3 5

3 0

3 1

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 400-49016 BREAKERCOVER 1

2 400-48785 RDRIVERBR 1

3 400-45704 RESISTANCE 1

4 400-49509 FANMOTORASM 1

#01

HM-0003300-30 FANGUARD 1

6 400-50012 CARRIERRAIL 1

7 HK-0498500-10 TERMINALBOARD 27

8 400-45701 TRANSFORMER 1

9 400-45714 NOISEFILTER 1

10 400-49276 DRIVERCOVER 1

11 E9567-319-000 EARTHMARK 6

12 400-49274 DRIVERBR 1

13 400-49275 DRIVERBR 1

14 HA-0052400-00 CIRCUITPROTECTOR 1

15 400-48784 PCBBR5D 1

16 HA-0052400-0A CIRCUITPROTECTOR 1

17 HA-0052400-0C CIRCUITPROTECTOR 1

18 400-49165 BREAKERCOVER 2

19 PV-0100060-00 HANDVALVE 1

#01

E2411-723-000 BREAKERCOVERB 1

21 400-48783 MAINSWBR5D 1

#02

400-94907 MAIN_SW_BR_5D 1

23 HA-0058500-00 CIRCUITPROTECTOR 1

24 400-49504 POWERLAMPCABLEASM 1

25 400-45200 I/FCABLEASM 1

#02

400-96122 5DI/FCABLEASM 1

27 400-49489 ACPOWERINPUTCABLEASM 1

#01

E2410-723-000 BREAKERCOVERA 1

29 E2106-716-000 POWERSUPPLYSEAL 1

30 SM-6032502-TN SCREW 2

31 SL-4034091-SC SCREWM3X40 2

32 SL-4030891-SC SCREWM3X8 2

33 SM-0040801-SC SCREW 2

34 SL-4030881-SC SCREWM3L=8 2

35 SL-4030881-SC SCREWM3L=8 4

#02

SM-4860501-SB SCREWM2.6L=5 2
