- - 2. ELECTRICAPPARA TUSCOMPONENTS(1) 1 4 1 5 1 5 1 8 1 7 1 3 1 2 4 2 3 1 5 8 3 2 1 6 1 0 1 9 1 1 9 1 3 2 1 2 0 2 2 2 3 2 4 2 5 2 6 2 7 2 8 3 0 3 3 2 9 6 7

- -

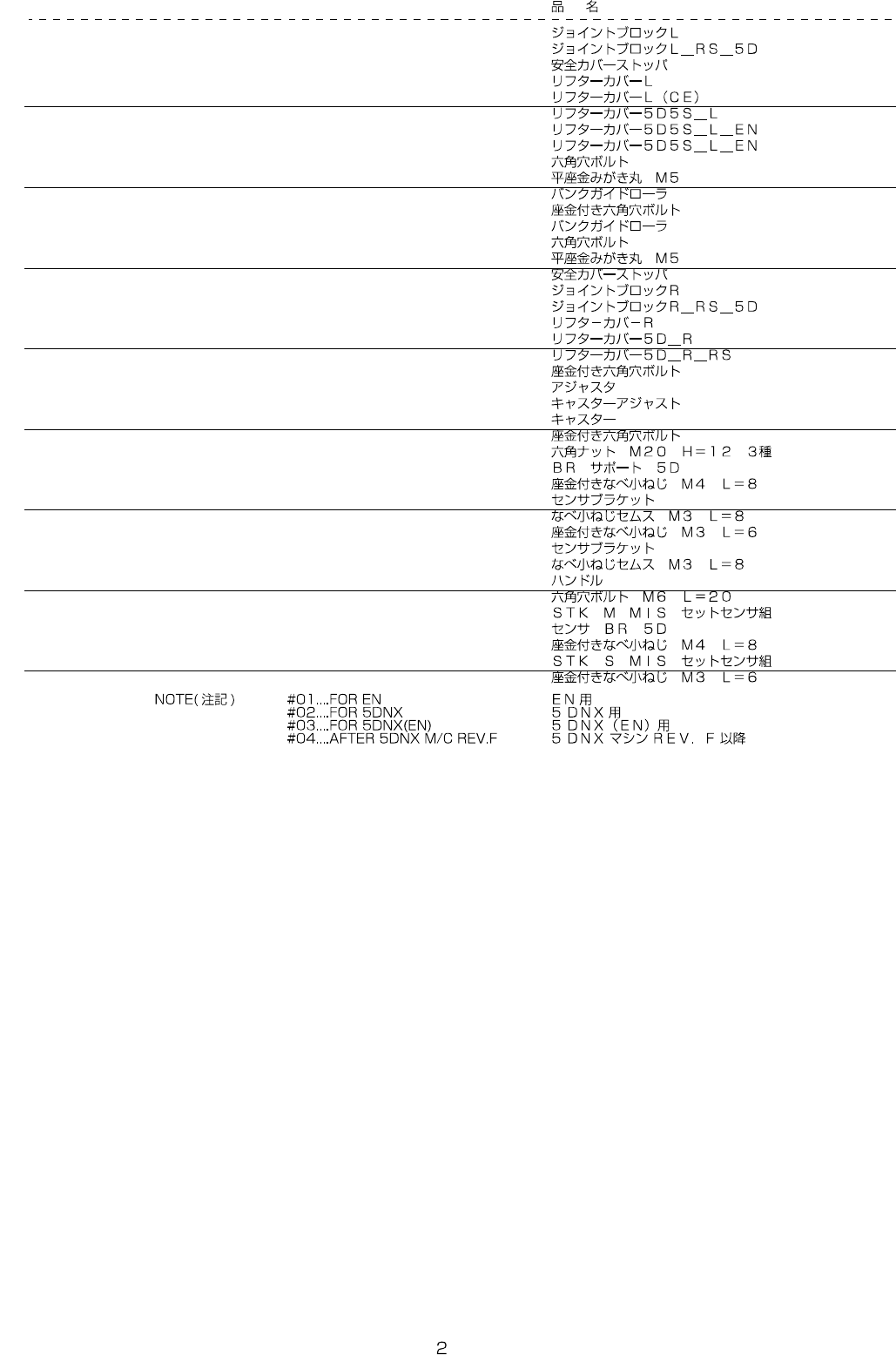

REF.NO NOTE PARTNO DESCRIPTION Qty

1 E6004-723-000 JOINTBLOCKL 1

#04

401-90401 JOINT_BLOCK_L_RS_5D 1

3 E1348-700-000 SAFETYCOVERSTOPPER 1

4 E1031-726-000 LIFTERCOVERL 1

#01

E5615-723-000 LIFTERCOVERL(CE) 1

#02

400-98279 LIFTER_COVER_5D5S_L 1

#03

400-98280 LIFTRE_COVER_5D5S_L_EN 1

#04

400-98280 LIFTRE_COVER_5D5S_L_EN 1

9 SM-6052502-TN HEXAGONAL-HOLEBOLT 1

10 WP-0531001-SC WASHER 1

11 E2732-721-000 BANKGUIDEROLLER 2

12 SL-6051092-TN BOLT 2

13 E2732-721-000 BANKGUIDEROLLER 2

14 SM-6052502-TN HEXAGONAL-HOLEBOLT 1

15 WP-0531001-SC WASHER 1

16 E1348-700-000 SAFETYCOVERSTOPPER 1

17 E6005-723-000 JOINTBLOCKR 1

#04

401-90402 JOINT_BLOCK_R_RS_5D 1

19 E6006-723-000 LIFTERCOVERR 1

#02

400-98278 LIFTER_COVER_5D_R 1

#04

401-92231 LIFTER_COVER_5D_R_RS 1

22 SL-6051092-TN BOLT 2

23 400-49351 ADJUSTER 3

24 E6002-723-000 CASTERADJUST 4

25 E5012-723-000 CASTER 4

26 SL-6061242-TN BOLT 16

27 NM-6201202-SC NUTM20 7

28 400-48733 BRSUPPORT5D 2

29 SL-4040891-SC SCREWM4L=8 4

30 400-46236 SENSORBRACKET 1

31 SL-4030891-SC SCREWM3X8 2

32 SL-4030691-SC SCREWM3L=6 2

33 400-46236 SENSORBRACKET 1

34 SL-4030891-SC SCREWM3X8 2

35 E6003-723-000 HANDLE 2

36 SM-6062002-TN SCREWM6L=20 4

37 400-49545 STKMMISSETSENSORASM 1

38 400-48732 SENSORBR5D 2

39 SL-4040891-SC SCREWM4L=8 8

40 400-49548 STKSMISSETSENSORASM 1

41 SL-4030691-SC SCREWM3L=6 2

- -

2. ELECTRICAPPARATUSCOMPONENTS(1)

1 4 1 5 1 5

1 8

1 7

1 2

3 1

3 2

1 6

1 0

1 9

1 1

1 3

2 12 02 2

2 3 2 4

2 52 6

2 7

2 8

3 0

3 3

2 9

6 7

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

#01

E9641-040-000 RELAYMY-2DC-24V 4

2 400-49535 CGSWS.V.CABLEASM 1

3 400-49558 EMERGENCYSW(REAR)ASM 1

4 400-45117 STKMSUPPLYSWASM 1

5 400-45119 STKSSUPPLYSWASM 1

#03

400-95838 MAINPCBASM(5D) 1

#02

401-37758 MAINPCBAASM(5D) 1

8 HA-0052400-0A CIRCUITPROTECTOR 1

9 400-49509 FANMOTORASM 1

10 400-40687 ZSERVODRVASM 1

11 400-45711 STEPPINGMOTORDRIVER 1

12 HX-0055000-00 POWERSUPPLYUNIT 1

13 HA-0052400-0C CIRCUITPROTECTOR 1

14 HB-0014000-00 RELAY 1

15 HB-0014200-00 RELAY 3

16 400-49516 SURGEABSORBERASM 1

#01

HB-0014300-00 SAFETYRELAYUNIT 1

#01

HB-0013900-00 RELAY 3

#01

400-50015 CARRIERRAIL 1

#01

HK-0498500-10 TERMINALBASE 2

#01

HK-0498900-0D CONNECTORPARTS 2

#01

HK-0498900-00 CONNECTORPARTS 1

23 HK-0498500-10 TERMINALBASE 10

#01

HK-0498500-10 TERMINALBASE 8

25 HK-0498900-0D CONNECTORPARTS 2

26 HK-0498900-00 CONNECTORPARTS 2

27 HX-0035400-0G BOARDPARTS 4

28 SL-4030891-SC SCREWM3X8 4

29 SL-4030891-SC SCREWM3X8 4

30 400-41117 SCNPCBASM 1

31 HA-0052400-00 CIRCUITPROTECTOR 1

32 400-50015 CARRIERRAIL 1

#02

400-72504 ROM5DNRASM 1
