Vision Teach Station User Manual 3 Ordering information and package supplied
05/2016 Edition 3.1 Vision teach station
103
3 Ordering information and package supplied
The vision teach station configuration depends on the selected camera type. The package sup-
plied will therefore vary according to the situation.
3.1 Vision teach station
3.1.1 Vision teach station - item number
Order designation Item no.
Vision teach station, SIPLACE X/D/SX series 00119788-xx
3
3
3.1.2 Vision teach station - bill of materials
Order designation Item no. Number
Vision Teach Station
03039501-xx 1
Component cameras and assembly kits
see Section
3.2 , page 106 1
PC for Vision Teach Station
03040354-xx 1
CAN card, Power CAN PCI
a
03079973-xx 1
Hotlink interface, PCI-A14-K01
a
03032343-xx 1
22" TFT monitor, LCD B22W-7 LED
a
00388390-xx 1
Camera cable, vision teach station, 3m
03040359-xx 1
CAN cable, teach station PC, 3m
03040362-xx 1
Connecting cable, EU 3 x 1.0 mm², 3m
00304984-xx 1
3 Ordering information and package supplied Vision Teach Station User Manual
3.1 Vision teach station 05/2016 Edition
104
Vision teach station upgrade kit for SIPLACE Pro 5.0 SP1
b
00387300-xx 1
Vision teach station upgrade kit for SIPLACE Pro 5.2 SP1
b
00388211-xx 1
Inst. Pk. VTS f. SIPLACE Pro 5.0SP1 to 7.x
c
00388350-xx 1
Inst. Pk. VTS f. SIPLACE Pro 5.0SP1 to 8.x
d
00388618-xx 1
Inst. Pk. VTS f. SIPLACE Pro 9.x
e
00388749-xx 1
Inst. Pk. VTS f. SIPLACE Pro 10.x
f
00388779-xx 1
Inst. Pk. VTS f. SIPLACE Pro 11.x
g
00388779-xx 1
Inst. Pk. VTS f. SIPLACE Pro 12.x
h
00117256-xx 1
Inst. Pk. VTS f. SIPLACE Pro 13.x
i
0011725-xx 1
Vision teach station user manual
00195044-xx 1
a) Included in PC for Vision Teach Station package
b) The software package is ordered to match the installed SIPLACE Pro version in the factory
c) The installation CD SIPLACE Pro 7.0 is included in the package
d) The installation CD SIPLACE Pro 8.0 is included in the package
e) The installation CD SIPLACE Pro 9.x is included in the package
f) The installation CD SIPLACE Pro 10.x is included in the package
g) The installation CD SIPLACE Pro 11.x is included in the package
h) The installation CD SIPLACE Pro 12.x is included in the package
i) The installation CD SIPLACE Pro 13.x is included in the package
Order designation Item no. Number
Vision Teach Station User Manual 3 Ordering information and package supplied
05/2016 Edition 3.1 Vision teach station
105
3.1.3 Vision teach station with type 33 component camera
3

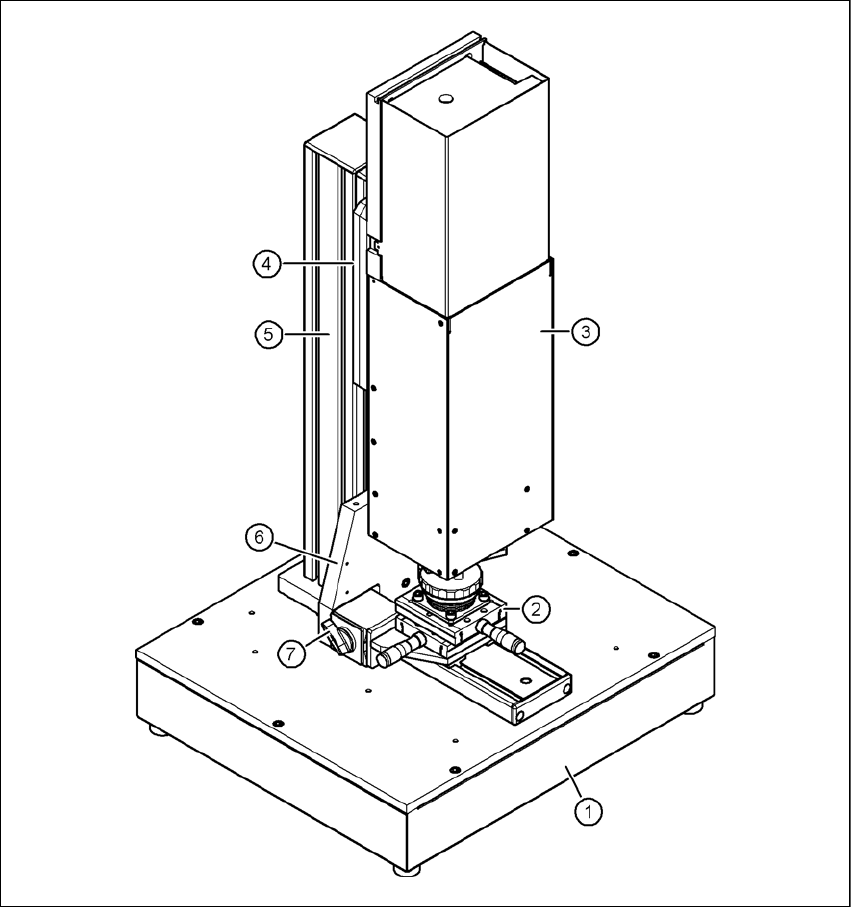

Fig. 3.1 - 1 Vision teach station with type 33 component camera
(1) Base module
(2) Component positioning table
(3) Component camera, type 33 (example)
(4) Mounting plate for stationary cameras
(5) Pillar
(6) Mounting plate for C&P head cameras
(7) Magnetic switch for holding the component positioning table in place
