2.5 SITEST
: Start SITEST.
: Do the cutter control moving test by SITEST.
: In case of failure reject and check the connector on both control units.
2
2
2
2
2 Assembly Instructions Tape cutter frequency controller SIPLACE S / F / HS / C- / HF- / X- / D-series Controller
02/2008 Edition
24
2.6 Movement
: Set the cutter movement frequency by setting the dial.
The indication has 16 notations (0 to F), restricted of the tape cutter timing by "display number
(setting dial number) x 2"
2.6.1 Example
In case of dial set "1" 2
Machine side sends the tape cut command signal, but the additional tape cutter frequency con-
troller neglects twice. 2
Then comes the 3rd time command signal, the cutter is moving. 2
In case of dial set "2" 2
Machine side sends the tape cut command signal, but the additional tape cutter frequency con-
troller neglects 4 times. 2
Then get the 5 time command signal, the cutter is moving. 2
Therefore, always neglect the number of commands (setting dial number x 2), then get the next
time command signal, the cutter is moving. 2
In case of dial set "0" 2
It is as same as normal condition cut (not neglect the machine side command signal). 2
2
The counter is resetted by machine power down during neglect the command signal (prevent of
the over necessary time cutting situation) 2
2
2

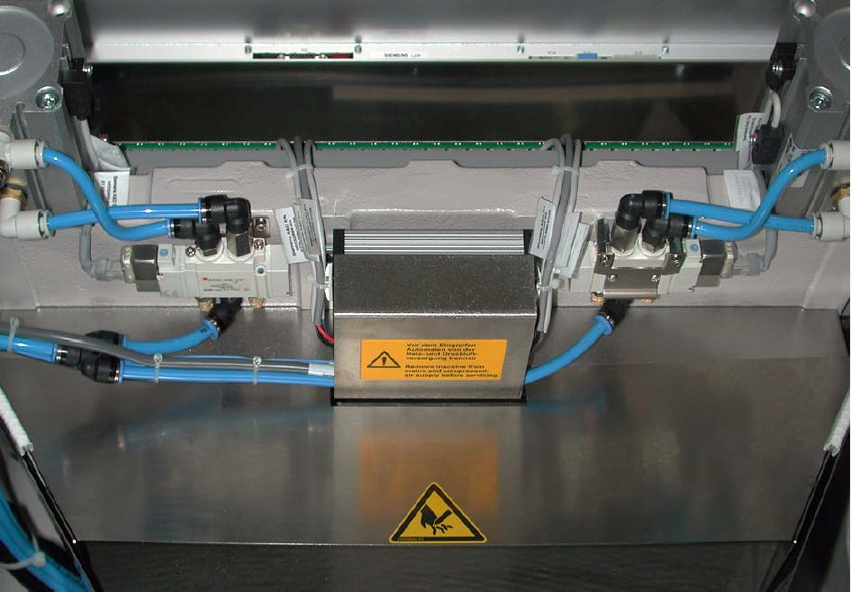

After installation of the frequency controller it is very important to find or control the maximum
length of the empty tape after cutting to avoid the danger of head crash because of empty tape
jam between feeder and empty tape channel. 2
2
Gantry runs between cuttings with different switch positions: 2
Tape length after 17 gantry runs (switch positions 8 - 10) 2
2
switch position
0 1 2 3 4 5 6 7 8 910
gantry runs till
cutting cycle
13579111315171717
Tape with 0201 about 38 mm
Tape with SOT 14 about 137 mm
