Major Maintenance
5.6.3 Performing Maintenance Tasks Maintenance Tasks for the Conveyor
Maintenance Manual SIPLACE SX1/SX2/DX1/DX2 69
SXDX12 V1 Cleaning and Preserving the Guide Shafts
Cleaning and Preserving the Guide Shafts

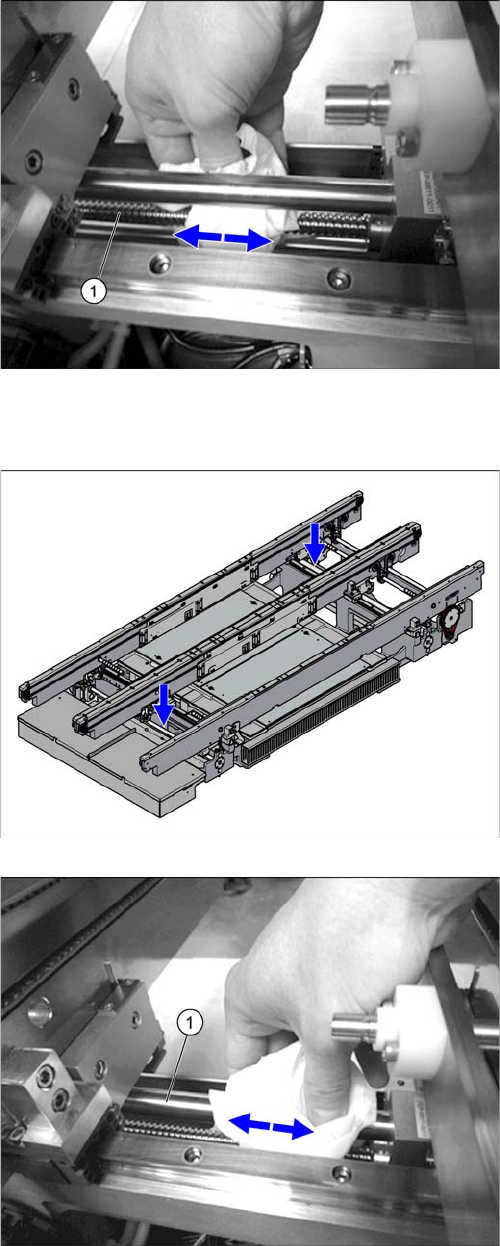

► Clean and preserve the recirculating ball screw (1) by
running a SIPLACE cleaning tissue along the thread
of the screw.
► Repeat this procedure for all ball screws in the con-
veyor.
Overview of the guide shafts in the conveyor
► Clean and preserve the guide shafts (1) on the width
adjustment with a SIPLACE cleaning tissue.
► Repeat the procedure for all guide shafts in the con-
veyor.
Major Maintenance
Maintenance Tasks for the Conveyor 5.6.3 Performing Maintenance Tasks
70 Maintenance Manual SIPLACE SX1/SX2/DX1/DX2
Cleaning the Clamping Surfaces on the Basic Carrier (Dual Conveyor Only)
SXDX12 V1 Cleaning the Clamping Surfaces on the Basic Carrier (Dual Conveyor Only)
Preserving the Conveyor - Moving the Sides and Repeating Steps
Moving the Sides and Repeating Steps
► Now move all conveyor sides to the other side of the conveyor. Use the station software to set the
dual conveyor to single conveyor mode (left).
► Now perform the above mentioned cleaning and preserving steps to the other side of the conveyor.
See also
1.2 Preparatory Work... [ ➙ 12]
NOTICE
Width Adjustment
The clamping surfaces in the vicinity of the width adjustment may be difficult to access.
► In this case, move the width adjustment by carefully pulling on its belt, so that you can ac-
cess these areas and clean them.
CAUTION
Make sure that you do not get any oil on the clamping surfaces of the conveyor sides.
If you get oil on the clamping surfaces, their clamping force could be impaired.
► Clean this area thoroughly before you move the conveyor sides, to gain access to any areas
which have not been cleaned.

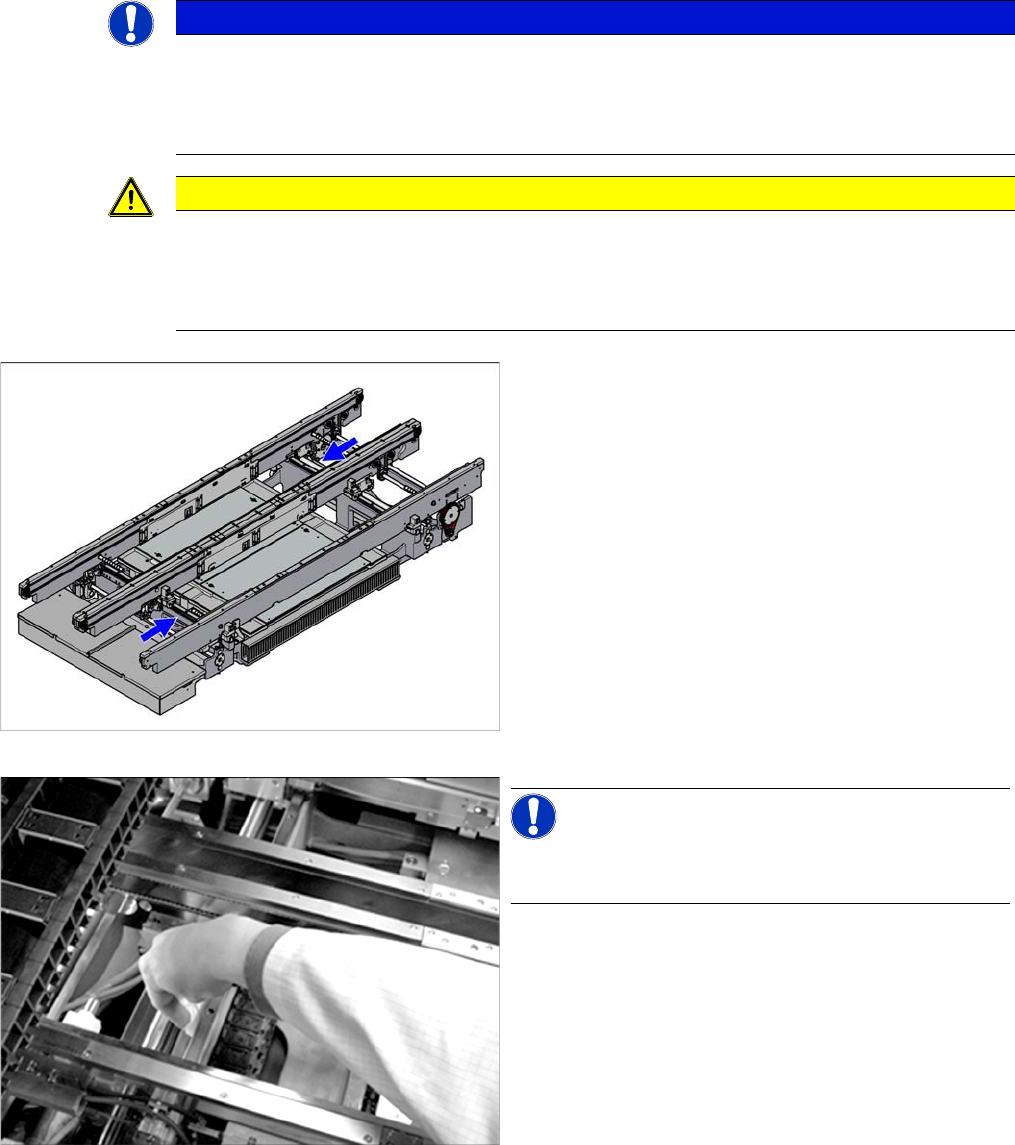

Overview of the clamping surfaces in the conveyor
NOTICE!
The clamping surfaces/clamping unit do not need to be
cleaned in single conveyors.
► Use a lint-free cloth and ethanol to remove the dirt
and any excess oil on the side clamping surfaces.
► Repeat the procedure for all clamping surfaces in the
conveyor.
Major Maintenance
5.6.4 Final Work Maintenance Tasks for the Conveyor
Maintenance Manual SIPLACE SX1/SX2/DX1/DX2 71
5.6.4
5.6.4 Final Work
Final Work
► Restore the original conveyor configuration.
