MODEL TCM-X100J 0212-002 140 XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY T ABLE PIPING, WIRING Fig. JE-3 ㈩▤ޔ㈩✢ᡰᜬㇱ Piping, Wiring Supporter 204 214 202 203 201 206 216 227 208 227 216 See Fig.JC-1 Key No.4 See Fig.JB-4 Key No.301 205 232 225 226 232…
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
139
JE-2
103 630 097 1392 MECH PARTS(CABLEVEYOR) 1 766JE-010-103
104 630 047 9782 AIR LINE EQPT 4 766JE-010-104
115 630 096 7982 BLOCK 1 766JE-010-115
116 630 093 7459 PIPE FITTINGS 2 766JE-010-116
117 630 079 8432 AIR LINE EQPT 6 766JE-010-117
118 630 000 7503 BOLT,HEX-SCT 4 766JE-010-118
119 411 141 2806 WASHER SPR 3 4 766JE-010-119
120 411 141 3902 WASHER V 3X7X0.5 4 766JE-010-120
121 630 000 7565 BOLT,HEX-SCT 2 766JE-010-121
122 411 141 5807 WASHER F 3X6X0.5 2 766JE-010-122
MODEL TCM-X100J
0212-002
140

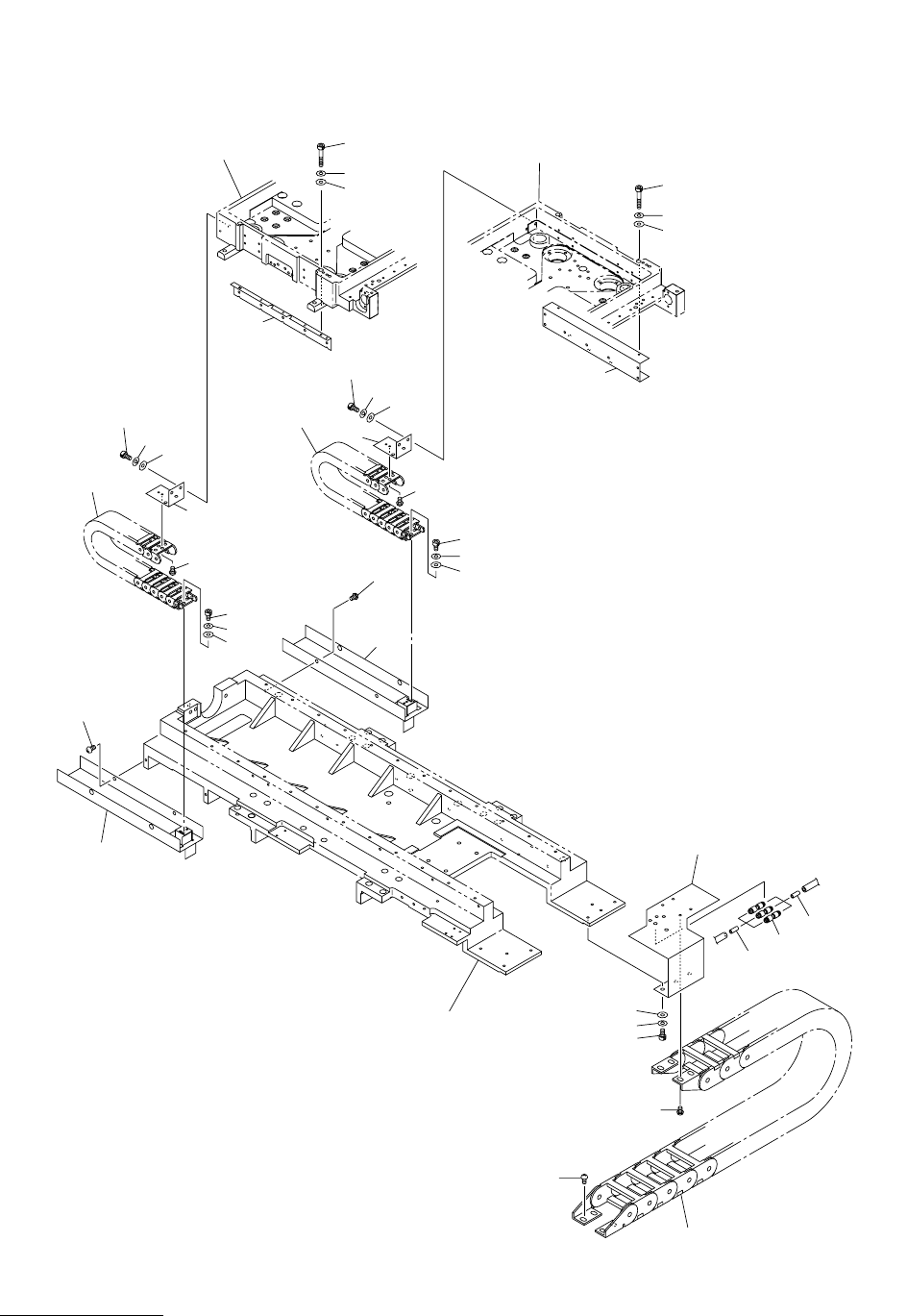

XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING
Fig. JE-3 ㈩▤ޔ㈩✢ᡰᜬㇱ Piping, Wiring Supporter
204
214
202
203
201
206
216
227
208
227
216
See Fig.JC-1
Key No.4
See Fig.JB-4
Key No.301
205
232
225
226
232
225
226
Fig.JE-3
TCM-X100J-002
4797S-002
See Fig.JC-1
Key No.4
214
209
218
221
211
213
224
225
226
230
230
222
219
231
209
213
224
225
226
218
221
211
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
141
JE-3
201 630 096 8019 BRACKET 1 766JE-010-201
202 630 096 8576 BRACKET 1 766JE-010-202
203 630 096 8569 BRACKET 1 766JE-010-203
204 630 096 8453 PLATE 1 766JE-010-204
205 630 096 8460 PLATE 1 766JE-010-205
206 630 098 9830 MECH PARTS 1 766JE-010-206
208 630 076 8916 PIPE FITTINGS 3 766JE-010-208
209 630 097 1415 MECH PARTS(CABLEVEYOR) 2 766JE-010-209
211 630 000 7626 BOLT,HEX-SCT 4 766JE-010-211
213 411 050 5004 SCR TRS 3X6 4 766JE-010-213
214 411 051 1708 SCR TRS 4X6 4 766JE-010-214
216 411 140 8007 SCR TRS 5X6 8 766JE-010-216
218 411 141 2905 WASHER SPR 4 4 766JE-010-218
219 411 141 6705 WASHER SPR 5 3 766JE-010-219
221 411 141 4008 WASHER V 4X9X0.8 4 766JE-010-221
222 411 141 4107 WASHER V 5X10X1 3 766JE-010-222
224 630 000 7503 BOLT,HEX-SCT 4 766JE-010-224
225 411 141 2806 WASHER SPR 3 8 766JE-010-225
226 411 141 3902 WASHER V 3X7X0.5 8 766JE-010-226
227 630 079 8432 AIR LINE EQPT 6 766JE-010-227
230 630 098 3814 BRACKET 2 766JE-010-230
231 630 000 7756 BOLT,HEX-SCT 3 766JE-010-231
232 630 000 7596 BOLT,HEX-SCT 4 766JE-010-232
