MODEL TCM-X100J 0212-002 20 ࡈࠖ࠳ࠠࡖ࠶ࠫㇱ FEEDER CARRIAGE SECTION Fig. C-1 ࡈࠖ࠳ゲ㚟േㇱ Feeder Axis Driver Fig.C-1 TCM-X100J-002 4797S-002 7 7 8 17 7 16 18 20 19 25 24 23 19 34 23 See Fig.L-1 K ey No .9 24 25 7 21 1 7 8 20 22 8…
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
19
BB-3
201 630 085 1434 ASSY,HOLDER 12 766BB-010-201
201 -01 630 082 8863 MOTOR,STEPPING 1 MPM1-12,M9529Z01A
201 -02 630 090 0057 CAM 1
201 -03 630 083 1726 BOLT,HEX-SCT 2
201 -05 630 082 8894 BUSH,BALL 5
201 -06 630 048 0849 SEAL 10
201 -07 630 083 1696 HOLDER 1
201 -08 630 097 4805 BOLT,HEX-SCT 3
201 -09 630 083 4369 COLLAR 5
201 -10 630 098 6624 DISK 1
201 -11 630 057 0076 PIPE FITTINGS 1
201 -12 630 091 2654 PLATE 1
201 -13 630 083 3300 HOLDER 1
201 -14 630 091 2661 BOLT,HEX-SCT 1
201 -16 630 082 1390 BEARING,RADIAL 1
201 -20 630 085 8389 MECH PARTS(MAGNET) 1
201 -21 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 1
201 -22 630 082 9808 SET SCREW 2
201 -23 630 116 2737 CAP 2
202 630 089 7494 NAME PLATE,PARTS 1 766BB-010-202
203 630 089 7500 NAME PLATE,PARTS 1 766BB-010-203
MODEL TCM-X100J
0212-002
20

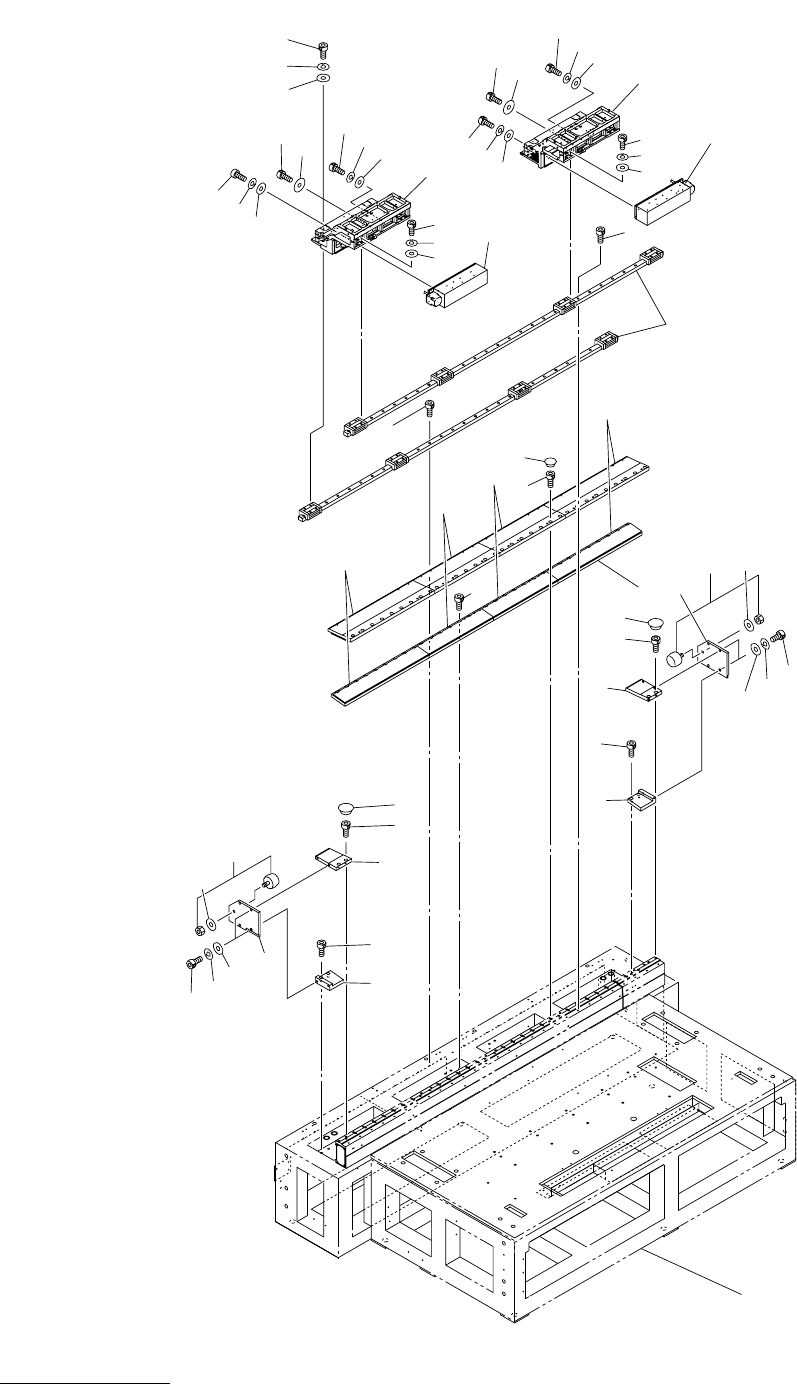

ࡈࠖ࠳ࠠࡖ࠶ࠫㇱ FEEDER CARRIAGE SECTION
Fig. C-1 ࡈࠖ࠳ゲ㚟േㇱ Feeder Axis Driver
Fig.C-1
TCM-X100J-002
4797S-002
7
7
8
17
7
16
18
20
19
25
24
23
19
34
23
See Fig.L-1
Key No.9
24
25
7
21
1
7
8
20
22
8
7
6
5
3
2
2
15
14
13
5
3
30
29
28
27
26
9
10
33
32
31
15
14
13
33
32
31
11
15
14
13
12
27
26
30
29
28
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
21
C-1
1 630 117 6352 GUIDE,LINEAR 2 766C--010-001
2 630 000 7893 BOLT,HEX-SCT 56 766C--010-002
3 630 115 4213 MOTOR,AC-SERVO 2 766C--010-003
5 630 115 9942 MOTOR,AC-SERVO 2 766C--010-005
7 411 179 5107 BOLT HEX-SCT 10X20 72 766C--010-007
8 630 085 9058 MECH PARTS (CAP) 36 766C--010-008
9 630 117 5713 BASE 1 766C--010-009
10 630 118 2025 MOTOR,AC-SERVO 1 MSVM2(F1),#B0340177
766C--010-010
11 630 117 5706 BASE 1 766C--010-011
12 630 118 2018 MOTOR,AC-SERVO 1 MSVM5(F4),#B0340176
766C--010-012
13 411 141 4503 WASHER V 8X17X1.6 32 766C--010-013
14 411 141 3100 WASHER SPR 8 32 766C--010-014
15 630 000 8029 BOLT,HEX-SCT 32 766C--010-015
16 630 096 5735 PLATE 1 766C--010-016
17 630 116 8425 PLATE 1 766C--010-017
18 630 096 5759 PLATE 1 766C--010-018
19 630 034 8743 SHOCK ABSORBER 2 766C--010-019
20 411 141 4800 WASHER V 12X24X2.5 2 766C--010-020
21 630 096 5766 PLATE 1 766C--010-021
22 630 116 8432 PLATE 1 766C--010-022
23 411 141 6309 WASHER F 10X18X2 8 766C--010-023
24 411 141 3209 WASHER SPR 10 8 766C--010-024
25 630 000 8135 BOLT,HEX-SCT 8 766C--010-025
26 630 107 7093 WASHER 2 766C--010-026
27 630 116 4410 BOLT,HEX-SCT 2 766C--010-027
28 411 141 6309 WASHER F 10X18X2 8 766C--010-028
29 411 141 3209 WASHER SPR 10 8 766C--010-029
30 630 012 1704 BOLT,HEX-SCT 8 766C--010-030
31 411 141 6002 WASHER F 6X11.5X1.6 20 766C--010-031
32 411 141 3001 WASHER SPR 6 20 766C--010-032
33 630 000 7923 BOLT,HEX-SCT 20 766C--010-033
34 630 096 8071 PLATE 1 766C--010-034
