Model DECAN Series Company SAMSUNG TECHWIN Module T roubleshooting V ersion 01 Tit le Malfunction classification table Note Page 6 Symptoms and Areas Code Case Software [I1006] When the PC boots, the login window shows u…

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

Troubleshooting

Version

Title

Malfunction classification table

Note

Page

Symptoms and Areas Code Case

Feeder & ANC [E1009]

Feeder vinyl discharge error.

Head

[F1000]

Ball spline damages, bending or shaking.

[F1001]

Z, R axes noises, vibration and shaking.

[F1002] "Alarm detected on specific axis" error occurs.

[F1003] Homing error on a specific axis.

[F1004]

"Tracking error on a specific axis" error occurs.

[F1005]

Mirror defects.

[F1006]

Side Camera fails to operate.

[F1007]

Head's axial motor or homing location is changed” error occurs.

[F1008]

Head picks up the part's edge.

[G1000]

Monitor displays the 'No Signal' message.

[G1001]

Blue screen during booting or operation.

[G1002]

While loading the MMI, the "Grabber type does not match…"

error occurs.

[G1003]

System down time during MMI operation.

[G1004]

PC booting repeats.

[G1005]

MMI downloading stopped.

[G1006]

Cannot boot due to the HDD detection error.

[G1007] Monitor decolorization, sharking.

[G1008] MFC arithmetic error while booting the MMI.

Performance

[H1000]

Pick up error occurs.

[H1001]

Parts flying away.

[H1002]

Part mounting errors.

[H1003] Failed to detect a part.

[H1004] LED part flipped or reversely placed.

[H1005]

Pause during production.

[H1006]

Part mounted in the nozzle.

[H1007]

Mounting failure.

Software

[I1000]

Optimizer execution paused.

[I1001] After the optimizer is down, the Manager Mode is deactivated.

[I1002]

Forcefully terminating the MMI after running the optimizer.

[I1003]

Optimizer Error

[I1004]

Rear and front have different fiducial mark detection locations.

[I1005]

When opening the PCB file, the filename exists but does not open.

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

Troubleshooting

Version

Title

Malfunction classification table

Note

Page

Symptoms and Areas Code Case

Software

[I1006]

When the PC boots, the login window shows up

but the booting fails.

[I1007]

Even if you set the tape feeder to none,

a different tape feeder is selected.

[I1008] Assert Error occurs.

[I1009]

PCB File Downloading fails.

[I1010]

MPU stops and equipment stops.

[I1011]

Cannot communicate with the previous/next equipment.

Vision

[J1000]

Fly camera video not displayed. Video off. Noises.

[J1001] Timeout error while processing the vision command.

[J1002] Fiducial camera video not displayed. Video off. Noises.

[J1003]

Fiducial Mark detection error.

[J1004]

Camera Detection Time Out Error (vision communication error)

[J1005]

"Cannot find the fiducial mark edge." error occurs.

[J1006] Stage Camera lighting bad.

[J1007] Monitor video shaking.

[J1008]

Bad Mark detection error occurs.

X,Y Frame

[K1000]

X-axis noise, vibration.

[K1001]

"Alarm detected on the Y axis" error occurs.

[K1002]

"Alarm detected on the X axis" error occurs.

[K1003] Y axis noises, vibrations.

[K1004]

Amp deactivation error occurs.(Homing operation error)

[K1005]

"Excessive skews while operating the axis" error occurs.

[K1006]

"H/W Limit detected" error occurs.

[K1007]

"Gantry's XY movement range is exceeded" error occurs.

[K1008] "Failed to find a fiducial while mapping the gantry" error occurs.

[K1009] "G1F-X, Y has a tracking error."

[K1010]

Thermal Mapping Timing Error occurs.

Model

DECAN Series

Company

SAMSUNG TECHWIN

Module

AIR

Version

Title

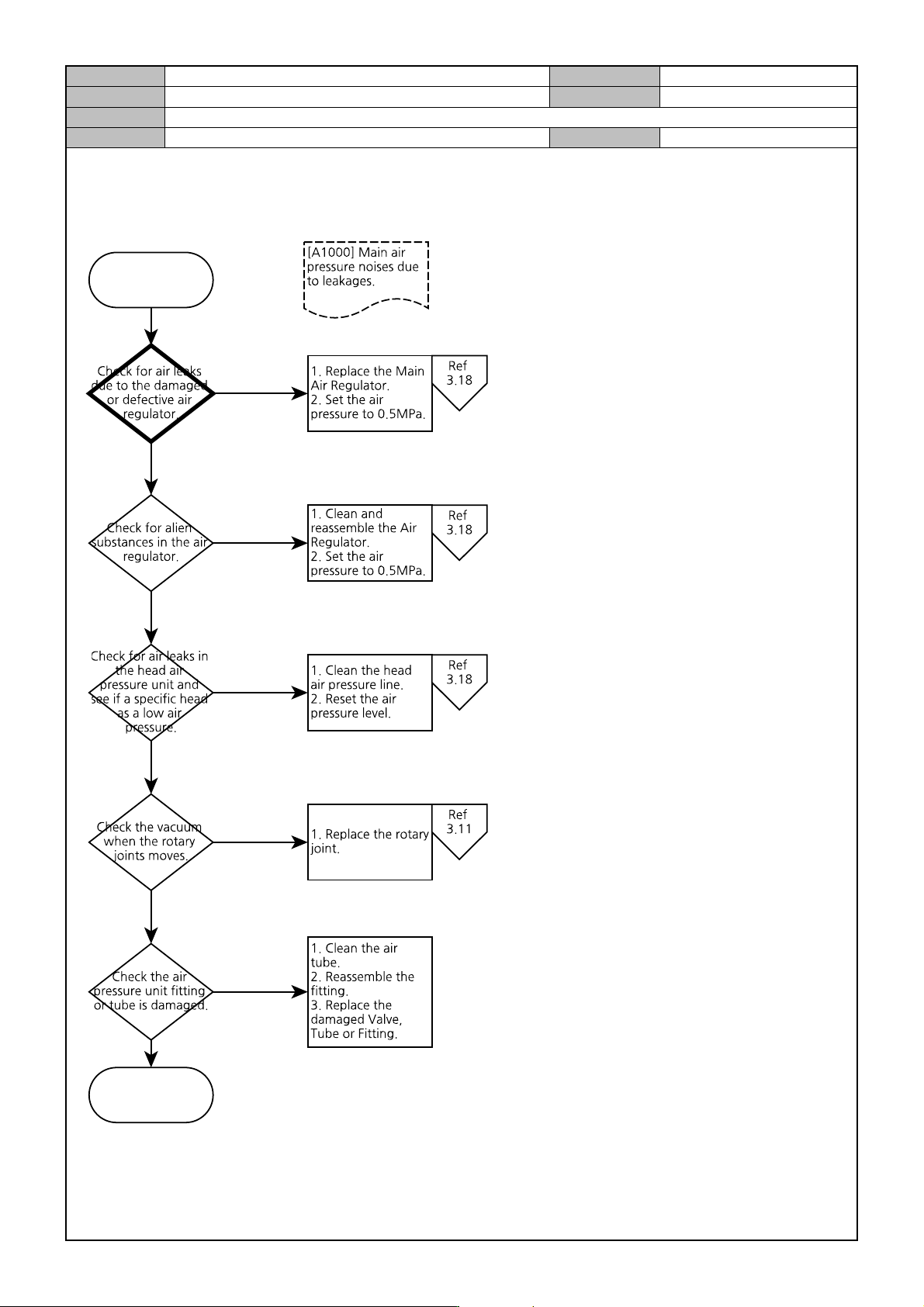

[A1000] Main air pressure noises due to leakages.

Note

Page

[A1000] Main air pressure noises due to leakages.

START

END
