0002-001 3-3 ⇟ภ ㇱຠ⇟ภ ㇱ ຠ ฬ ᢙ㊂ ⠨ Key No. PART No. PART NAME Q'ty REMARKS CB-4195 CB-4197 CB-4195T CB-4197T 1 630 079 7107 ASSY,PLATE 1 1 1 1 2 411 140 6805 SCR FLT 2X 4 6 6 6 6 M 2x4 FLT 11 630 079 7145 ASSY,LEVER…
0111-002
ࡃ࡞ࠢࡈࠖ࠳ BULK FEEDER

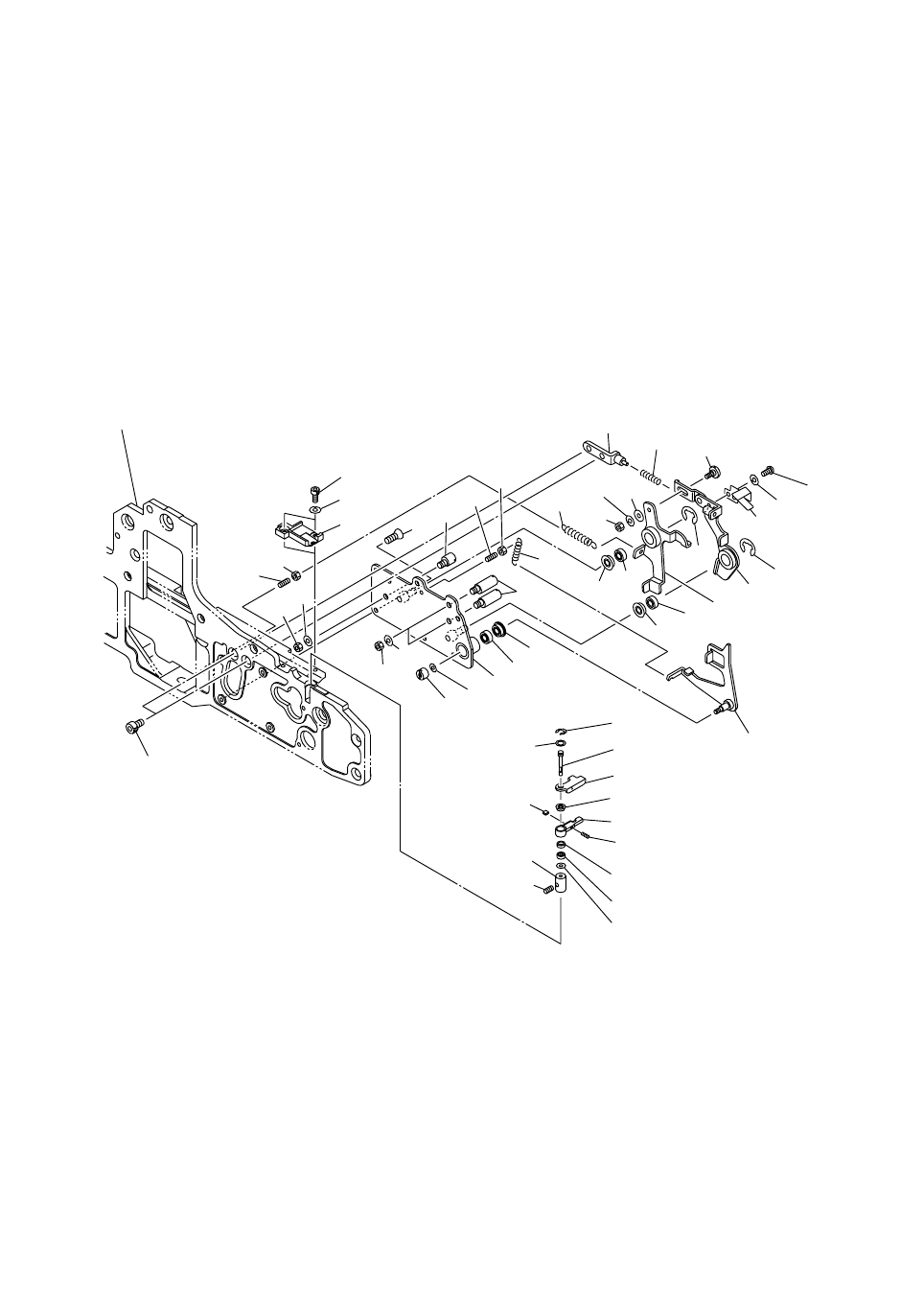

Fig. 3-3 ࠪࡖ࠶࠲ㇱ Shutter Section
37
32
33
30
29
38
31
11
14
22
24
25
92
28
51
27
12
13
26
46
43
42
41
36
93
91
1
21
15
16
2
23
17
50
49
47
48
84
83
82
76
77
81
79
80
78
84-1
73
See Fig.3-1
Key No.1
72
71
Fig.3-3
CB-4195(P-143-001)
CB-4195(P-142-001)
75
85
75-1
0002-001
3-3
⇟ภ ㇱຠ⇟ภ ㇱ ຠ ฬ ᢙ㊂
⠨
Key No. PART No. PART NAME Q'ty REMARKS
CB-4195
CB-4197
CB-4195T
CB-4197T
1 630 079 7107 ASSY,PLATE 1 1 1 1
2 411 140 6805 SCR FLT 2X4 6 6 6 6 M2x4 FLT
11 630 079 7145 ASSY,LEVER 1 1 1 1
12 630 007 1764 BEARING,RADIAL 1 1 1 1 685DL-01H-030
13 630 001 1630 BEARING,RADIAL 1 1 1 1 685DL-01H-029
14 411 000 9304 RING E 2 1 1 1 1 685DL-01H-013
15 630 074 5962 SPRING,COMP 1 1 1 1 685DL-01B-044
16 630 079 7121 ASSY,SUPPORT 1 1 1 1
17 630 000 7497 BOLT,HEX-SCT 2 2 2 2 M3X4
21 630 079 7114 ASSY,LEVER 1 1 1 1
22 630 007 1764 BEARING,RADIAL 1 1 1 1 685DL-01H-030
23 630 001 1630 BEARING,RADIAL 1 1 1 1 685DL-01H-029
24 411 000 9304 RING E 2 1 1 1 1 685DL-01H-013
25 630 075 8757 PIN,HINGE 1 1 1 1 685DL-01B-124
26 411 141 6903 WASHER V 2X5X0.3 1 1 1 1 FW2
27 411 141 2608 WASHER SPR 2 1 1 1 1 SW2
28 411 140 9202 NUT HEX 2 1 1 1 1 M2
29 630 007 1764 BEARING,RADIAL 1 1 1 1 685DL-01H-030
30 630 001 1630 BEARING,RADIAL 1 1 1 1 685DL-01H-029
31 630 079 7152 ASSY,LEVER 1 1 1 1
32 411 141 2608 WASHER SPR 2 1 1 1 1 SW2
33 630 074 5818 NUT 1 1 1 1 685DL-01B-114
36 630 074 5764 PIN,LOCATE 2 2 2 2 685DL-01B-118
37 411 141 2806 WASHER SPR 3 2 2 2 2 SW3
38 411 141 0109 NUT HEX 3 2 2 2 2 M3-3
41
630 075 8160 SET SCREW 1 1 1 1 685DL-01H-035
42
411 140 9202 NUT HEX 2 1 1 1 1 M2
ᵈᗧ
NOTE
0111-002
3-3
⇟ภ ㇱຠ⇟ภ ㇱ ຠ ฬ ᢙ㊂
⠨
Key No. PART No. PART NAME Q'ty REMARKS
CB-4195
CB-4197
CB-4195T
CB-4197T
43 630 075 2656 SPRING,TENSION 1 1 1 1 685DL-01B-139
46 630 074 5757 PIN,LOCATE 1 1 1 1 685DL-01B-119
47 411 141 2806 WASHER SPR 3 1 1 1 1 SW3
48 411 141 0109 NUT 1 1 1 1 M3-3
49 630 075 8153 SET SCREW 1 1 1 1 685DL-01H-034
50 411 140 9202 NUT 1 1 1 1 M2
51 630 075 9617 SPRING,TENSION 1 1 1 1 685DL-01B-141
71 630 076 0224 CHUTE 1 1 685DL-01B-041
71 630 076 0200 CHUTE 1 1 685BL-01B-041
72 411 141 2608 WASHER SPR 2 2 2 2 2 SW2
73 630 000 7466 BOLT,HEX-SCT 2 2 2 2 M2X6
75 630 075 8795 HOLDER 1 1 1 1 685DL-01B-128
75 -1 630 105 9198 COLLAR 1 1 1 1 685DL-01H-145
76 630 075 8900 LEVER 1 1 685DL-01B-061
76 630 075 8818 LEVER 1 1 685BL-01B-061
77 630 090 0996 SPRING,TENSION 1 1 1 1 685DL-01B-075
78 630 090 0996
MECH PARTS(MAGNET 1005C)
1 1 685DL-01H-015
78
630 071 4845 MECH PARTS(MAGNET) 1 1 685BL-01H-015
79
630 075 8870 COLLAR 1 1 1 1 685DL-01B-132
80
630 032 2514 BEARING,RADIAL 1 1 1 1 685DL-01H-032
ᵈᗧ
NOTE
