01 1 1-002 3-5 ⷗಴⇟ภ ㇱຠ⇟ภ ㇱ ຠ ฬ ᢙ㊂ ஻⠨ Key No. PART No. PART NAME Q'ty REMARKS CB-4195 CB-4197 CB-4195T CB-4197T 1 630 101 1585 ASSY,BASE 1 1 1 630 101 0847 ASSY,BASE 1 1 1 -1 630 087 5942 BUSH,LINEAR 1 1 685DL-01B-03…

0111-002

ࡃ࡞ࠢࡈࠖ࡯࠳ BULK FEEDER

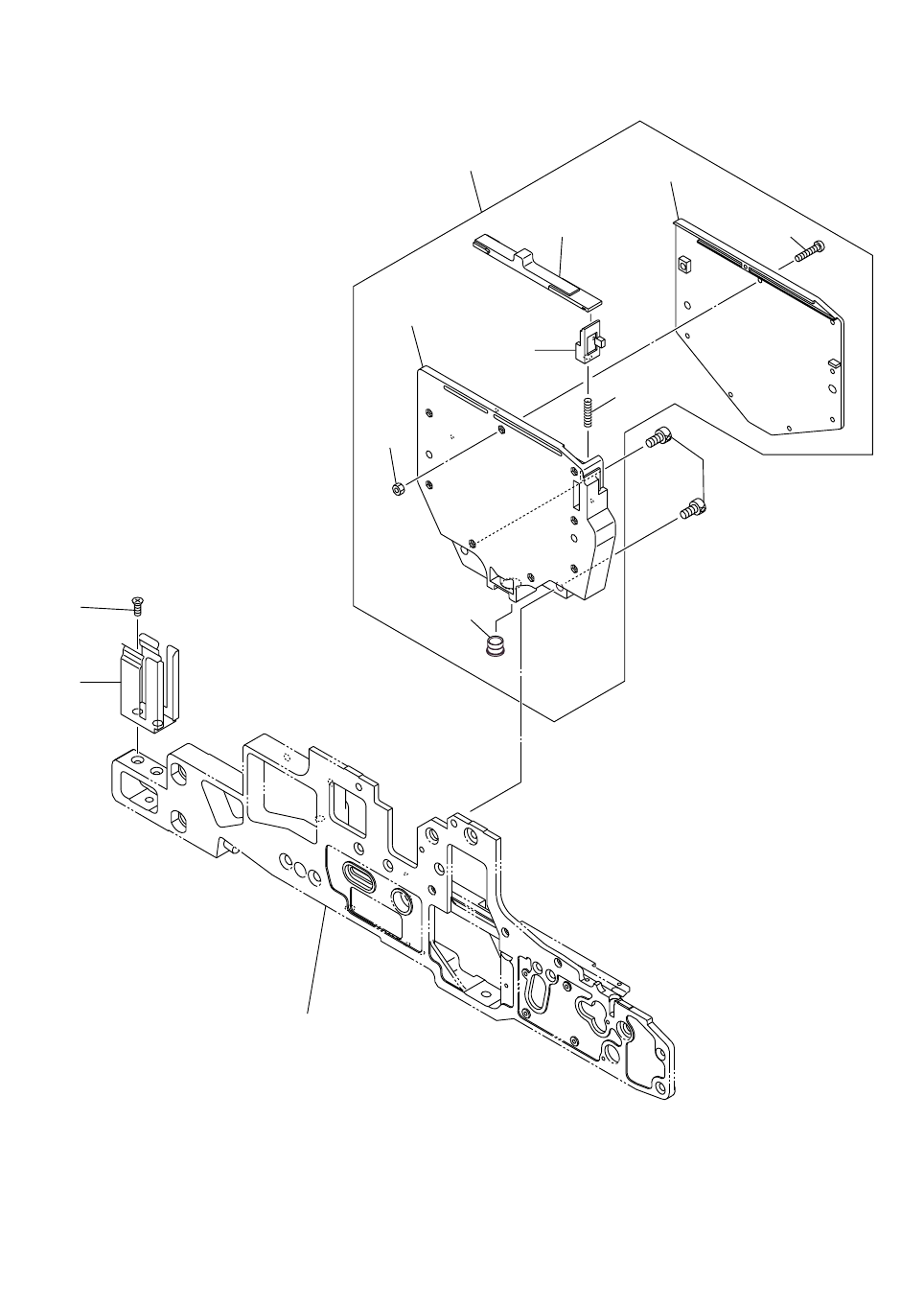

Fig. 3-5 ࡎ࠶ࡄ࡯ࠤ࡯ࠬㇱ Hopper Case Section

Fig.3-5

CB-4195(P-143-001)

CB-4195(P-142-001)

See Fig.3-1

Key No.1

1-8

1-2

1-3

1-5

1-4

1-7

1-6

1-1

0111-002

3-5

⷗಴⇟ภ ㇱຠ⇟ภ ㇱ ຠ ฬ ᢙ㊂

஻⠨

Key No. PART No. PART NAME Q'ty REMARKS

CB-4195

CB-4197

CB-4195T

CB-4197T

1 630 101 1585 ASSY,BASE 1 1

1 630 101 0847 ASSY,BASE 1 1

1 -1 630 087 5942 BUSH,LINEAR 1 1 685DL-01B-034

1 -1 630 093 1754 BUSH,LINEAR 1 1 685BL-01B-034

1 -2 630 069 9999 BASE 1 1 1 1 685DL-01B-080

1 -3 630 071 2575 COVER 1 1 1 1 685DL-01B-083

1 -4 630 083 2372 SLIDE(A) 1 1 1 1 685DL-01B-087

1 -5 630 070 0022 SLIDE(B) 1 1 1 1 685DL-01B-101

1 -6 630 069 7247 SPRING,COMP 1 1 1 1 685DL-01B-110

1 -7 630 071 2636 MECHINE SCREW 8 8 8 8 685DL-01H-018

1 -8 411 140 9301 NUT HEX 2 8 8 8 8 M2-3 F

28 630 078 6224 BOLT,HEX-SCT 2 2 2 2 685DL-01H-036

31 630 066 9015 BRACKET 1 1 1 1 685DL-01B-091

32 411 002 2600 SCR FLT 3X6 2 2 2 2 M3X6 FLT

ᵈᗧ

NOTE

0002-001

ࡃ࡞ࠢࡈࠖ࡯࠳ BULK FEEDER

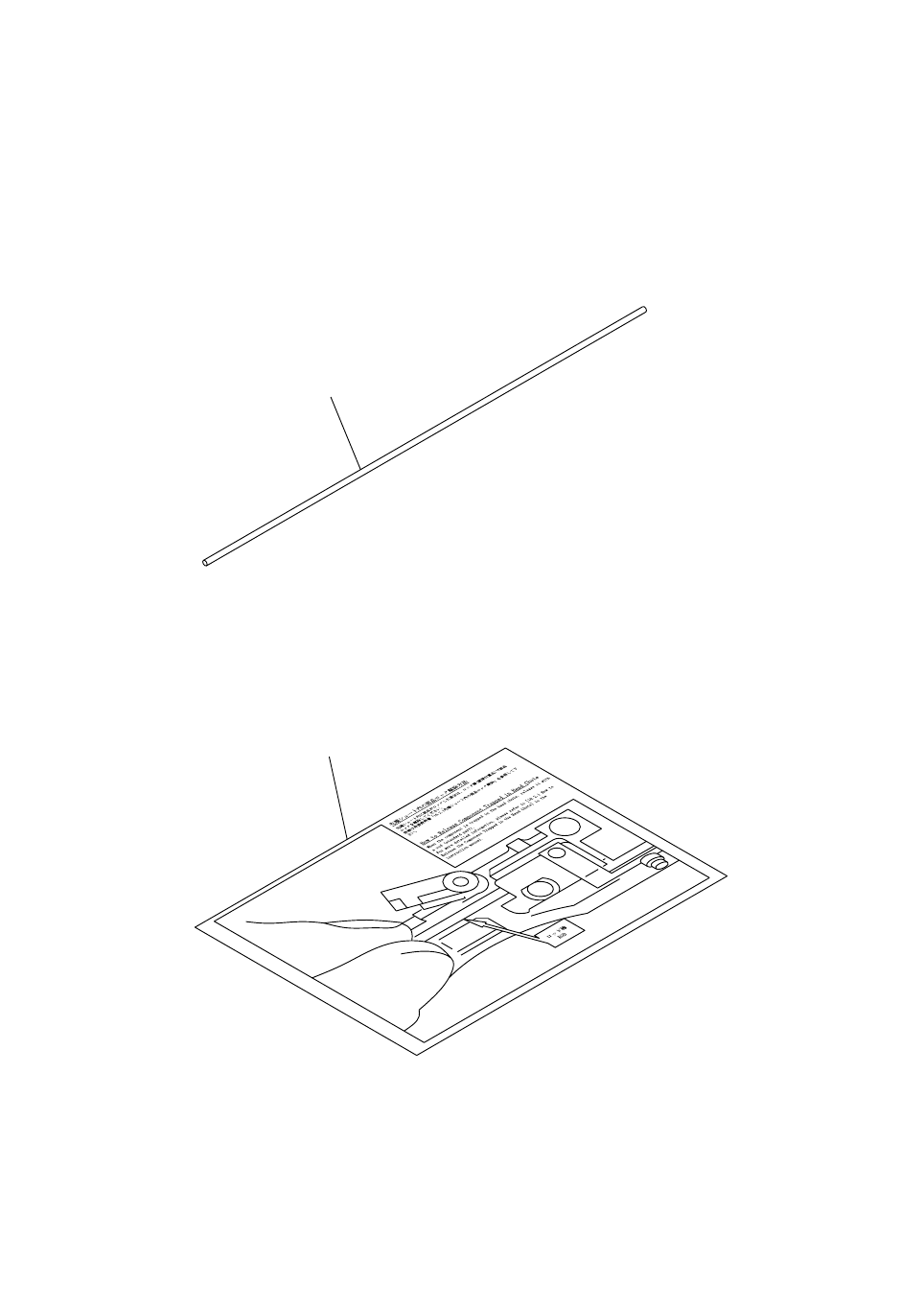

Fig. 3-10 ᮡḰઃዻຠ Standard Accessory Parts

Fig.3-10

CB-4195(P-143-001)

CB-4195(P-142-001)

CB-4105C(P-141-001)
