2 H110 MACHINE CONTROLLER
2.3 MACHINE CONTROLLER ENCLOSURE
STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020 9
2.3 MACHINE CONTROLLER ENCLOSURE
2.3.1 Motherboard System
This board provides the master control of all machine functions, it houses the Central Processing
Unit (CPU) which is an Intel® Pentium® Dual Core processor G4400 3.3GHz, with 8gb DDR4
RAM.
2.3.2 BIOS Settings
The BIOS settings are password protected to prevent any settings being changed.
In the highly unlikely event that Machine Controller issues have been caused by the BIOS settings
contact the CSG Helpdesk.
2.3.3 Machine Controller Storage
The 256gb Solid State Drive (SSD) contains the machines Windows® operating system, controller
functions and provides storage space for machine log files and data.
2 H110 MACHINE CONTROLLER
2.4 PCI INTERFACE CARD
10 STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020
2.4 PCI INTERFACE CARD
The Unibrain Fireboard-Blue™ 400 host adaptor is a PCI interface card that enables the Machine
Controller with IEEE-1394a functions.
The features include:
●
IEEE – 1394a Compliance
●
Up to 400 Megabits per second
●
3 External Firewire Connectors (Items 1, 2, and 3 in the graphic below)
●
Open Architecture API (OHCI Compliant)
●
Compatibility Assurance
3
2
1
2 H110 MACHINE CONTROLLER
2.5 FRONT PANEL CONNECTORS
STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020 11

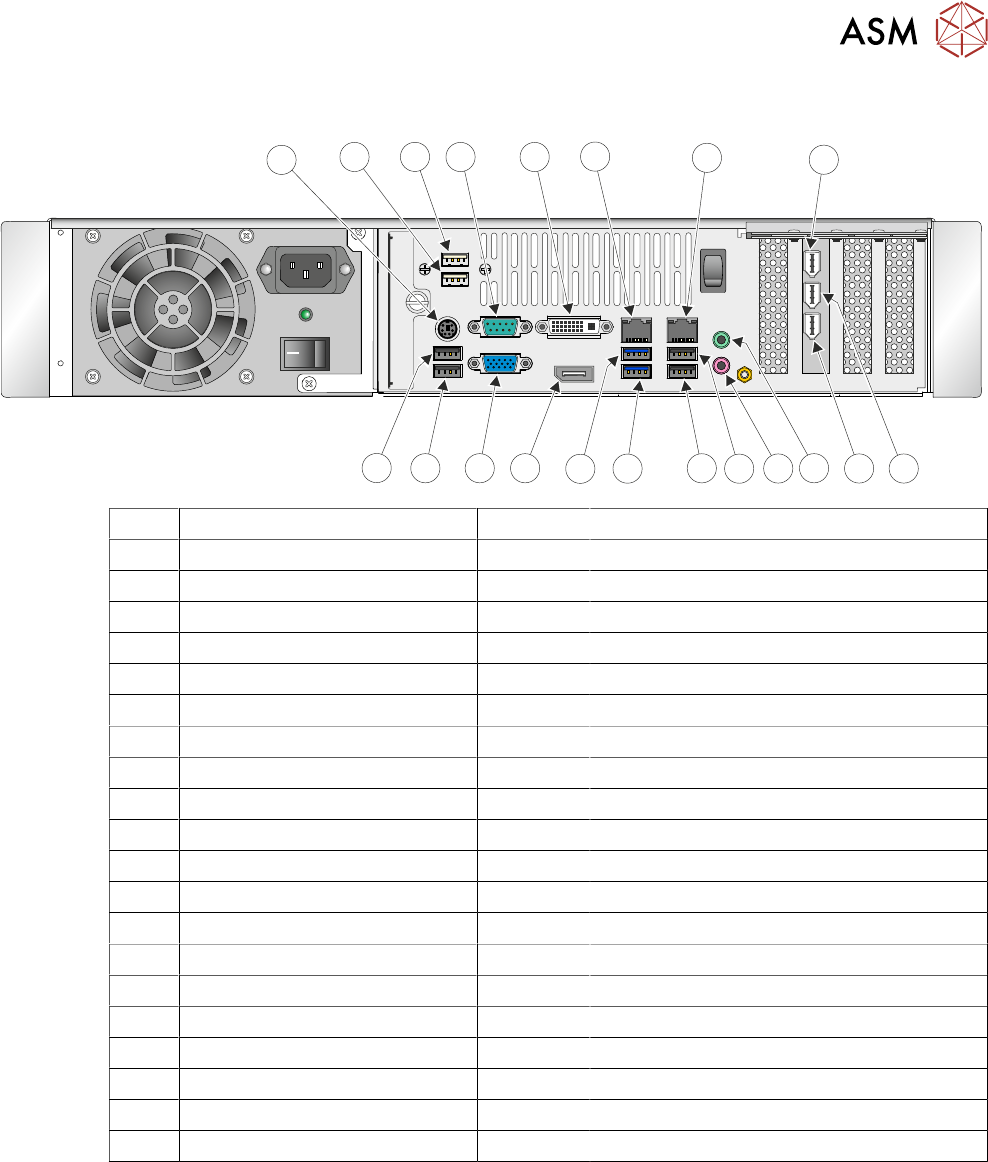

2.5 FRONT PANEL CONNECTORS
0
1
19
2
17
16
18
15
20
3
4
5
8
6
14
7
9
1112
10
13
Item Type Connector Description
1 RJ45 3SK02a LAN 2 Host Comms – Ethernet Port
2 Firewire – Port 1 3SK54 Not Used
3 Firewire – Port 2 3SK55 Digital Camera
4 Firewire – Port 3 3SK53 Not Used
5 Jack Socket (Green) 3SK47 Line Out - Not Used
6 Jack Socket (Pink) 3SK48 Mic In - Not Used
7 USB 3.0 3SK59 USB8 – USB/RS232 Converter
8 USB 3.0 3SK35 USB4 – NextMove ES
9 USB 3.0 3SK57 USB1 – USB Hub
10 USB 3.0 3SK34 USB2 - Not Used
11 Visual Display Port 3SK63 Visual Display Port - Not Used
12 15 Way D Type Plug 3PL05 VGA - Monitor Display
13 USB 2.0 3SK37 USB6 – M37 PSU
14 USB 2.0 3SK36 USB3 – Dongle
15 PS2 3SK04 6 Pin Mini Keyboard - Not Used
16 USB 2.0 3SK58 USB7 – Covers RH Operator USB Devices
17 USB 2.0 3SK56 USB5 – Covers LH Operator USB Devices
18 9 Way D Type Plug 3PL03 COM 2 RS232 – Stinger (If fitted)
19 DVI 3SK64 DVI-I – Monitor – Not Used
20 RJ45 3SK02b LAN 1 Host Comms – Not Used
NOTE
Ensure that the correct USB ports are used. Manufacturers claim that USB 2.0 and USB 3.0 are
backward and forwards compatible, but there has been reported problems of some USB 2.0
devices not working correctly in a USB 3.0 port.
