2 H110 MACHINE CONTROLLER
2.2 ELECTRICAL SCHEMATIC
8 STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020
2.2 ELECTRICAL SCHEMATIC
2 H110 MACHINE CONTROLLER
2.3 MACHINE CONTROLLER ENCLOSURE
STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020 9
2.3 MACHINE CONTROLLER ENCLOSURE
2.3.1 Motherboard System
This board provides the master control of all machine functions, it houses the Central Processing
Unit (CPU) which is an Intel® Pentium® Dual Core processor G4400 3.3GHz, with 8gb DDR4
RAM.
2.3.2 BIOS Settings
The BIOS settings are password protected to prevent any settings being changed.
In the highly unlikely event that Machine Controller issues have been caused by the BIOS settings
contact the CSG Helpdesk.
2.3.3 Machine Controller Storage
The 256gb Solid State Drive (SSD) contains the machines Windows® operating system, controller
functions and provides storage space for machine log files and data.
2 H110 MACHINE CONTROLLER
2.4 PCI INTERFACE CARD
10 STANDALONE MANUAL H110 MACHINE CONTROLLER 05/2020
2.4 PCI INTERFACE CARD

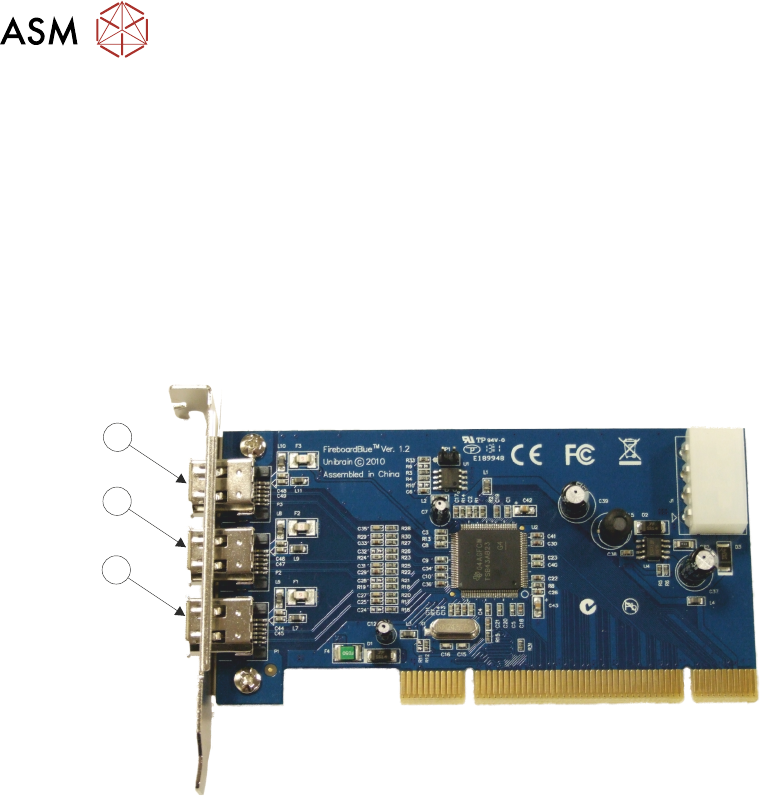

The Unibrain Fireboard-Blue™ 400 host adaptor is a PCI interface card that enables the Machine
Controller with IEEE-1394a functions.
The features include:
●
IEEE – 1394a Compliance
●
Up to 400 Megabits per second
●
3 External Firewire Connectors (Items 1, 2, and 3 in the graphic below)
●
Open Architecture API (OHCI Compliant)
●
Compatibility Assurance
3
2
1
